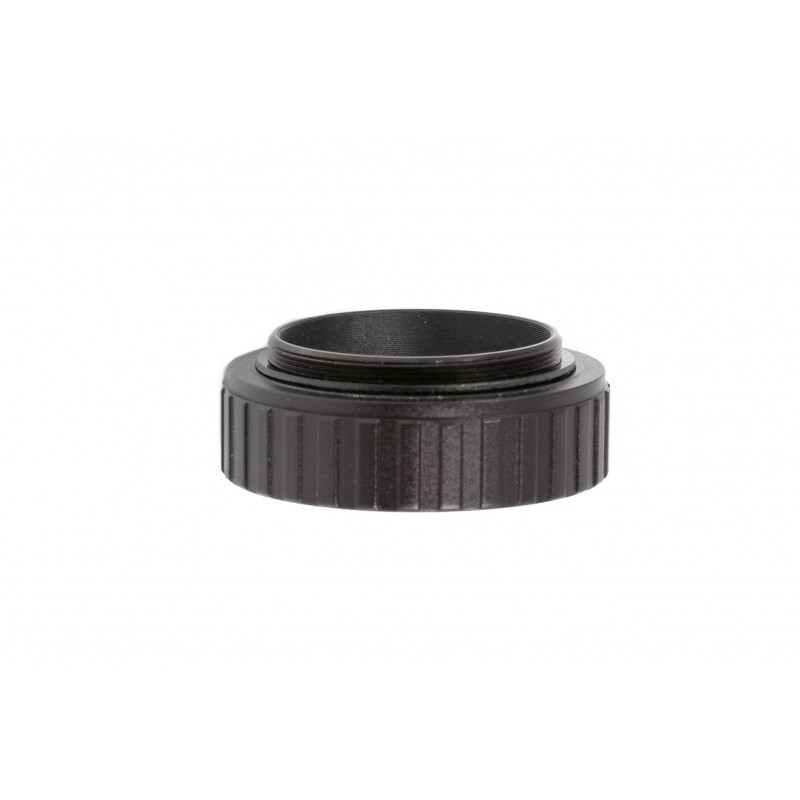

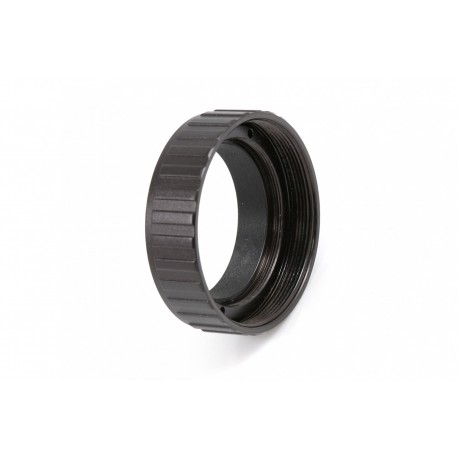

Baader T Adapter 10 mm for Schmidt-Cassegrain

Baader T Adapter 10 mm for Schmidt-Cassegrain

DESCRIPTION

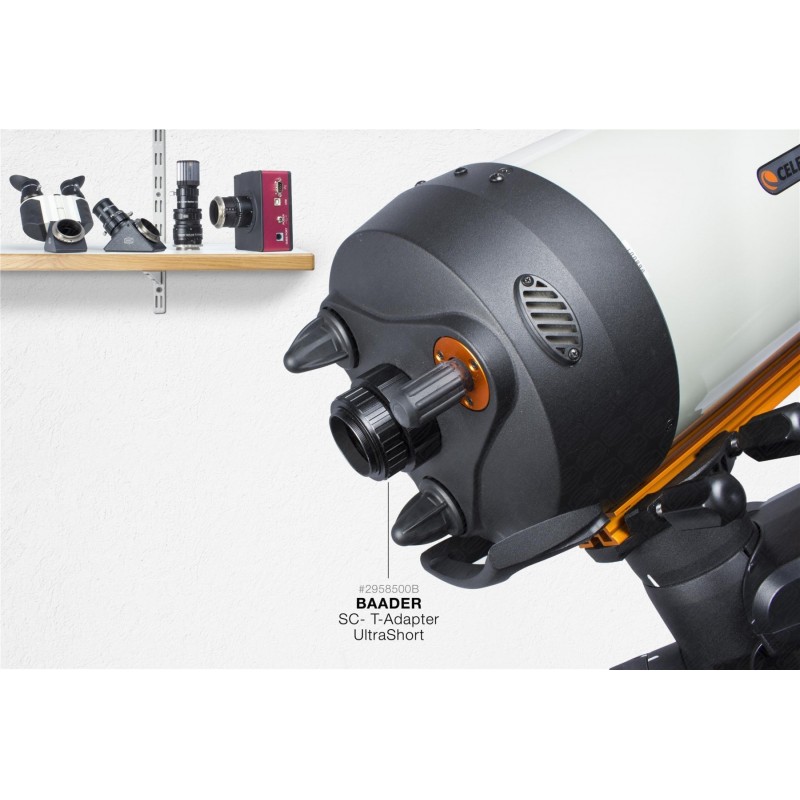

This ultra-thin Baader adapter allows direct connection of any T/T2 threaded accessory (M42 x 0.75 mm) to Schmidt-Cassegrain optical tubes (Celestron / Meade). With only 10 mm of thickness and 7 mm optical path length, it's ideal for use with the Alan Gee Mark II telecompressor or the giant Zeiss binocular viewer, effectively reducing the focal ratio from F/10 to F/5.9.

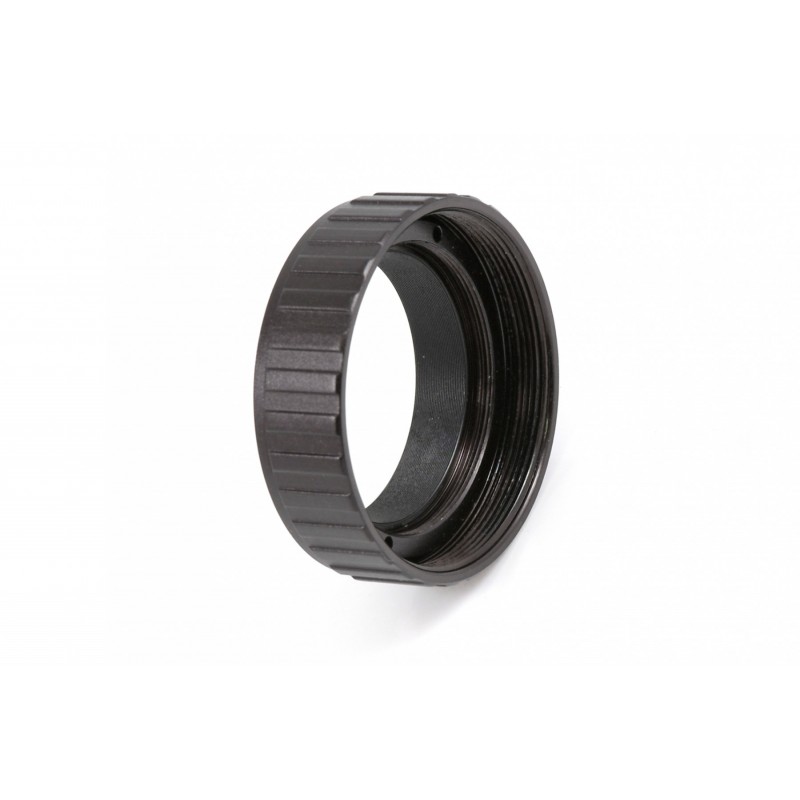

It consists of two adjustable rings to precisely set and lock the desired orientation. The build quality and compatibility with the Astro T-2 standard make it a highly reliable part for compact imaging assemblies.

TECHNICAL SPECIFICATIONS

• Optical length: 7 mm
• Total thickness: 10 mm
• Weight: 38 g
• Telescope side thread: 2" (50.8 mm)
• Camera/accessory side thread: T2 male (M42 x 0.75 mm)
• Inner diameter: 39 mm
• Outer diameter: 56 mm
• Material: anodized aluminum
• Compatibility: Schmidt-Cassegrain Celestron / Meade, Baader, Astro T-2 standard
