Description

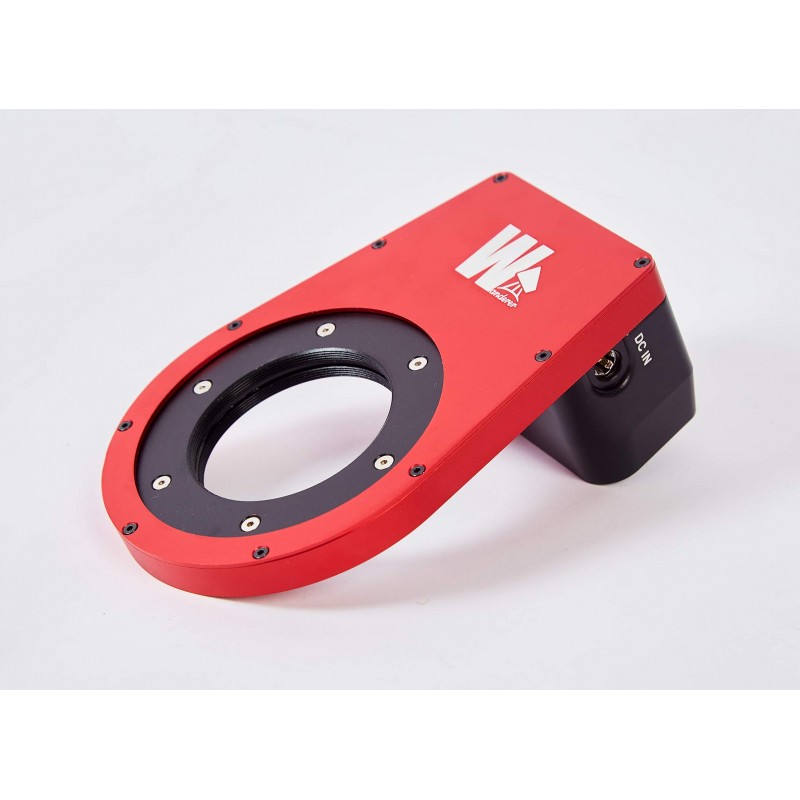

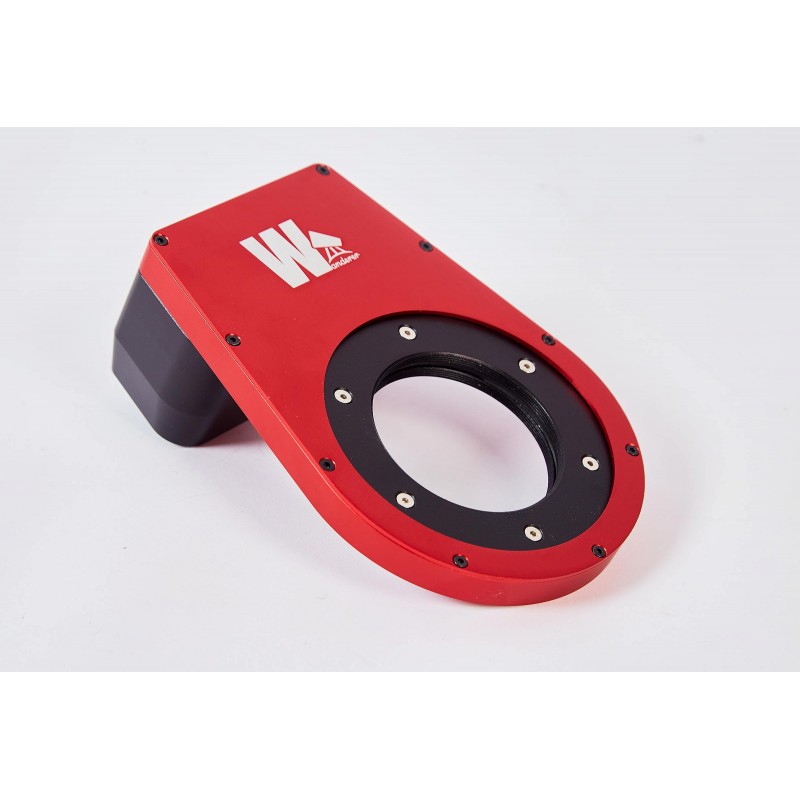

The WandererRotator Lite V2 M68 is built for demanding astrophotographers.
Its 7.5 Nm (15 kg) load capacity meets most imaging needs, assuming a 50 mm center-of-gravity distance.

The patented zero-tilt and zero-flexure design ensures perfect collimation and pinpoint stars even during long exposures.
With an angle resolution of 0.0008°/step (0.005°), it provides superior framing precision.

Its 12 mm ultra-thin body and 550 g weight leave maximum backfocus and minimize focuser strain.
The built-in de-rotation support integrates seamlessly with NINA for automated framing on alt-azimuth or Dobsonian mounts.
Each unit undergoes rigorous quality control, ensuring reliable performance even from –25 °C to 50 °C.

Box contents

• WandererRotator Lite V2

• 1 m USB 2.0 cable

• 1 m DC5521 male-to-male power cable

Technical specifications

• Power supply: DC 5.5×2.1 mm 12 V

• Power consumption: < 0.5 A

• Connectivity: USB 2.0 Type-B

• Weight: 550 g

• Payload: 7.5 Nm or 15 kg*

• Rotation rate: 3.5°/s

• Thickness: 12 mm

• Steps per degree: 1199 steps (0.0008°/step)

• Clear aperture: M68

• Material: Aluminum alloy

• Threaded interface: Both sides M68 female

• Operating temperature: –25 °C to 50 °C

*Payload depends on center-of-gravity distance (50 mm for specified rating).

Lightweight Design

With a weight of just 550 g, it puts no strain on the focuser.

Ultra-Thin Design

With an astonishing thickness of only 12mm, it leaves more space for your back focus and focusing travel.

Zero Flexure

Featuring a patented design, it guarantees absolute collimation at any angle, ensuring zero tilt.

De-Rotation Support

A game-changer for alt-azimuth mount and Dobsonian telescope users, enabling seamless integration with NINA for fully automated framing and de-rotation sequences.

Stringent Quality Control

Each WandererRotator undergoes rigorous manual testing and measurement to ensure consistent quality and reliability.

Low temperature

Resistant design, able to work normally in environment as low as -25℃ (-13℉).

Dimension
