Description:

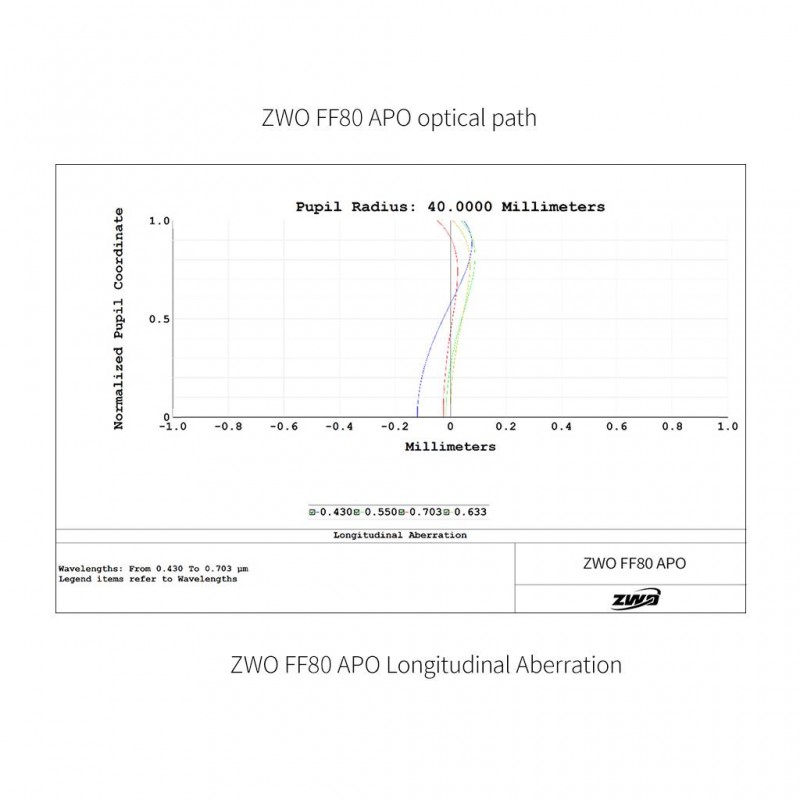

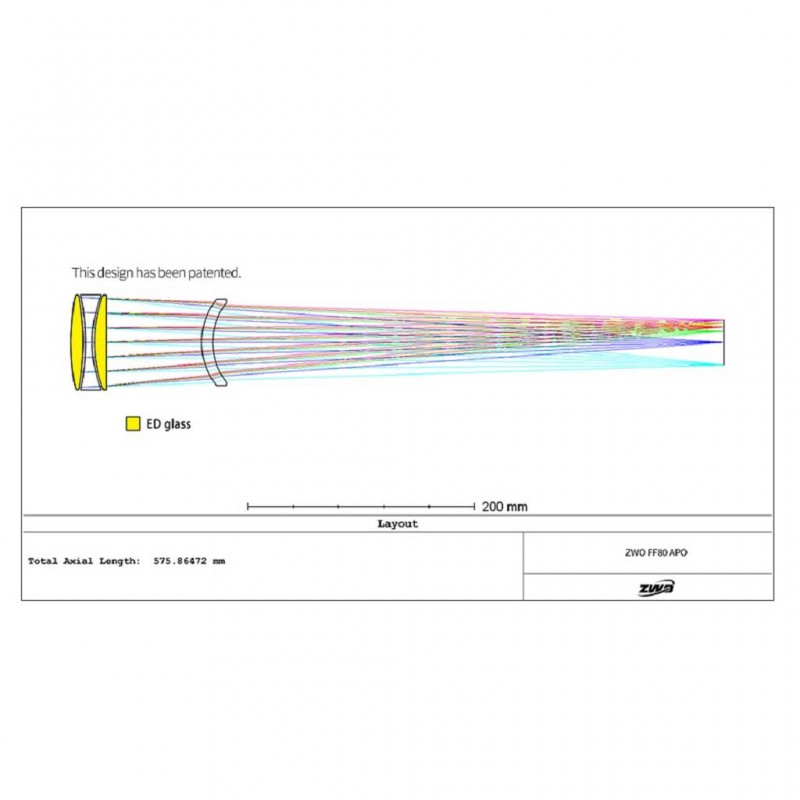

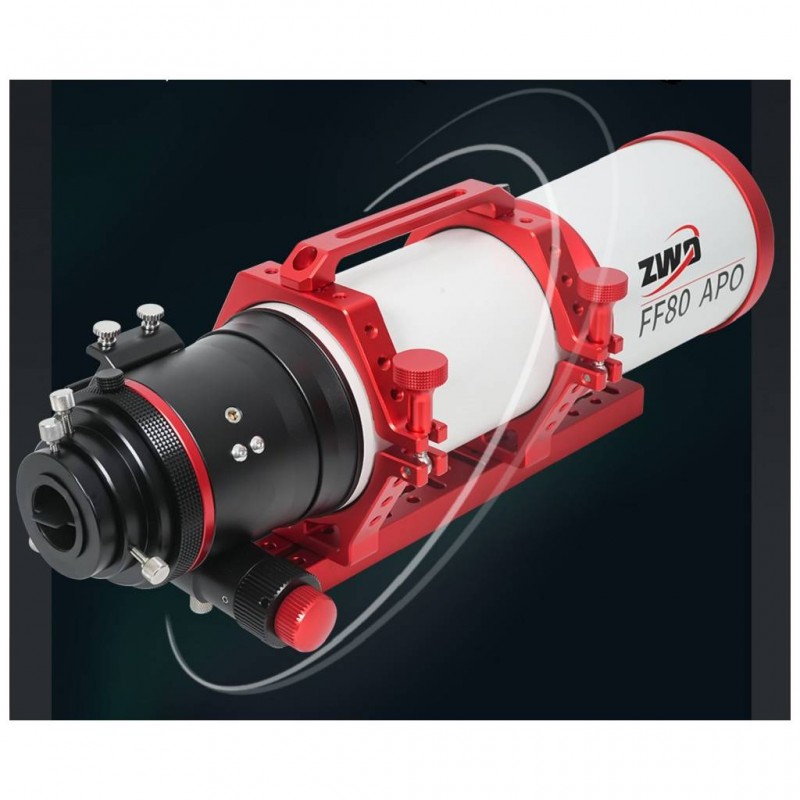

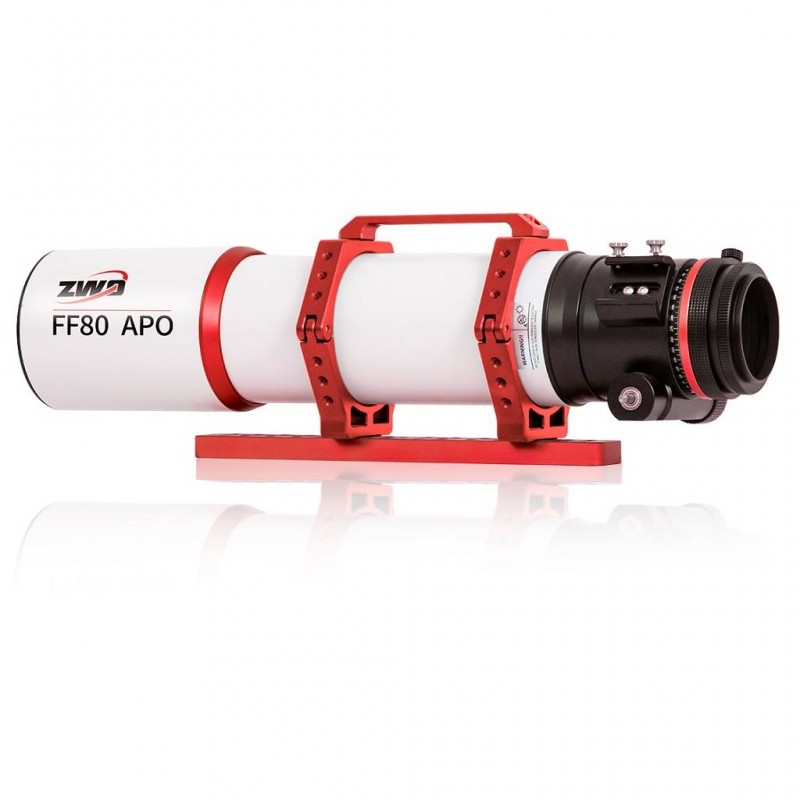

The ZWO FF80 is a 600 mm focal length, 80 mm aperture apochromatic astrograph designed for high-end imaging and observation. It uses a 4-element optical design, including a front triplet made with ED glass for excellent chromatic correction and contrast.

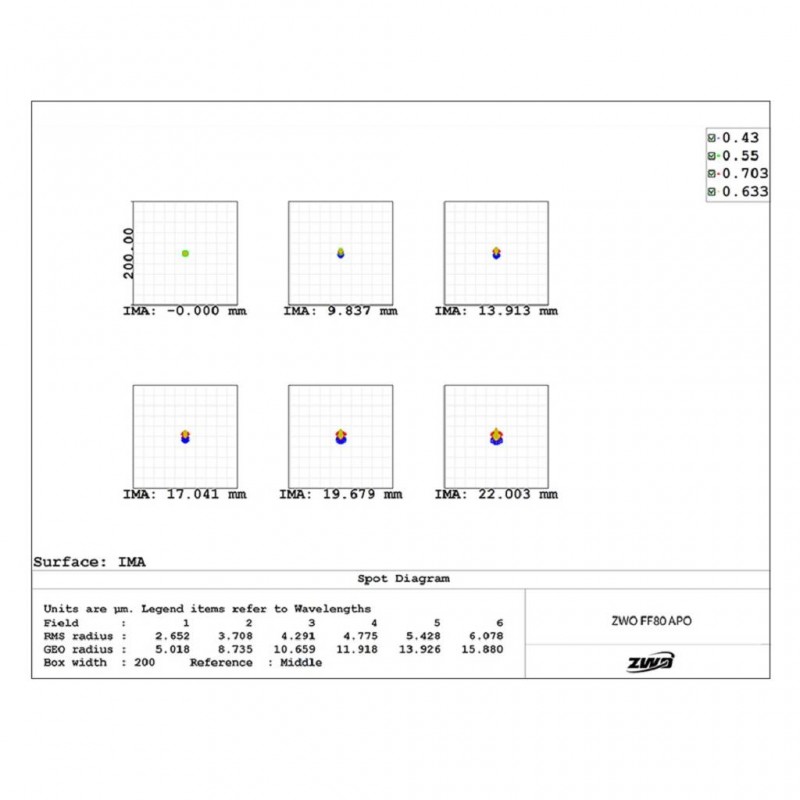

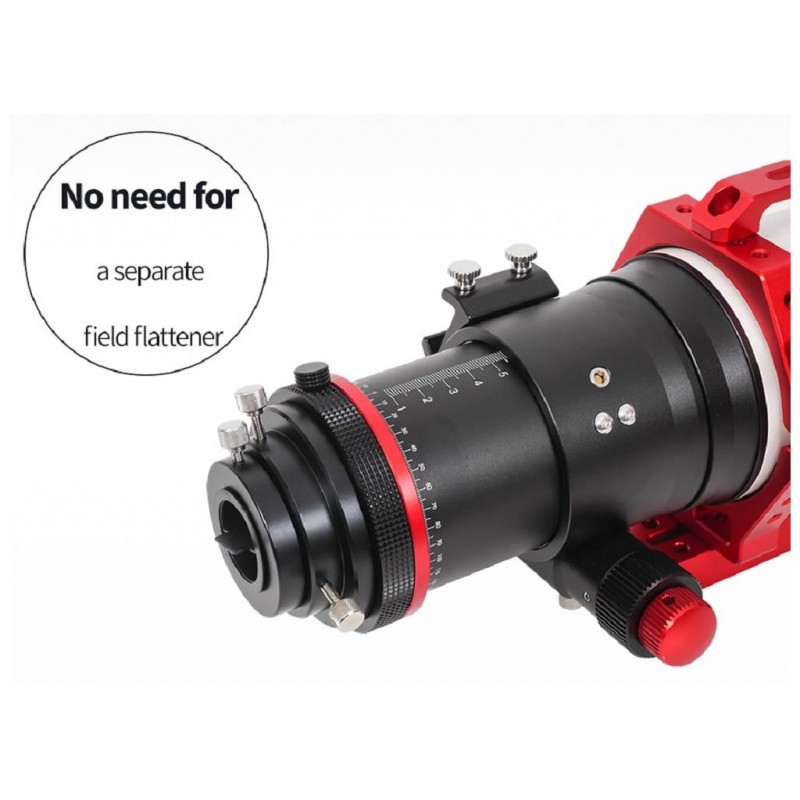

A rear field corrector ensures a flat image circle of 44 mm, making this instrument ideal for full-frame imaging sensors. The result is pinpoint stars and crisp images across the entire field.

Though compact, the FF80 refractor can reveal planetary details such as Saturn’s rings, Jupiter’s bands, and the Moon’s surface features. It also performs remarkably in deep-sky observation and astrophotography of nebulae, star clusters, and wide-field targets.

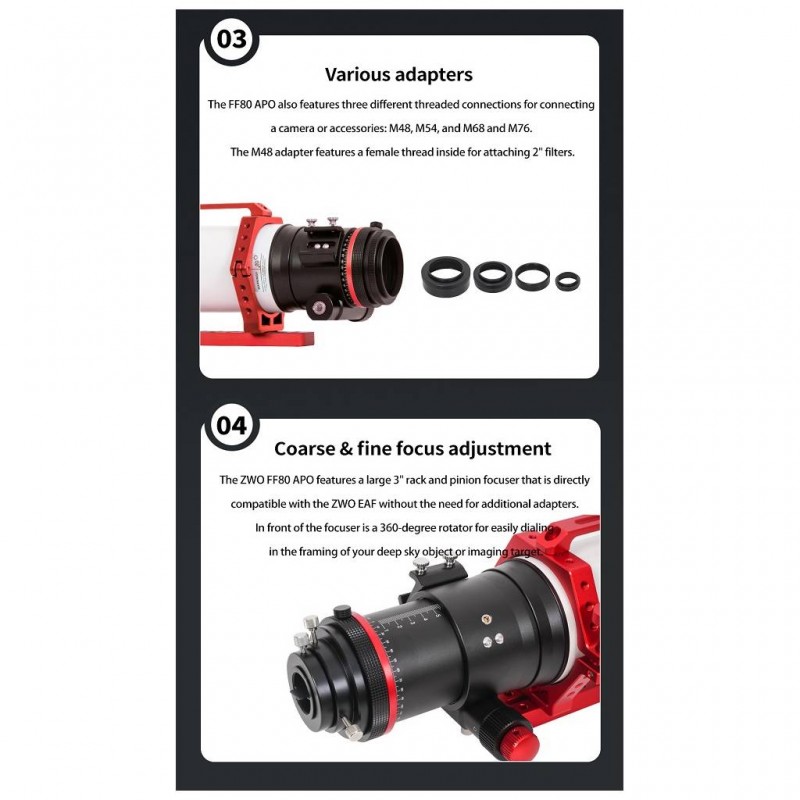

Its 3" Rack & Pinion focuser is dual-speed (10:1), 360° rotatable, and supports both 2" and 1.25" eyepieces and accessories. The rear thread is M76 x 1 mm with a 115 mm backfocus, and four adapter rings are included (M68, M54 x2, M48), with the M48 version accepting standard 2" filters.

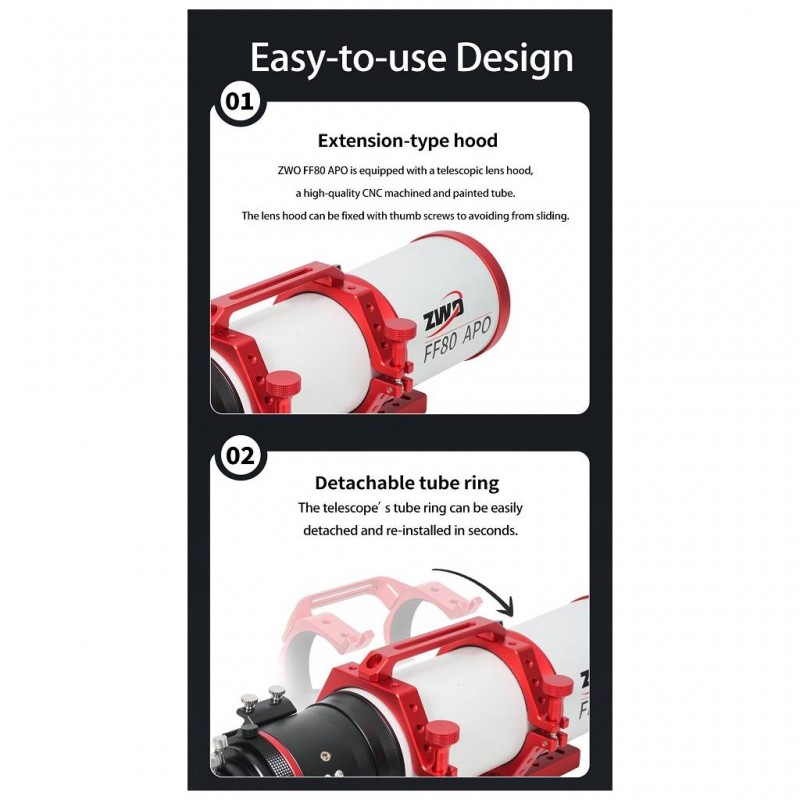

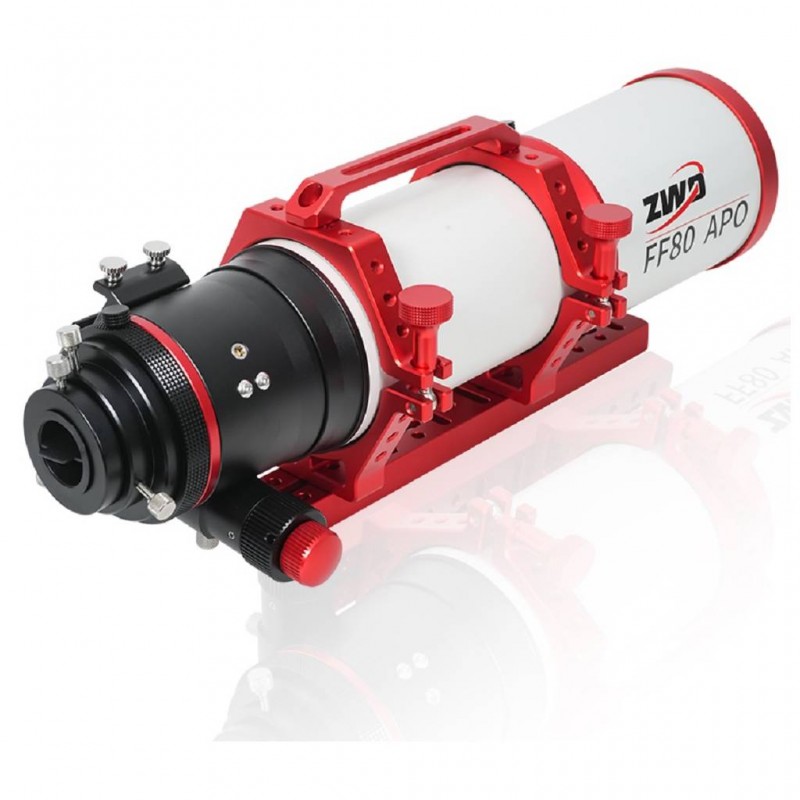

The retractable dew shield, Vixen-style dovetail bar, transport handle, and threaded tube rings make this refractor both compact and robust for transport and setup.

Technical specifications:

• Aperture: 80 mm

• Focal length: 600 mm

• Focal ratio: F/7.5

• Optical design: quadruplet with ED triplet

• Lens elements/groups: 4 in 2 groups

• Corrected image circle: 44 mm

• Resolution: 1.5"

• Limiting magnitude: 11.5

• Theoretical magnification: 178x

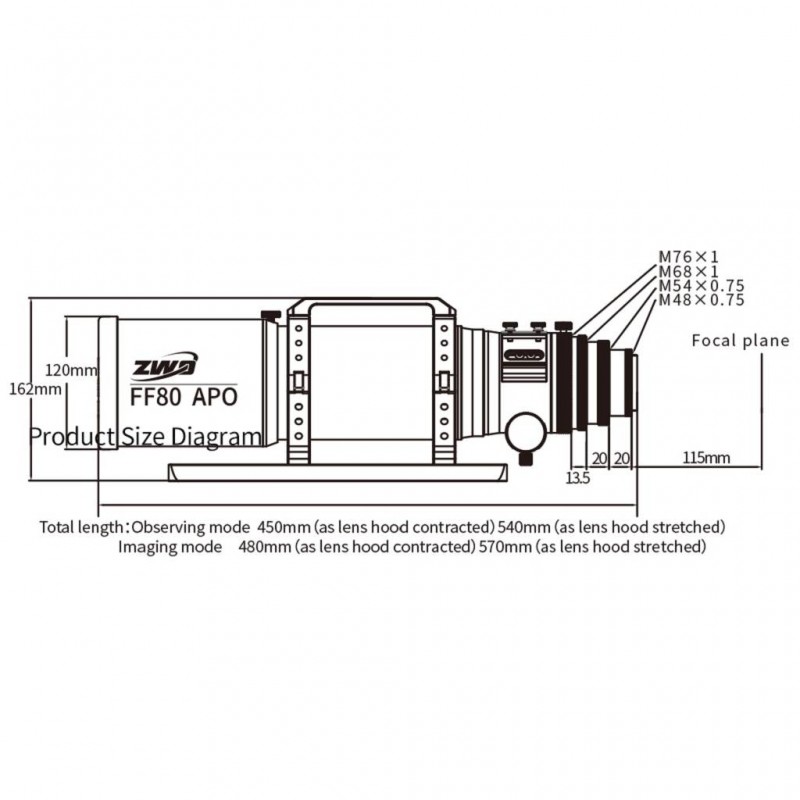

• Length (dew shield retracted): 540 mm

• Dew shield outer diameter: 120 mm

• Tube diameter: 105 mm

• Focuser: 3" Rack & Pinion, 10:1 dual-speed, 360° rotatable

• Compatible eyepieces: 2" and 1.25"

• Rear thread: M76 x 1 mm

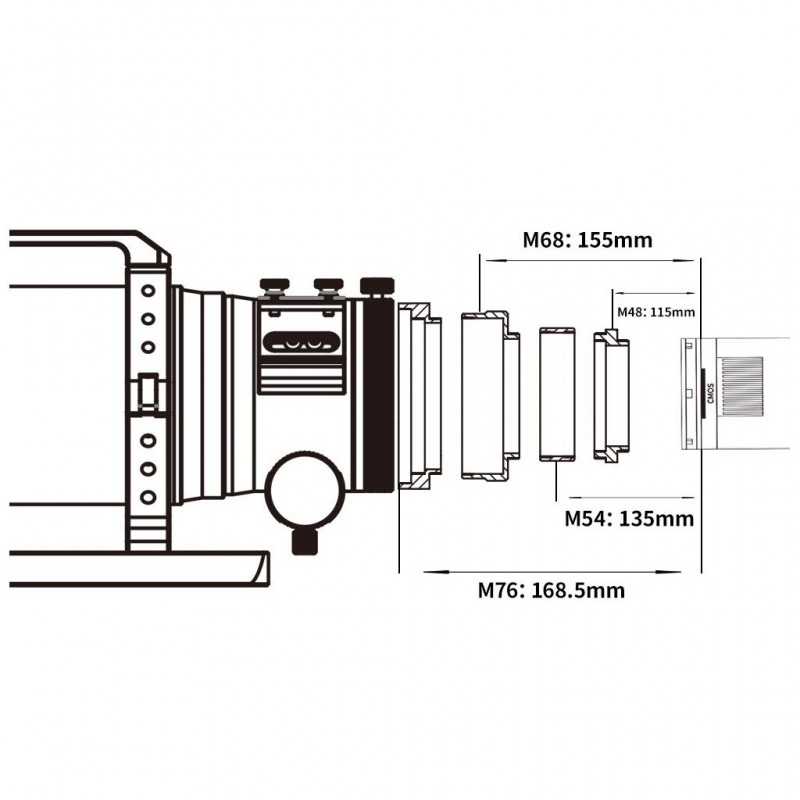

• Backfocus: 115 mm from M76 / 168.5 mm from M48

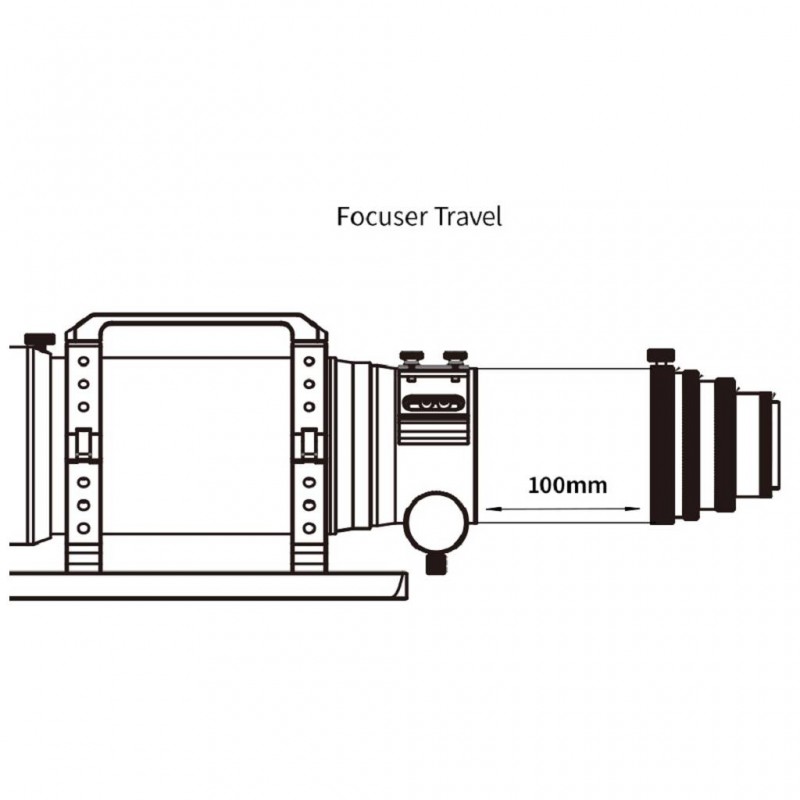

• Focuser travel: 100 mm

• Weight: approx. 5.8 kg

• Output threads: M68, M54 x 0.75 (x2), M48 x 0.75

• Filter mount: M48 x 0.75 female for 2" filters

Additional information:

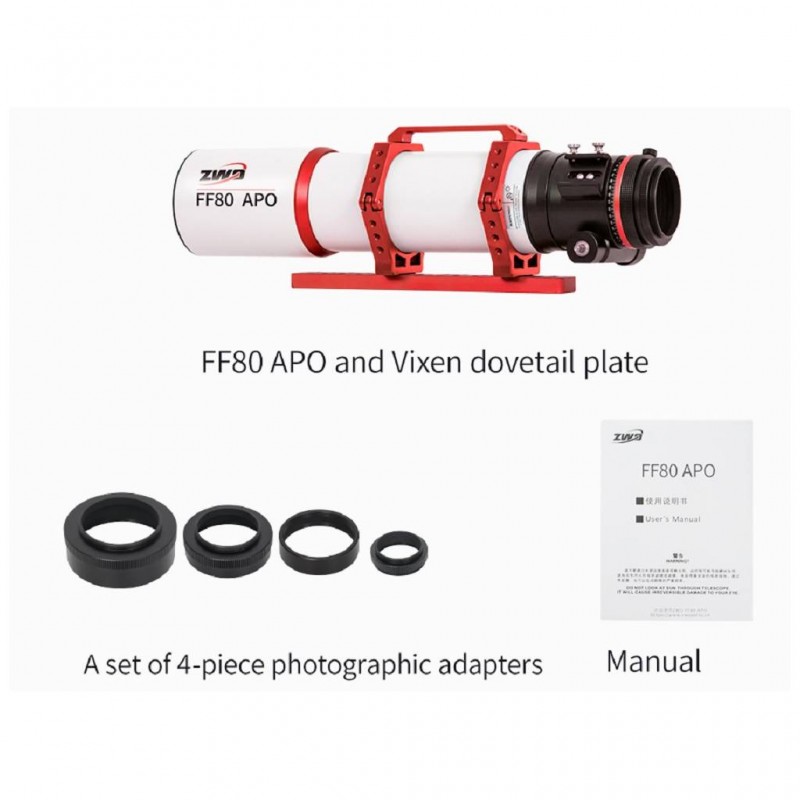

The FF80 comes with a Vixen-style dovetail, carrying handle, multiple thread adapters, and tube rings with M6 threads for extra accessories. Finder scope not included. The ZWO manufacturer warranty is one year.
