Baader ClickLock 2 inch to T2 M42 clamp
Baader ClickLock T2 (M42)
New product
Baader ClickLock 2 inch to T2 M42 clamp
Baader ClickLock 2 inch to T2 M42 clamp designed for Astro T2 system. Enables fast and secure locking of 2 inch accessories without screws using a lever mechanism. Ratchet function with tactile and acoustic feedback. Robust construction ensuring precise and safe holding.
In stock at the supplier. Delivery in Switzerland within two to three business days. For delivery outside Switzerland, please contact us.
More info
Baader ClickLock 2 inch to T2 M42 clamp
Description

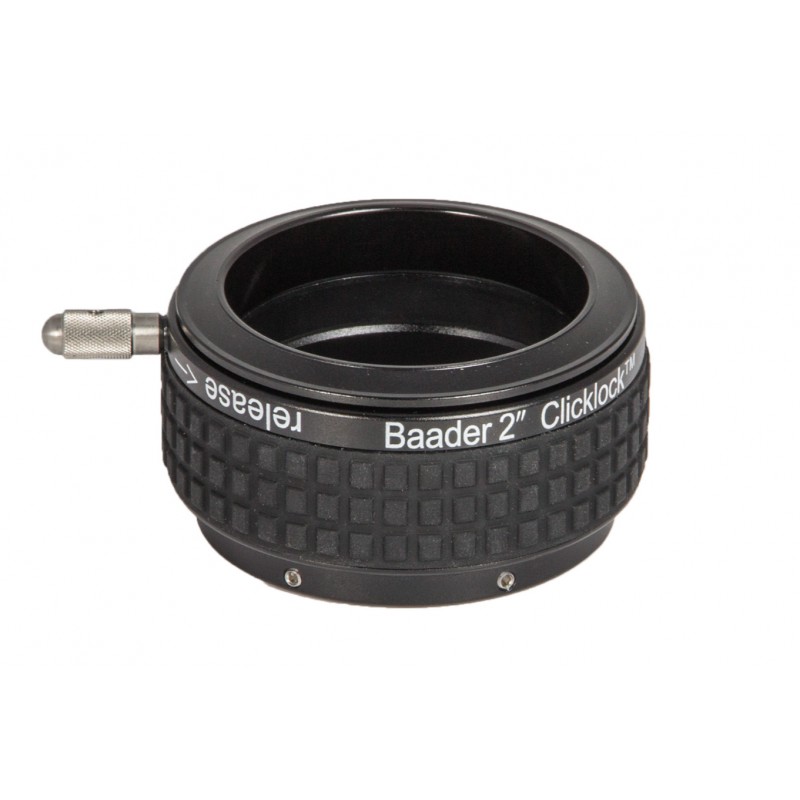

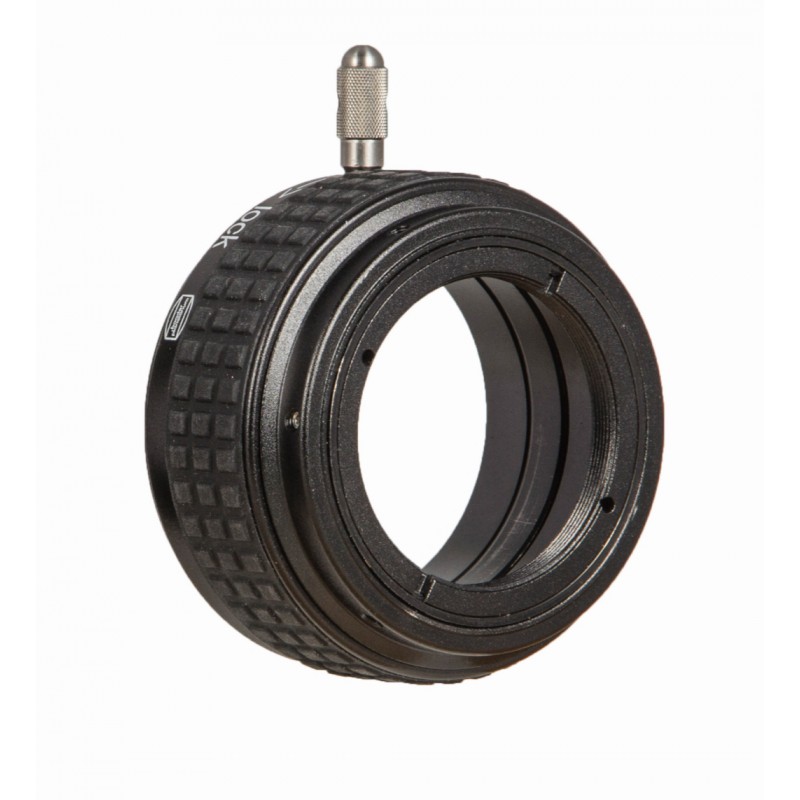

The Baader ClickLock 2 inch to T2 M42 clamp is a high precision mechanical adapter designed to securely hold 2 inch accessories within the Astro T2 system. It is compatible with all components featuring a male M42 x 0.75 thread.
The ClickLock system uses a lever mechanism allowing fast and reliable locking without tightening screws. A rotation of about 20 degrees with light fingertip pressure is sufficient to firmly secure each accessory. This mechanical principle, derived from industrial engineering, applies uniform pressure on three sides, preventing tilt and ensuring excellent stability.
The integrated ratchet function provides acoustic and tactile feedback indicating the clamp position, allowing the user to confirm whether it is open or closed even in darkness. The compression ring is made of thick walled hardened bronze, maintaining its shape over time and holding accessories securely without causing scratches or pressure marks.

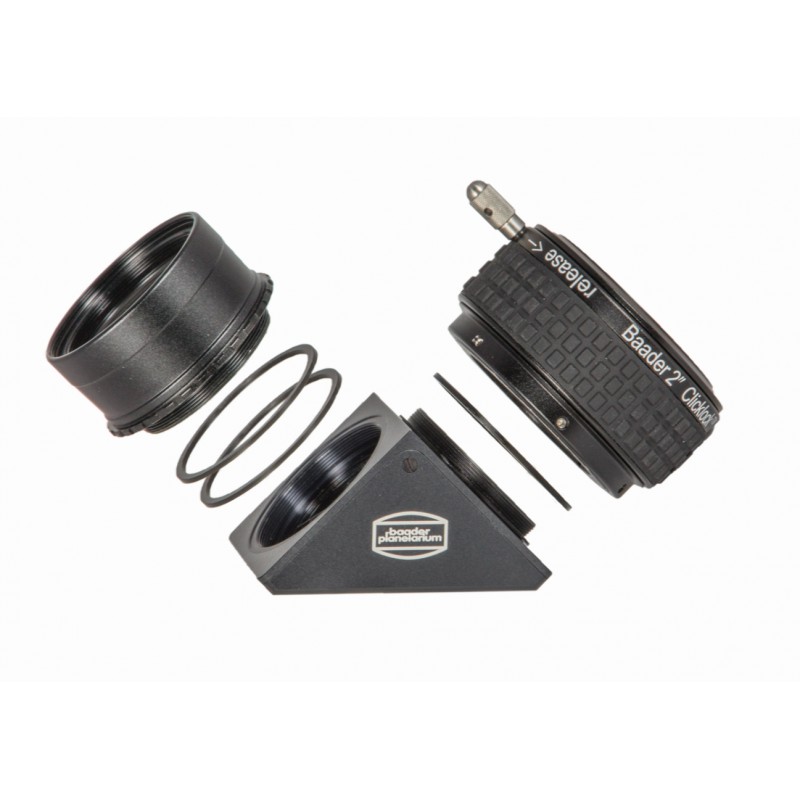

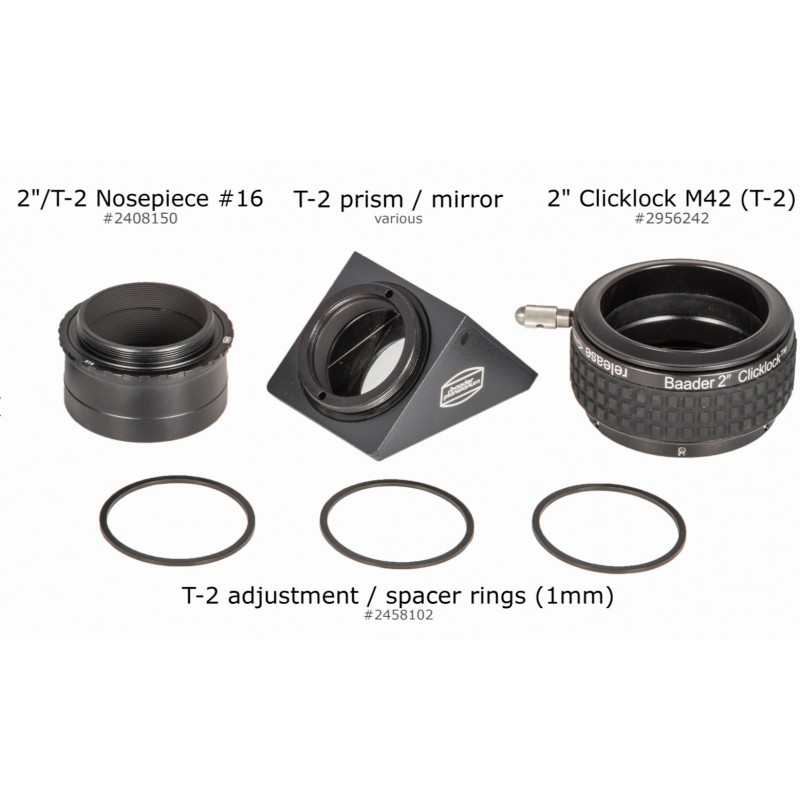

The clamp includes removable S52 to M48 and M48 to T2 reducer rings, increasing compatibility with various equipment. Its design is based on seven precision machined components ensuring high mechanical reliability and long service life. This system also allows upgrading standard clamps to the ClickLock system on different equipment.
Technical specifications
- Manufacturer: Baader Planetarium
- Model: ClickLock 2 inch to T2 M42
- Product reference: 2956242
- EAN code: 4047825037398
- Type: eyepiece clamp
- Clamping system: ClickLock
- Compatibility: Astro T2 system M42 x 0.75 thread
- Accessory connection: 2 inch 50.8 mm
- Optical side connection: M42 x 0.75 T2
- Inner depth: 36.5 mm
- T2 thread length: 6.5 mm
- Optical length: 36.6 mm
- Inner diameter: 42 mm
- Outer diameter: 68 mm
- Weight: 0.15 kg
- Compression ring material: hardened bronze
- Mechanism: ClickLock lever 20 degree rotation
- Ratchet function: acoustic and tactile feedback
- Included adapters: S52 to M48 M48 to T2
- Adapter type: eyepiece clamp
