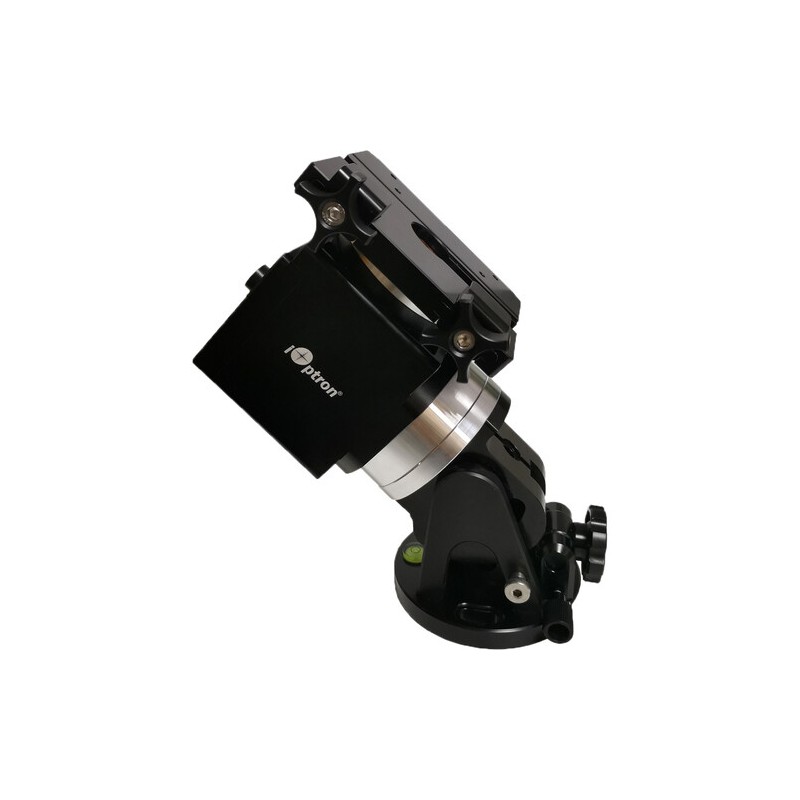

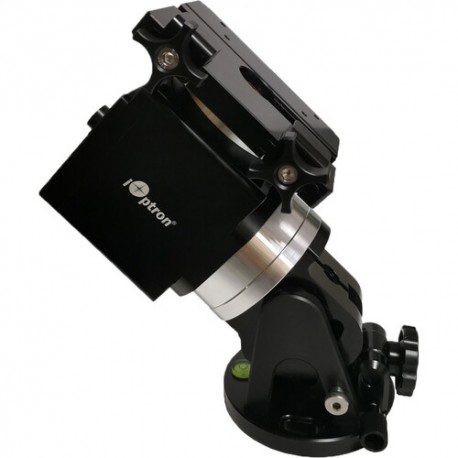

iOptron HAE43C AZ/EQ SWG

iOptron HAE43C AZ/EQ SWG

Description

The iOptron HAE43C AZ/EQ SWG is a hybrid Alt-Az/Equatorial mount featuring advanced Strain Wave Gear technology. This harmonic drive system provides smooth and accurate tracking while keeping the structure light, strong, and quiet.
Weighing just 5.7 kg, it supports payloads up to 20 kg without counterweights, achieving an impressive 3.51 payload-to-weight ratio. The CNC-machined, black-anodized aluminum construction ensures durability and precision.
This “C” model is designed for full computer control and does not include a handset or iPolar scope. It connects easily via USB-C or Wi-Fi and works with ASCOM/Commander (Windows) or INDI (Mac OS).
The mount features an electronic friction brake for safety during power interruptions, an integrated ST-4 autoguiding port, and a dual Vixen/Losmandy-D saddle.
Compact, accurate, and modern, the HAE43C is ideal for astronomers who prefer a clean, efficient, and fully digital control setup.

Technical Specifications

• Type: Strain Wave Gear Alt-Az/Equatorial mount

• Payload capacity: 20 kg (44 lb) without counterweight

• Mount weight: 5.7 kg (12.6 lb) including saddle

• Payload/mount ratio: 3.51

• Reduction: RA 640:1, DEC 480:1

• Gear period: 270 s

• Periodic error: < 36 arcsec (< ± 18 arcsec)

• Motor: Stepper motor

• Structure: CNC-machined aluminum, all-metal

• Finish: Black anodized

• Brake: Electronic friction brake

• Control: Computer via USB-C or Wi-Fi

• Hand controller: Not included

• Polar scope: Not included

• Autoguiding: ST-4 port

• Communication: USB-C and Wi-Fi

• Saddle: Dual Vixen/Losmandy-D

• Firmware upgrade: Yes

• Power supply: 12 V DC, 5 A (5.5/2.1 mm plug)

• AC adapter: 100 – 240 V included (indoor use)

• Power consumption: 0.7 A (tracking), 1.2 A (GoTo)

• Operating temperature: -20 °C to +45 °C

• Accessories: Aluminum carrying case

• Warranty: 2 years
