iOptron HAE43C AZ/EQ SWG with iPolar

iOptron HAE43C AZ/EQ SWG with iPolar

Description

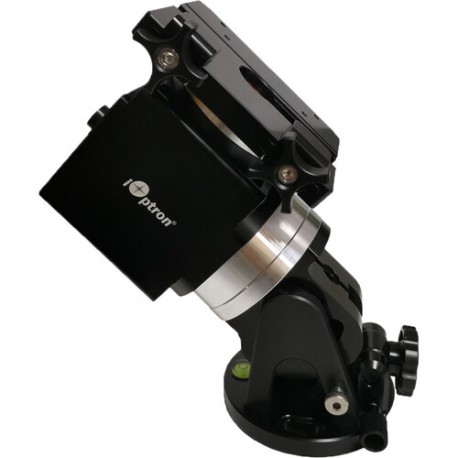

The iOptron HAE43C AZ/EQ SWG with iPolar is a dual Alt-Az/Equatorial mount from iOptron’s Strain Wave Gear series. Using harmonic drive mechanics on both RA and DEC axes, it provides exceptionally smooth tracking and excellent stability for astrophotography.
Weighing just 5.7 kg, it supports up to 20 kg of payload without counterweights, achieving a payload-to-weight ratio of 3.51. Its CNC-machined, black-anodized aluminum body ensures rigidity and long-term durability while remaining portable.
This version operates entirely via computer—no handset required. It connects through USB-C or Wi-Fi and supports ASCOM/Commander (Windows) and INDI (Mac OS) control systems.
The included iPolar electronic polar scope allows precise polar alignment in just a few minutes. An electronic friction brake ensures safe motion stop, while the integrated ST-4 autoguide port, dual Vixen/Losmandy-D saddle, and automatic zero-position search complete this advanced mount.
The HAE43C with iPolar is ideal for astrophotographers or visual observers seeking reliability, simplicity, and performance in a compact package.

Technical Specifications

• Type: Strain Wave Gear Alt-Az/Equatorial mount

• Payload capacity: 20 kg (44 lb) without counterweight

• Mount weight: 5.7 kg (12.6 lb) including saddle

• Payload/mount ratio: 3.51

• Reduction: RA 640:1, DEC 480:1

• Gear period: 270 s

• Periodic error: < 36 arcsec (< ± 18 arcsec)

• Motor: Stepper motor

• Structure: CNC-machined aluminum, all-metal

• Finish: Black anodized

• Brake: Electronic friction brake

• Control: Computer via USB-C or Wi-Fi

• Hand controller: Not required

• Polar scope: iPolar electronic polar scope included

• Autoguiding: ST-4 port

• Communication: USB-C and Wi-Fi

• Saddle: Dual Vixen/Losmandy-D

• Firmware upgrade: Yes

• Power supply: 12 V DC, 5 A (5.5/2.1 mm plug)

• AC adapter: 100 – 240 V included (indoor use)

• Power consumption: 0.7 A (tracking), 1.2 A (GoTo)

• Operating temperature: -20 °C to +45 °C

• Accessories: Aluminum carrying case

• Warranty: 2 years
