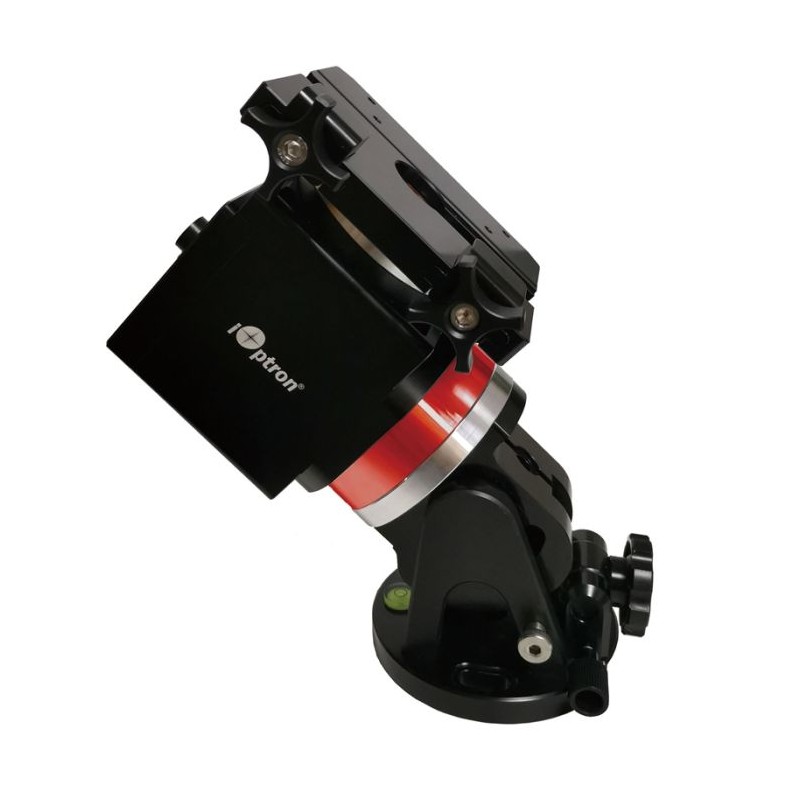

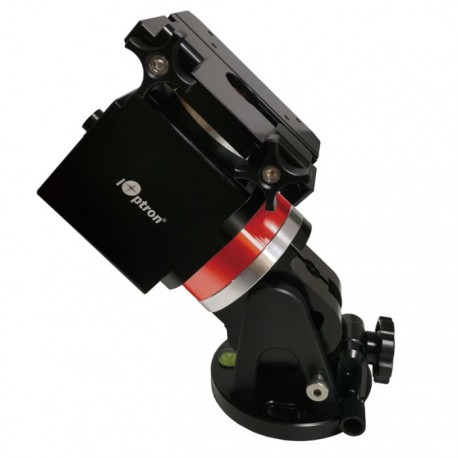

iOptron Hybrid AZ/EQ Mount HAE29C-EC dual SWG (Ref. HE294C)

iOptron Hybrid AZ/EQ Mount HAE29C-EC dual SWG (Ref. HE294C)

Description:
The iOptron HAE29C-EC dual AZ/EQ mount is a lightweight, high-performance system designed for mobile observing and imaging setups. Featuring strain wave gear on both RA and DEC axes, it supports alt-azimuth and equatorial configurations.

Weighing only 8.15 lbs (3.7 kg with saddle), it can carry up to 29.7 lbs (13.5 kg) without counterweights, or up to 40 lbs (18 kg) with optional counterweights. A high-precision RA axis encoder and real-time PEC enhance tracking accuracy for guided or unguided imaging.

The mount can be controlled via built-in USB or Wi-Fi using iOptron Commander (Windows), INDI drivers (Linux/macOS/Raspberry Pi), or compatible mobile apps. The Go2Nova® 8411 hand controller is available as an option.

Technical specifications:

• Mount type: hybrid AZ/EQ

• RA/DEC drive: strain wave gear

• Gear ratio: RA 480:1, DEC 360:1

• Encoder: yes, RA axis

• PEC: yes, real-time

• Gear period: 360 seconds

• Payload (no CW): 29.7 lbs (13.5 kg)

• Payload (with CW): 40 lbs (18 kg)

• Mount weight: 8.15 lbs (3.7 kg with saddle)

• Material: CNC-machined aluminum

• Finish: anodized black

• Tracking: automatic

• Max slew speed: 6°/s

• Power supply: 12 V DC, 5 A (5.5 x 2.1 mm plug)

• Power usage: 0.6 A (tracking), 1 A (GoTo)

• AC adapter: 100–240 V included (indoor use only)

• Autoguide port: ST-4

• Interfaces: built-in USB and Wi-Fi

• Firmware update: via USB

• Hand controller: optional (Go2Nova® 8411)

• Tripod: optional

• Counterweight shaft: optional (SS Ø20x200 mm, 3/8”-16 thread)

• Counterweight: 10 lbs (4.5 kg) optional

• Operating temperature: -20°C to +45°C

• Carry case: included

• Warranty: 2 years

Additional information:

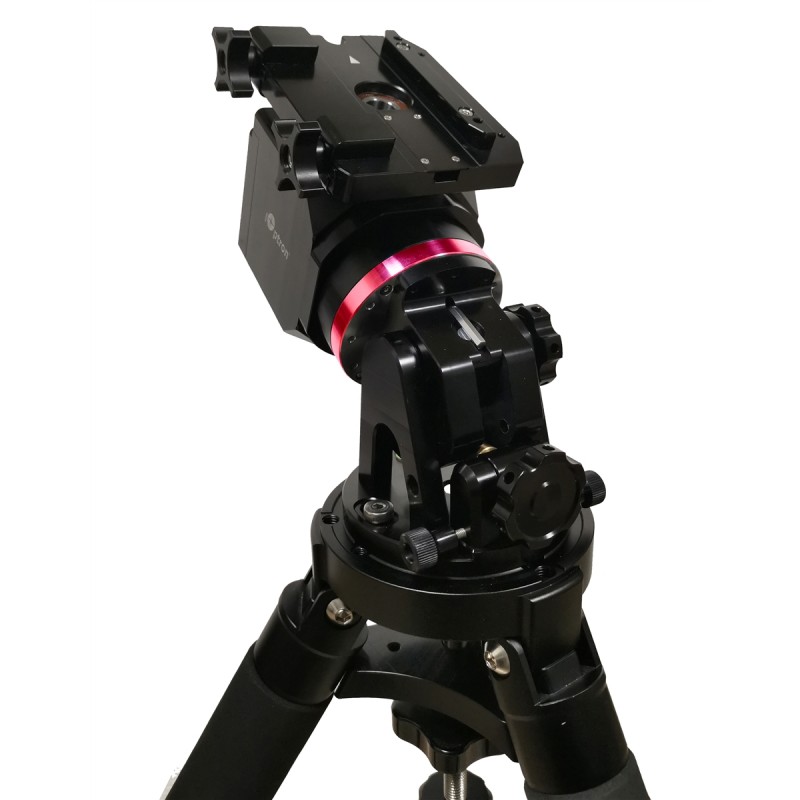

The HAE29C-EC features a built-in RA axis encoder and real-time PEC for improved tracking accuracy, reducing the need for guiding in many use cases. Polar alignment is possible using the Polar Align function in iOptron Commander or via the optional hand controller. Compatible with iOptron MiniPier, Tri-Pier, and LiteRoc tripods.
