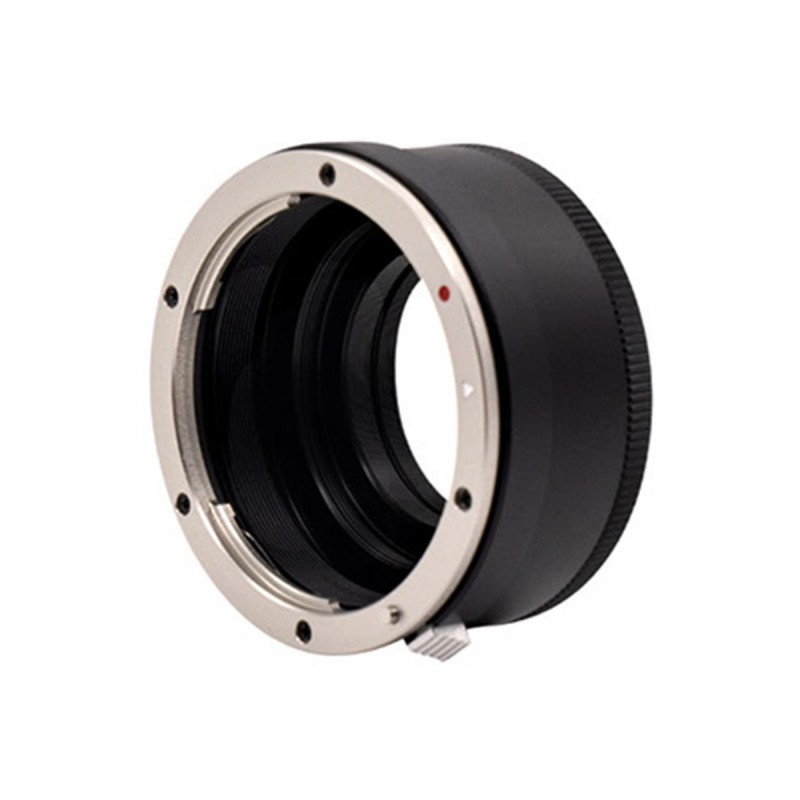

ZWO EOS-T2 Adapter for ASI Cameras (Version II)

ZWO EOS-T2 Adapter for ASI Cameras (Version II)

DESCRIPTION

The ZWO EOS-T2 II adapter allows you to attach a Canon EF lens to any ZWO ASI camera with T2 thread. It includes two parts:

• EOS-T2 adapter

• 5 mm T2 extender ring

Without the extender, it matches cameras with 17.5 mm backfocus, including:
• ZWO cooled models
• ASI174, ASI294, ASI183, ASI1600, ASI533, ASI2600
(excludes ASI6200/2400)

With the 5 mm extender, it's suitable for 12.5 mm backfocus cameras:
• ASI120, ASI224, ASI290, ASI178, ASI385, ASI462

This version is non-adjustable (fixed orientation) and supports Canon EF lenses only. A 2″ IR-CUT filter can be used on the camera side.

TECHNICAL SPECIFICATIONS

Model: ZWO-EOS-T2-II
Lens compatibility: Canon EF only
Camera connection: T2 thread (M42x0.75)
Backfocus support:
• 17.5 mm (no extender)
• 12.5 mm (with 5 mm extender)
Rotation: fixed
Filter compatibility: accepts 2" IR-CUT filters
Material: aluminum
Weight: not specified
Use: wide-field imaging with Canon EF lenses on ASI cameras
