  5. 10Micron Lodual 3" Double Female Dovetail Plate – Ref. 10M2105

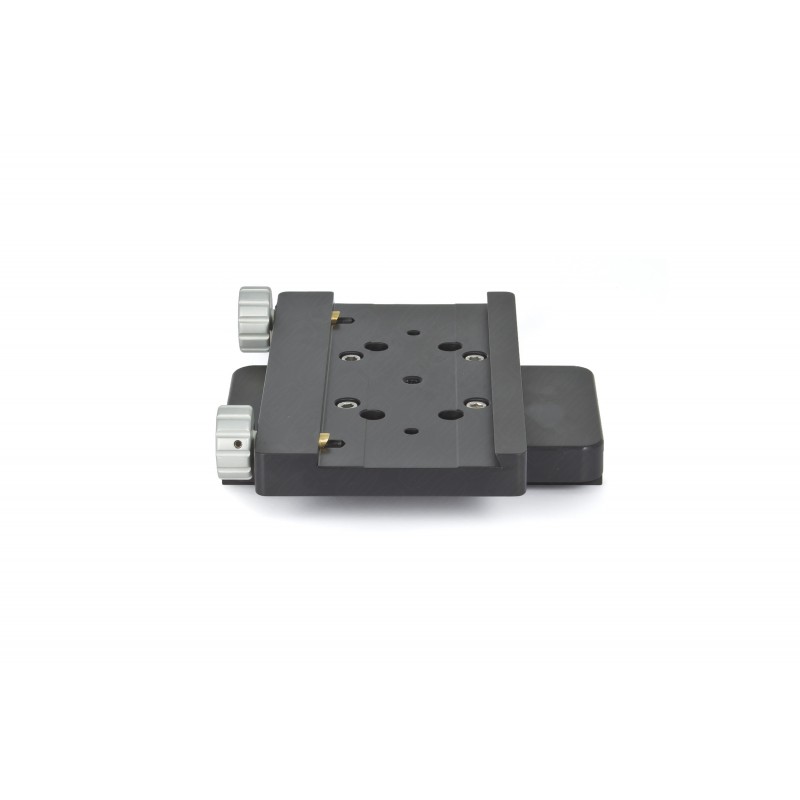

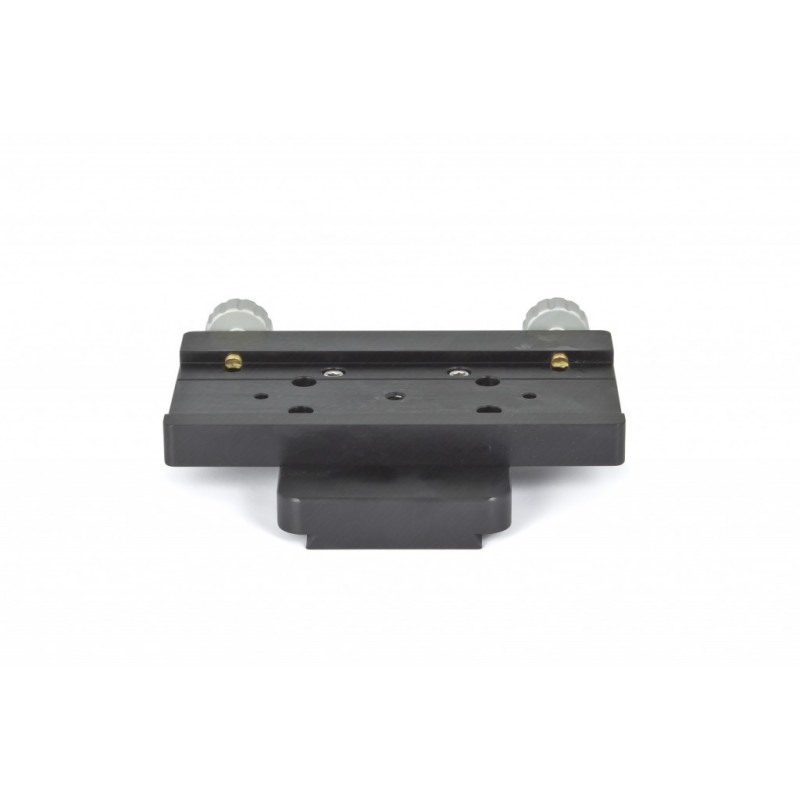

90° double mounting plates for GM 1000 View larger

10Micron Lodual 3" Double Female Dovetail Plate – Ref. 10M2105

10Micron Plate double

New product

10Micron Lodual 3" Double Female Dovetail Plate – Ref. 10M2105

CNC-machined 10Micron dual female 3" dovetail for mounting two optical tubes side by side. 400 mm lower dovetail, adjustable spacing, factory-aligned.

More details

Available in stock from the supplier. Please contact us for more information.

250.00 CHF tax incl.

More info

10Micron Lodual 3" Double Female Dovetail Plate – Ref. 10M2105

DESCRIPTION

The 10Micron Lodual 3" double female dovetail plate (ref. 10M2105) is made for securely mounting two optical tubes in parallel on 10Micron mounts. Ideal for combining a main OTA with a guide scope or widefield setup.
The bottom rail is a 400 mm long 3" Losmandy-style male dovetail (#10M2130). On top, two 3" female Losmandy-style plates (#10M2085) are mounted with adjustable spacing: approximately 210, 245, and 281 mm.
All parts are CNC-machined from anodized aluminum, assembled and aligned at the factory to ensure perfect fit and rigidity.

Notes:
– For the GM1000 HPS, adapter #10M1105 is required to preserve encoder reference alignment.
– Other mounts require a Losmandy 3" dovetail (#10M2085 or #10M2185).

TECHNICAL SPECIFICATIONS

  • Reference : 10M2105

  • Type : dual female dovetail plate

  • Material : CNC-machined anodized aluminum

  • Lower rail : 3" Losmandy male, 400 mm (#10M2130)

  • Top plates : 2 x Losmandy 3" female (#10M2085)

  • Adjustable spacing : approx. 210 / 245 / 281 mm

  • Weight : 4 kg

  • Compatibility : 10Micron mounts (adapter needed for GM1000)
