Equatorial mount AZ-EQ6 SynScan GPS

AZ-EQ6 Pro Go-To

New product

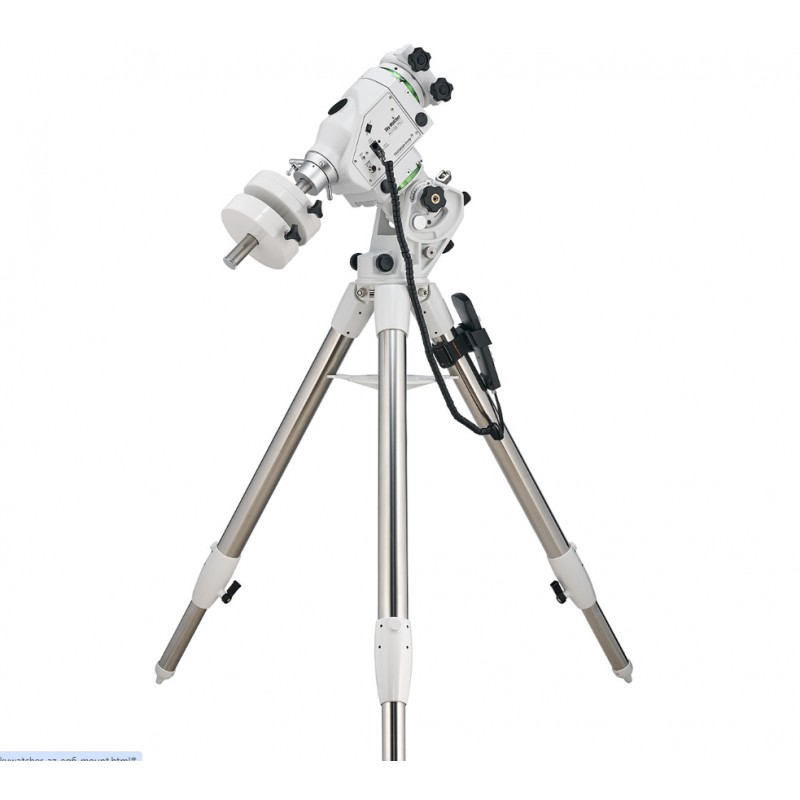

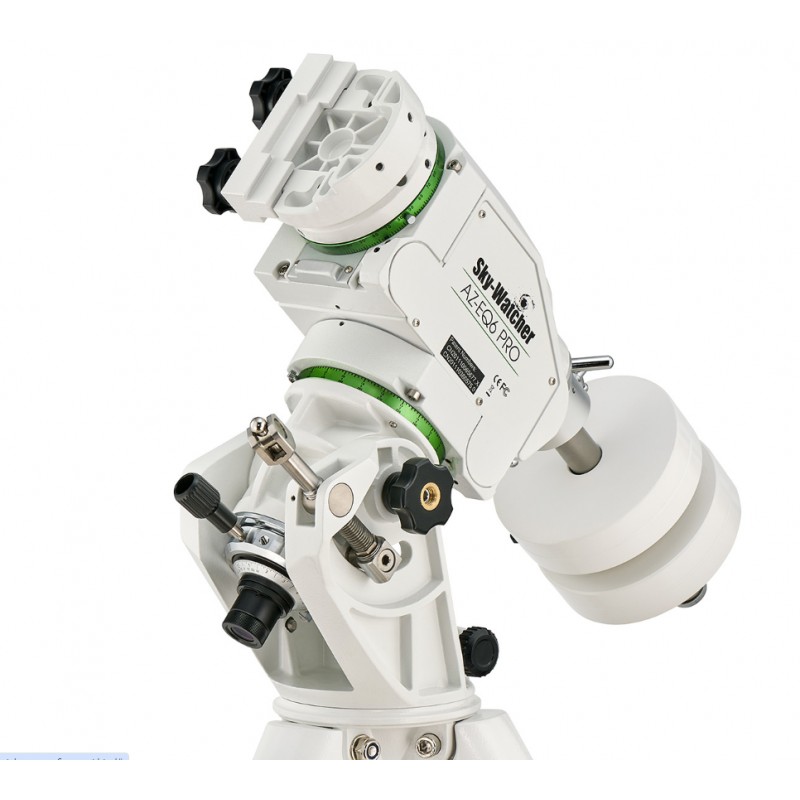

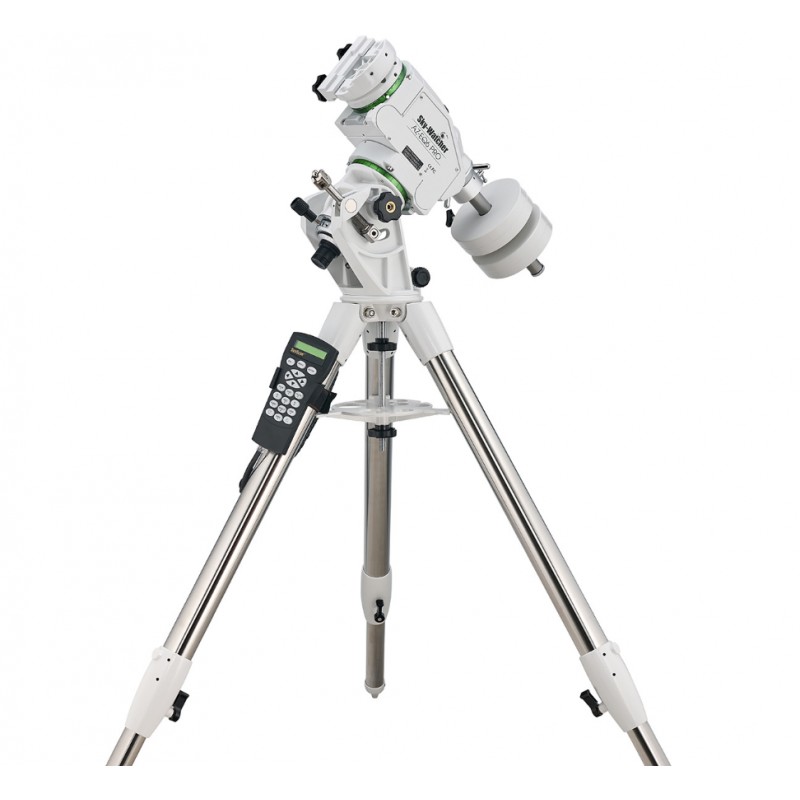

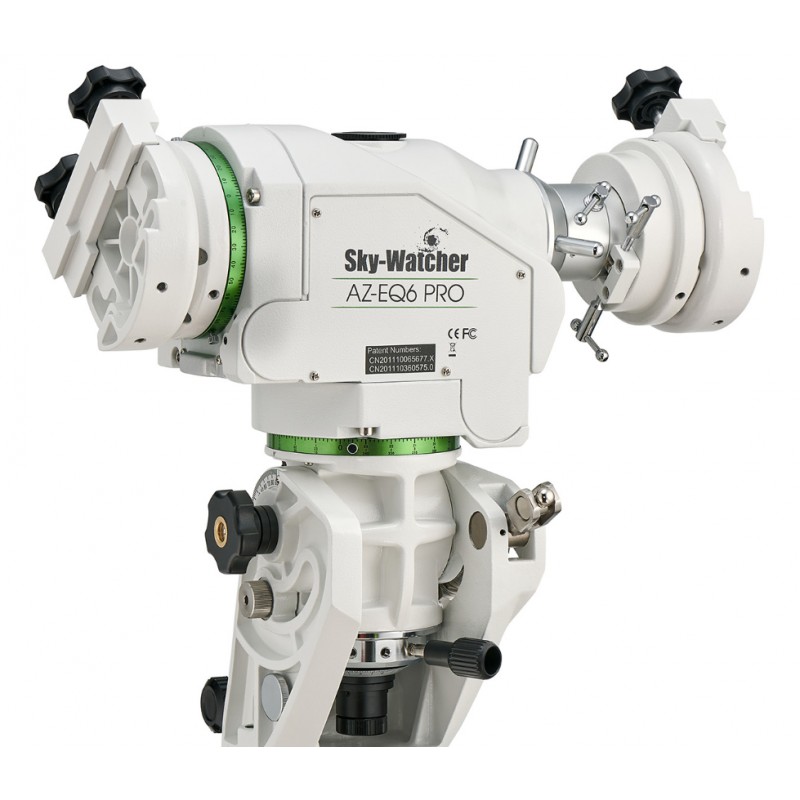

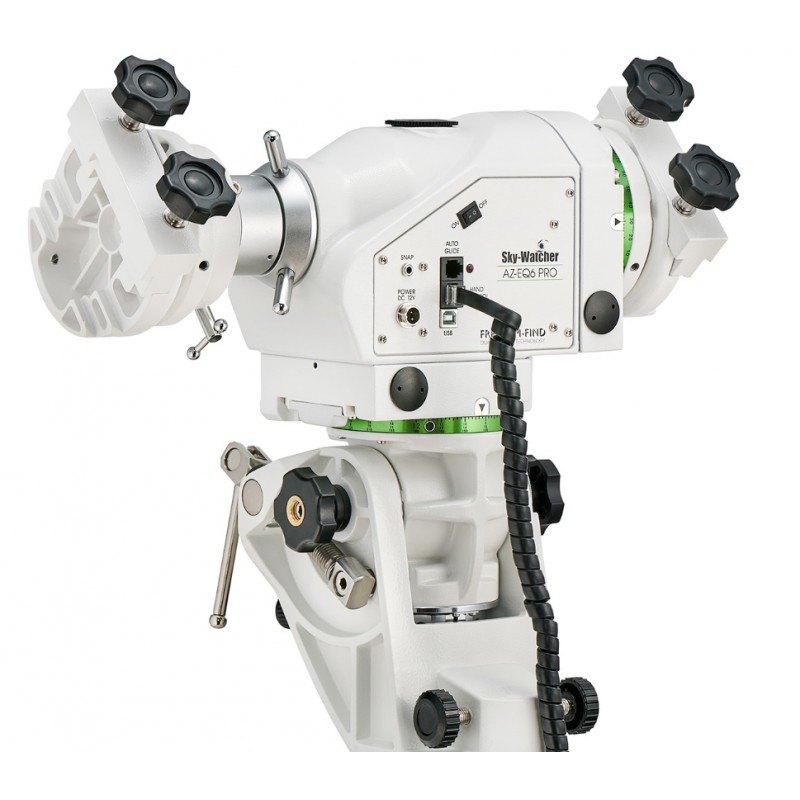

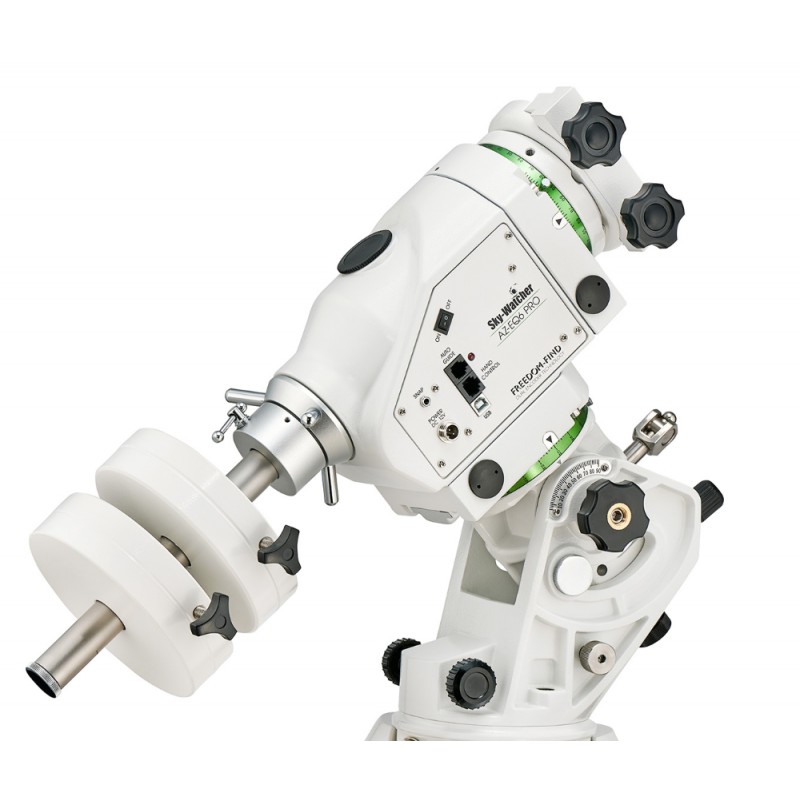

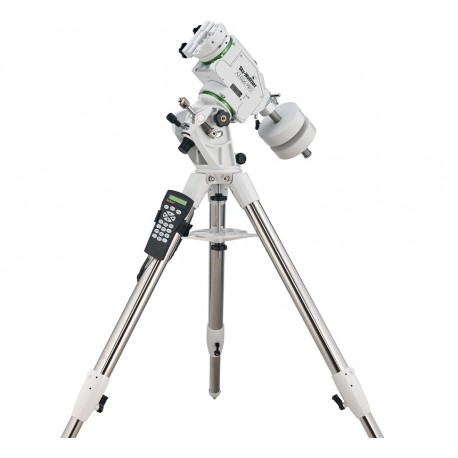

Equatorial mount AZ-EQ6 SynScan GPS

More details

Subject to availability from the supplier. Please contact us for more information.

2'189.00 CHF tax incl.

Data sheet

Hauteur 40
Largeur 55
Profondeur 55
Poids 25
Compositions Monture équatoriale

More info

  • Products Features
  • The Sky-Watcher AZ-EQ6 SynScan gives optimal stability and pointing accuracy for a wide variety of heavy professional photo and video equipments. It is a hybrid mount with alt-azimuth capability for general use, and equatorial capability for astrophotography use. Supplied with a SynScan handset with dual AZ/EQ firmware, it can automatically find and track 42,900+ celestrial objects from its database.
    AZ-EQ6 SynScan is capable of carrying heavy-duty photographic equipments for professional shooting and video recording. It is a very efficient transportable mount weighing only 15 kg, for a load capacity of 20 kg (counterweight excluded).


     Freedom Find™ - tracking made easy!


    With the patented Freedom Find (dual-encoder) technology which allows the telescope to be moved manually or electronically in either axis without losing its alignment or positional information. After moving to a new object the telescope will automatically begin to track the new object accurately. No re-setup is required in one observing session.



    New Features:
    ♦ German Equatorial / Alt-Az dual mode
    ♦ Permanent periodic error correction(PPEC). PPEC can be trained with Autoguider or PC.
    ♦ Belt drive - Super smooth PE curve. Low backlash, silent slewing. ♦ Shutter release control for batch exposures of astrophotography. ♦ Motor controller with high torque and accuracy. ♦ Include two dual-fit (45mm/75mm) saddle for mounting two telescopes. ♦ Improved reliable power supply outlet. ♦ New motor controller with higher torque and accuracy. ♦ Polar-alignment with polar-scope. ♦Primary axis encoder tracks the mount's position. Users can push the mount at any time without worrying about losing the mount's alignment.

    Two Dual-fit Saddles Driving Resolution: Approximately 0.14 arc seconds DSLR Electronic Shutter Release Port : Yes Autoguider Port: Yes PEC control in EQ mode Polar Alignment : via supplied polar scope Alignment methods: 1, 2, or 3 star alignment (EQ) / brightest star or 2 star alignment (AZ)    Telescope Connection: 2 x dual-fit saddle plates supplied accepting 45mm & 75mm dovetail bars RA/DEC Worm Gears: D=92.5mm, 180 teeth, brass RA/DEC Axes: D=40mm, steel Latitude Adjustment Range: 10o to 70o, 90o Azimuth Adjustment Range: About ± 9o"Special Applications of EQ6 and AZEQ6 Pro mounts:




    Special Applications of EQ6 and AZEQ6 Pro mounts:


    Our equatorial or alt-azimuth GOTO mounts are not just for telescopes; some of our customers also use EQ6 or AZEQ6 Pro mount to work as a 2-axis precise positioning or rotation test platform with its heavier payload capacity and to be controlled by a computer to simulate in variety testing or measurement conditions, such as the applications of device test platform for Measurement While Drilling (MWD) in oilfield drilling industry etc.   "


  • Specifications
  • Mount TypeEQ/Alt-AZ Dual Mode
  • Counter Weight2x 5 kg
  • Accessory TrayLarge wall to wall
  • Motor Drive1.8 Hybrid Stepper Motor
  • GoToSynScan Hand Control
  • Tripod Height127 cm ( 50")
  • Tripod Weight7.5 kg, 2" steel tripod
  • Shipping Weight21kg + 20 kg
  • Shipping Cartondimensions118x28x29cm3; 53x52x32 cm3
  • Power SupplyDC11~16V 4A
  • Payload Capacity 20 kg (counterweight excluded)
  • Tracking ModesAlt-azimuth / Equatorial mode
  • Tracking RatesSidereal / Solar / Lunar rate
  • Slewing Speedup to 4.2/sec (800x)
  • Guiding Speedfrom 0.125x, 0.25x, 0.5x, 0.75x, 1x
