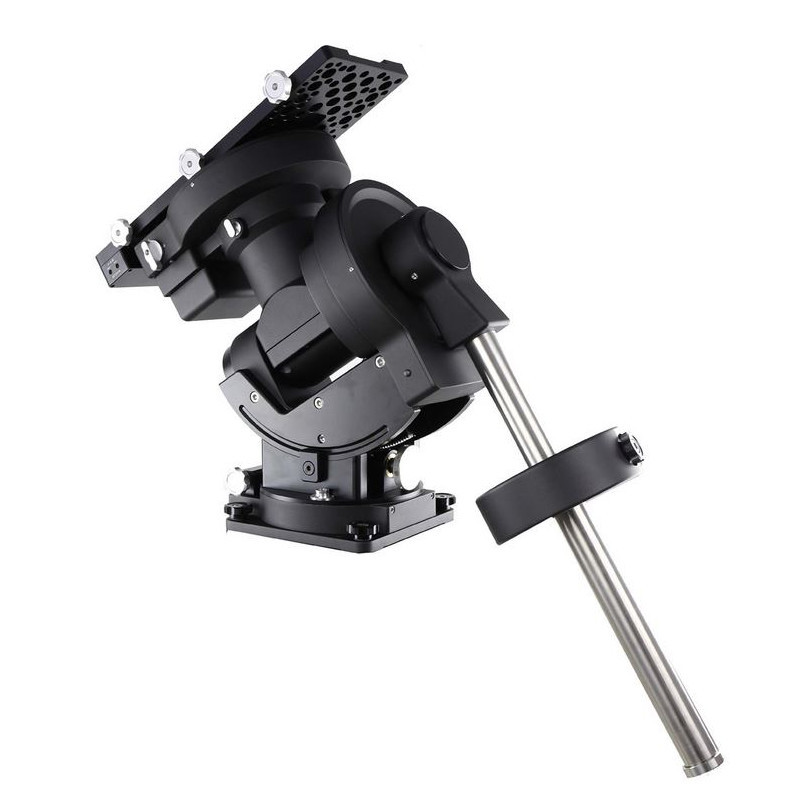

iOptron CEM120 Standard Equatorial Mount – Ref. 7300

iOptron CEM120 Standard Equatorial Mount – Ref. 7300

Description :

An extraordinary innovation both in design and in load.
After the insistent requests, ioptron presents a new mount of the CEM series (Center-balanced Equatorial Mount), the 120.
In addition to the high load capacity this mount also has an excellent tracking, the periodic error is in fact only +/- 3.5 "arc seconds!
Taking long-exposure photographs with medium / long focal lengths will be very easy without having to spend more than 10000 euros for a new mount !

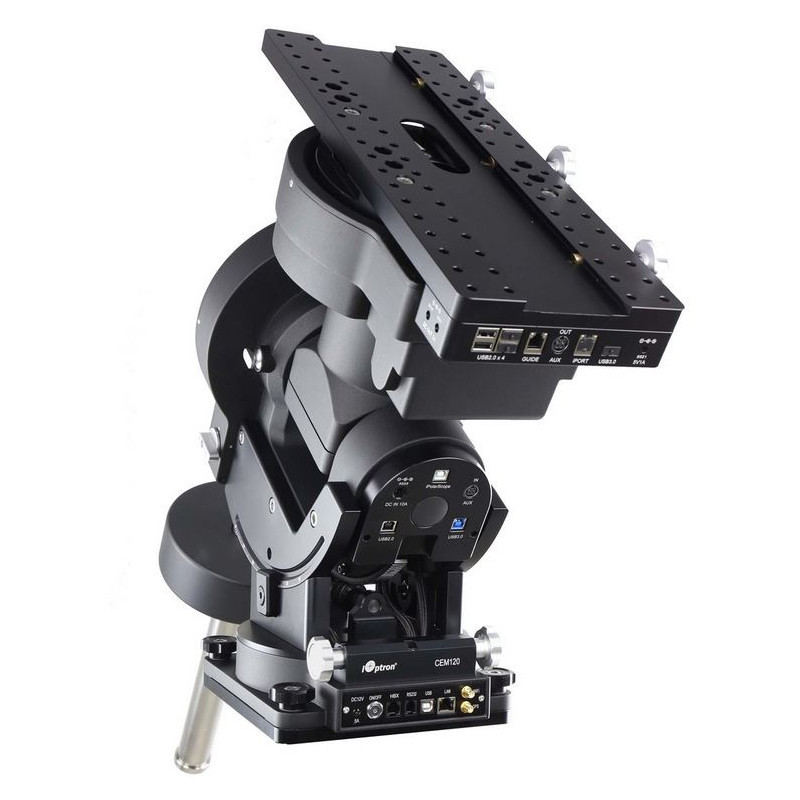

The CEM120 is equipped with an advanced cable management system consisting of multiple connections in multiple positions that avoid the famous problems of cables destroyed during the movement of the mount resulting in the end of photo and astrophotography evening. It also adds some new features to the CEM family such as Wi-Fi and LAN port for remote operations and 0 blacklash clutches easy to use and reliable on both axes.

The CEM120 Standard (ref. 7300) is a robust, high-capacity center-balanced equatorial mount designed for advanced users and observatories. With a maximum payload of 52 kg (excluding counterweights), it supports large imaging setups with stability and precision.

It features a precision stepper motor drive (128 microsteps), PPEC, and < ±3.5 arcsecond tracking accuracy (measured on bench). The all-metal construction includes Ø216 mm worm wheels and Ø80 mm axes with Ø125 mm bearings.

The mount is controlled via the Go2Nova 8410 hand controller, and supports a full suite of modern connectivity: USB, RS232, LAN, Wi-Fi. It includes integrated GPS, ST-4 autoguide port, and a professional-grade cable management system.

Key Specifications

• Mount type: Center-balanced German Equatorial Mount (CEM)
• Payload: 52 kg (115 lbs)
• Mount weight: 26 kg
• Material: All-metal
• Latitude adjustment: 0°–68° (0.5' precision)
• Azimuth adjustment: ±5° (3' precision)
• PE (bench): < ±3.5 arcsec
• Worm wheels: Ø216 mm, 360 teeth, zero backlash
• Axes (RA/DEC): Ø80 mm
• Worms: Ø26 mm
• Bearings (RA/DEC): Ø125 mm
• Counterweight shaft: Ø38.1 mm, 540 mm, stainless steel
• Counterweight: 10 kg (included)
• Slew speed: 4°/s max
• Motor: Precision stepper with 128 micro-steps
• Resolution: 0.07 arcsec
• PEC: PPEC
• Controller: Go2Nova 8410, 8-line LCD
• Power: 12 V DC, 5 A
• Power use: 0.7 A (tracking), 1.8 A (GoTo)
• Ports: RS-232, USB, LAN, Wi-Fi
• Operating temperature: -10 °C to +40 °C
• Cable management: 2xDC, 3xUSB 2.0, 3xUSB 3.0, AUX
• GPS: Integrated
• Guiding port: ST-4
• Warranty: Two-year limited

The iOptron CEM120 Standard is built for those who need power, precision, and compatibility without the added cost of encoders. Ideal for fixed installations, it offers unmatched mechanical stability, network integration, and observatory-grade performance.

Whether you're running a heavy imaging system or building a semi-automated observatory, the CEM120 delivers quiet, smooth tracking and long-term reliability.

User Benefits

• High mechanical load capacity

• Ultra-smooth motion with stepper precision

• Durable all-metal construction

• Full connectivity for observatory control

• Ready for autoguiding and ASCOM/INDI automation

PACKAGE CONTENTS

• CEM120EC mount head x1
• hand controller Go2Nova 8410
• 10 kg counterweight x1 ((free extra one for limited time)
• Counterweight shaft x1
• Hand controller cable x1
• Serial cable (#8412) x1

Tripod optional
