German GoTo equatorial mount designed for astrophotography with a 20 kg payload capacity. The Sky-Watcher EQ6-R Pro SynScan features belt drive, permanent PPEC, a dual-fit 45/75 mm saddle and a 2-inch stainless-steel tripod.

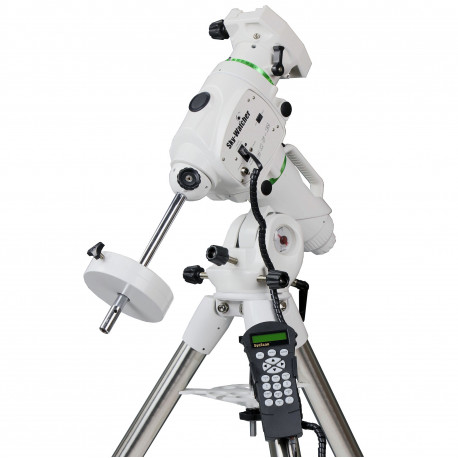

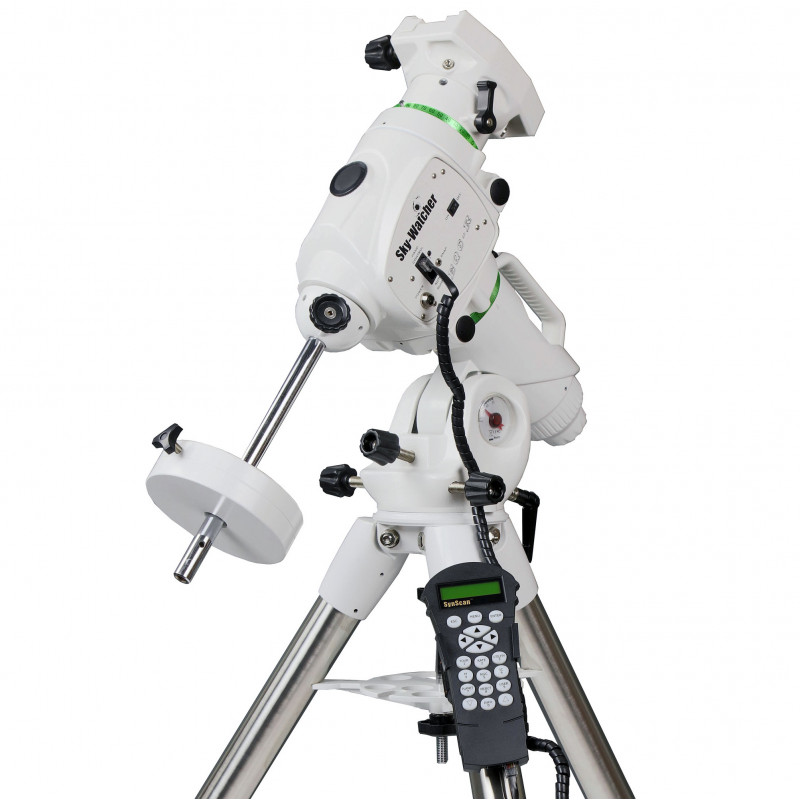

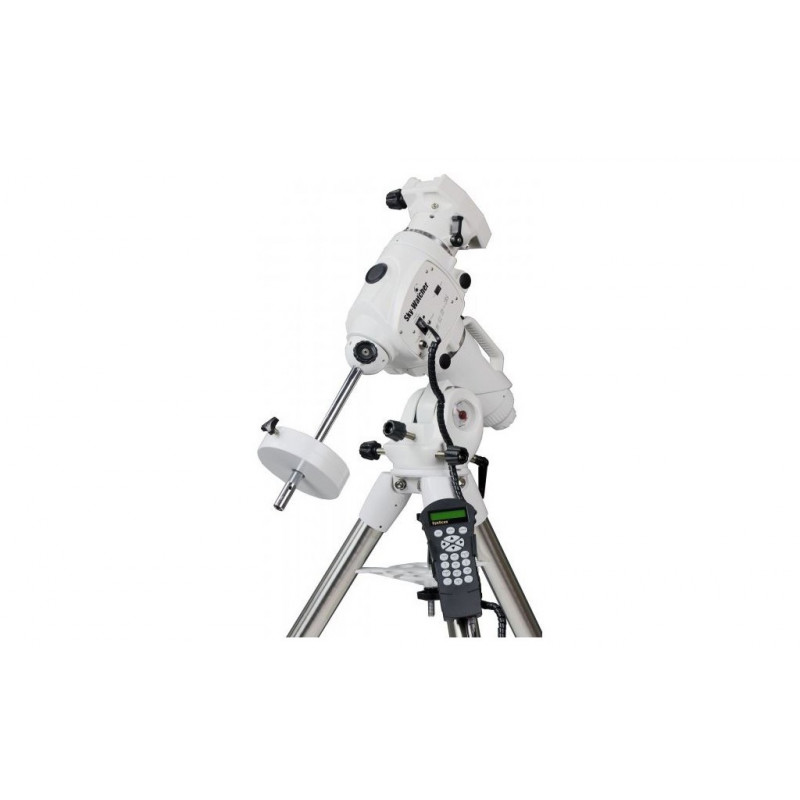

Designed for demanding astrophotography configurations, the Sky-Watcher EQ6-R Pro SynScan is a German GoTo equatorial mount providing a 20 kg payload capacity, excluding counterweights.
Its evolution from the EQ6 Pro introduces several features aimed particularly at imaging, including increased payload capacity, synchronous belt drive, improved latitude adjustment, an integrated SNAP port, permanent PPEC and a built-in carrying handle.
The supplied computerised SynScan hand controller allows automatic object selection and sky touring from a database containing more than 42,000 celestial objects.
This complete version is supplied with a 2-inch stainless-steel tripod, two 5 kg counterweights and a polar alignment scope.
20 kg Payload Capacity
The EQ6-R Pro has a 20 kg payload capacity, excluding counterweights.
This capacity is specified for astrophotography.
Synchronous Belt Drive
The belt-drive transmission reduces mechanical backlash and provides quieter, smoother operation.
This design also improves guiding performance and provides increased torque.
Permanent PPEC
The mount features permanent Periodic Error Correction.
The PPEC system uses 100 segments and avoids the need to retrain the correction repeatedly.

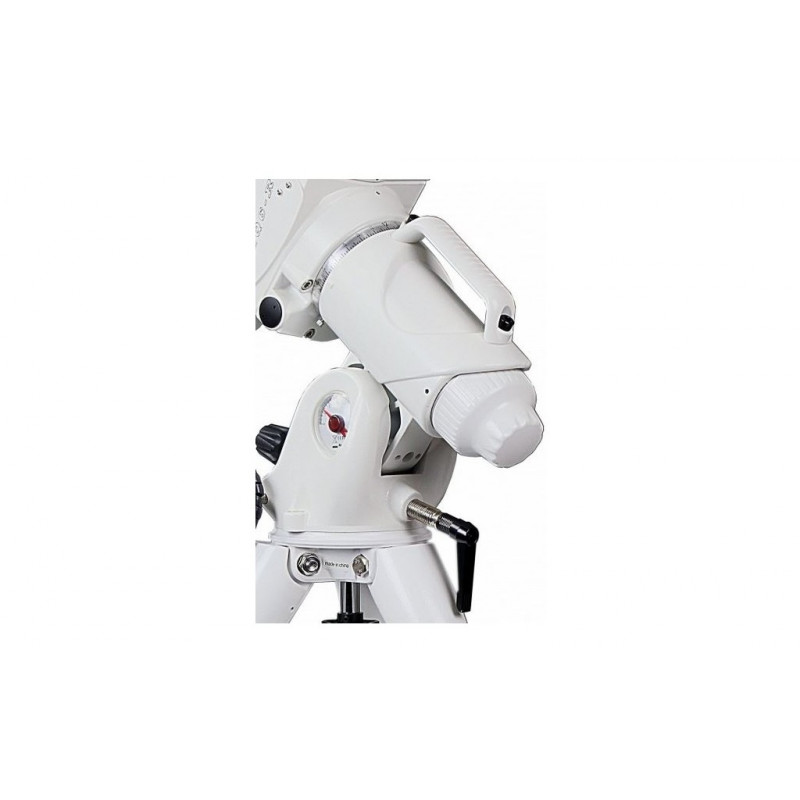

Improved Latitude Adjustment
Latitude adjustment ranges from 5° to 65°.
Azimuth adjustment range is approximately ±9°.

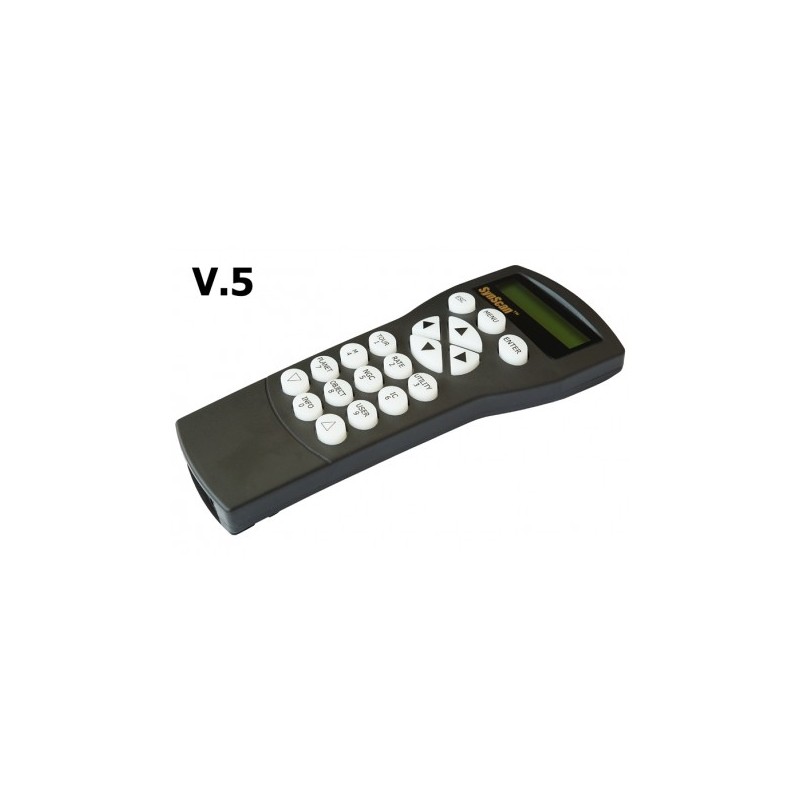

SynScan GoTo System

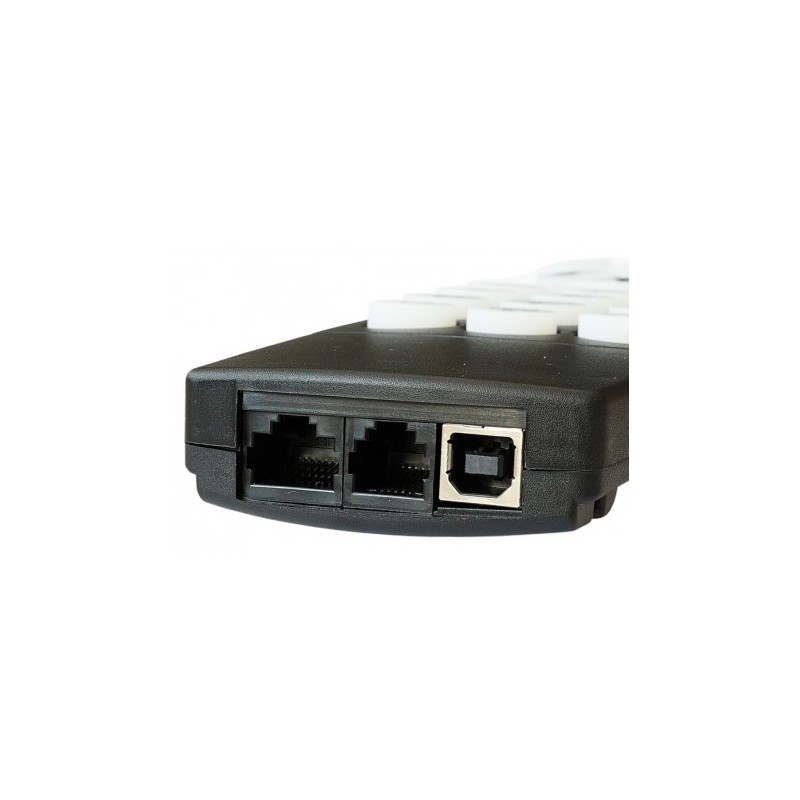

The supplied SynScan hand controller provides access to more than 42,000 celestial objects.
Available catalogues include:
• Messier
• NGC
• IC
• SAO
• Caldwell
• Double stars
• Variable stars
• Named stars
• Planets
Pointing Accuracy
Stated pointing accuracy is up to 5 arc-minutes RMS.
Stepper Motor Drive
The EQ6-R Pro uses 1.8° hybrid stepper motors.
The transmission consists of:
• 180:1 worm drive
• 48:12 timing belt drive
• 64 micro-steps with 1.8° stepper motor
The stated gear ratio is 720.
Resolution
System resolution is:
• 9,216,000 counts per revolution
• Approximately 0.14 arc-second
GoTo Slewing Speed
Maximum slewing speed is 4.2° per second.
Astronomical Tracking
Available tracking rates are:
• Sidereal
• Solar
• Lunar
The mount operates in equatorial tracking mode.
Autoguiding Rates
Available autoguiding speeds are:
• 0.125x
• 0.25x
• 0.5x
• 0.75x
• 1x

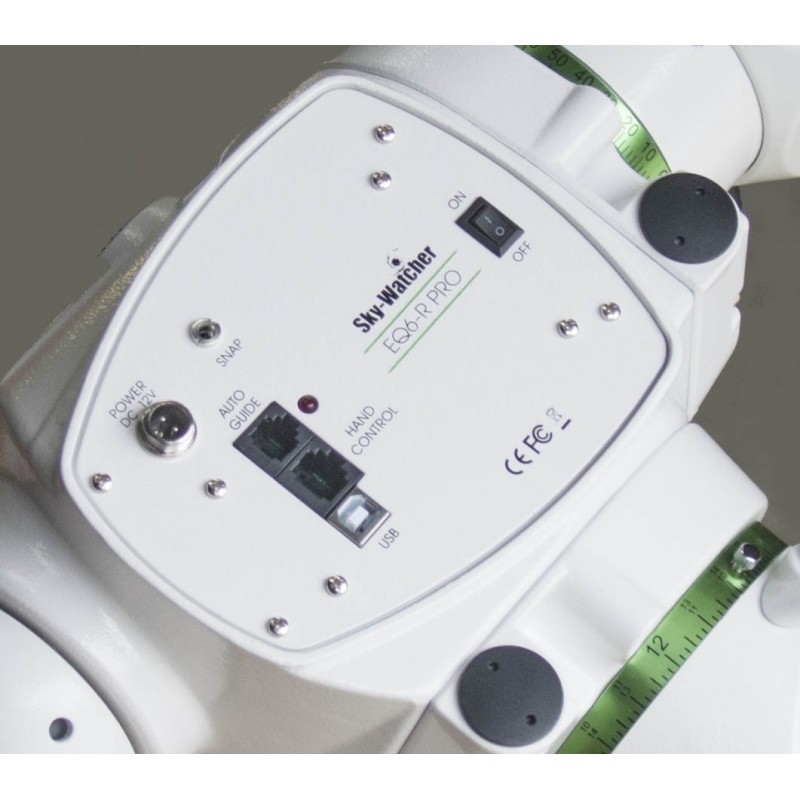

Integrated SNAP Port
A SNAP camera-control port is integrated directly into the mount.
Dual-Fit 45 and 75 mm Saddle
The saddle accepts:
• 45 mm dovetail bars
• 75 mm dovetail bars
This dual compatibility allows different optical tube mounting systems to be used without changing the saddle.
Polar Scope Included
A polar alignment scope is supplied with the EQ6-R Pro to assist with equatorial setup.

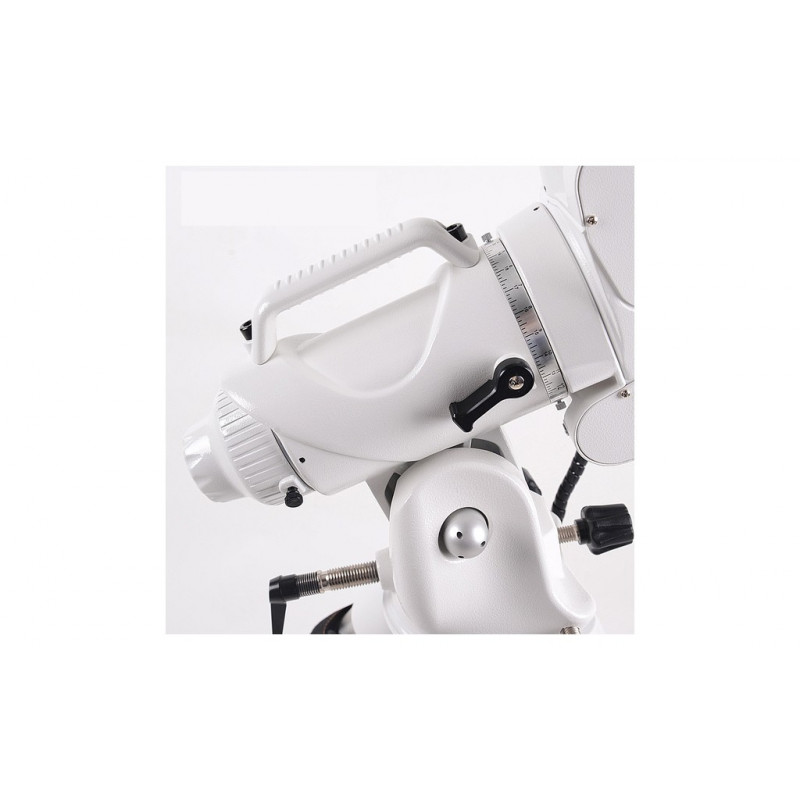

Built-In Carrying Handle
A carrying handle is integrated into the mount head.
It makes handling and transporting the EQ6-R Pro easier.

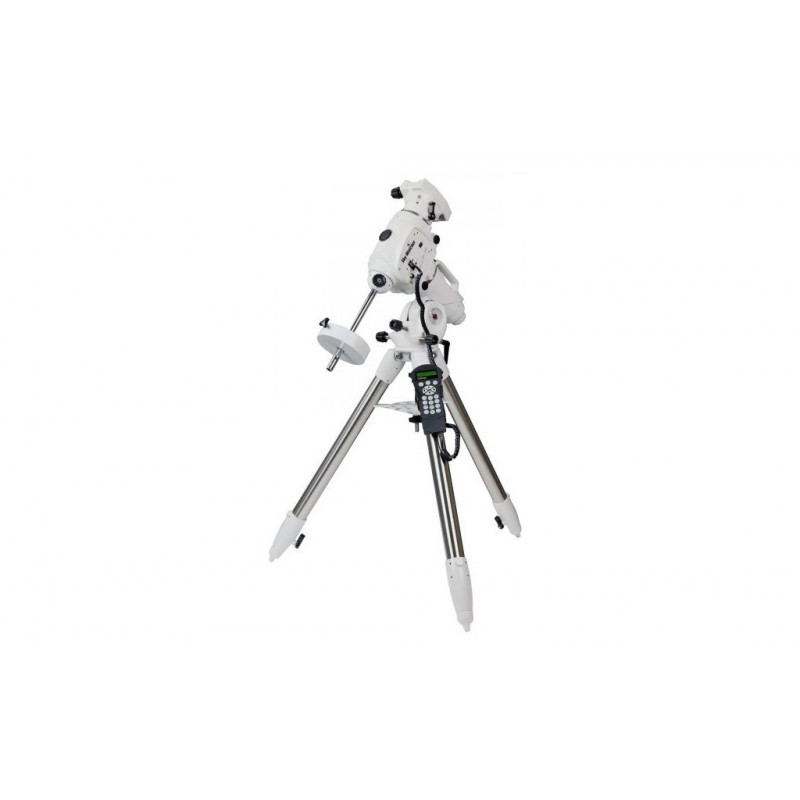

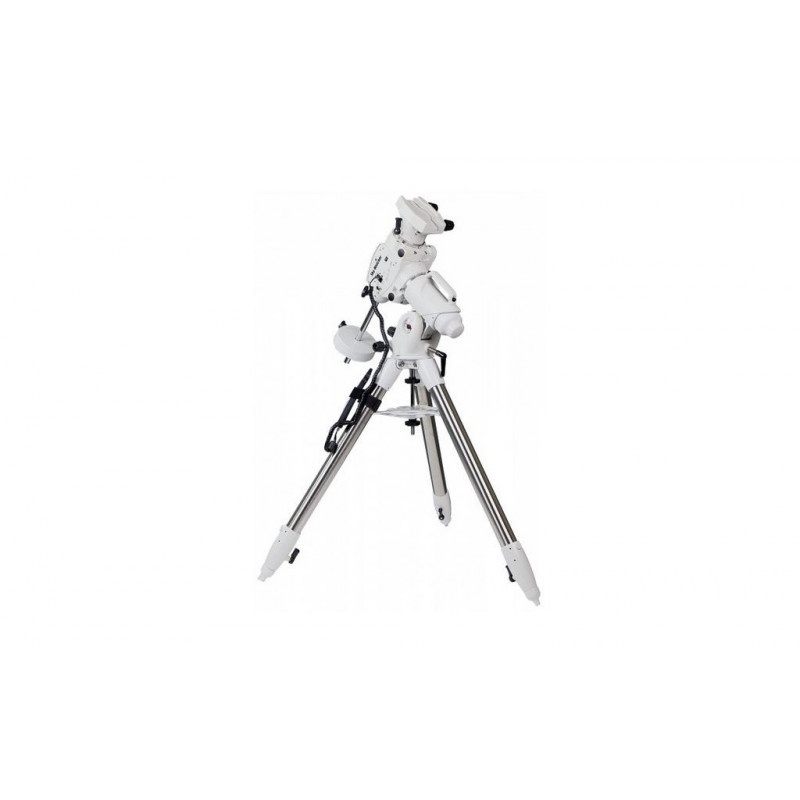

2-Inch Stainless-Steel Tripod
The mount is supplied with a stainless-steel tripod featuring 2-inch legs.
Tripod weight is 7.5 kg.
Mount Weight
The mount head weighs 17.3 kg, excluding the tripod.

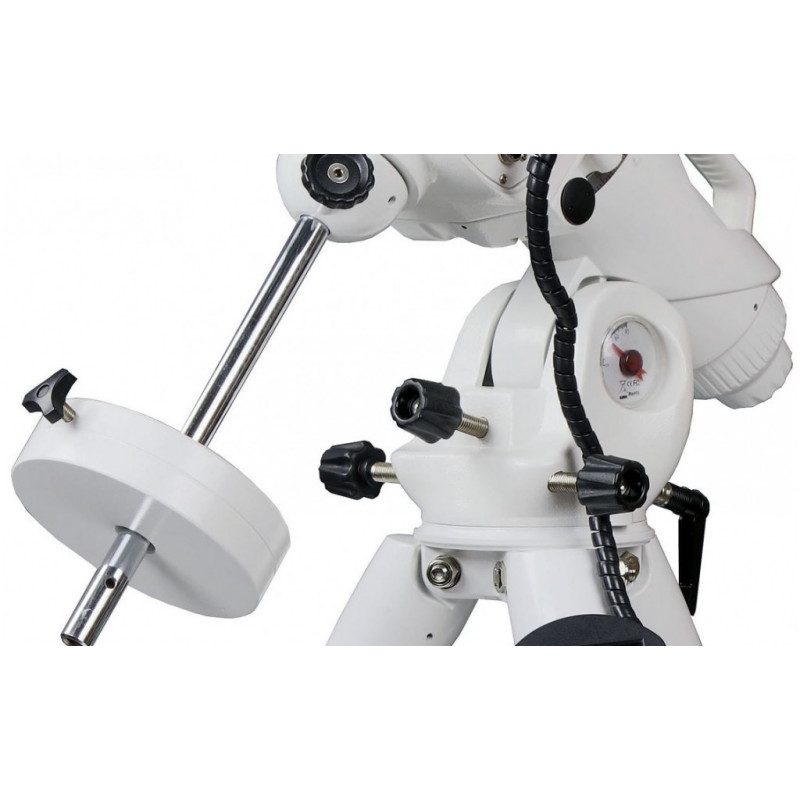

Two 5 kg Counterweights
Two 5 kg counterweights are supplied.
The counterweight rod has a diameter of 18 mm.
Its stated length is 240 mm + 180 mm.
Power Requirements
The mount requires:
• 11–16 V DC
• 4 A
Technical Specifications
• Manufacturer : Sky-Watcher
• Model : EQ6-R Pro SynScan
• Manufacturer product code : 20855
• Type : Computerised German GoTo equatorial mount
• Payload capacity : 20 kg excluding counterweights
• Payload rating : Astrophotography
• Mount head weight : 17.3 kg
• Latitude adjustment range : 5° to 65°
• Azimuth adjustment range : Approx. ±9°
• Motors : 1.8° hybrid stepper motors
• Transmission : 180:1 worm drive and 48:12 timing belt drive
• Micro-steps : 64
• Gear ratio : 720
• Resolution : 9,216,000 counts per revolution
• Angular resolution : Approx. 0.14 arc-second
• Maximum GoTo slewing speed : 4.2°/s
• Tracking rates : Sidereal, solar and lunar
• Tracking mode : Equatorial
• Autoguiding speeds : 0.125x / 0.25x / 0.5x / 0.75x / 1x
• PPEC : Permanent, 100 segments
• Hand controller : SynScan included
• Database : More than 42,000 objects
• Pointing accuracy : Up to 5 arc-minutes RMS
• SNAP camera-control port : Integrated
• Saddle : Dual-fit 45 mm / 75 mm
• Polar scope : Included
• Carrying handle : Integrated
• Tripod : Stainless steel
• Tripod leg diameter : 2 inch
• Tripod weight : 7.5 kg
• Counterweights supplied : 2 × 5 kg
• Counterweight rod diameter : 18 mm
• Counterweight rod length : 240 mm + 180 mm
• Power requirement : 11–16 V DC / 4 A
Package Contents
• Sky-Watcher EQ6-R Pro SynScan mount
• SynScan hand controller
• 2-inch stainless-steel tripod
• 2 × 5 kg counterweights
• Polar alignment scope
