ZWO ASIAIR Plus 256GB Wi-Fi Astrophotography Controller

ZWO ASIAIR Plus 256GB Wi-Fi Astrophotography Controller

Description:
The ASIAIR Plus 256GB is an enhanced edition of ZWO’s all-in-one astrophotography controller. Designed for convenience and portability, it features a robust red anodized aluminum body that integrates camera control, mount synchronization, filter wheel, focuser, power distribution, and wireless connection in one compact device.

Its 256 GB eMMC internal memory (244 GB usable) enables seamless session recording without needing an external drive. With read speeds over 120 MB/s and write speeds over 95 MB/s, it ensures fluid operation even during long imaging runs. The unit includes dual-band Wi-Fi (2.4G/5G) with an external antenna, a Gigabit Ethernet port, two USB 3.0 ports, two USB 2.0 ports, and a USB-C connection.

Via the ASIAIR mobile app (iOS/Android), users can access advanced features such as assisted polar alignment, autofocus, guiding, plate solving, live stacking, automated sequences, video capture, and more. Four individually controllable 12 V DC power outputs manage your connected gear with precision.

Power supply is not included but necessary cables are provided in the kit.

Technical specifications:

• Storage: 256 GB eMMC (244 GB usable)

• Speed: >120 MB/s read, >95 MB/s write

• Connectivity: 2.4G/5G Wi-Fi, external antenna, Gigabit Ethernet

• Ports: 2x USB 3.0, 2x USB 2.0, 1x USB-C

• Power outputs: 4x 12 V DC (software-controlled)

• Compatibility: ASI USB 3.0/Mini cameras, EAF, EFW, GoTo mounts, select DSLR/mirrorless

• Mobile app: ASIAIR (iOS, Android)

General presentation

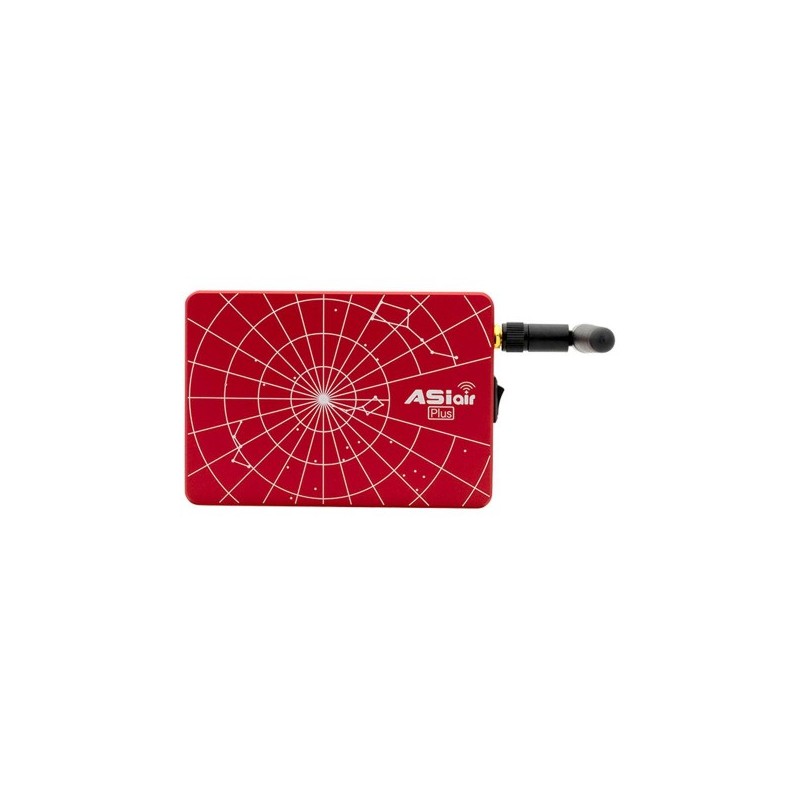

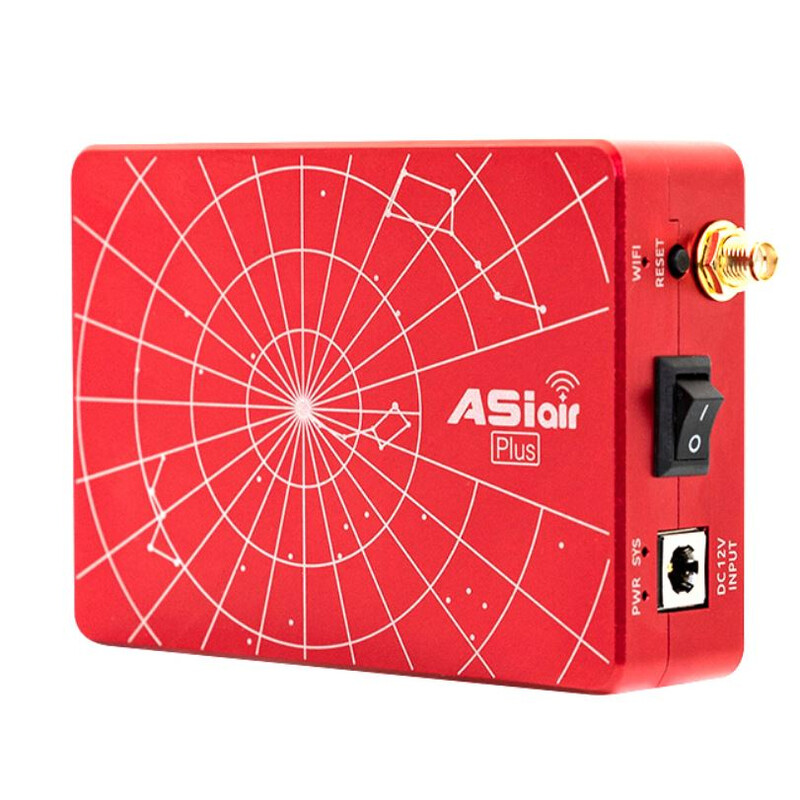

The ZWO ASIAIR Plus 256GB is an all-in-one Wi-Fi astrophotography controller, designed to simplify and automate imaging sessions. With its red anodized aluminum housing, it offers a robust and compact solution for demanding users.

Extended internal storage

Equipped with 256 GB of eMMC memory (244 GB usable), the ASIAIR Plus allows you to save entire sessions without the need for an external drive. Read and write speeds exceed 120 MB/s and 95 MB/s respectively, ensuring smooth capture performance.

Complete connectivity

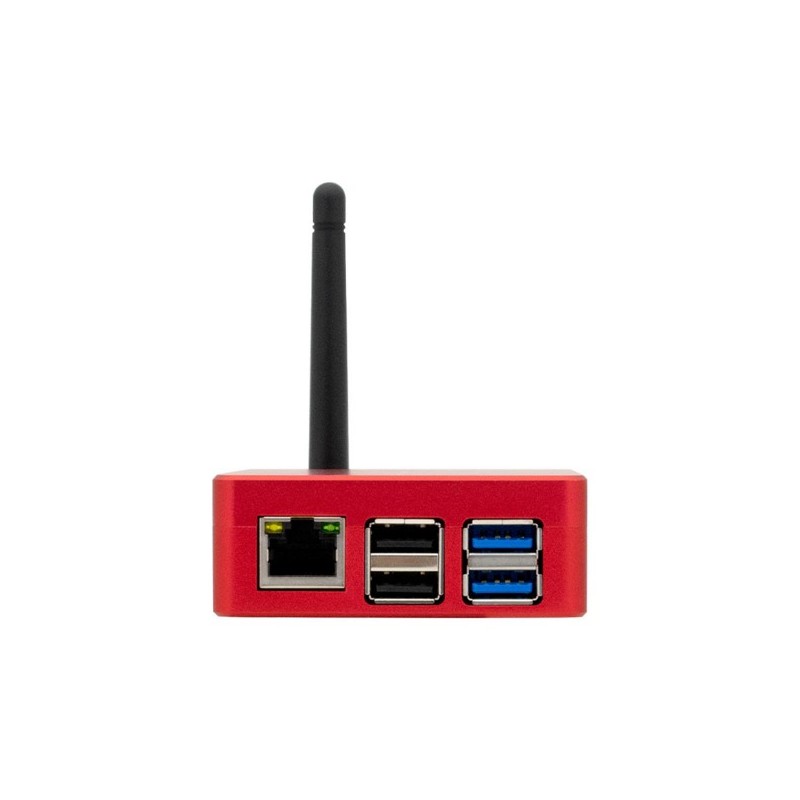

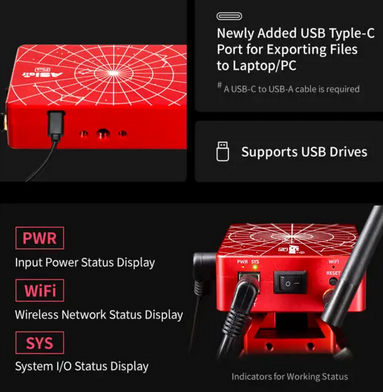

The device features an external dual-band Wi-Fi antenna (2.4 GHz and 5 GHz) offering a range of up to 20 meters, as well as a Gigabit Ethernet port. It also includes 2 USB 3.0 ports, 2 USB 2.0 ports, and a USB-C port for fast data transfer.

Power management

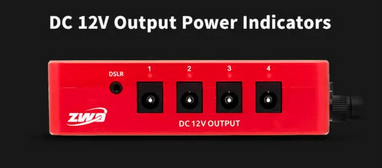

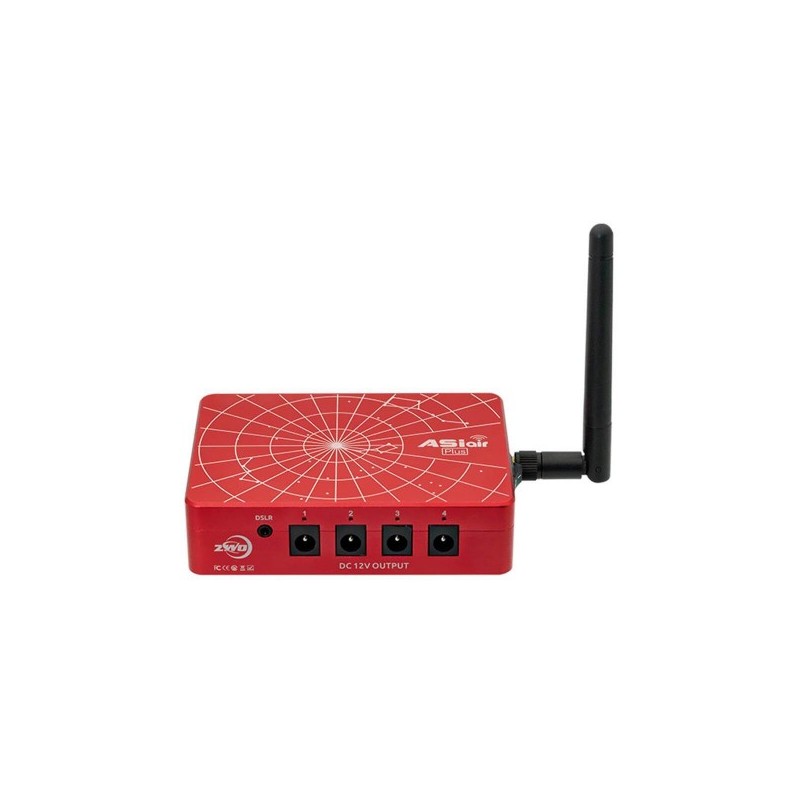

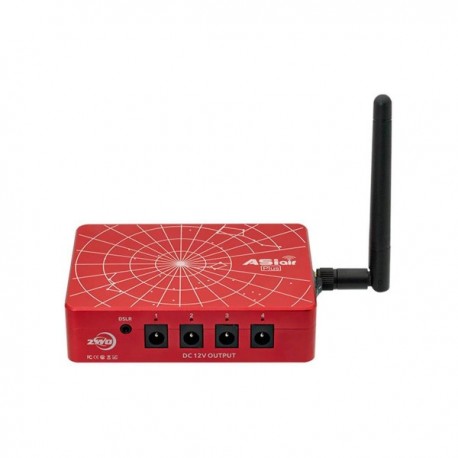

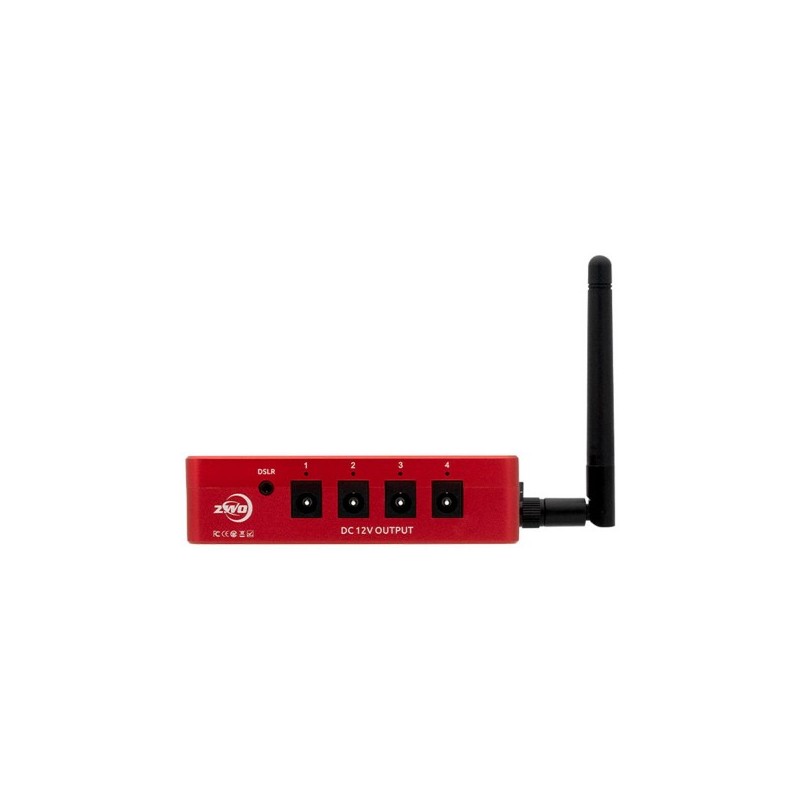

The ASIAIR Plus has 4 individually controllable 12 V DC outputs via the mobile app. Each channel allows power monitoring and precise distribution to camera, mount, or filter wheel.

Extended compatibility

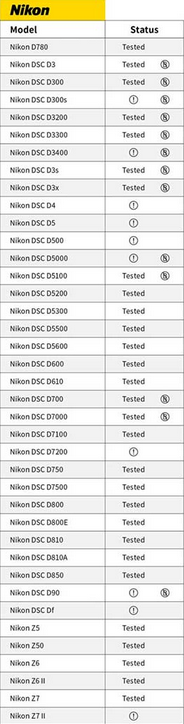

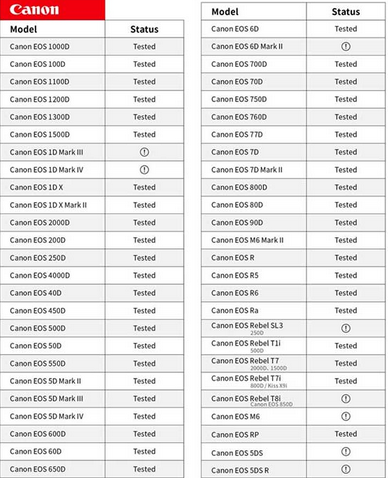

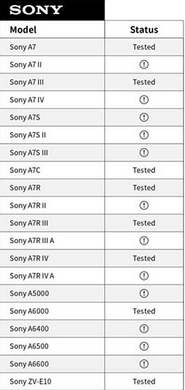

Compatible with ZWO ASI USB 3.0 and Mini cameras, ZWO EAF focusers, ZWO EFW filter wheels, many equatorial mounts, and certain DSLR/mirrorless cameras. It integrates perfectly into most current optical setups.

Mount Compatibility

The ZWO ASIAIR Plus 256GB is compatible with a wide range of GoTo and hybrid equatorial mounts, covering over 400 models from more than 20 manufacturers. Not all compatible models can be listed here. The selection shown below highlights the most common and widely used ones. To check the compatibility of a specific model, please refer to the official ZWO documentation or the regularly updated product page:

• ZWO: AM5, AM3

• Sky-Watcher: EQ3, EQ5, HEQ5, EQ6-R, AZ-EQ5, AZ-EQ6, EQ8, Star Adventurer

• iOptron: CEM25P, CEM26, CEM40, GEM28, GEM45, CEM60, CEM70, SkyGuider Pro, SkyHunter, HAE series, HEM series

• Celestron: AVX, CGEM, CGEM II, CGX, CGX-L, CPC (with or without wedge), NexStar SE, Evolution

• Losmandy: G11, GM8

• Astro-Physics: Mach1, 1100GTO, 1600GTO

• 10Micron: GM1000 HPS, GM2000 HPS

• Vixen: Sphinx, SXD, SXD2, AXJ

• Avalon Instruments: M-Zero, M-Uno, Linear

• Explore Scientific: EXOS-2, PMC-Eight

• Rainbow Astro: RST-135

For a complete and up-to-date list of compatible mounts, please visit the official ZWO page.

Advanced software features

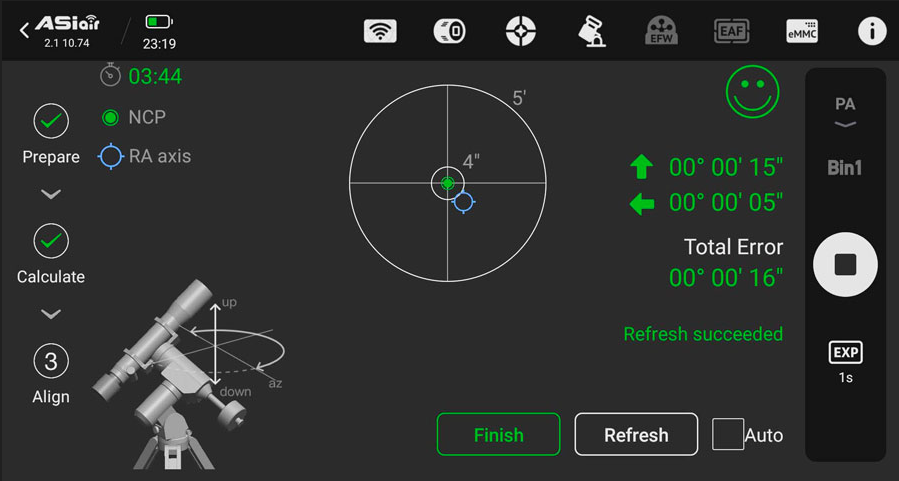

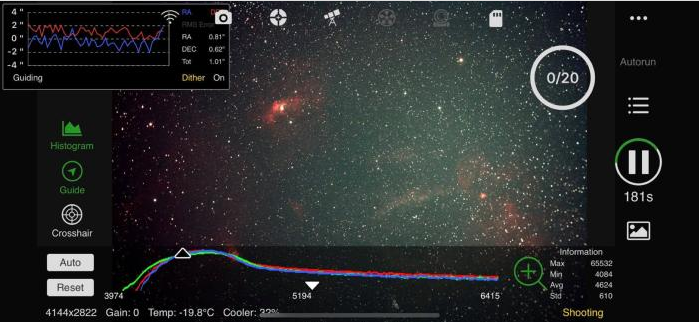

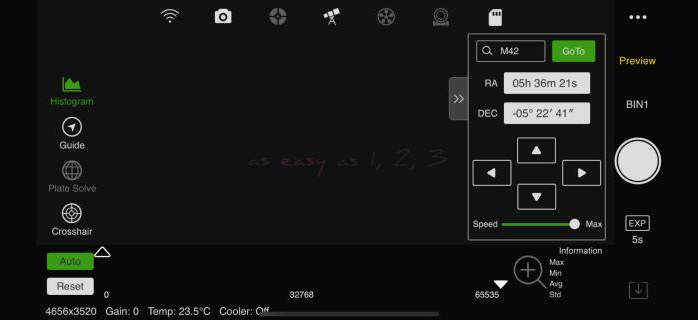

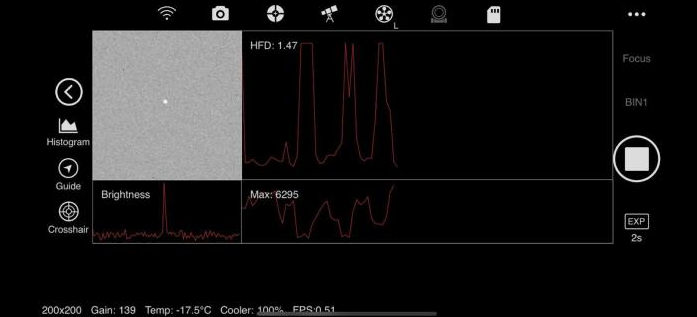

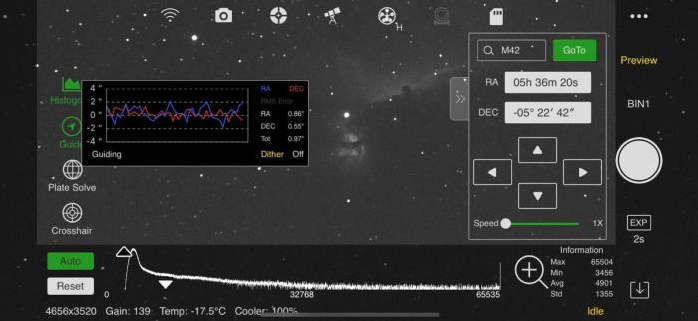

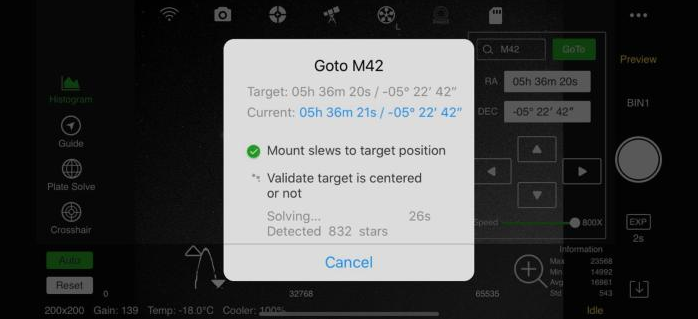

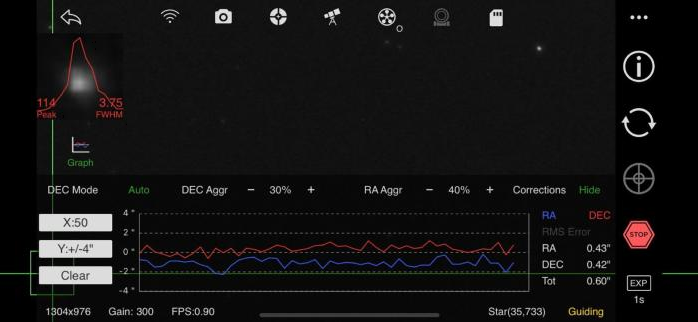

Thanks to the ASIAIR app (iOS and Android), users benefit from numerous functions: assisted polar alignment, autofocus, plate solving, live stacking, imaging sequencing, guiding, video capture, and more.

Box contents

Le coffret inclut :

• ASIAIR Plus 256GB

• 2 câbles d’alimentation DC mâle 0,5 m

• 2 câbles d’alimentation DC mâle 1 m

• 1 rallonge DC mâle/femelle 1,5 m

• 1 câble USB 3.0 Type-B 0,75 m

• Guide de démarrage rapide et d’activation

Required power supply

The 12 V power supply is not included. A power source between 12 V and 14 V is recommended, with a minimum current of 5A.
