Tri Pier 360 column for CEM120, 120 EC and 120 EC2

Tri Pier 360 column for CEM120, 120 EC and 120 EC2

Ioptron presents the Tri Pier 360, specially designed for the new Ioptron CEM120!

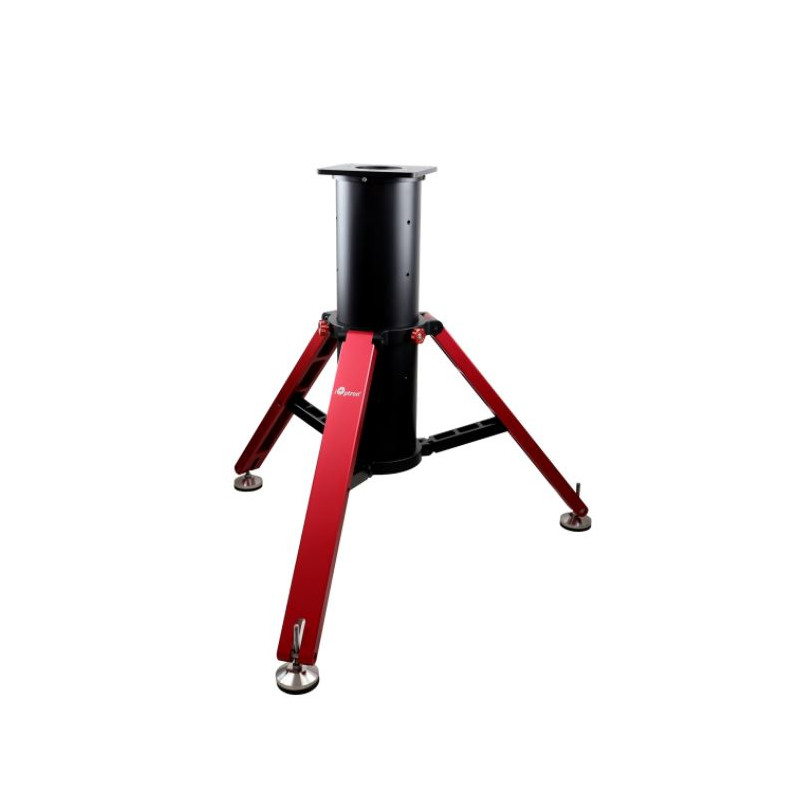

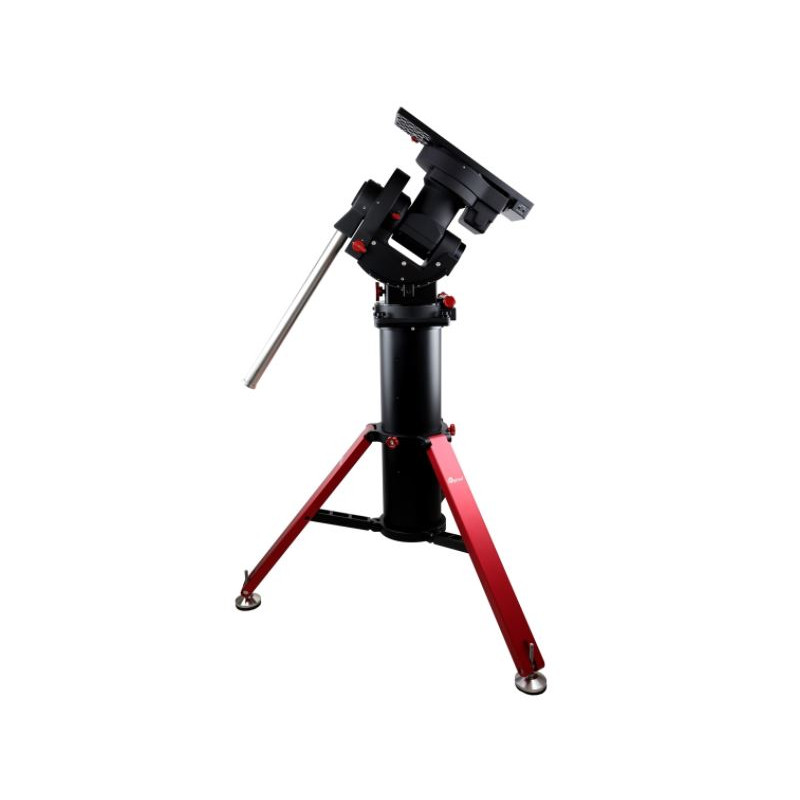

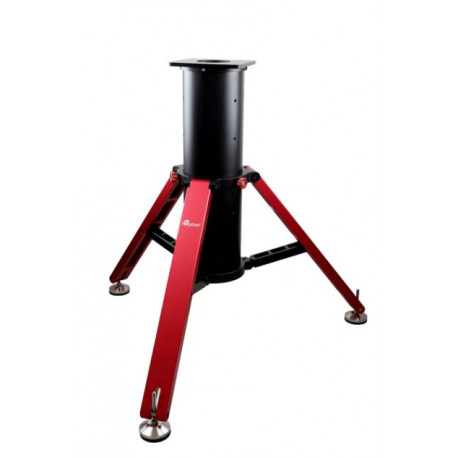

The iOptron heavy duty Tri-Pier 360A combines the strength and stableness of a pier with the levelling flexibility of a tripod. 5mm thick aluminum alloy pier and CNC machined legs with adjustable feet.

The Tri-Pier 360A can be used for the following mounts directly*:

• CEM120
• CEM70
• CEM60
• iEQ45 Pro/iEQ45
• Paramount MyT

It can also be used for the following mounts with extra parts or an adapter*:

• AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
• CEM40/GEM45 (need MiniPier 8032 or MiniPier top plate 8032PT)
• Takahashi (EM-200), SkyWatcher (HEQ5/EQ6/NEQ6/AZEQ6), Celestron (CGEM/CGEM-DX), Orion Atlas (EQ-G/AZEQ-G) ( need Tri-Pier adapter 8036-TK)
• Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
• ZEQ25/CEM25 (need Tri-Pier adapter 8036-25)
• CEM26/GEM28 (need special parts, contact iOptron Support)

Please advise if you need an adapter for your mount

Characteristics:

Weight: 19 kg
Maximum load: 165kg
CNC anodized aluminum construction
Diameter of the column 181mm
Column thickness 6.35mm
Adjustable height: 813-1015mm

Important information;

Please note that due to the significant weight of this item, shipping and import charges will be charged separately and are not included in the item price shown.
We remain at your disposal for any questions or clarifications.
