Baader Morpheus 12.5 mm 76° Widefield Eyepiece

Baader Morpheus 12.5 mm 76° Widefield Eyepiece

DESCRIPTION

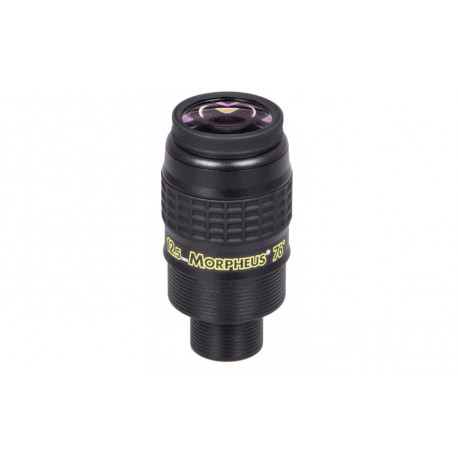

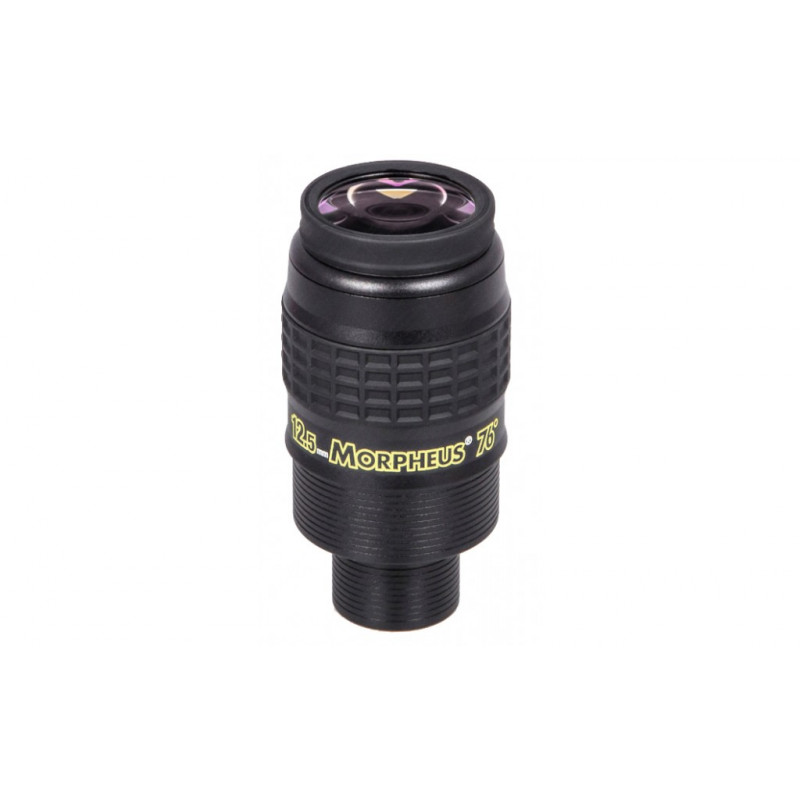

The Baader Planetarium Morpheus 12.5 mm eyepiece offers a wide 76° apparent field with outstanding sharpness and contrast. It rivals the best planetary eyepieces (like Zeiss Abbe ZAO I & II) in center sharpness and delivers full-field performance even in fast optical systems.

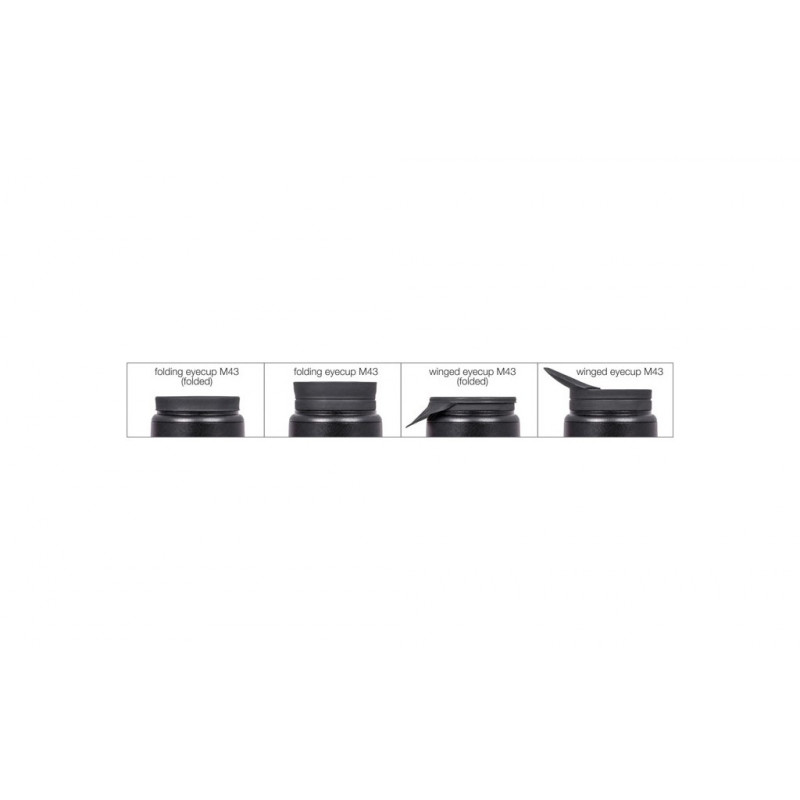

Its six-element, four-group optical design includes Baader’s Phantom Coating® Group and blackened lens edges for reduced internal reflections. The integrated twist-up rubber eyecup attaches to a solid M43 metal thread for reliable use.

With 20 mm eye relief, it ensures excellent comfort for eyeglass wearers. Its slim 55 mm body is fully compatible with binoviewers – even for users with narrow interpupillary distances.

The eyepiece includes dual 1.25" and 2" barrels, without wide undercuts but with Safety-Kerfs for secure grip. Luminescent labeling helps you identify the focal length in the dark.

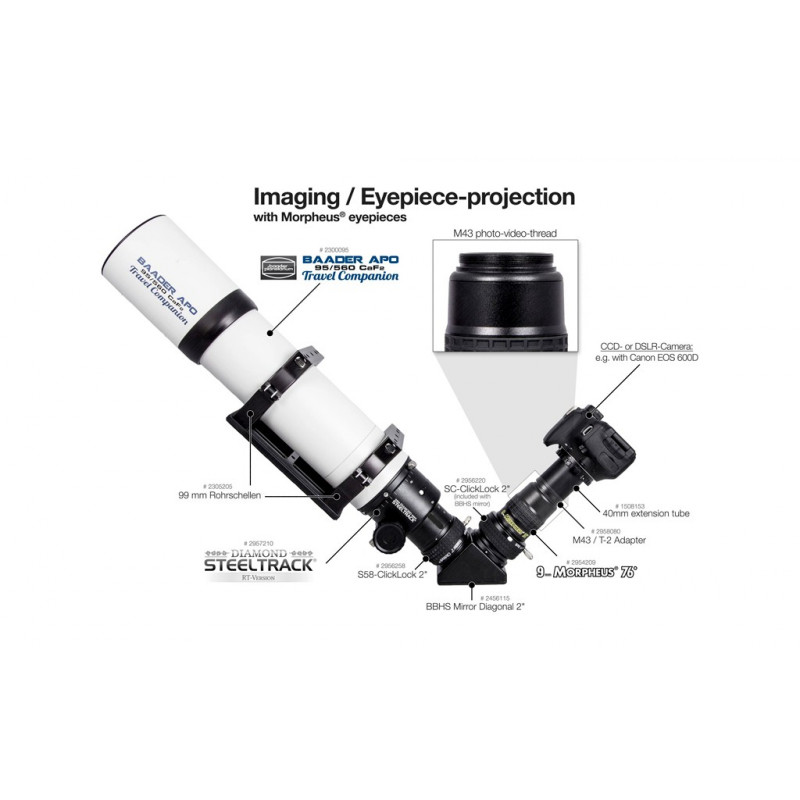

M43 threading enables both projection and afocal imaging using M43/T2 or M43/SP54 extensions.

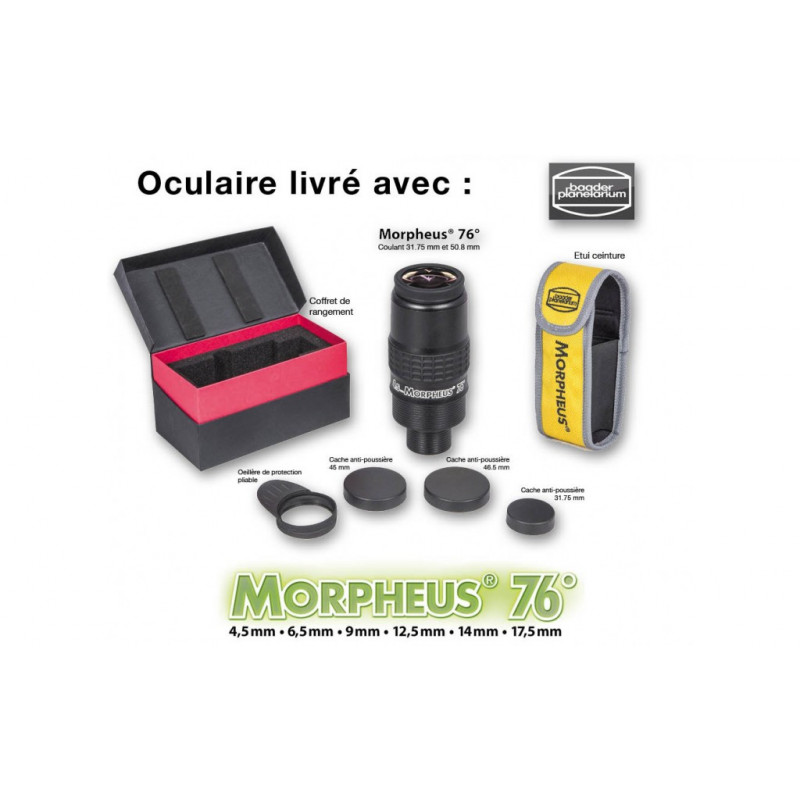

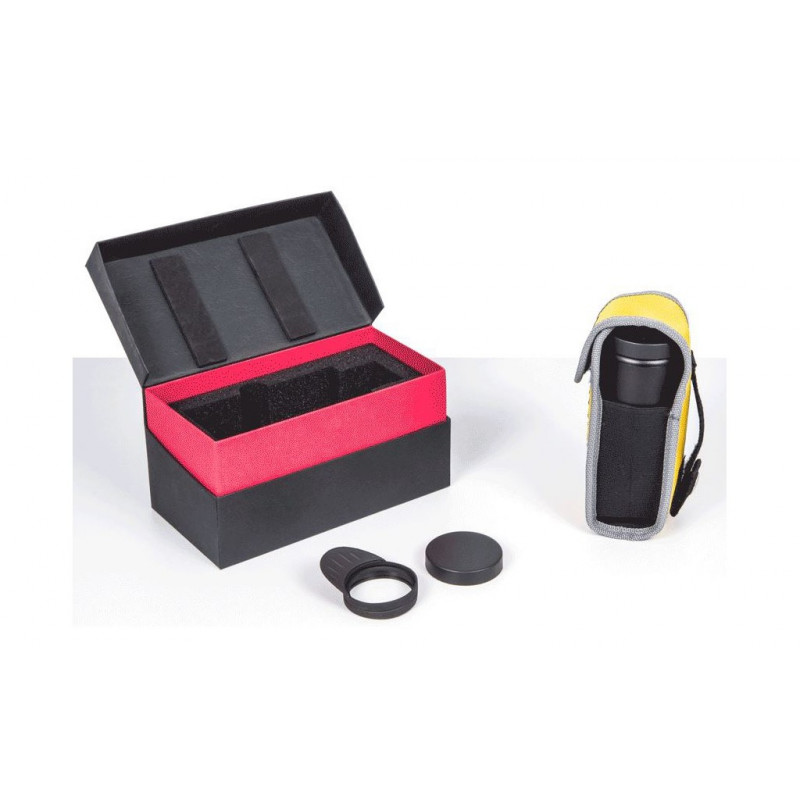

Comes with dual eyecups (round and winged), Cordura holster, M43 extension ring, focal length clip, and dust caps.

TECHNICAL SPECIFICATIONS

• SKU: 2954212

• EAN Code: 4047825030269

• Manufacturer: Baader Planetarium

• Net weight: 0.38 kg

• Focal length: 12.5 mm

• Apparent field of view: 76°

• Eye relief: 20 mm

• Outer diameter: 55 mm

• Number of lenses/groups: 6/4

• Length above reference plane: 74.5 mm

• 1.25" barrel length: 24 mm

• 2" barrel length: 21 mm

• Filter threads: yes

• Camera thread: M43

• Connections:

  • 1.25" (31.75 mm)

  • 2" (50.8 mm)

  • M43 (photo/video)

  • M28.5 (lens side)

• Luminescent labeling: yes

• Included accessories:

  • 1.25" and 2" dust caps

  • Folding rubber eyecup with metal thread

  • Winged eyecup

  • Cordura eyepiece holster

  • Focal length indicator clip

  • M43/M43 extension ring
