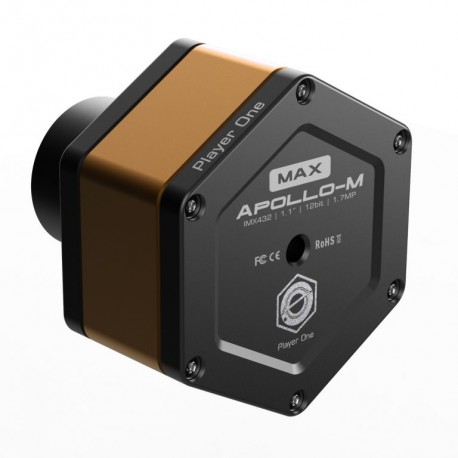

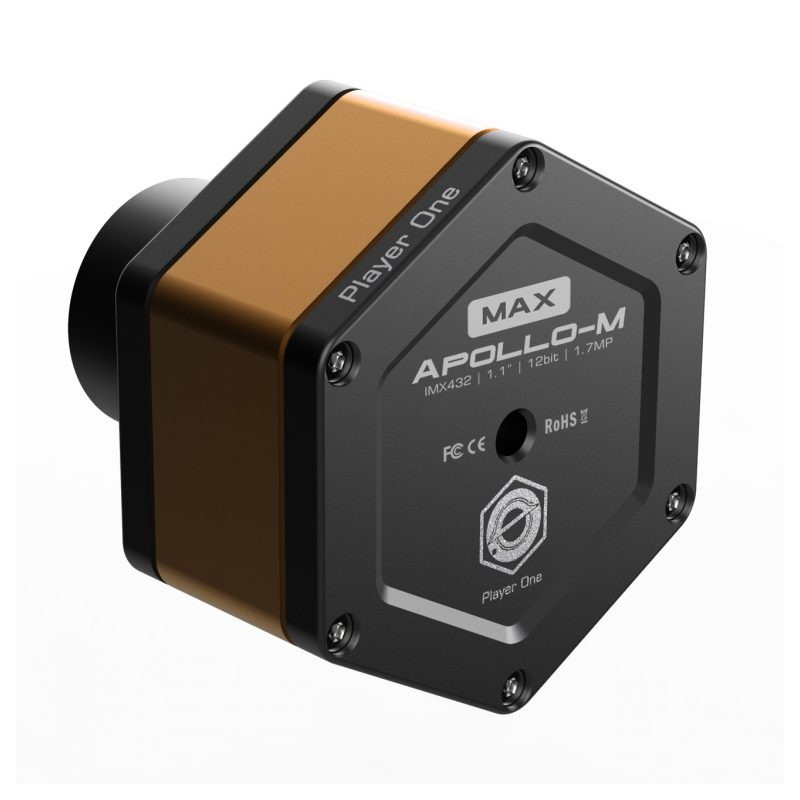

Apollo-M MAX (IMX432), 1.1 inch sensor, monochrome.
Apollo series is the world’s first camera line designed specifically for solar photography, named after Apollo. The Apollo series features Sony sensors with global shutters and a focus on monochrome sensors.
Apollo-M MAX is a solar camera developed by Player One Astronomy, which adopts the Sony IMX432 1.1” format monochrome sensor. The 9um pixel size accommodates a well depth of 100ke with a total of 1.7MP (the resolution is 1608*1104), and the diagonal is 17.5mm.
IMX432 sensor is based on Pregius 3rd Generation. But IMX432 is quite different. According to the introduction of technical documents, pixel size of 3rd Gen usually is 4.5um, and full well is 25Ke. But this sensor has 9um pixel, and of course the full well up to 4x (100Ke).

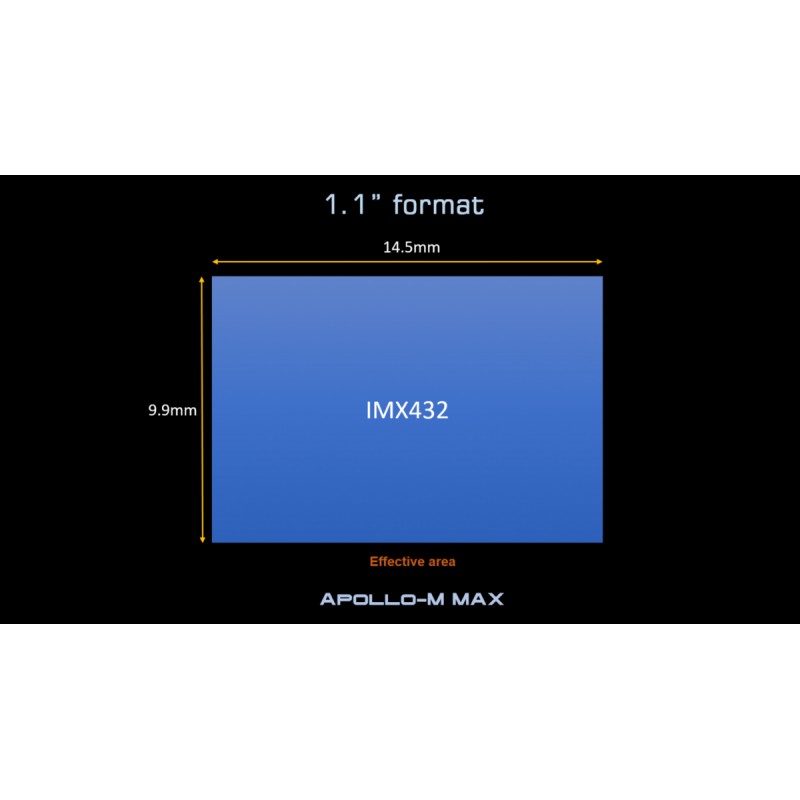

IMX432 has 1.1″ format, it is pretty big, almost twice of IMX174 chip.

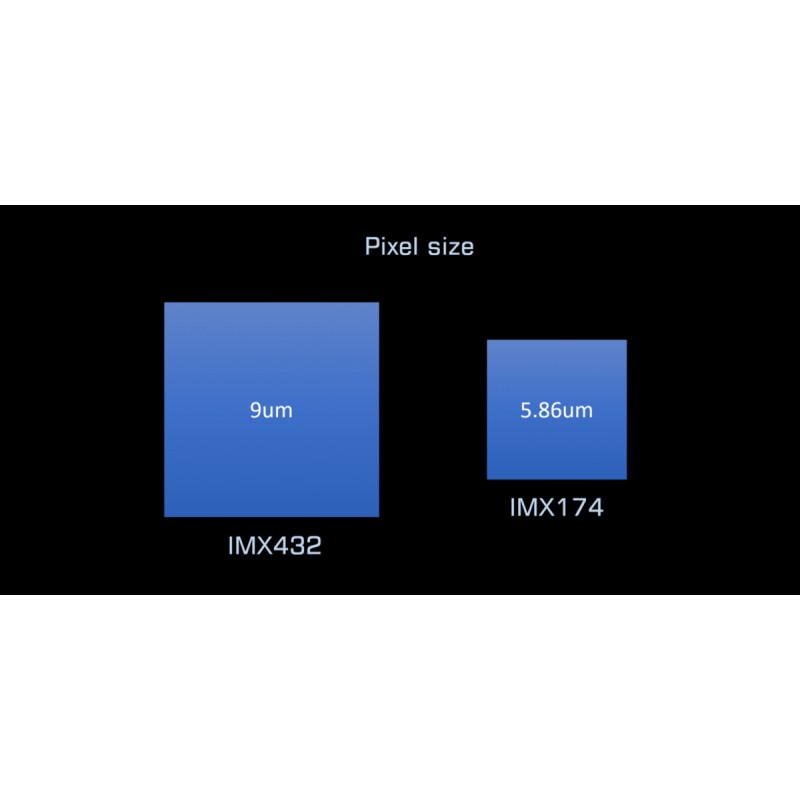

9um pixel size is 1.5 times bigger than IMX174 camera, which means it can works at longer focal ratio, such as SCT + Daystar filter(with 4.2X) .
100Ke full well, is 3 times bigger than IMX174. This feature will bring some new possibility in imaging. What we can imagine is HDR the Sun and prominence, or maybe the bright and dark side of the Moon.
HCG mode will automatic open when Gain >145, readout noise will drop to 4.6e. And dynamic range will rise to 12 drops again.
At 380 gain, readout noise of IMX432 is 2.6e, it is lower than IMX174. And full well will still bigger than IMX174.
Row noise problem is a big trouble in solar imaging. When we use IMX174 or IMX178 cameras, bandings occurs sometimes. Although we can fix this problem in post-processing, but it still does nagitive affect on the details.
The biggest surprise in testing Apollo-M MAX is, we found that images of IMX432 are so smooth, no annoying horizontal banding. So that, we can focus on capture details in any focal ratio, in any way ( full disk mosaic or ROI ) , never need to worry about banding issue in post-processing.

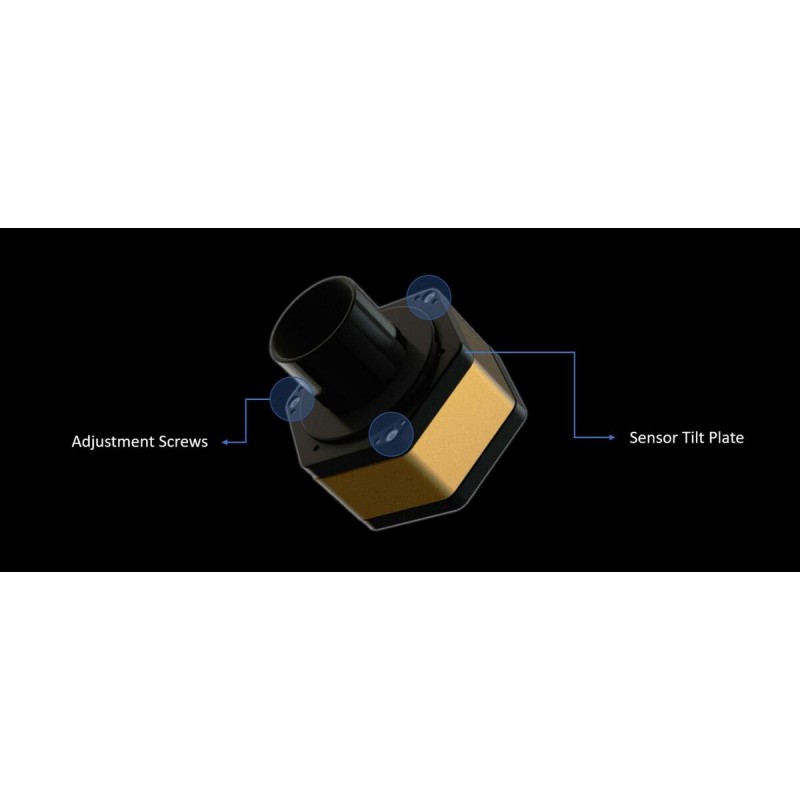

When taking solar photograph with prominence telescope, the Newton ring is annoying. Smoother solar image without Newton ring could be taken by adjusting the focal plate. Get a much smaller field curvature of the telescope.
Player One Astronomy cameras are the first one who adpots the DDR3 cache in all planetary cameras in the world! It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readnoise.
With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will still has excellent performance even if it is connected to a USB 2.0 port.
The planetary cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is anaylse many dark frames to find out thoes fixed abnormal pixel and record the map in camera memory. In imaging, each exposure frames, thoes position of dead pixels will be given a median value according to the active pixels around that abnormal pixel.
Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.
When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 98FPS both in 12bit (RAW16) and 10bit(RAW8) mode. When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.
Use the ST4 guide cable to connect the camera and the AUTO GUIDE port of the equatorial mount to do guiding.
Camera & 1.25" T-mount
2 metre long USB 3.0 cable
2 metre long ST4 cable
1.25" protective cover
Air blow for removing dust and dirt
M2 Hexagonal wrench x1
M1.2 Hexagonal wrench x3
SONY IMX432 1.1" CMOS (mono)
1.7 Mega Pixels
1.25″ / M42X0.75

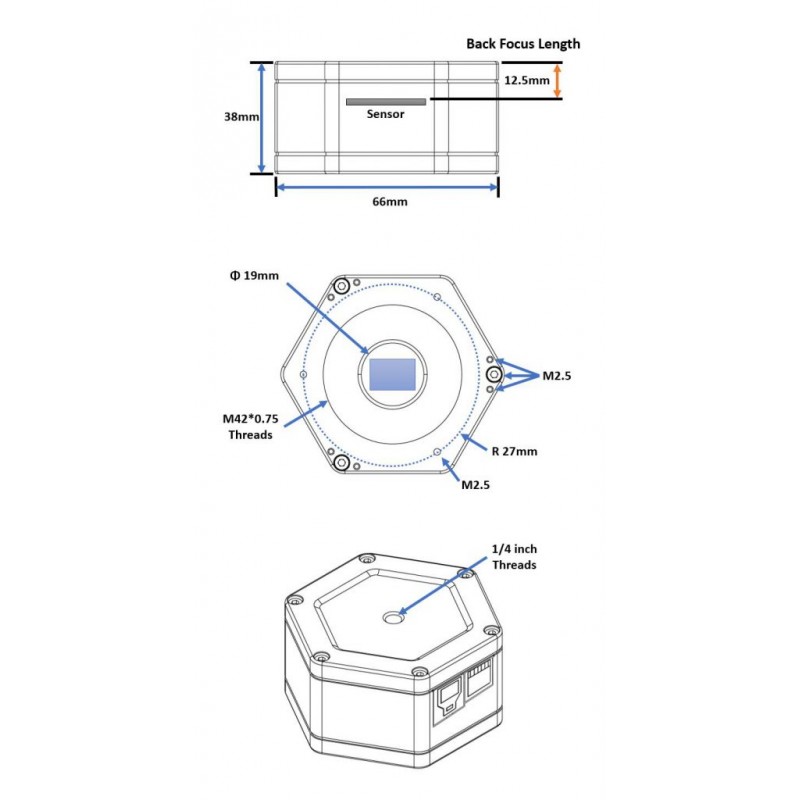

|Back Focal Length||
|Resolution and FPS||
Under USB3.0 mode
