Baader Heavy Pillar (BHP) Levelling Support for GM 3000, 15 cm height (2451186H)

For precise polar alignment of GM 3000 mounts on Baader conical steel BHP pillars

More details

Available immediately from the manufacturer. Please contact us for more information.

409.00 CHF tax incl.

More info

Baader Heavy Pillar (BHP) Levelling Support for GM 3000, 15 cm height (2451186H)

Description

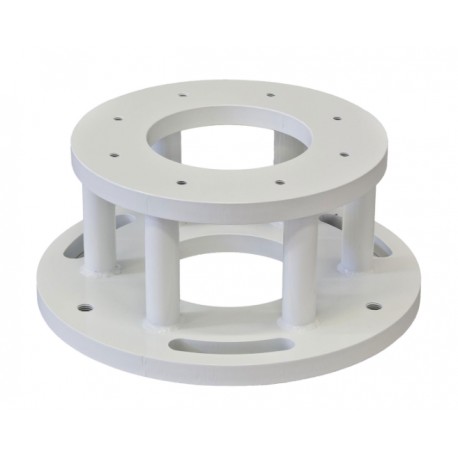

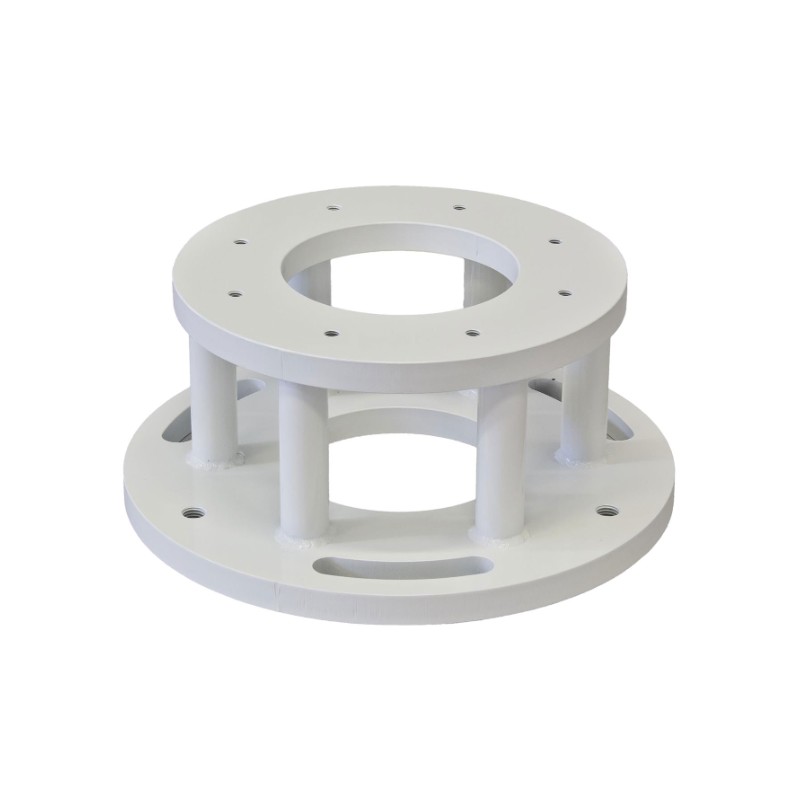

The Baader BHP levelling support (height 150 mm) is designed to precisely compensate for foundation irregularities or north-south misalignments when installing a GM 3000 mount on a conical Baader BHP steel pillar. This rugged adjustment system allows fine tuning very close to the mount without compromising the stability of the whole setup.

It consists of two solid steel plates, separated by six robust steel spacers. The top plate is precision milled and threaded to match the GM 3000 base plate, ensuring a secure and rigid connection.

This component is required for mounting a GM 3000 equatorial head on a BHP pillar and must be used in conjunction with the lower support base #1453090 (not included).

Technical specifications

  • Type: Levelling support for Baader conical BHP pillar

  • Compatibility: GM 3000 mount

  • Height: 150 mm

  • Structure: Two precision steel plates, connected by six steel bars

  • Net weight: 24.25 kg

  • Upper plate: Milled and threaded to fit GM 3000 base

  • Manufacturer reference: 2451186H

  • EAN code: 4047825039163

  • Manufacturer: Baader Planetarium

Additional information

  • Material: Solid steel

  • Purpose: Fine adjustment of alignment and leveling on BHP steel pillar

  • Required base: Steel base plate for GM 3000 (#1453090) must be ordered separately

  • Designed exclusively for use with Baader BHP conical steel pillars

  • Stability of the pillar is fully preserved
