Description

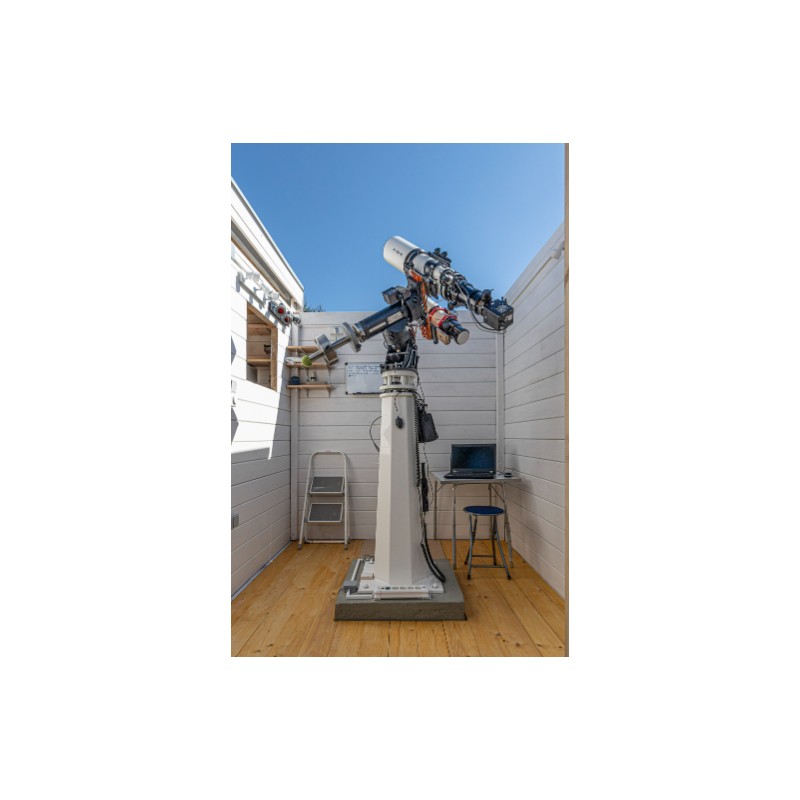

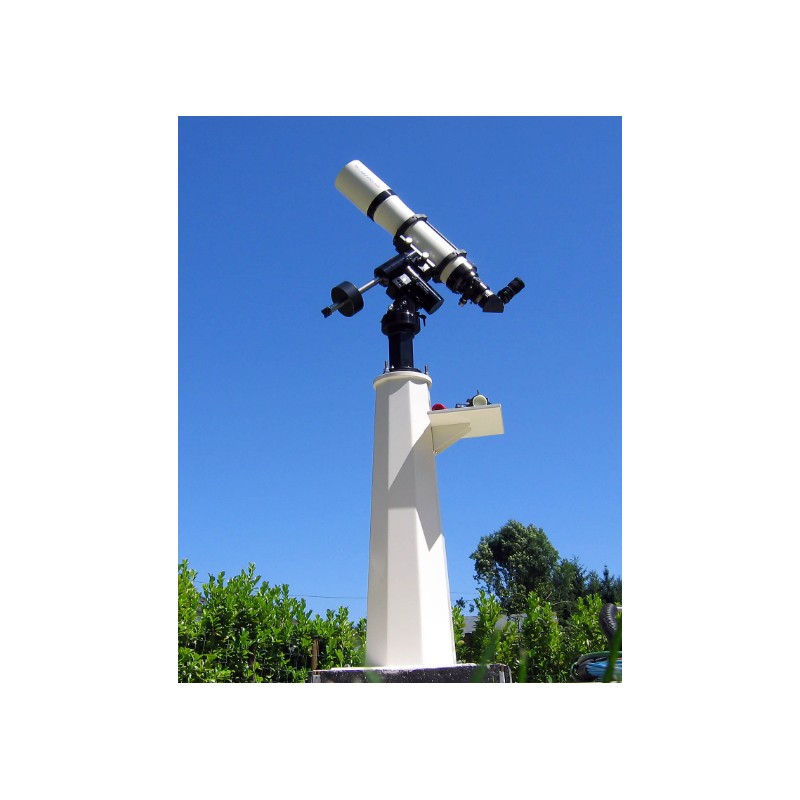

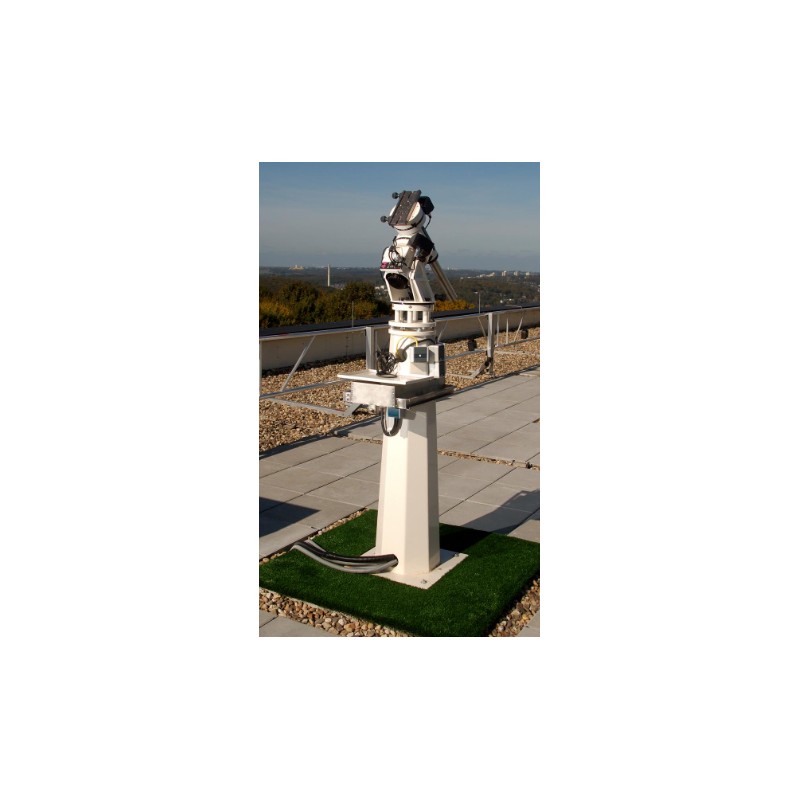

The Baader Medium Pillar (BMP) is a high-end structural support solution designed for heavy-duty telescope mounts and observatory installations. It is exclusively available as part of a complete project when purchased directly from Baader.

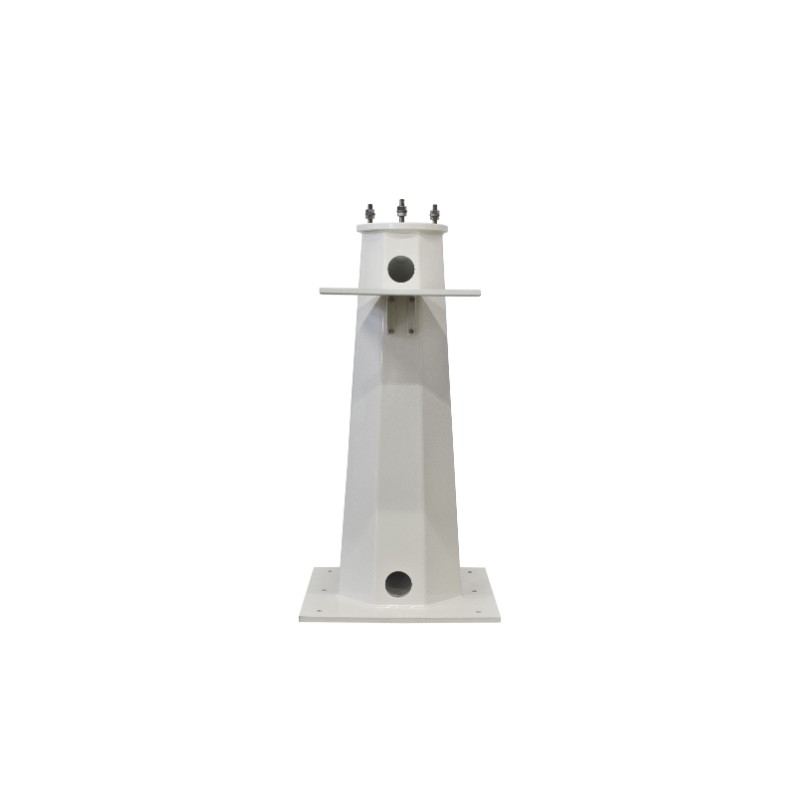

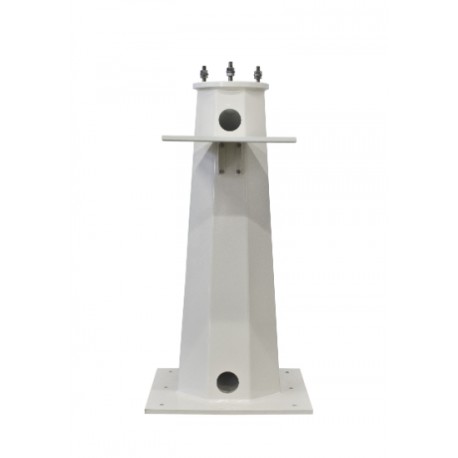

Built from welded steel, the BMP pillar features a conical and octagonal geometry engineered to actively dampen mechanical vibrations. With a payload capacity of up to 250 kg, it is well-suited for mounts such as the GM 1000, GM 2000, and AP 900/1100 GTO.

The pillar includes a 3" internal cable duct, and its 500 × 500 mm base plate ensures secure anchoring to a properly prepared concrete pier, following Baader’s specifications. The top plate has a 240 mm diameter, is 1" (25 mm) thick, and includes three M14 bolts and a central hole for optional filling with quartz sand on-site, improving stability.

Each pillar is custom made, and the total height including the leveling flange is agreed upon with the customer based on structural requirements.

Standard heights available:

• 60 cm / ref. 2451211

• 80 cm / ref. 2451212

• 100 cm / ref. 2451213

• 115 cm / ref. 2451214

• 125 cm / ref. 2451215

• 135 cm / ref. 2451216

• 145 cm / ref. 2451217

• 155 cm / ref. 2451218

• 165 cm / ref. 2451219

Please specify the desired height when placing your order.

Important notes:

• The BMP pillar is not sold separately, only as part of a complete mount or observatory project.

• The listed prices are subsidized for bundled projects; standalone production at this price would not be feasible.

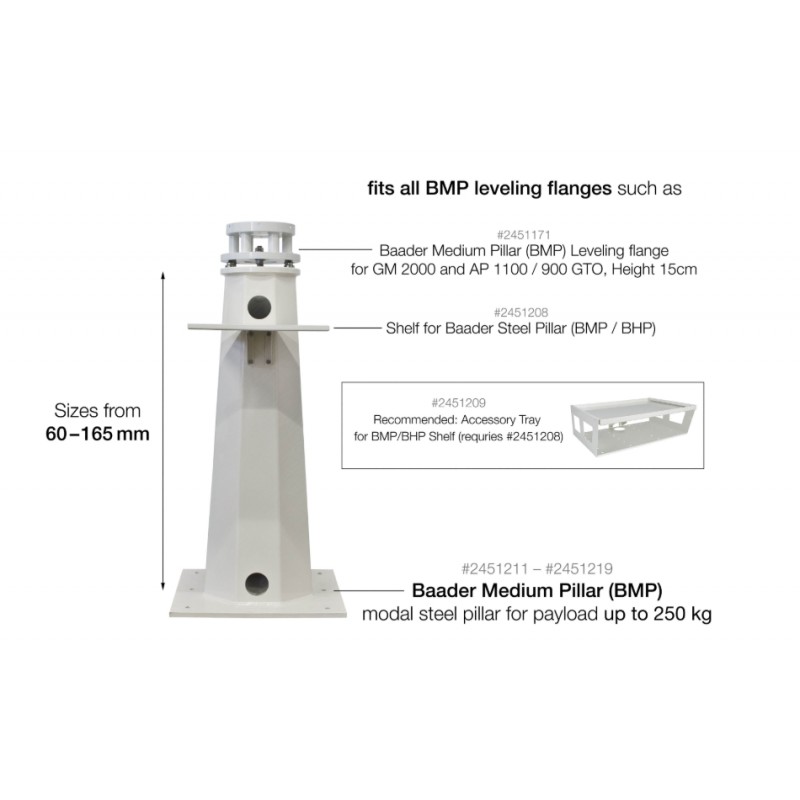

• A Baader leveling flange is required and must be ordered separately:

  • For GM 1000: #2451187

  • For GM 2000 or AP 900/1100 GTO: #2451171

• Pillar must be anchored to a concrete base built according to Baader’s specifications.

• Total height of pillar + flange should not exceed 175 cm

• Custom production only, with long delivery times expected

• Consultation prior to order is required

Technical specifications

• Name: Baader Medium Pillar (BMP)

• Material: Welded steel, conical and octagonal

• Height (standard): 60 cm (other heights on request)

• Weight (at 60 cm): approx. 55 kg

• Load capacity: up to 250 kg

• Base plate: 500 × 500 mm

• Top plate: 240 mm diameter, 25 mm thick

• Mounting bolts: 3 × M14

• Internal cable duct: 3" width

• On-site filling: quartz sand

• Anchoring: on reinforced concrete base

• Use: Only for complete Baader mount/observatory systems

Additional information

• Fabricated per project

• High mechanical rigidity and precision

• Recommended for fixed installations with long-term stability

• Leveling flange required, sold separately

• Consultation required before order
