Description

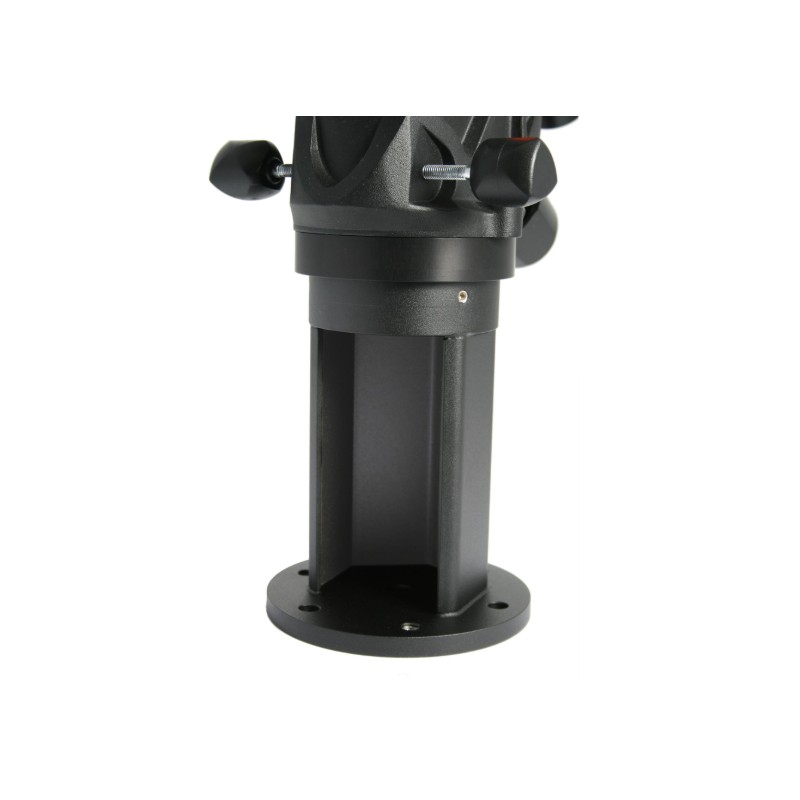

The Baader Short Pillar Flange Set IV with Universal Base-Ring provides a stable and flexible platform for mounting EQ telescope heads on concrete pillars or Celestron tripods. This set includes:

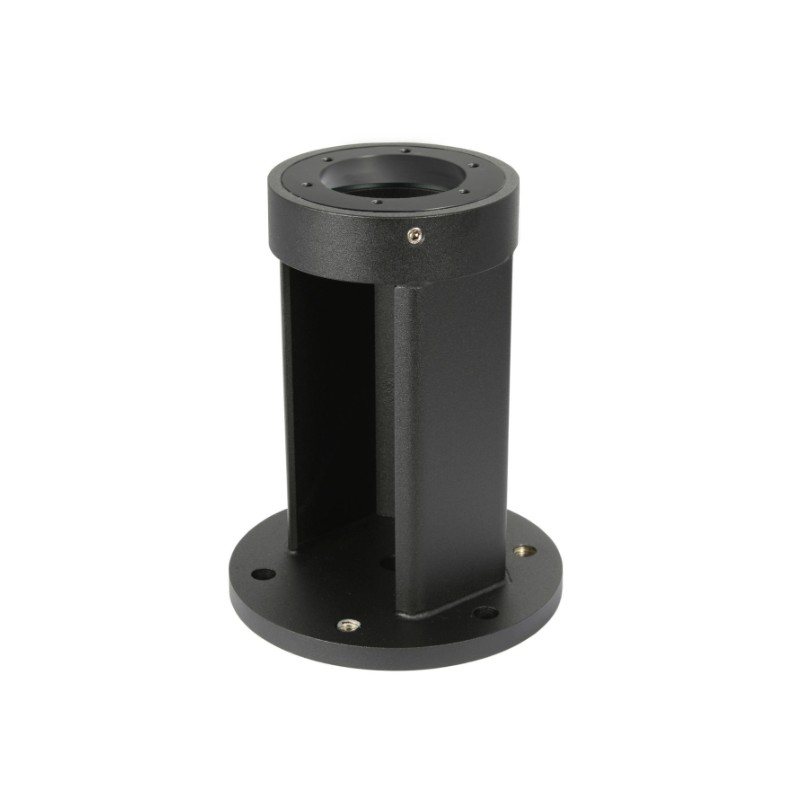

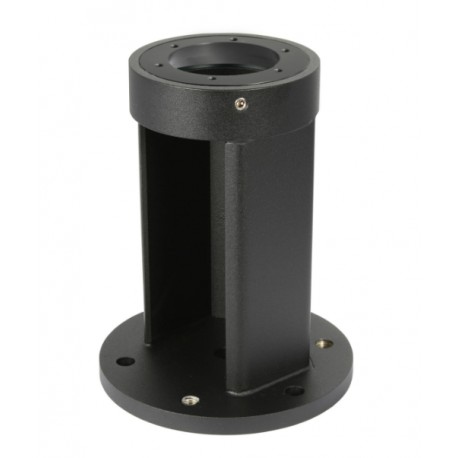

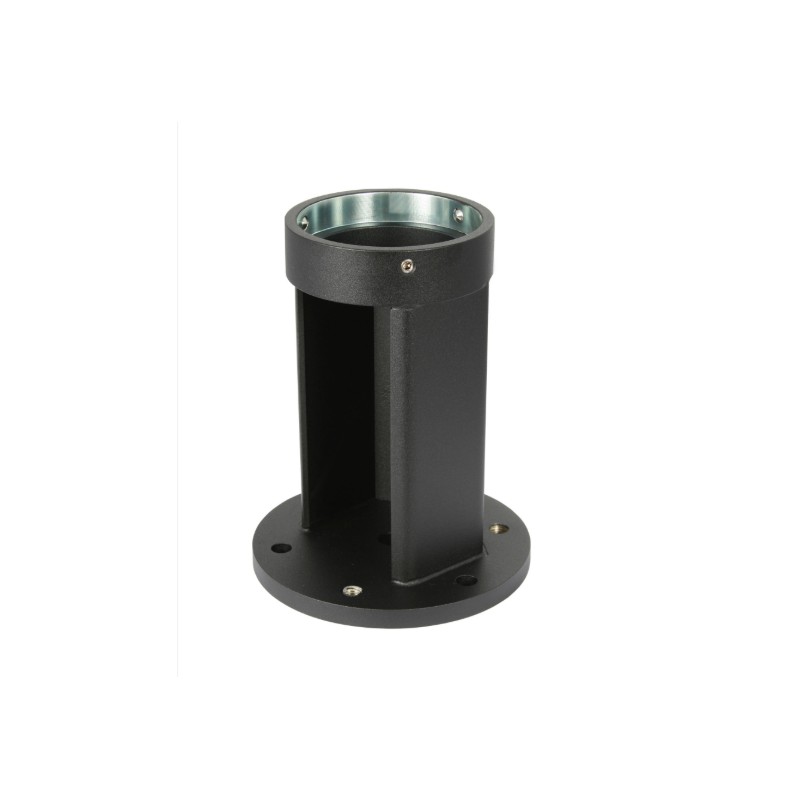

• a 190 mm tall steel short pillar flange (Short-Pillar Flange III)

• a universal base ring compatible with Baader’s Short-Steel-Pillar III (#2451155)

This combination allows mounting of various Baader adapter flanges originally designed for T-Pod tripods. Depending on the chosen adapter, the total pillar height can be extended by 18 to 40 mm.

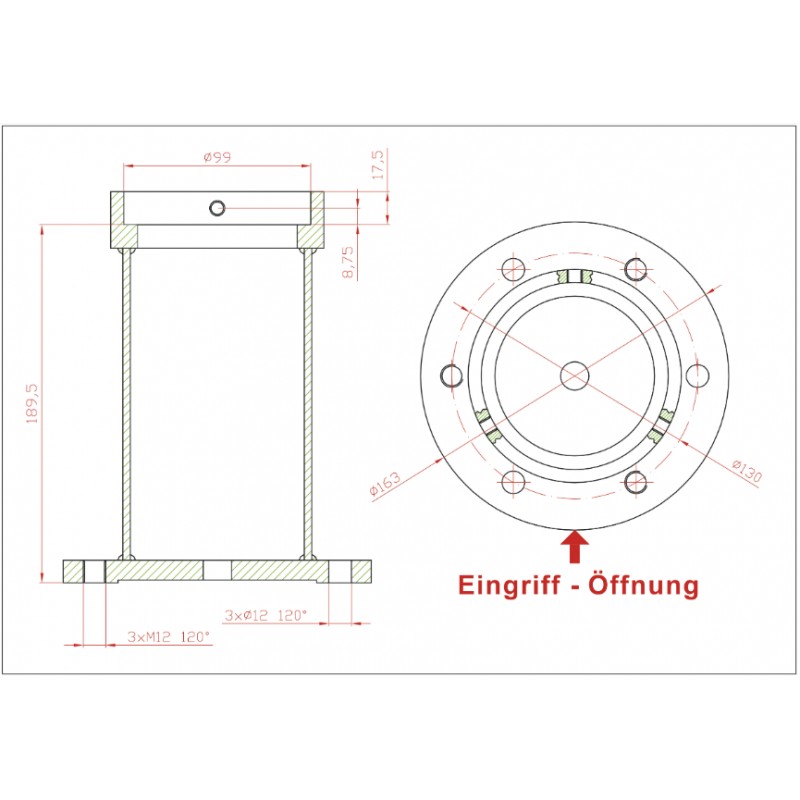

The design includes lateral access to the central mounting screw, which facilitates easy assembly even when already mounted.

Compatible with the following Baader adapter flanges:

• Cel-AS / EQ-5 / HEQ5 (#2451106)

• Vixen Sphinx (#2451107)

• EQ-6 / NEQ-6 / AZEQ-6 (#2451108)

• Vixen AP mounts (#2451109)

• Zeiss 1B mount (#2451112)

• Celestron CGEM-DX / CGE-Pro (#2451116)

• Celestron AVX (#2451117)

• Celestron CGX / CGX-L (#2451118)

• NexStar SE / EVO (#2451145)

• Celestron CGEM (#2451115)

Technical specifications

• Product name: Short Pillar Flange Set IV incl. Universal Flange

• Height: 190 mm

• Extra height with adapter: 18–40 mm (depending on flange type)

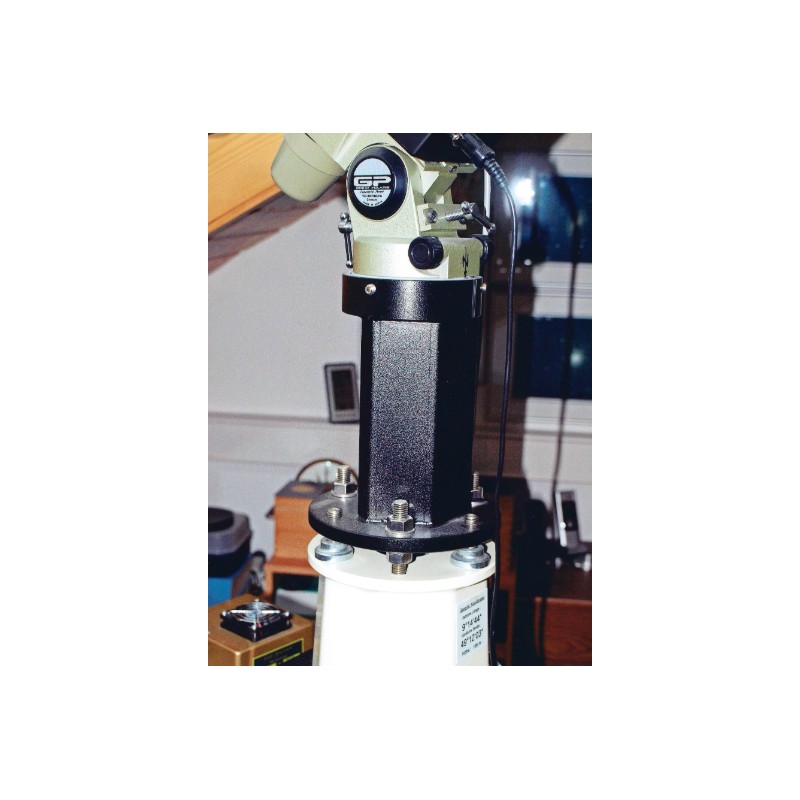

• Mounting: Concrete piers or compatible Celestron tripods

• Central screw: lateral access

• Net weight: 4 kg

• Manufacturer: Baader Planetarium

• SKU: 2451151

• EAN: 4047825060846

Additional information

• Stable steel structure for permanent or semi-permanent installation

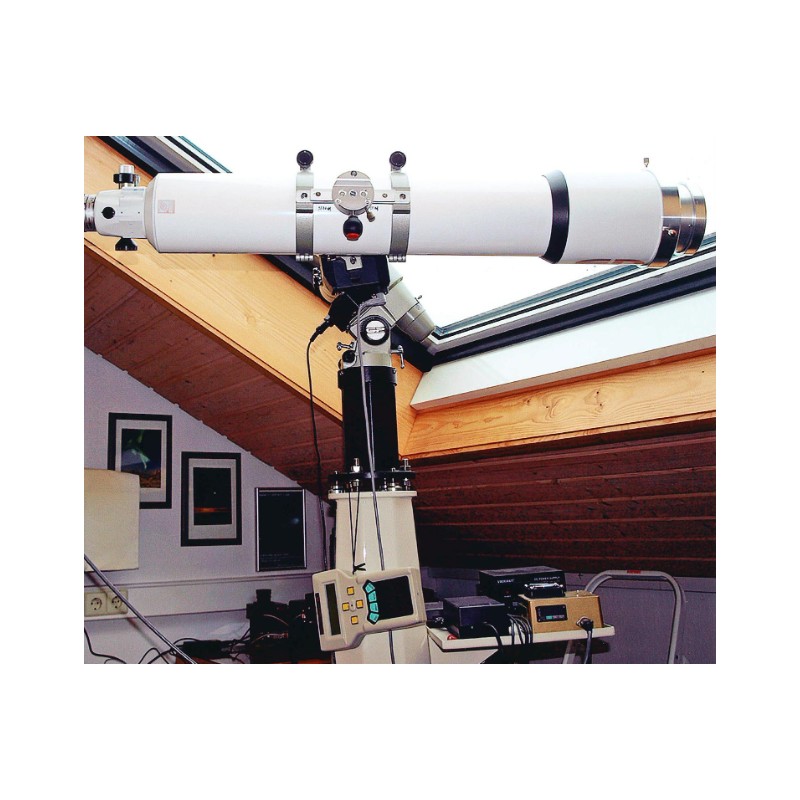

• Ideal for observatories or custom pier setups

• Compatible with a wide range of Baader adapters

• Professional-grade component for mounting EQ heads
