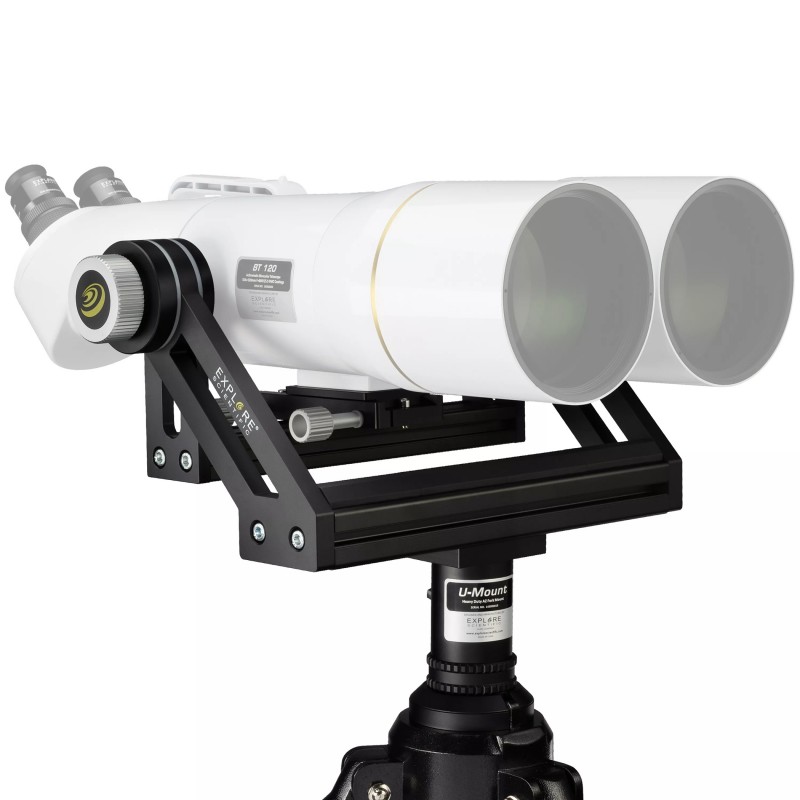

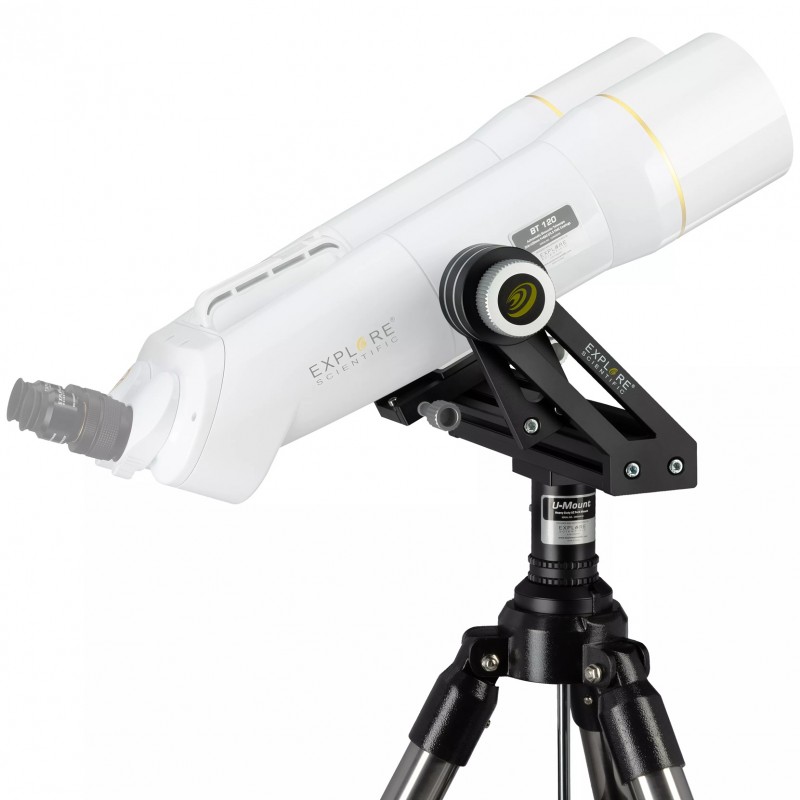

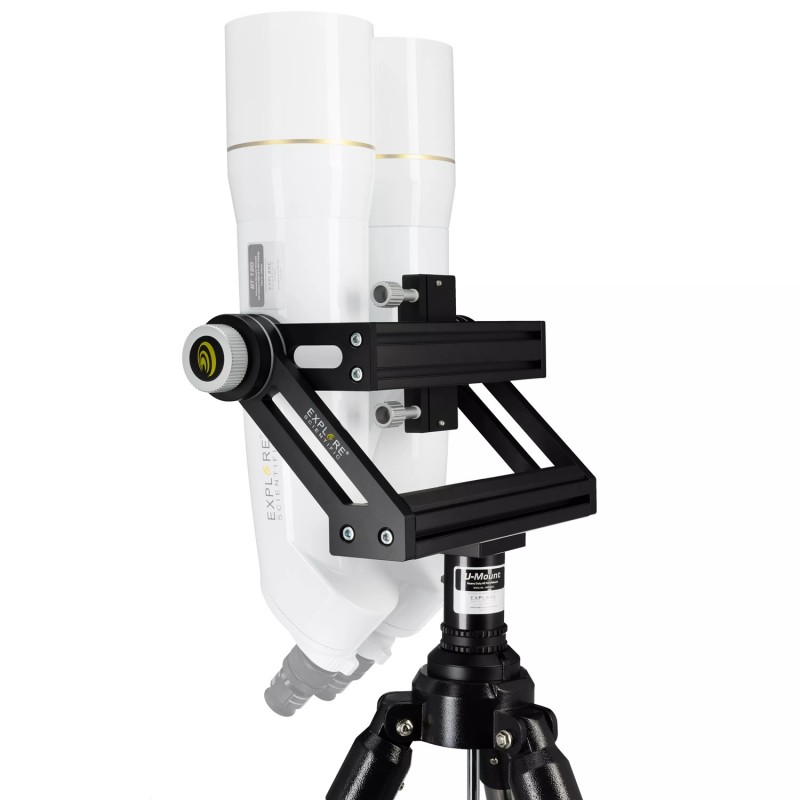

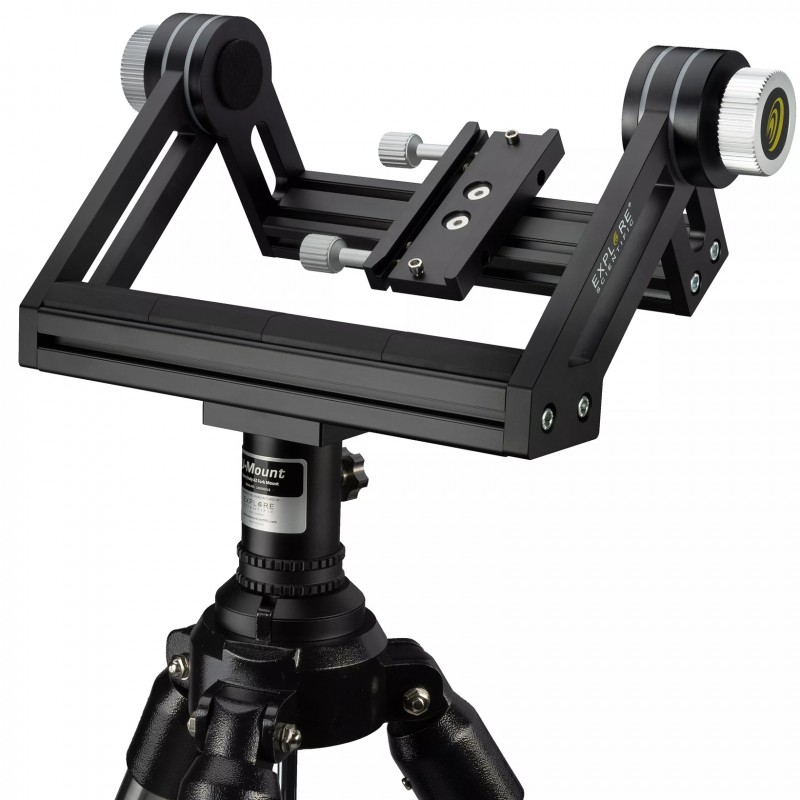

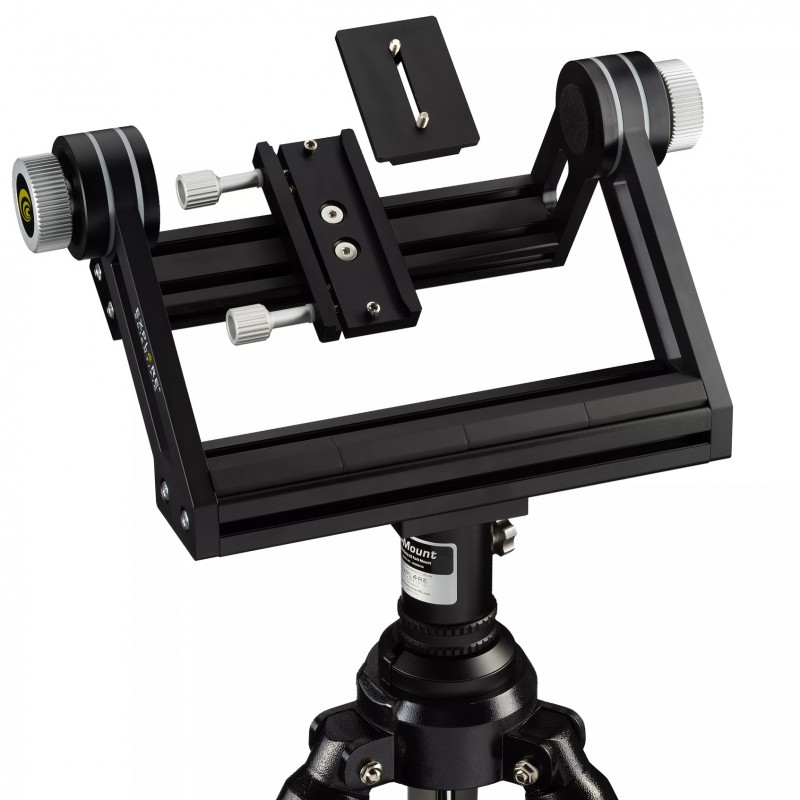

Explore Scientific Fork Mount with Tripod for Binocular Telescopes

Explore Scientific Fork Mount with Tripod for Binocular Telescopes

Description

The Explore Scientific fork mount with tripod is purpose-built for the BT binocular series but is also compatible with most 70 to 120 mm binoculars equipped with a standard 1/4" photo thread. Its precise mechanics, continuous friction adjustment on both axes, and oversized knobs allow for smooth, controlled movement in any direction, even with heavier optical instruments.

The supplied tripod features robust 50 mm stainless steel legs and a wide aluminum head plate, ensuring excellent stability. A built-in accessory tray reinforces rigidity, and the adjustable height from 100 to 140 cm allows observers to adopt a comfortable position whether seated or standing.

Optics are quickly mounted using the included quick-release plate with two 1/4" screws. The plate’s slotted design allows for flexible positioning, and the double-clamp attachment to the mount ensures a secure, vibration-free hold. This is especially critical when observing at high magnifications.

The mount’s all-metal build effectively dampens vibrations. It offers a full 360° azimuthal range and 0–90° altitude sweep, allowing smooth tracking of any sky or terrestrial target. For transport, the tripod and mount separate easily.

Specifications

• Fork mount with tripod for binoculars up to 12 kg

• Supports instruments up to 290 mm in width

• Adjustable friction in both azimuth and altitude

• Smooth movement in both axes, even under load

• Rigid aluminum mount body

• Oversized knobs for use with gloves

• Working height: approx. 100 to 140 cm

• Stainless steel tripod legs (50 mm diameter)

• Aluminum head plate with integrated accessory tray

• Quick-release mounting plate with dual 1/4" screws

• Secure double-screw locking system

• 360° azimuth and 0–90° altitude movement range

• Tripod folded length: 80 cm

• Mount weight: 5.5 kg ; Tripod weight: 5.8 kg

Additional Information

• Color: black

• Materials: aluminum (mount), stainless steel (tripod)

• Friction-based axis locking system

• Mounting plate with sliding slot

• Included aluminum accessory tray

• Total weight with accessories: 11.3 kg

• Max dimensions: 1000 × 1000 × 1390 mm

• Warranty: 10 years

Included Items

• Explore Scientific fork mount

• Stainless steel field tripod

• Quick-release mounting plate with dual 1/4" screws

• Accessory tray

• User manual
