Geoptik HERCULES Wooden Tripod for EQ6, 10Micron, Avalon, G41 and More

Geoptik HERCULES Wooden Tripod for EQ6, 10Micron, Avalon, G41 and More

DESCRIPTION

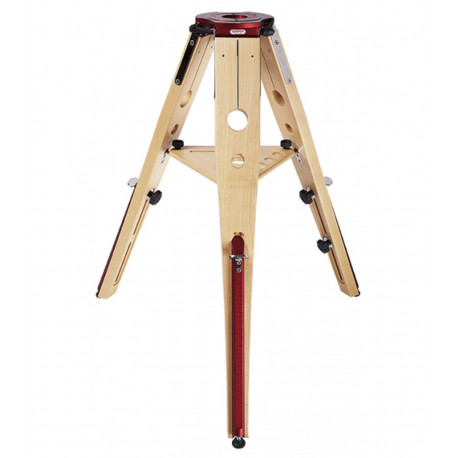

The Geoptik HERCULES tripod is a heavy-duty wooden tripod for medium to large equatorial mounts. It directly supports mounts like GK300, EQ6, Atlas, Avalon M-Zero and Linear, 10Micron GM1000, and Gemini G41. With optional adapters, it can also accommodate Losmandy GM8, G11 (#30H150) and Sky-Watcher HEQ5 (#30A230).

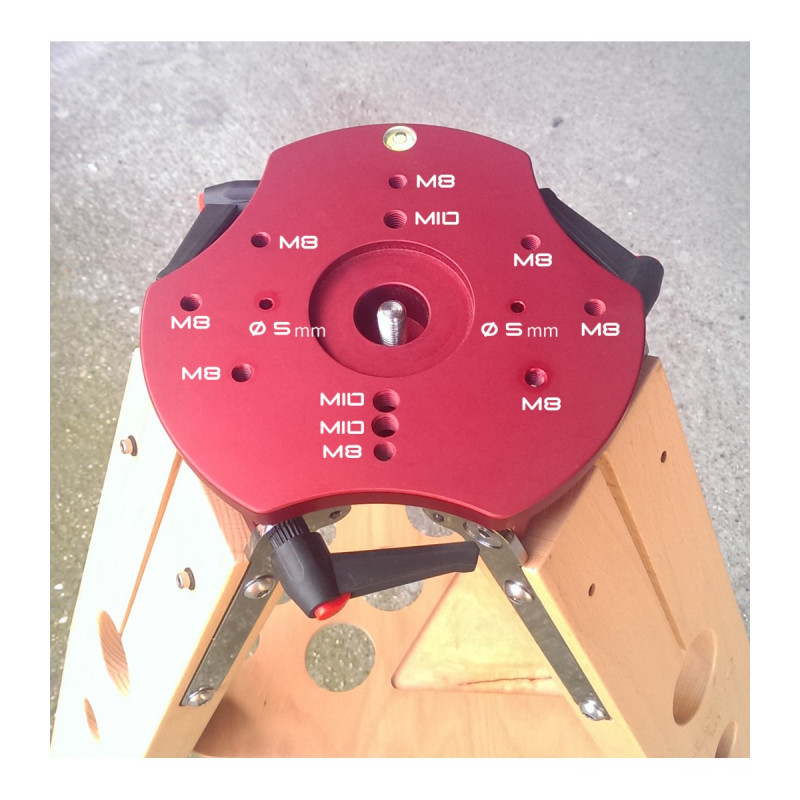

Its CNC-machined and anodized top plate ensures precision and strength. The legs are made of premium-grade beechwood, selected for its vibration damping capabilities and structural stability under load.

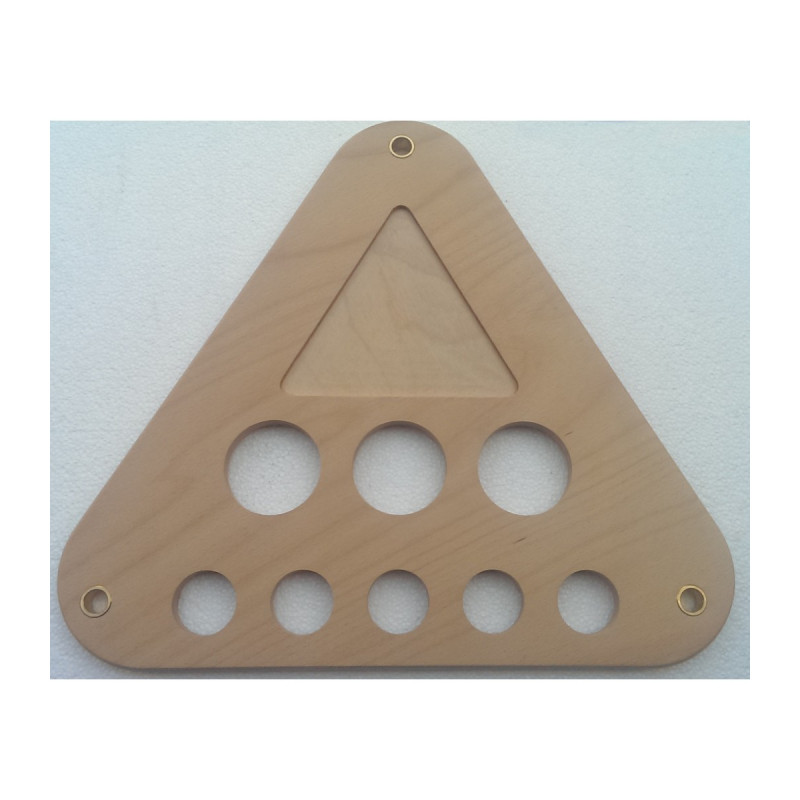

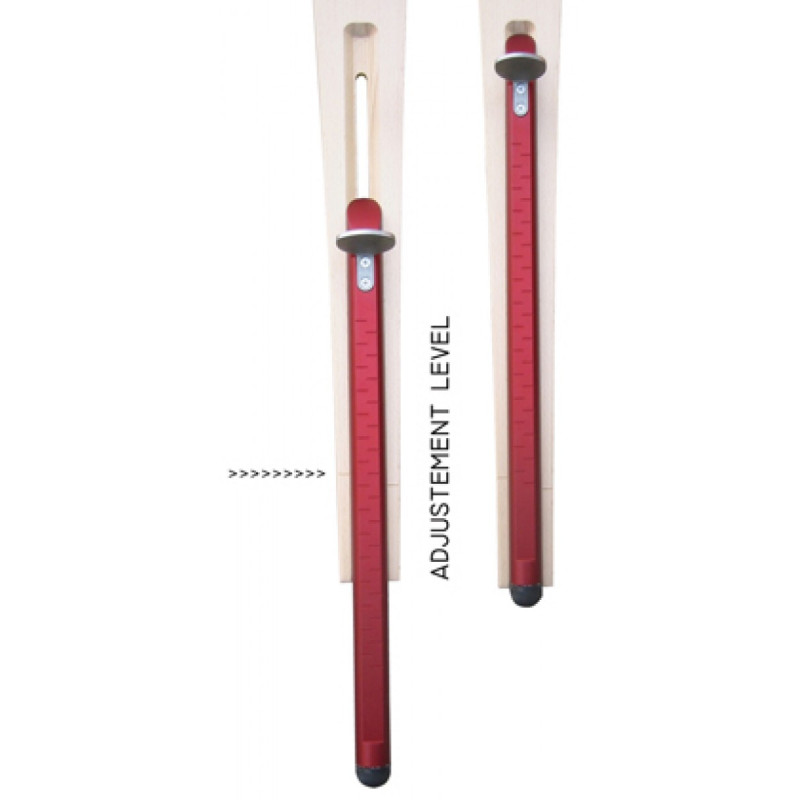

The tripod height is adjustable between 950 mm and 1100 mm via aluminum extensions with reversible rubber or metal footings. A laminated wood accessory tray is included, featuring:

• 5 slots for 1.25" eyepieces

• 3 slots for 2" eyepieces

• A central recessed dish for small parts

• Additional slots on the legs for 3 x 1.25" and 3 x 2" eyepieces

Legs are fastened to the top plate using precision clamping screws for exceptional stability.

TECHNICAL SPECIFICATIONS
Leg material: Treated outdoor-grade beechwood
Adjustable height: 950 mm to 1100 mm
Top plate: CNC-machined anodized aluminum
Directly compatible mounts: GK300, EQ6, Atlas, Avalon M-Zero & Linear, 10Micron GM1000, Gemini G41
Optional adapter mounts: Losmandy GM8, G11 (#30H150), Sky-Watcher HEQ5 (#30A230)
Accessory tray: Laminated beech with eyepiece slots
Load capacity: 100 kg
Eyepiece slots: 8 x 1.25" / 6 x 2"
Total weight: not specified
