Description

The WandererAstro WandererCover V4-EC IR 240 mm is a professional motorized flat panel engineered for demanding astrophotographers. Its main distinction from the V4-EC model is the infrared remote control, enabling convenient operation in the field or with ASIAIR, without requiring USB connection unless needed.

With a built-in micro-encoder, it ensures ±0.25° positioning accuracy and real-time feedback, allowing customizable open/close angles. The reinforced motor delivers 50% more load capacity, ensuring reliability even under extreme conditions down to -25 °C, with a tested endurance of over 3000 open/close cycles.

The integrated heating system prevents dew formation, keeping optics dry and safe from long-term damage. Its high-frequency dimming controller provides 255 brightness levels, eliminating banding even with exposures as short as 0.1 s, making it ideal for narrowband imaging (up to 3 nm).

Fully compatible with ASCOM and INDI, the V4-EC IR 240 mm integrates seamlessly with NINA, ZWO ASIAIR Plus and StellaVita. Designed for simplicity, it requires only a single 12 V power supply. It comes with a cable management system, nylon ties and protective pads for secure setup.

Technical specifications

• Manufacturer: WandererAstro

• Model: WandererCover V4-EC IR 240 mm

• Type: motorized flat panel with included infrared remote control

• Luminous diameter: 240 mm

• Outer diameter: 265 mm

• Weight: 594 g

• Heating power: 15 W

• Connectivity: USB 2.0 Type-B (1 m)

• Power supply: 12 V 2 A DC 5.5×2.1 mm

• Built-in micro-encoder: ±0.25° accuracy

• Brightness control: 255 levels, high-frequency PWM

• Cold resistance: down to -25 °C

• Lifetime: over 3000 open/close cycles

• Included:

  • WandererCover V4-EC IR

  • USB 2.0 cable (1 m)

  • DC5521 male-to-male power cable (1 m)

  • 4 nylon cable ties

  • Infrared remote control

• Compatibility: ASCOM, INDI, NINA, ZWO ASIAIR Plus, StellaVita

• Not compatible with ASIAIR built into ZWO Air cameras

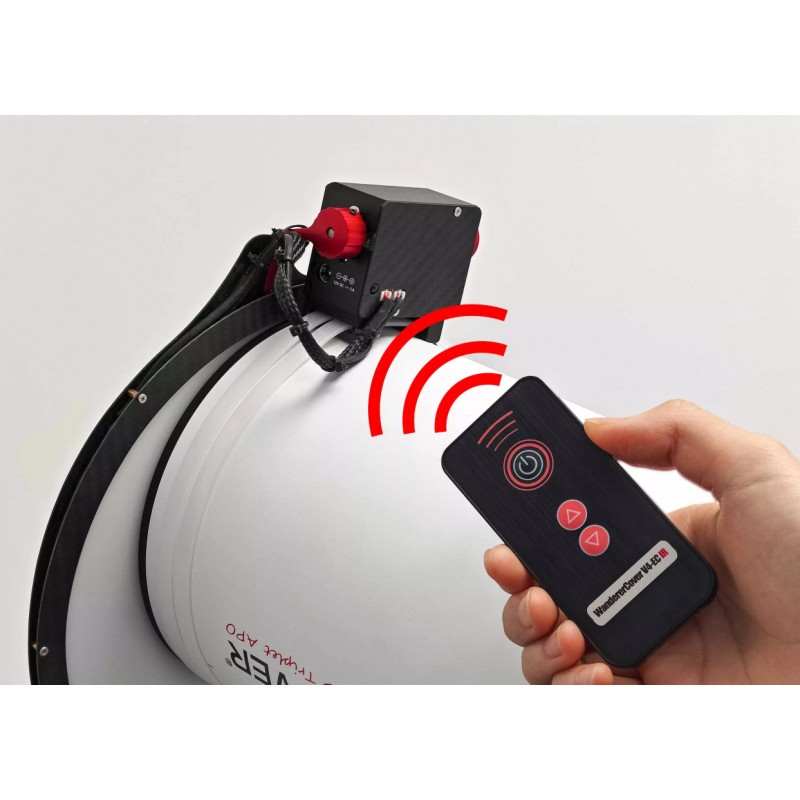

The only difference between the V4-EC IR and V4-EC is the addition of infrared remote control functionality. This allows users to control the WandererCover via infrared remote, making it convenient for field or ASIAIR use. Only a single 12V power cable is required—no need to connect a USB cable if not controlling it using ASCOM, simplifying your field setup.

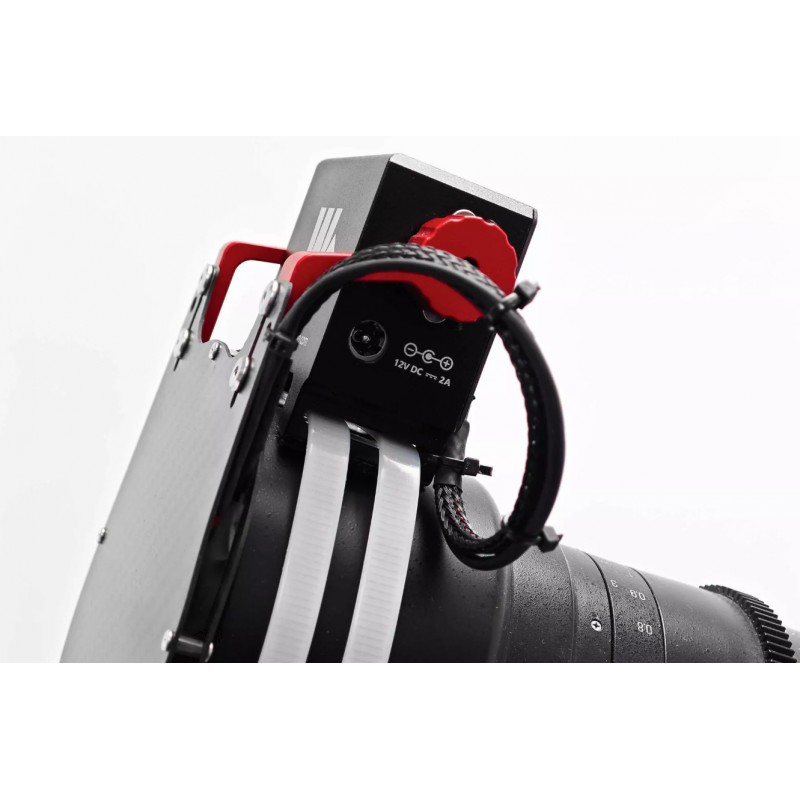

Exclusive cable management solution prevents damage to power cables during operation; Soft cushioning pads protect your telescope from scratches; Includes cable ties for universal installation

Built-in micro-encoder provides real-time, accurate feedback on cover position, allowing users to remotely check the angle status without opening the monitoring camera. Repeat positioning accuracy of up to ±0.25 degrees ensures precise open/close operations every time. Customizable opening/closing at any angle.

Features a brand-new motor with over 50% increased load capacity, ensuring durability and preventing gear box failure. Designed to withstand low temperatures, it operates reliably even in winter conditions as low as -20°C! After testing, the life of WandererCover V4-EC exceeds 3,000 opening and closing cycles.

Thanks to the encoder, V4-EC provides automatic detection of the open and closed position*. If your device is not around and manual setting is not possible, WandererCover can automatically detect obstacles and set the open and closed position.

*It is always recommended to set the open and closed angles manually! Use automatic detection as the last option only when the flat panel angle cannot be observed. It is normal for the motorbox to heat up during automatic detection. The angle detected is affected by many factors and success is not guaranteed. Do not try multiple times if unsuccessful.

The new ASCOM driver makes use easier. It also supports automatic or manual port selection and connection of up to 6 devices simultaneously.

The new dimming controller boosts PWM dimming frequency by 100%, effectively reducing the occurrence of banding and ensuring no banding during exposures of 0.1 seconds or longer. 255-level dimming meets the flat-field shooting needs, from color cameras to narrowband imaging. At maximum brightness, capturing 3nm narrowband only takes around 1 second!

Low temperature resistant design, able to work normally in environment as low as -25℃ (-13℉).

With the latest firmware, it supports control via ZWO ASIAIR Plus, ToupTek StellaVita, and any device capable of controlling the DC switch. Please refer to user manual to check it out!
