Description

The WandererAstro WandererCover V4-EC IR 150 mm is a premium motorized flat panel designed to enhance astrophotography calibration. Its main upgrade over the V4-EC is the addition of an infrared remote control, allowing direct operation in the field without a computer.

Equipped with an integrated micro-encoder, it delivers ±0.25° positioning accuracy with fully customizable opening/closing angles. Its reinforced motor, 50% stronger than before, ensures durability and reliable operation even at temperatures as low as -25 °C, with a tested lifespan of over 3000 cycles.

The built-in heating system prevents dew formation, keeping the panel dry throughout the night and protecting telescope optics from humidity. A 255-level dimming controller with boosted PWM frequency eliminates banding, even in ultra-short exposures of 0.1 s.

It is fully compatible with ASCOM and INDI protocols, supporting NINA, ASIAIR Plus, ToupTek StellaVita, and more, while simplifying setup with a single 12 V power connection. Exclusive cable management, universal mounting ties, and protective pads are included to safeguard your telescope.

Technical specifications

• Manufacturer: WandererAstro

• Model: WandererCover V4-EC IR 150 mm

• Motorized flat panel with included infrared remote control

• Luminous diameter: 150 mm

• Outer diameter: 175 mm

• Weight: 365 g

• Heating power: 9 W

• Connectivity: USB 2.0 Type-B (1 m)

• Power supply: 12 V 2 A DC 5.5×2.1 mm

• Built-in micro-encoder, ±0.25° accuracy

• Brightness adjustment: 255 levels, boosted PWM frequency

• Cold resistant: operates down to -25 °C

• Tested lifetime: over 3000 open/close cycles

• Included:

  • WandererCover V4-EC IR panel

  • USB 2.0 cable (1 m)

  • DC5521 male-to-male power cable (1 m)

  • 4 nylon cable ties

  • Infrared remote controller

• Compatibility: ASCOM, INDI, NINA, ZWO ASIAIR Plus, StellaVita

• Not compatible with ASIAIR built into ZWO Air cameras

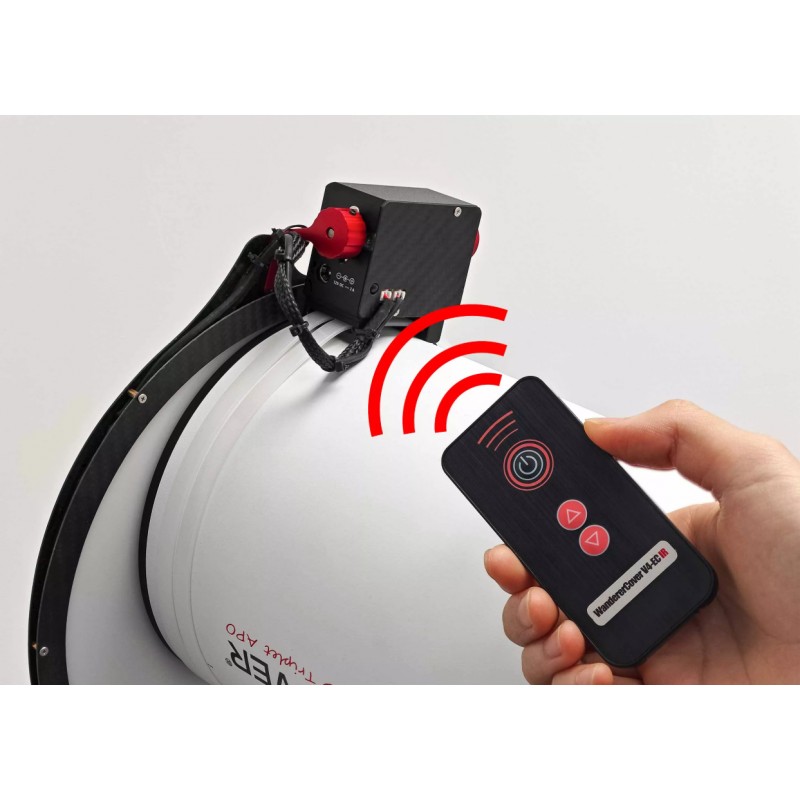

The only difference between the V4-EC IR and V4-EC is the addition of infrared remote control functionality. This allows users to control the WandererCover via infrared remote, making it convenient for field or ASIAIR use. Only a single 12V power cable is required—no need to connect a USB cable if not controlling it using ASCOM, simplifying your field setup.

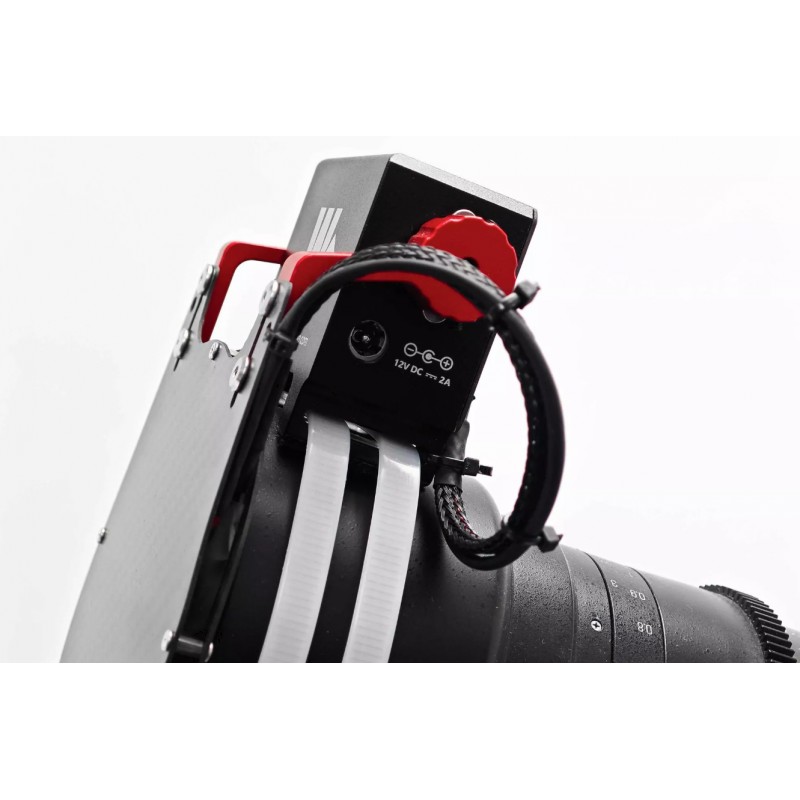

Exclusive cable management solution prevents damage to power cables during operation; Soft cushioning pads protect your telescope from scratches; Includes cable ties for universal installation

Built-in micro-encoder provides real-time, accurate feedback on cover position, allowing users to remotely check the angle status without opening the monitoring camera. Repeat positioning accuracy of up to ±0.25 degrees ensures precise open/close operations every time. Customizable opening/closing at any angle.

Features a brand-new motor with over 50% increased load capacity, ensuring durability and preventing gear box failure. Designed to withstand low temperatures, it operates reliably even in winter conditions as low as -20°C! After testing, the life of WandererCover V4-EC exceeds 3,000 opening and closing cycles.

Thanks to the encoder, V4-EC provides automatic detection of the open and closed position*. If your device is not around and manual setting is not possible, WandererCover can automatically detect obstacles and set the open and closed position.

*It is always recommended to set the open and closed angles manually! Use automatic detection as the last option only when the flat panel angle cannot be observed. It is normal for the motorbox to heat up during automatic detection. The angle detected is affected by many factors and success is not guaranteed. Do not try multiple times if unsuccessful.

The new ASCOM driver makes use easier. It also supports automatic or manual port selection and connection of up to 6 devices simultaneously.

The new dimming controller boosts PWM dimming frequency by 100%, effectively reducing the occurrence of banding and ensuring no banding during exposures of 0.1 seconds or longer. 255-level dimming meets the flat-field shooting needs, from color cameras to narrowband imaging. At maximum brightness, capturing 3nm narrowband only takes around 1 second!

Low temperature resistant design, able to work normally in environment as low as -25℃ (-13℉).

With the latest firmware, it supports control via ZWO ASIAIR Plus, ToupTek StellaVita, and any device capable of controlling the DC switch. Please refer to user manual to check it out!
