Description

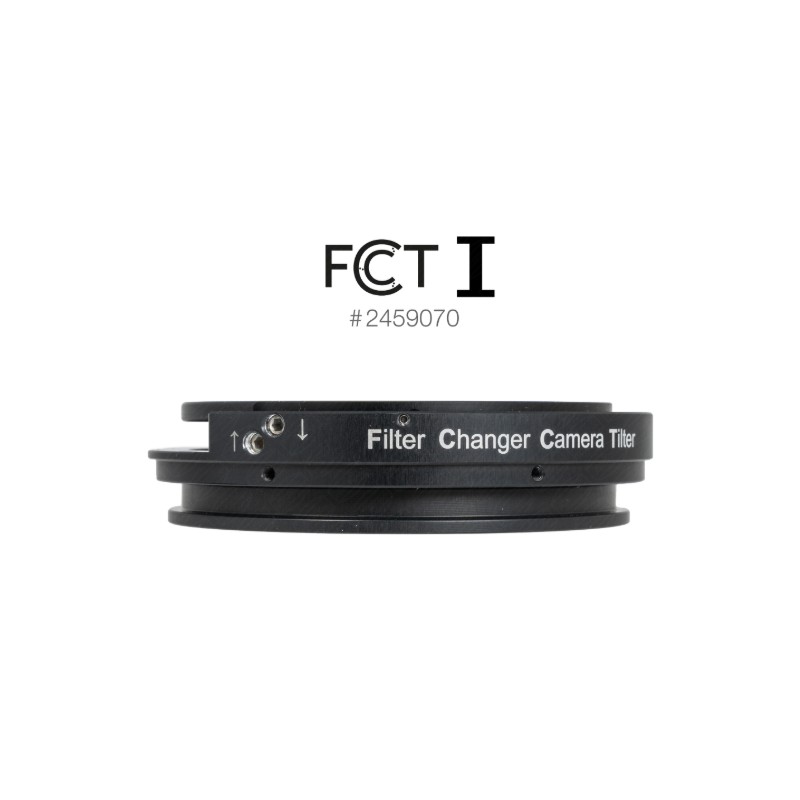

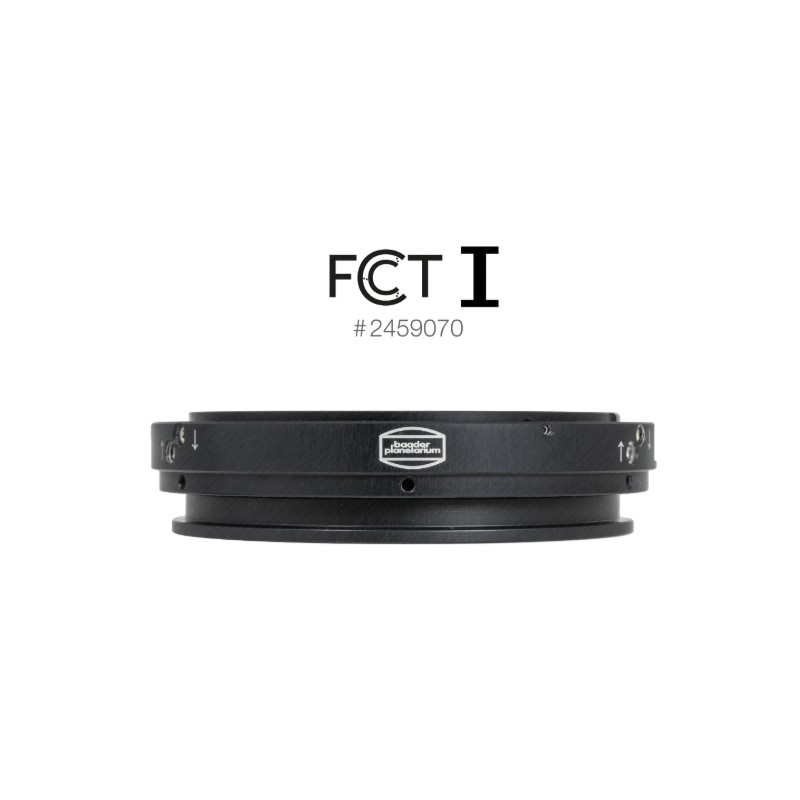

The Baader FCCT I (Filter Changer Camera Tilter) is an innovative accessory that combines a filter changer and a mechanical image position corrector (tilter). It is specially designed for the Celestron RASA 8" astrograph and large QHY Ø77 mm cameras (e.g. QHY 174, 163, 183), making astrophotography with this setup far more convenient.

With the FCCT, both quick adjustments and the finest corrections to align the camera and filters in the optical path are possible without having to unscrew the camera each time. This makes working with the RASA 8 not only more efficient but also enjoyable.

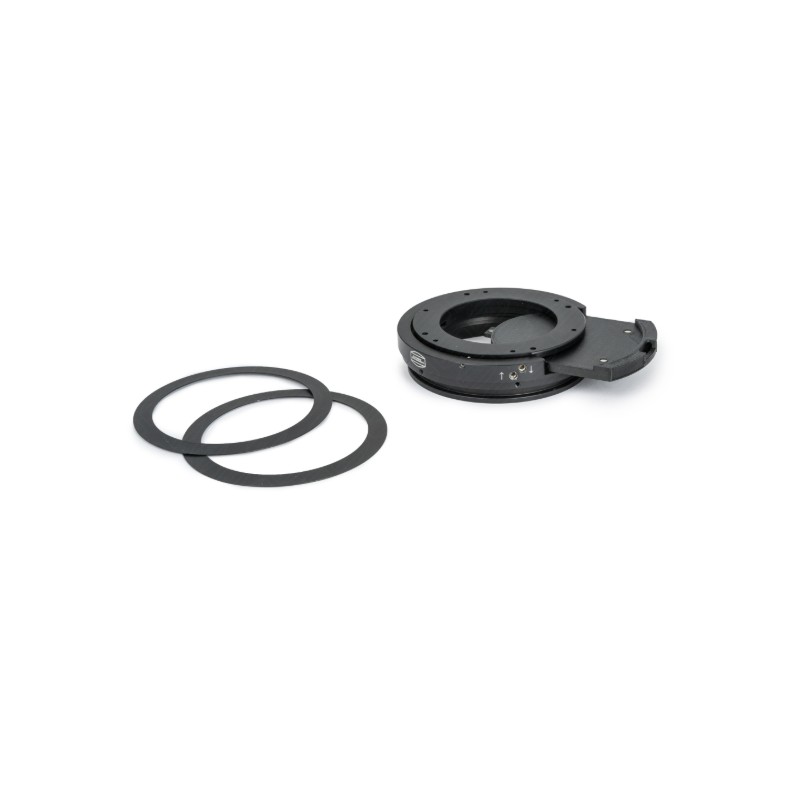

The system uses 3D-printed filter sliders, designed exclusively for unmounted filters in sizes of 31 mm, 36 mm and 2" (without cell). Baader also offers selected 2" filters in an unmounted version for use with the FCCT, but in principle all Baader 2" filters can be used once removed from their housing.

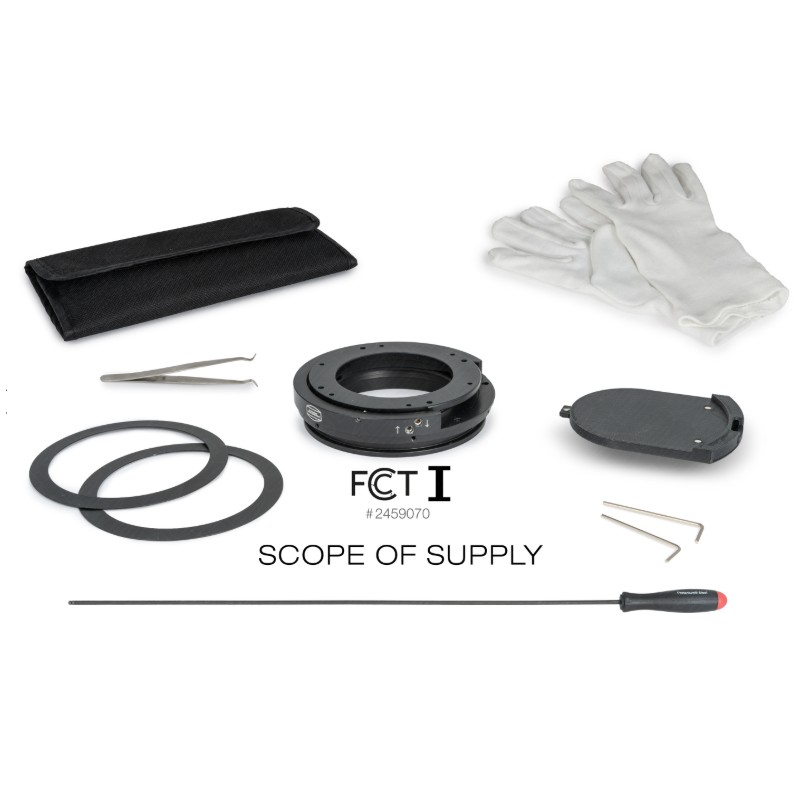

Scope of supply:

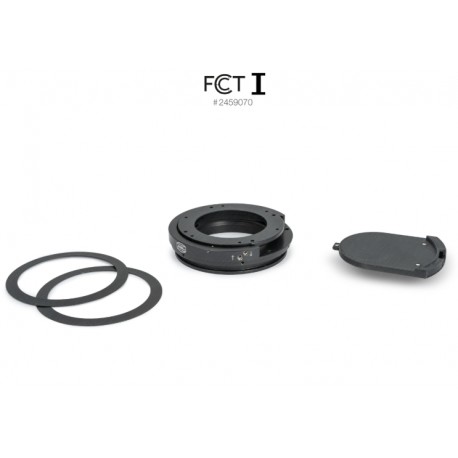

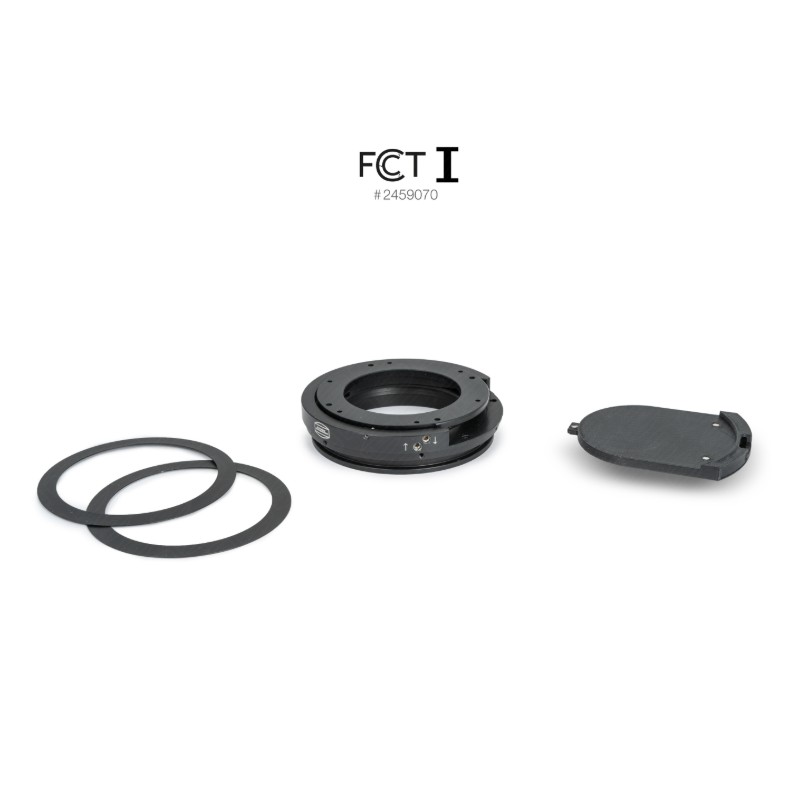

• Baader FCCT I with inserted dark filter slider

• Two 0.5 mm spacer rings for fine focus adjustments

• Extra-long 2 mm hex screwdriver (28 cm) usable as torque wrench

• Short 0.9 mm, 1.3 mm and 1.5 mm hex keys

• Three long M2 hex screws for camera adaptation

• Filter extractor tool for inserting/removing filter drawers

• Storage bag for four filter holders (sold separately)

• One pair of cotton gloves for sensitive accessories (#2905050, sold separately)

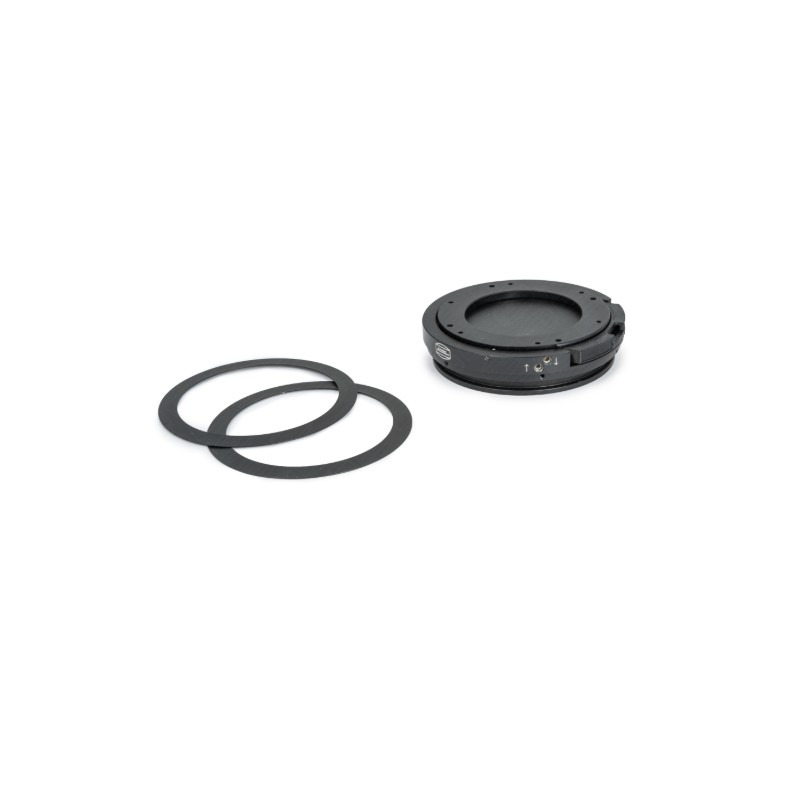

With an optical length of just 21.5 mm (including two 0.5 mm spacers), an outer diameter of 93 mm and a weight of 0.15 kg, the FCCT is compact, lightweight, and highly robust. It is the perfect professional solution for fully exploiting the potential of the RASA 8" wide-field astrograph with QHY cameras.

Technical specifications

• Product: Baader FCCT I for RASA 8"

• SKU: 2459070

• EAN Code: 4047825044716

• Manufacturer: Baader Planetarium

• Type: Filter changer and mechanical image position corrector (tilter)

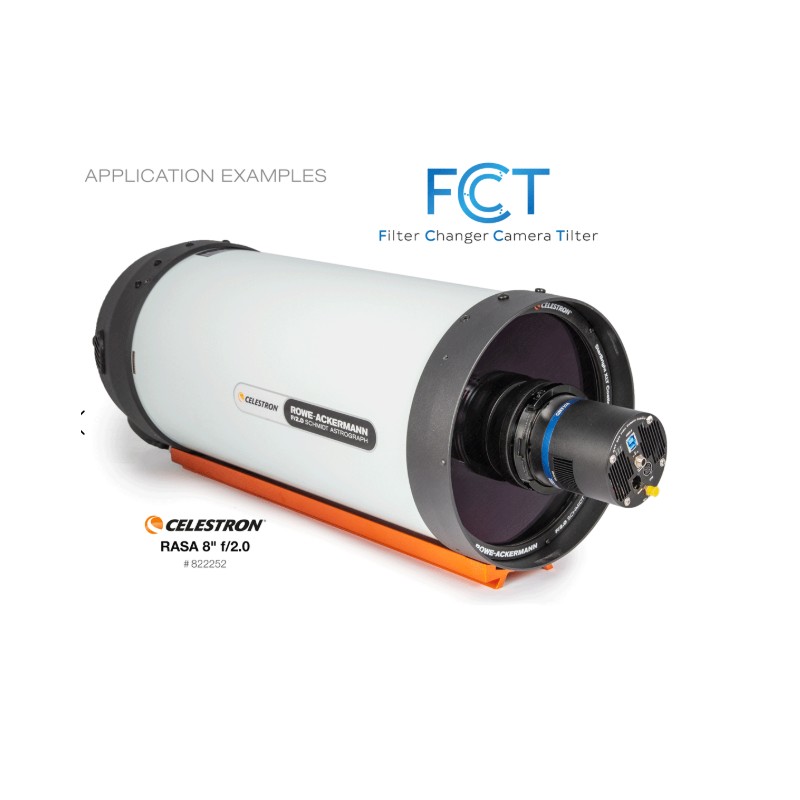

• Designed for: Celestron RASA 8" Astrograph

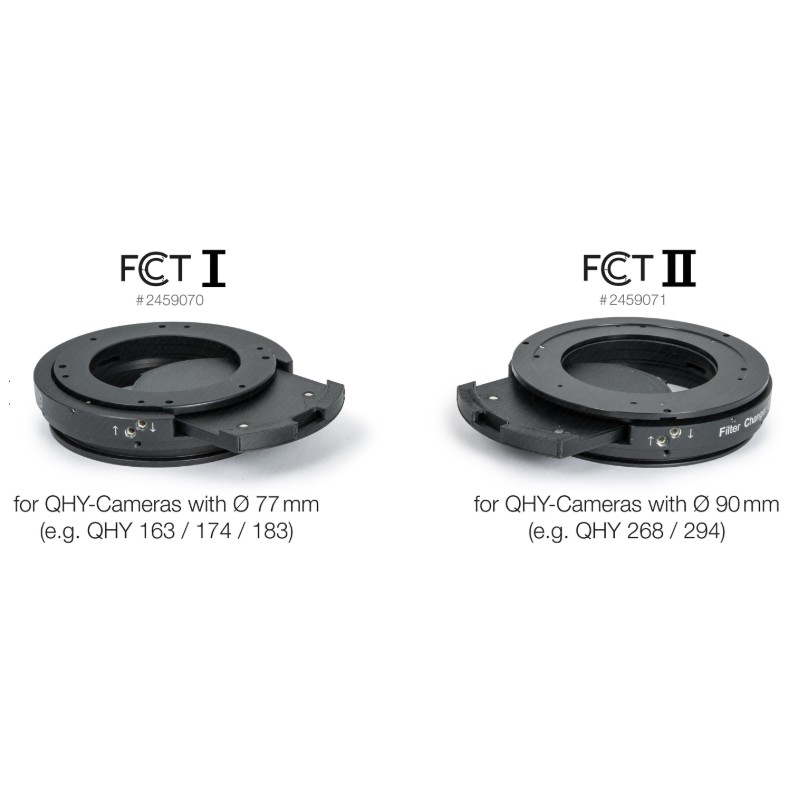

• Compatible cameras: QHY Ø77 mm (QHY 174 / 163 / 183)

• Optical length: 21.5 mm (including 2 × 0.5 mm spacers)

• Outer diameter: 93 mm

• Net weight: 0.15 kg

• Compatible filters: unmounted 31 mm / 36 mm / 50 mm (2")

• Included accessories: dark slider, spacers, long torque screwdriver, hex keys, M2 screws, filter extractor, storage bag (for optional holders)

• Optional accessory: cotton gloves (#2905050)
