Baader FCCT I for RASA 8 – QHY 77 mm
Baader FCCT I RASA 8 - 77 mm
New product
Baader FCCT I for RASA 8 – QHY 77 mm
Filter drawer and tilt corrector for RASA 8. Designed for QHY cameras with 77 mm diameter. Fast adjustment of camera and filter tilt without removing the camera. Optical height 21.5 mm.
In stock at the supplier. For delivery time and for shipping outside Switzerland, please contact us.
More info
Baader FCCT I for RASA 8 – QHY 77 mm
Description

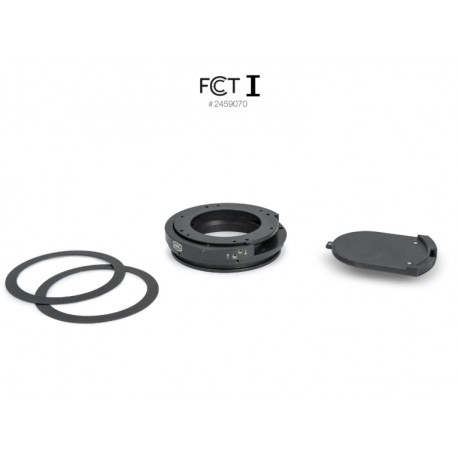

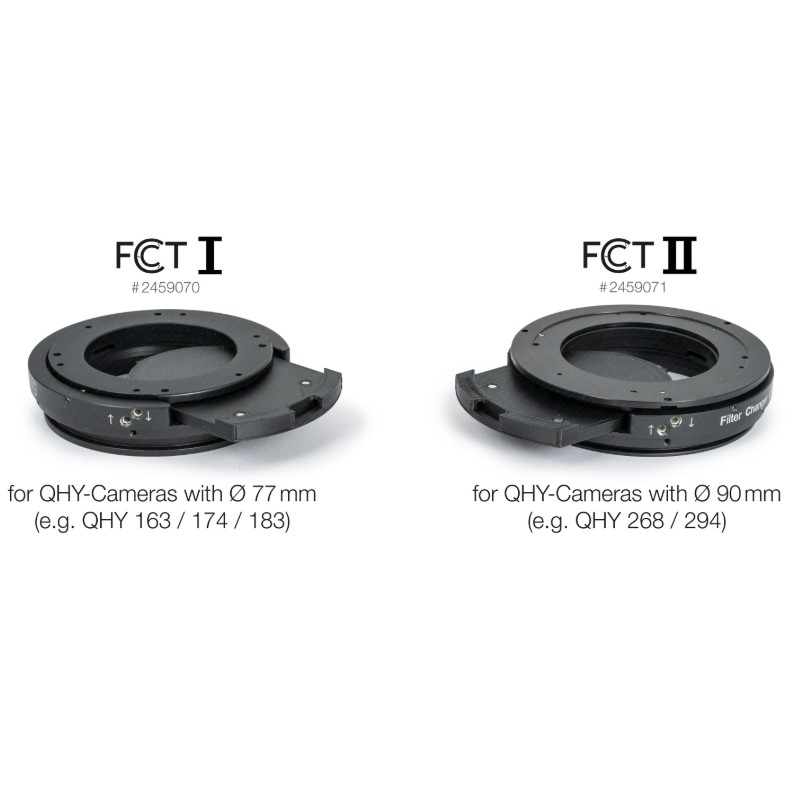

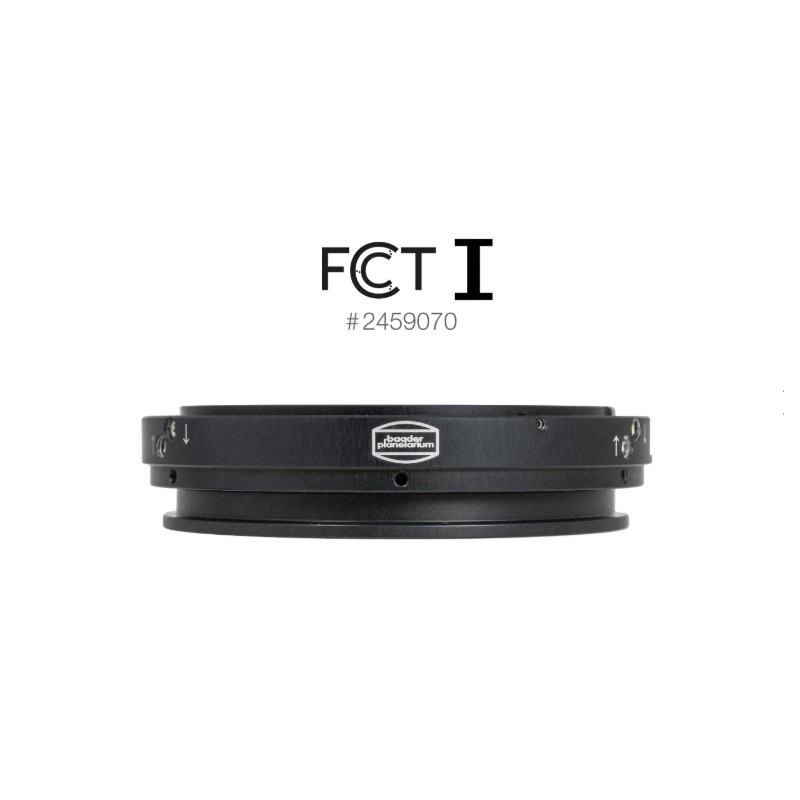

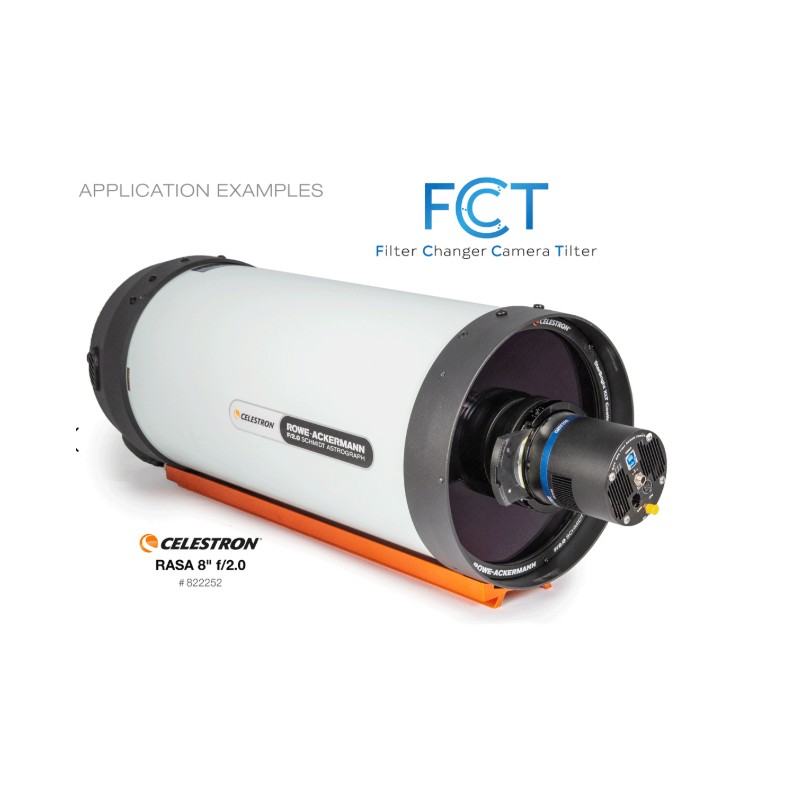

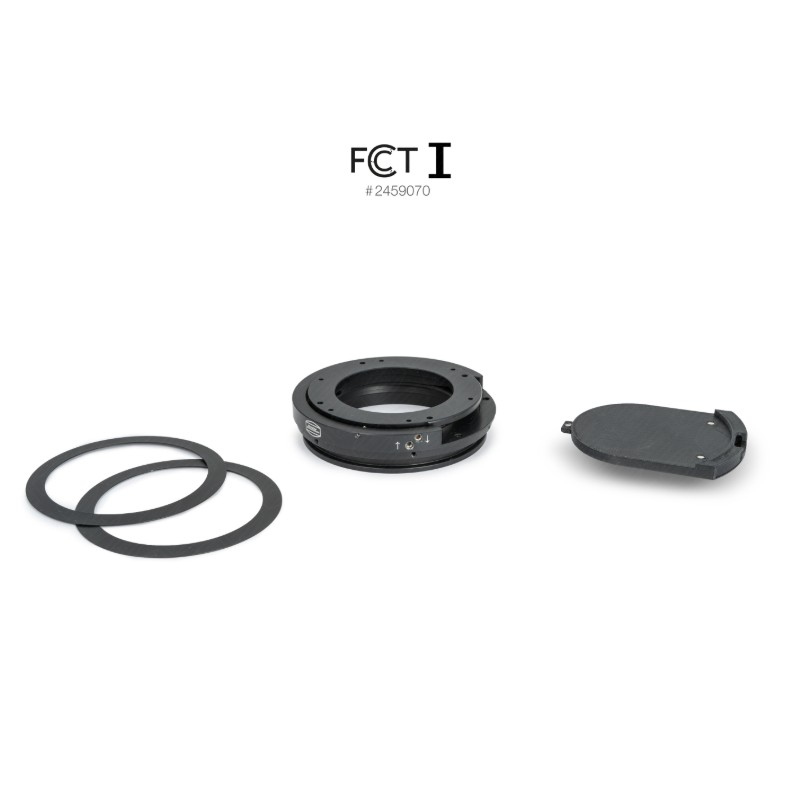

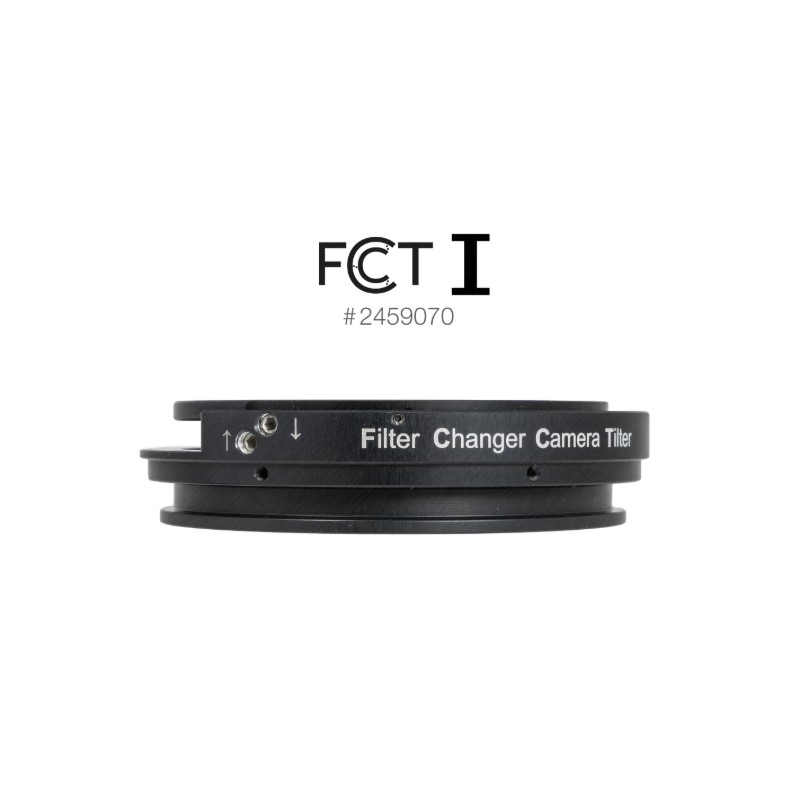

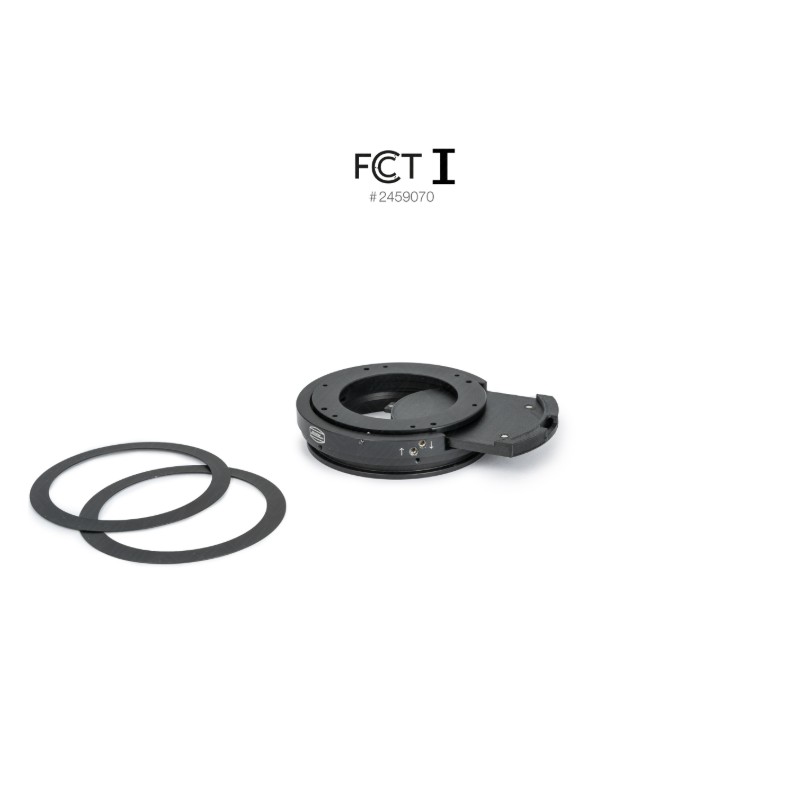

The Baader FCCT I (Filter Changer Camera Tilter) is a compact solution for use with the Celestron RASA 8 telescope and QHY cameras with 77 mm diameter, such as QHY 174, 163 or 183.
It combines a filter slider and mechanical image tilt adjustment. The camera position can be aligned quickly and precisely without unscrewing the camera, streamlining the optical setup.
3D-printed filter holders are available for unmounted filters in 31 mm, 36 mm and 2 inch (47.4 mm) sizes. Baader offers selected 2 inch filters in unmounted form, but all Baader 2 inch filters work if removed from their filter cells.
Specifications
| Attribute | Value |
|---|---|
| SKU | 2459070 |
| EAN Code | 4047825044716 |
| Manufacturer | Baader Planetarium |
| Telescope compatibility | Celestron RASA 8 |
| Camera compatibility | QHY cameras, diameter 77 mm (174, 163, 183) |
| Optical length | 21.5 mm (with two 0.5 mm spacers included) |
| Outer diameter | 93 mm |
| Net weight | 0.15 kg |
| Type | Filter drawer + tilt corrector |

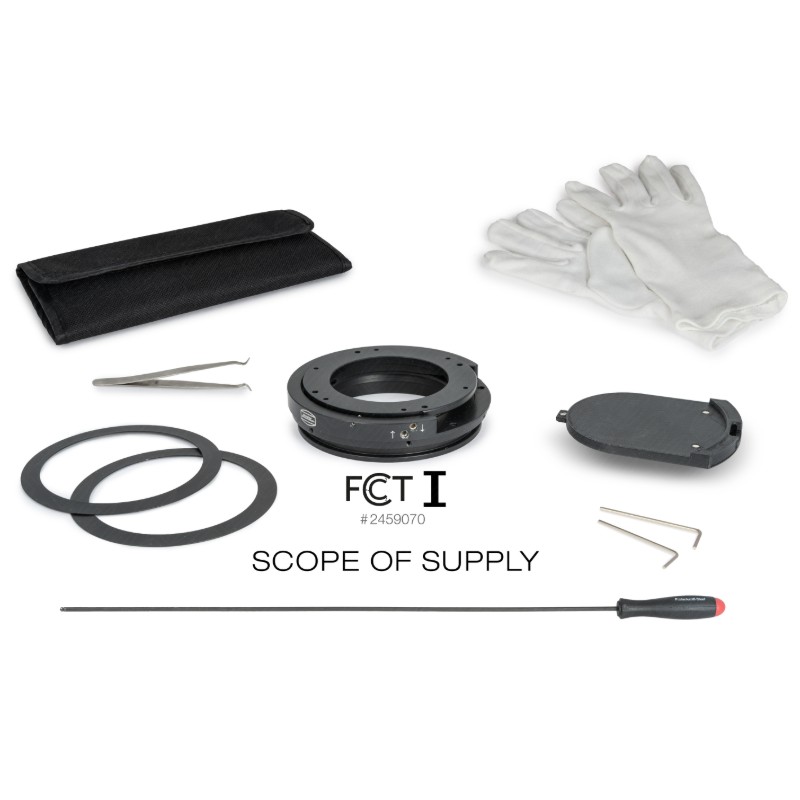

Scope of supply
-
FCCT I with dark slider pre-installed
-
Two 0.5 mm spacers for focus fine-tuning
-
Extra-long 2 mm hex screwdriver (28 cm)
-
Hex keys 0.9 mm, 1.3 mm, 1.5 mm
-
Three long M2 hex screws for camera mounting
-
Filter drawer extractor tool
-
Storage bag for four holders (not included)
-
One pair of cotton gloves for sensitive handling (#2905050)
