Description:

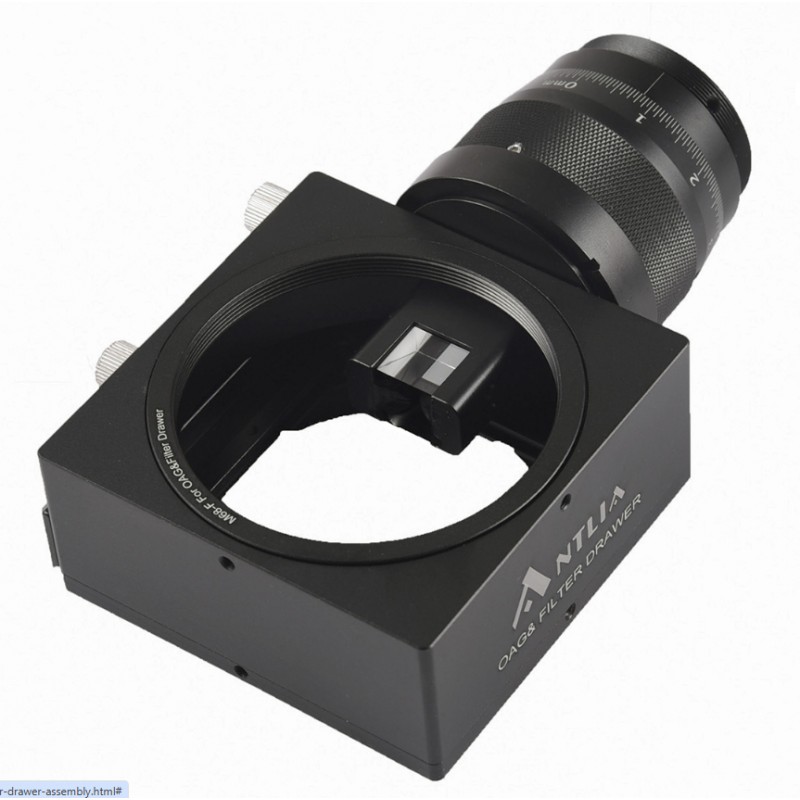

The Antlia OAG and 2″ filter drawer assembly offers a compact, rigid solution for deep-sky astrophotography. It combines an off-axis guider with a sliding drawer for mounted 2″ filters, saving space and improving mechanical integrity.

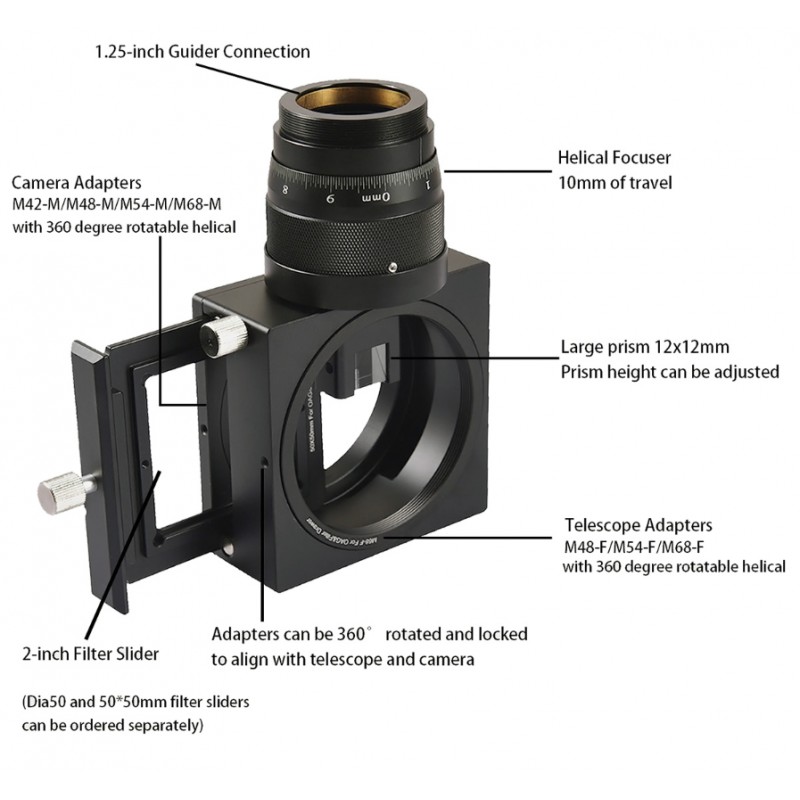

Its 12x12 mm prism is height-adjustable, ensuring excellent star pickup even with narrow light paths or large sensors. The integrated helical focuser provides 10 mm of precise backfocus adjustment for the guide camera.

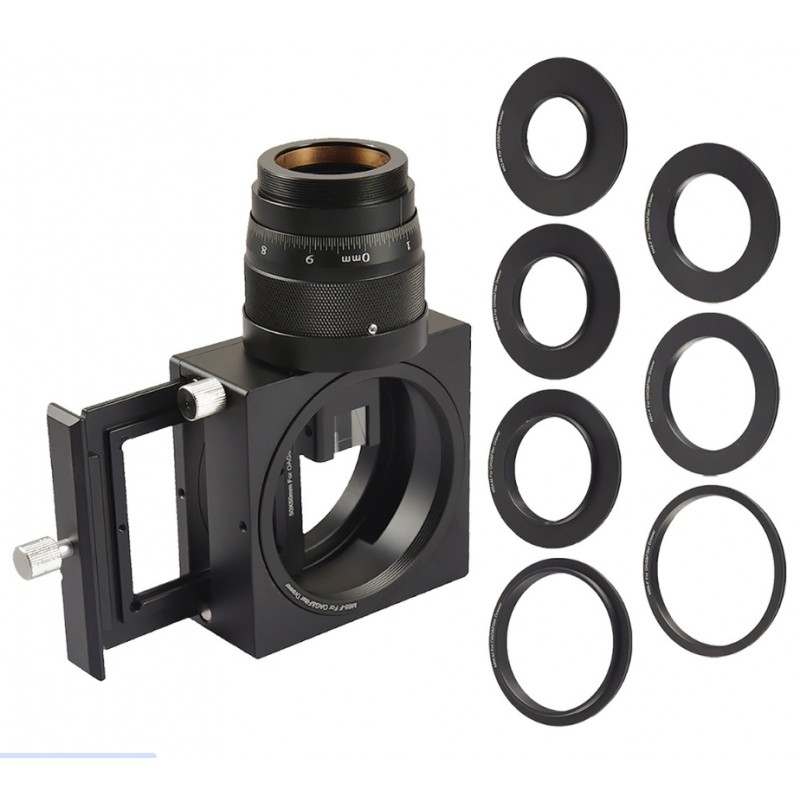

The drawer accepts 2″ mounted filters (M48 x 0.75 thread) and features a mechanical locking screw with smooth rotation. The system includes both telescope and camera side adapters (M42/M48/M54/M60 male and female), all rotatable to ensure perfect alignment.

Technical specifications:

• Accepts 2″ mounted filters (M48 x 0.75)

• OAG with 12x12 mm adjustable prism

• Integrated helical focuser (10 mm travel)

• CNC-machined, black anodized aluminum

• Supplied adapters: M42-F, M48-F, M54-F, M60-F / M42-M, M48-M, M54-M, M60-M

• 360° rotation with lock screw

• Optical length: 31.5 mm (without adapters)

• Compatible with ZWO, QHY, Player One, etc.

• Filter and camera not included

Additional information:
This integrated assembly replaces separate OAG and filter drawer setups, reducing complexity and mechanical flex. Ideal for imaging with mono or color cameras using mounted filters.

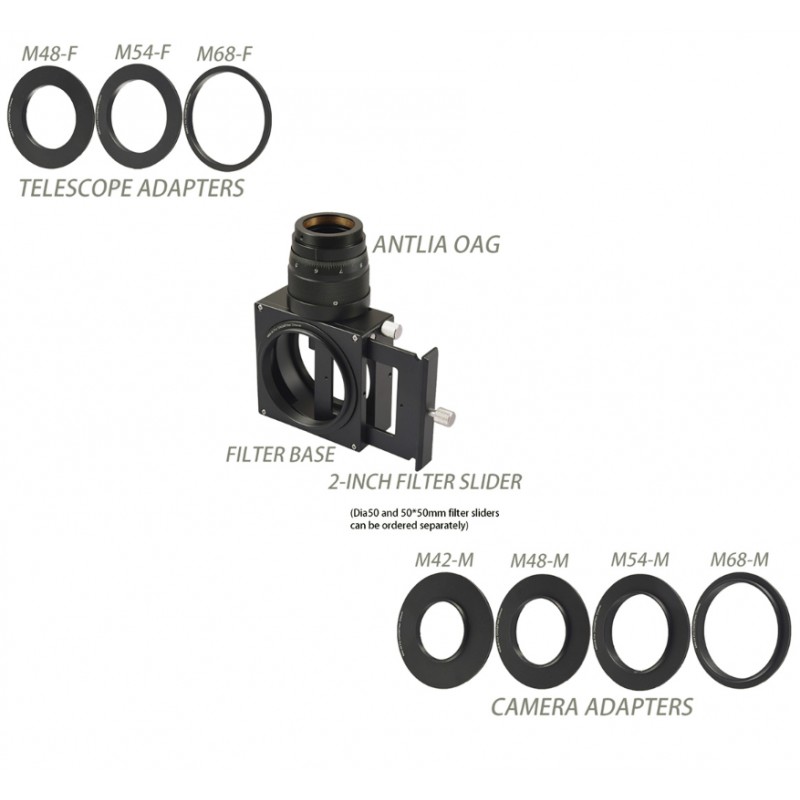

What's in the box

• 1 x Off-Axis Guider Body,
• 1 x Helical Focuser,
• 1 x 2-inch (M48*0.75) Filter Slider,
• 1 x M42-Male Adapter,
• 1 x M48-Male Adapter,
• 1 x M48-Female Adapter,
• 1 x M54-Female Adapter,
• 1 x M54-Male Adapter,
• 1 x M68-Female Adapter,
• 1 x M68-Male Adapter,
• 1 x M42-6mm*1 for 12.5mm BFD,
• 1 x M42-1.25-27mm
