ZWO EFW 7 x 2" filter wheel

ZWO EFW 7 x 2" filter wheel

DESCRIPTION

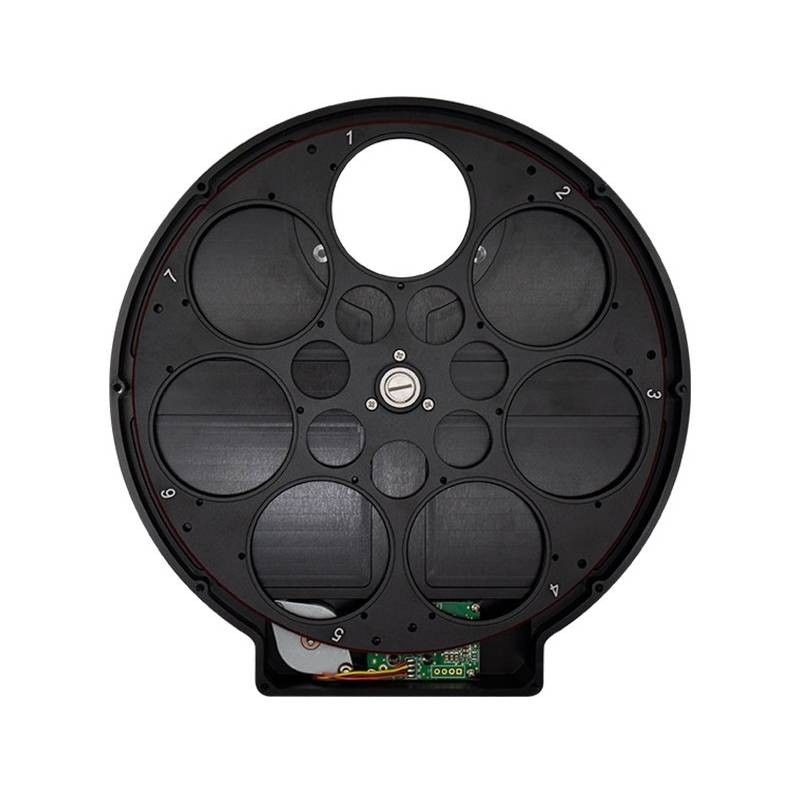

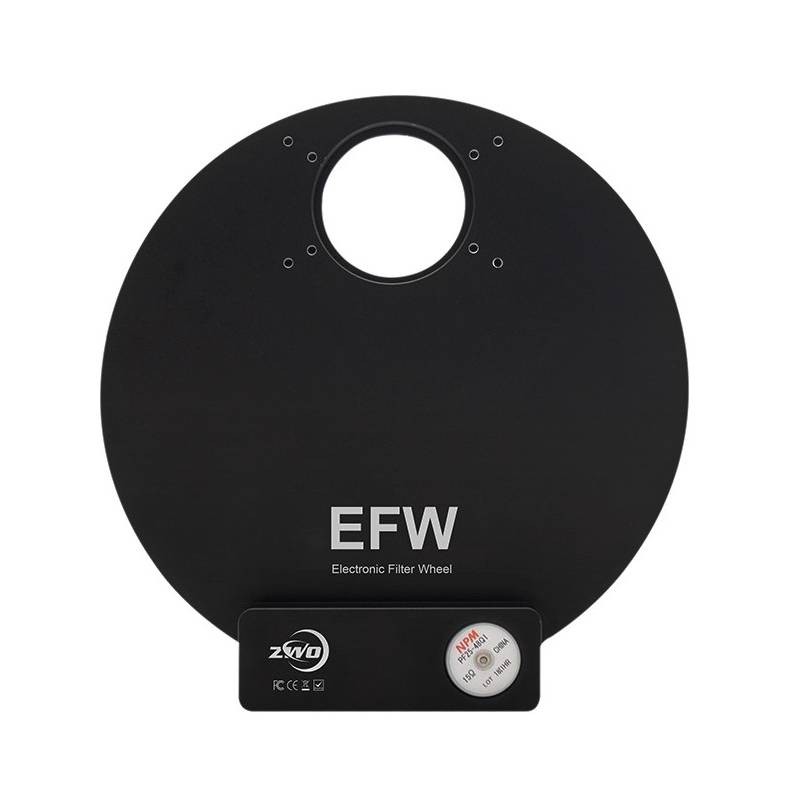

The ZWO EFW 7 x 2" filter wheel holds up to seven 2" filters, either M48-mounted or unmounted. Only 20 mm thick, it avoids vignetting on f/5 or slower telescopes. The built-in Japanese NPM motor ensures smooth and reliable operation.

Powered directly via USB (120 mA at 5 V), it works with ASCOM-compatible software. The wheel rotates in both directions to minimize switching time. Perfect for LRGB and narrowband imaging.

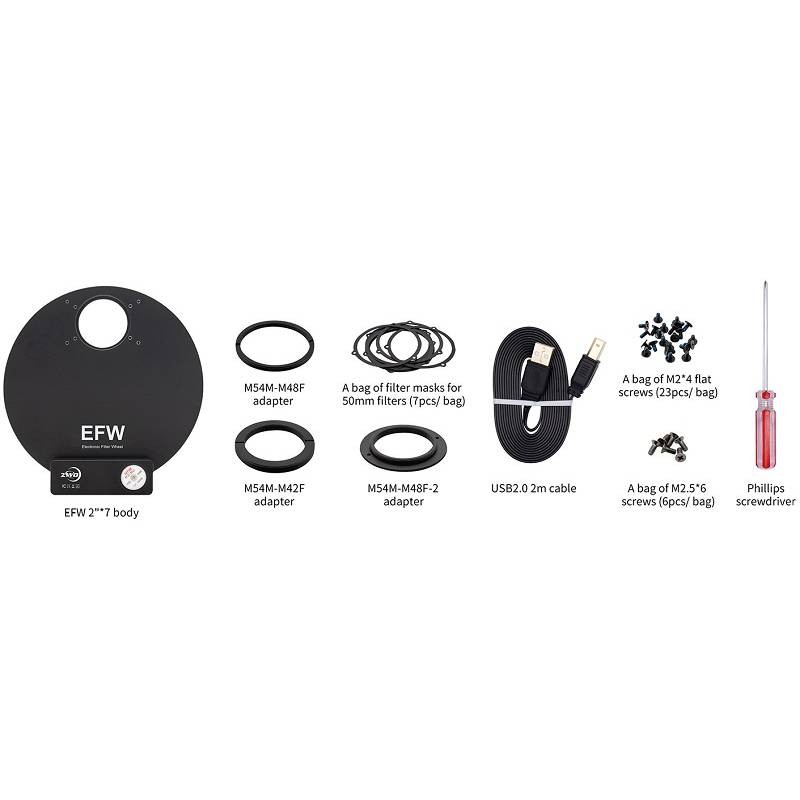

Included accessories:

• Filter wheel body

• M54 to M48 and M54 to M42 adapters

• 2 m USB cable

• Filter masks

• Screwdriver and full set of screws

FICHE TECHNIQUE

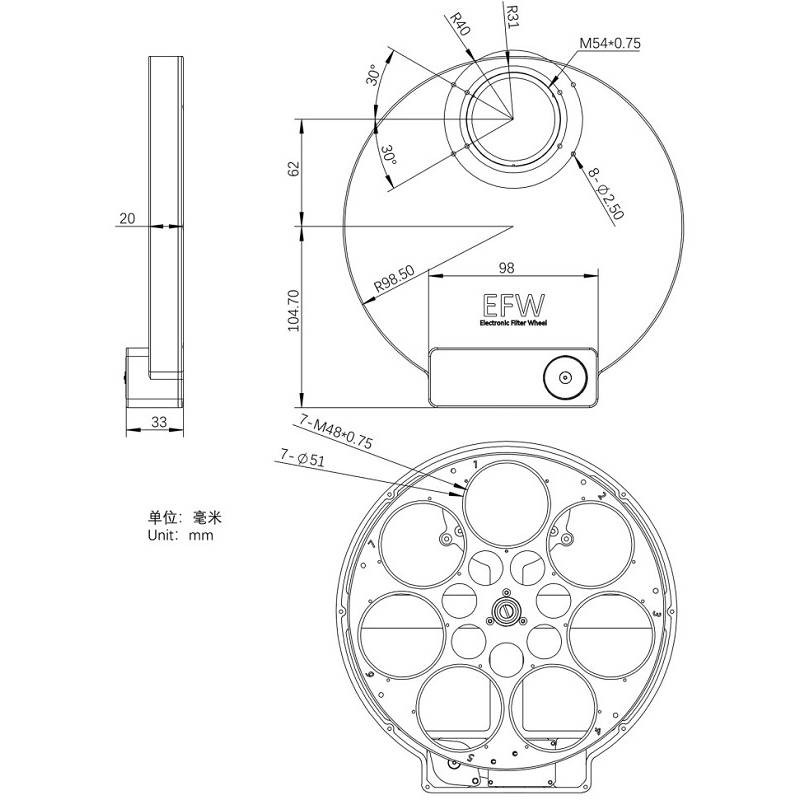

• Capacity: 7 filters (2", mounted or unmounted)

• Thickness: 20 mm

• Threads: M54 x 0.75 mm (in/out)

• Filter-sensor distance: 18 mm (with ASI 6200)

• Power: USB 5 V / 120 mA

• Control: ASCOM compatible

• Rotation: bidirectional

• Motor: NPM (Japan)

• Material: CNC anodized aluminum

• Weight: 650 g

• Filters not included
