ZWO 0.75x Reducer for FF65 Refractor

ZWO 0.75x Reducer for FF65 Refractor

Description:

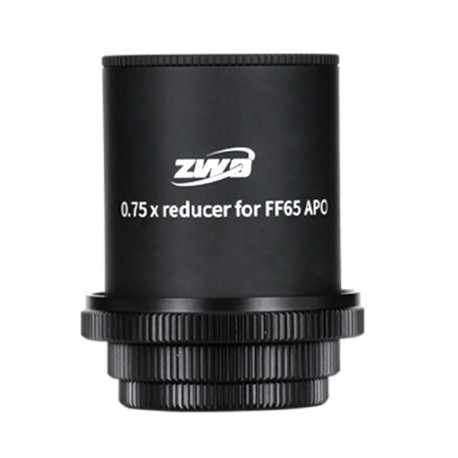

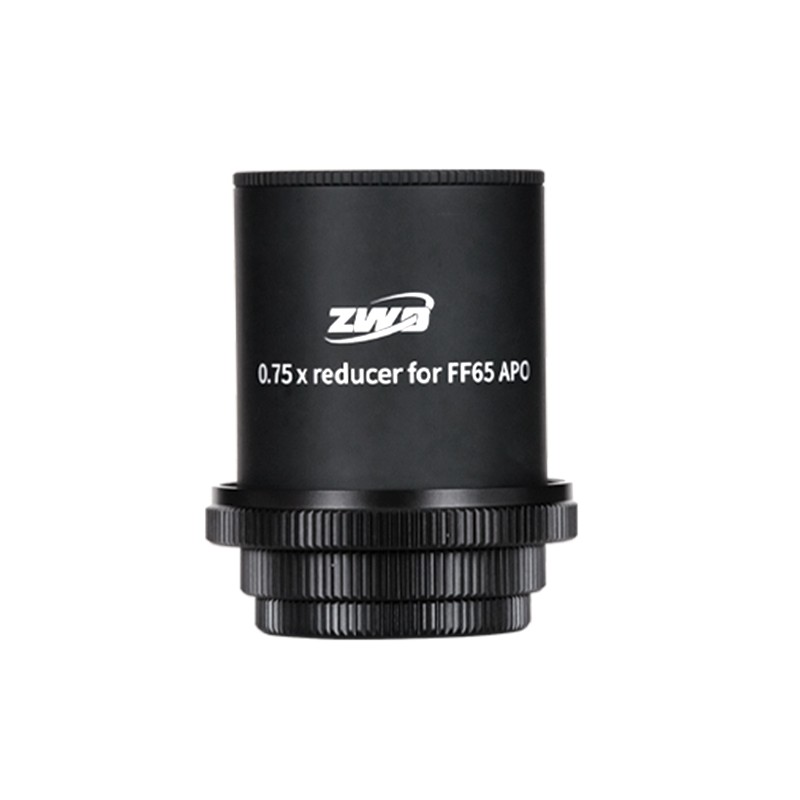

The ZWO 0.75x focal reducer is specifically designed for the ZWO FF65 apochromatic refractor. It transforms the telescope into a fast, wide-field astrograph, perfect for deep-sky imaging. By reducing the focal length from 416 mm to 312 mm, it lowers the focal ratio from F/6.4 to F/4.8, allowing faster exposures and broader fields of view.

The 3-element optical design includes an ED (Extra-low Dispersion) glass lens for excellent chromatic correction and sharp stars across the entire image. This combination ensures pinpoint stars even at the edges of large sensors.

The reducer mounts directly into the M58 x 0.75 mm female thread at the back of the FF65’s focuser. On the camera side, users can connect via standard M48 x 0.75 mm male thread, or via a supplied adapter with M54 x 0.75 mm male thread. This adapter also features an internal M48 thread to accept 2" filters.

The recommended backfocus is 55 mm from the M48 thread. All optical surfaces are fully multi-coated for optimal transmission and minimal internal reflections.

Technical specifications:

• Reduction factor: 0.75x

• Resulting focal length with FF65: 312 mm (F/4.8)

• Optics: 3 elements, one ED glass

• Compatibility: ZWO FF65 refractor

• Optical coatings: Fully multi-coated

• Telescope-side thread: female M58 x 0.75 mm

• Camera-side threads:

  • male M48 x 0.75 mm

  • male M54 x 0.75 mm via adapter

  • adapter includes M48 female thread for 2" filters

• Recommended backfocus: 55 mm from M48 thread

• Adapter thickness (M54 to M48): 10 mm

Additional information:

The ZWO 0.75x reducer is a dedicated accessory for astrophotography with the FF65. It enhances field coverage and image sharpness while reducing exposure time. Fully compatible with modern color and monochrome imaging cameras. Manufacturer warranty: 1 year.
