Baader V-Dovetail Clamp 70 mm with One Clamp Screw

Baader V-Dovetail Clamp 70 mm

New product

Baader V-Dovetail Clamp 70 mm with One Clamp Screw

Compact 70 mm EQ-style clamp for Vixen-type dovetails, ideal for GIRO II mounts and lightweight setups.

More details

Available immediately from our supplier. Usually deliverable within two to three days.

45.00 CHF tax incl.

More info

Baader V-Dovetail Clamp 70 mm with One Clamp Screw

Description:

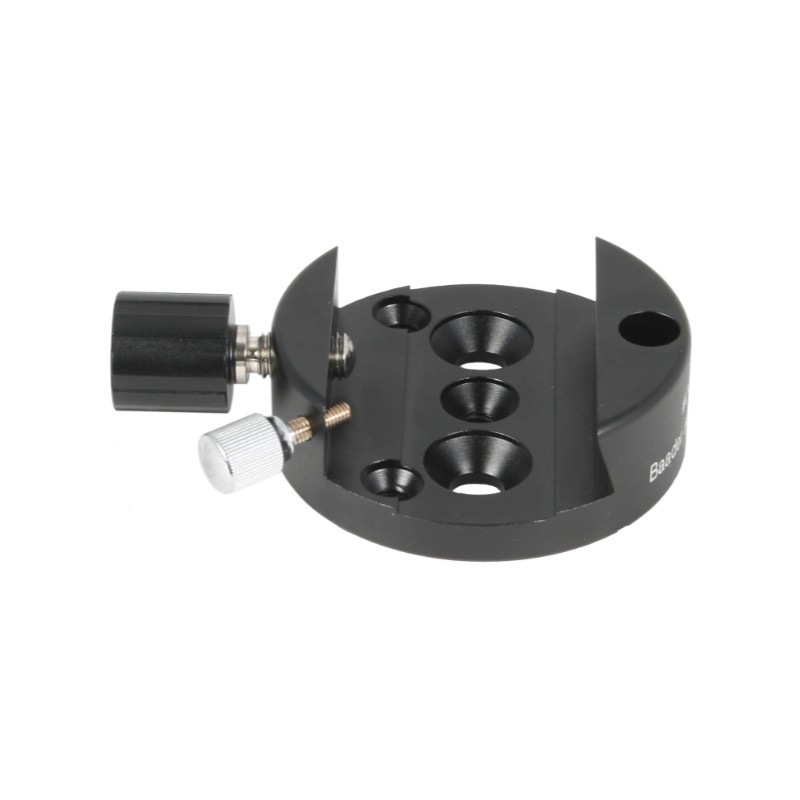

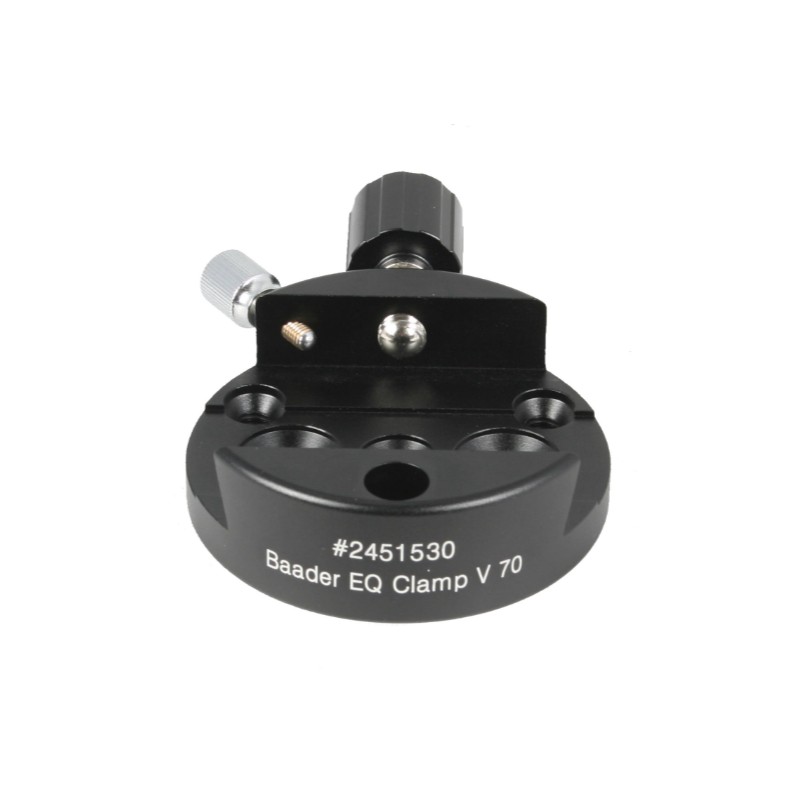

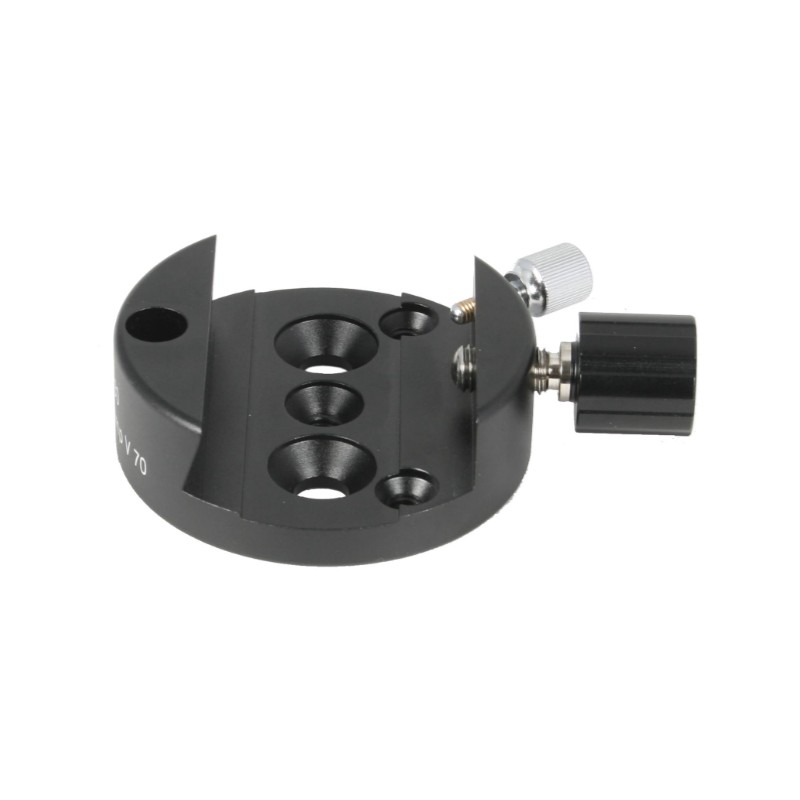

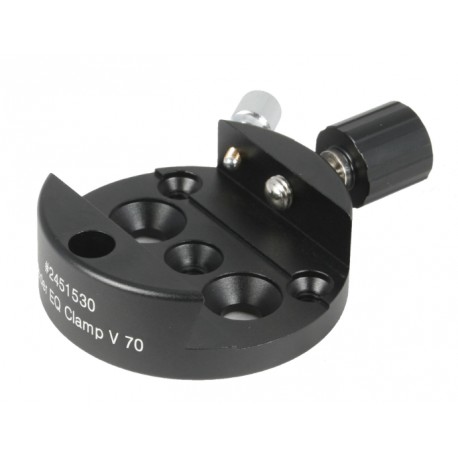

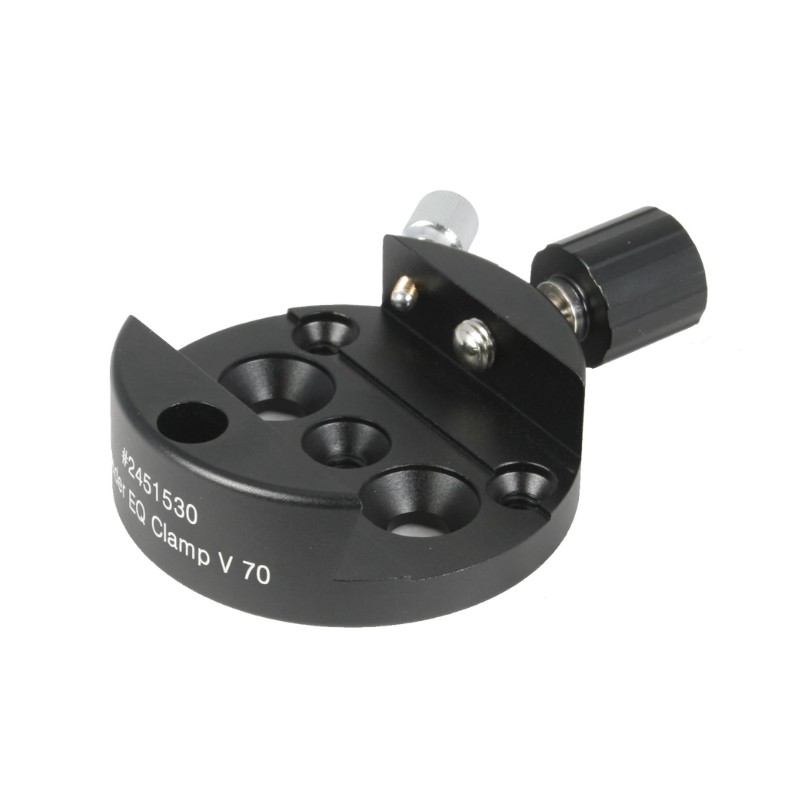

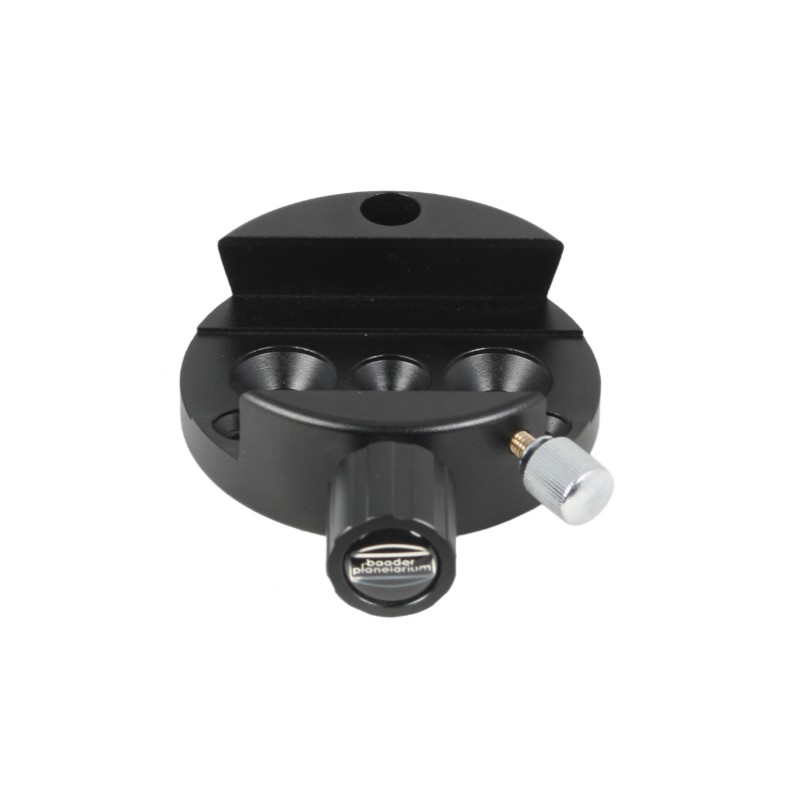

The Baader V-Dovetail Clamp 70 mm is a compact, durable clamp designed for telescopes or accessories with 44 mm Vixen-standard rails. With a 70 mm body diameter and a weight of only 150 g, it is perfect for lightweight configurations such as the GIRO II mount or for securing auxiliary equipment.

Crafted from black anodized aluminum, the clamp delivers solid mechanical strength and secure grip. It is compatible with Vixen rails from SkyWatcher, Synta, Celestron, Baader V, Vixen GP/GPDX, and Bresser. A single manual clamp screw makes it easy and quick to operate.

The top plate allows mounting of a 1 kg balancing weight. For easier handling, Baader’s optional 3D-printed ring wrench (#2450071) is recommended.

Technical specifications:

  • Product name: Baader V-Dovetail Clamp 70 mm

  • SKU: 2451530

  • Type: Clamp

  • Width: 70 mm

  • Net weight: 0.14 kg

  • Clamping system: single manual screw

  • Compatible dovetails:

    • Vixen (44 mm)

    • SkyWatcher / Synta / Celestron / Baader V / Vixen GP / GPDX / Bresser

  • Dual mounting: No

  • Screws included: No

  • Top mounting options: 1 kg counterweight

  • EAN: 4047825011848

  • Manufacturer: Baader Planetarium
