Baader Intermediate Plate for 8" Double Mounting Plate

Adjustable accessory plate for lateral or height modification of Baader Pan EQ clamps on the 8" double mounting plate

More details

Available immediately from our supplier. Usually deliverable within two to three days.

269.00 CHF tax incl.

More info

Baader Intermediate Plate for 8" Double Mounting Plate

Description

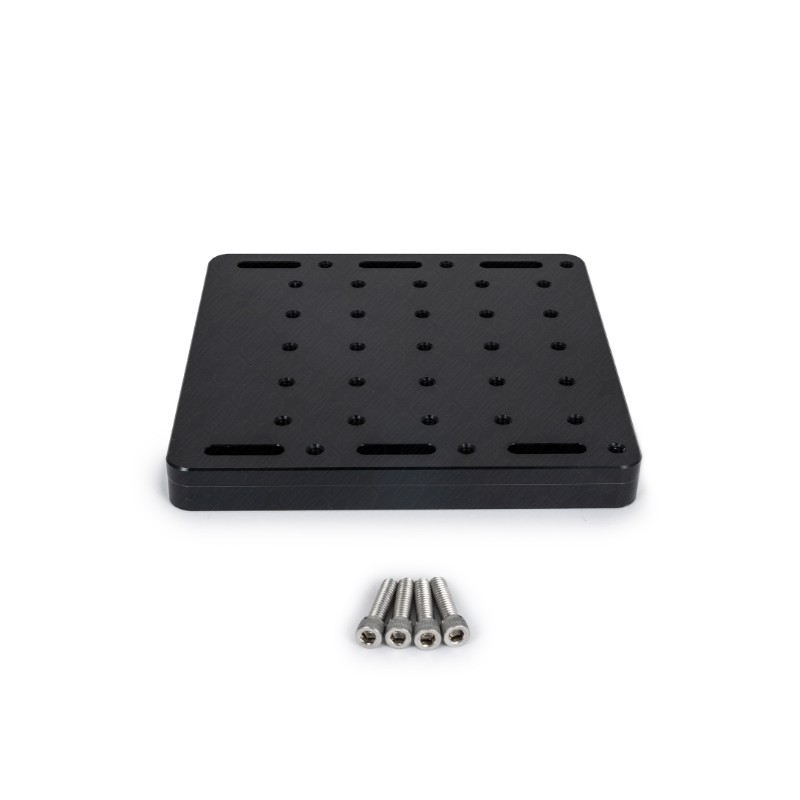

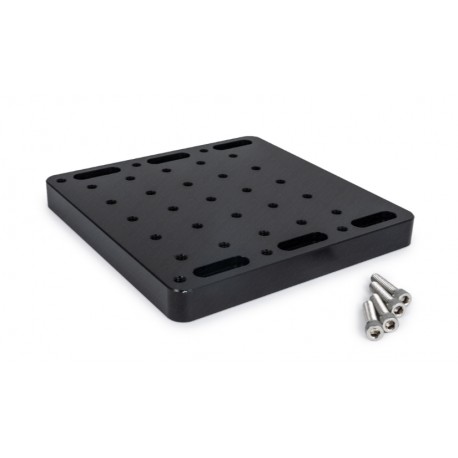

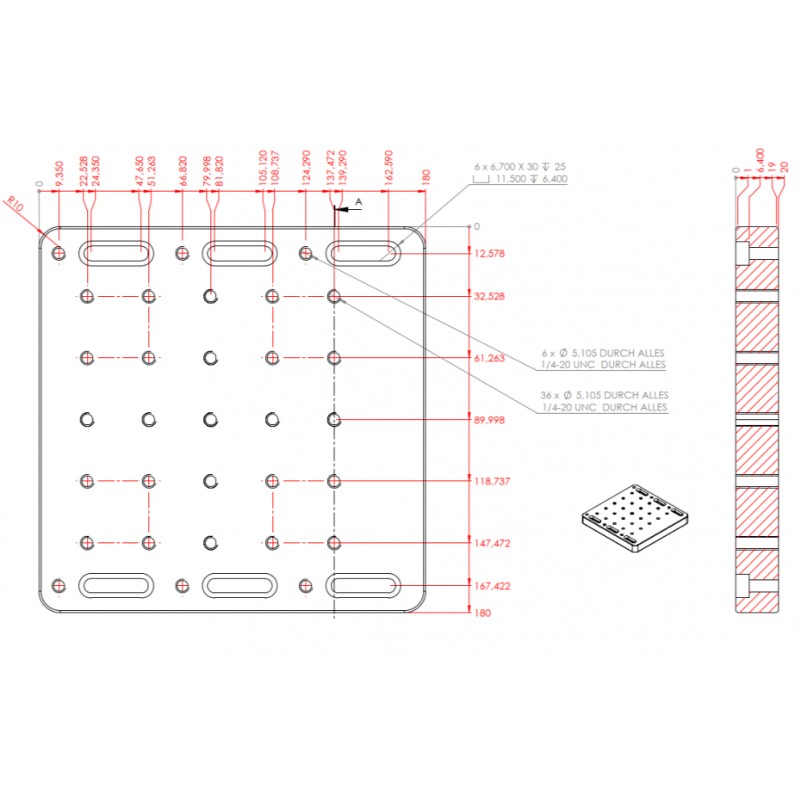

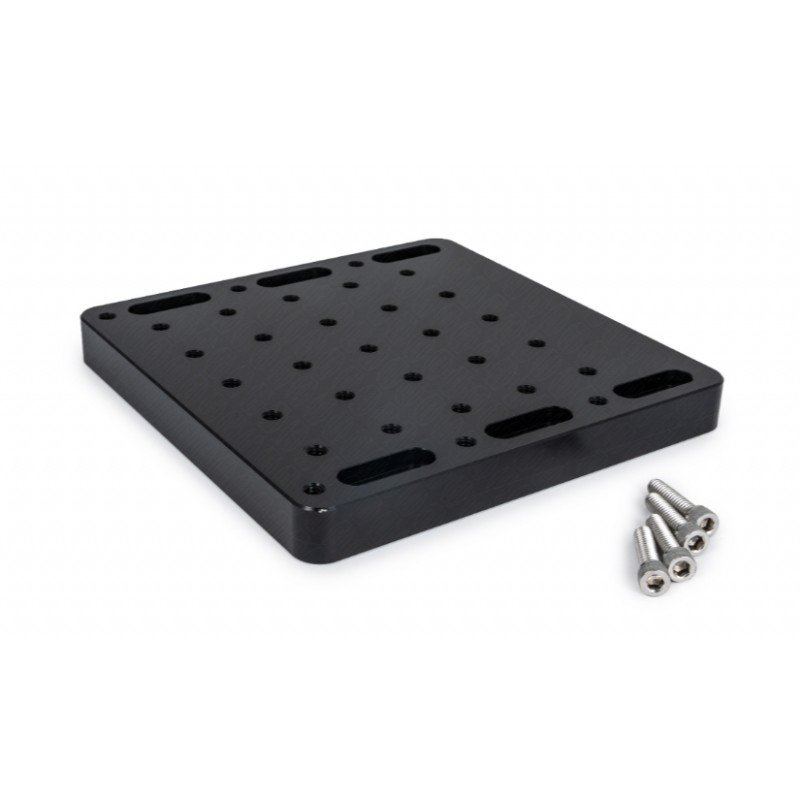

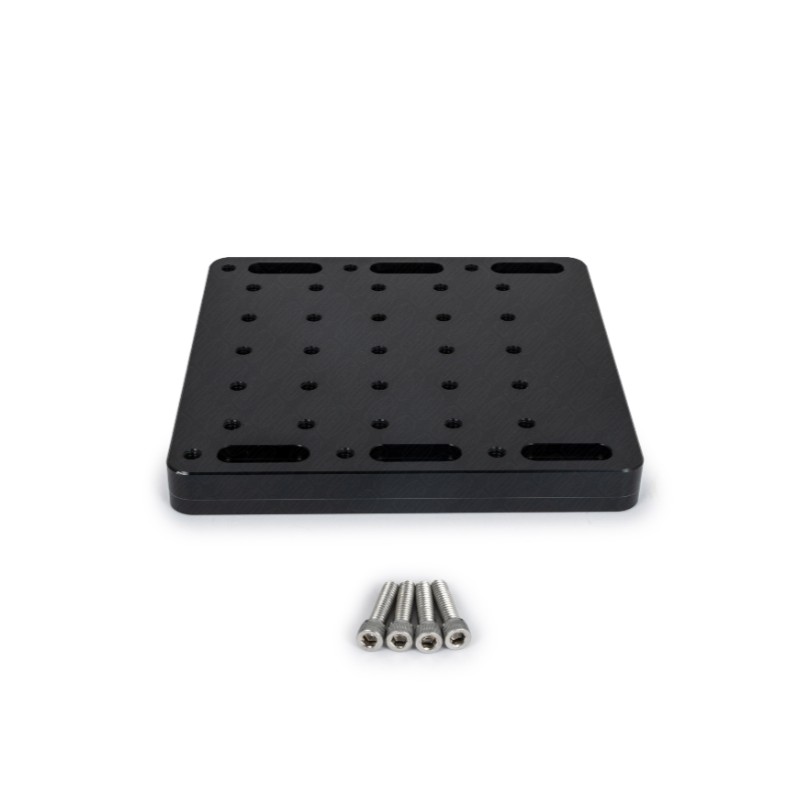

The Baader intermediate plate is designed to slide laterally onto the Baader 8" double mounting plate 570 mm (ref. 2451559). Its slotted holes allow flexible positioning and vertical adjustment of attached clamping systems, making it ideal for parallel telescope setups requiring precise spacing or height correction.

It is compatible with all Baader Pan EQ clamps (190 mm, 230 mm, 370 mm), and the Pan Adjuster (ref. 2451515) for adjusting the optical axis between side-by-side instruments. Plates can be stacked for increased elevation or expanded configuration flexibility.

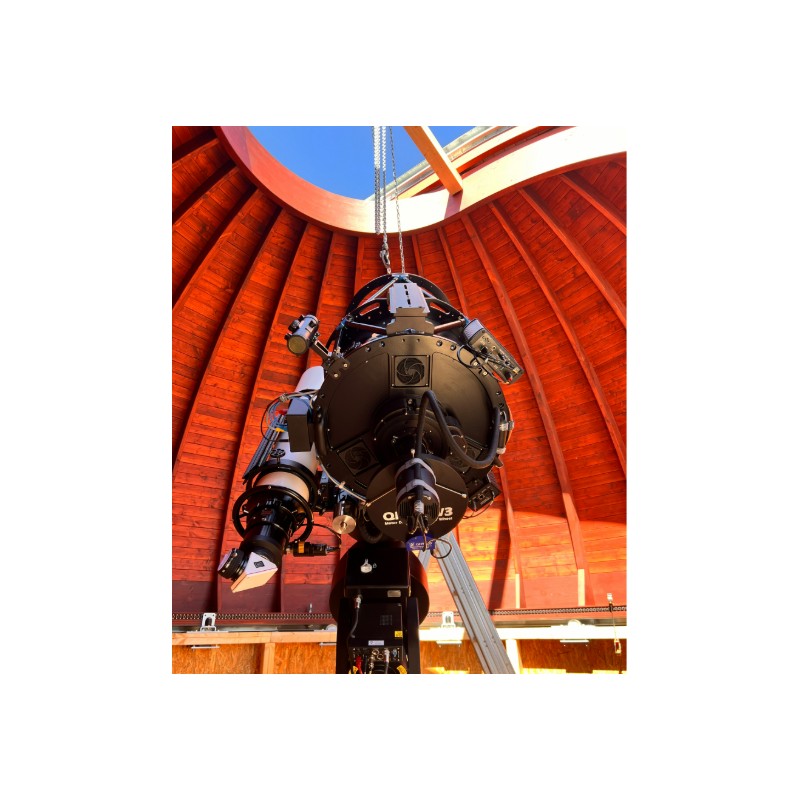

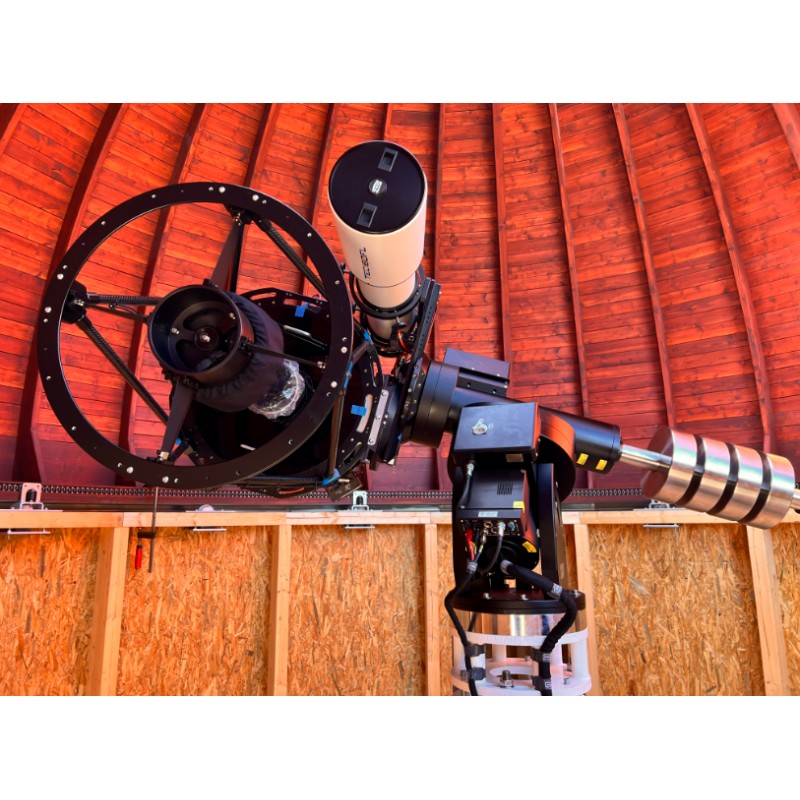

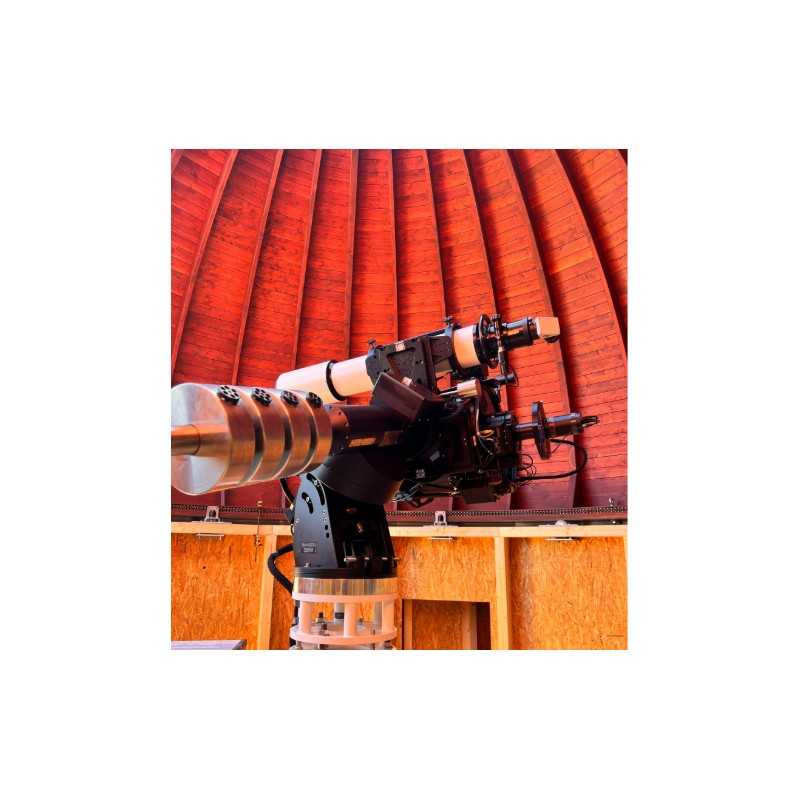

This is a high-quality, structural solution for advanced dual telescope installations.

Technical specifications

  • Product name: Baader Intermediate Plate for 8" Double Mounting Plate

  • SKU: 2451557

  • Compatible with: Baader 8" Double Mounting Plate 570 mm (ref. 2451559)

  • Compatible with clamps: Baader Pan EQ 190 mm, 230 mm, 370 mm; Pan Adjuster (ref. 2451515)

  • Function: Lateral and vertical adjustment

  • Stackable: Yes

  • Net weight: 1.68 kg

  • EAN code: 4047825054494

  • Manufacturer: Baader Planetarium
