Baader Z(AP)-Dovetail Clamp 200 mm for Zeiss / Astro-Physics Rails

Baader Z(AP)-Dovetail Clamp 200 mm for Zeiss / Astro-Physics Rails

Description:

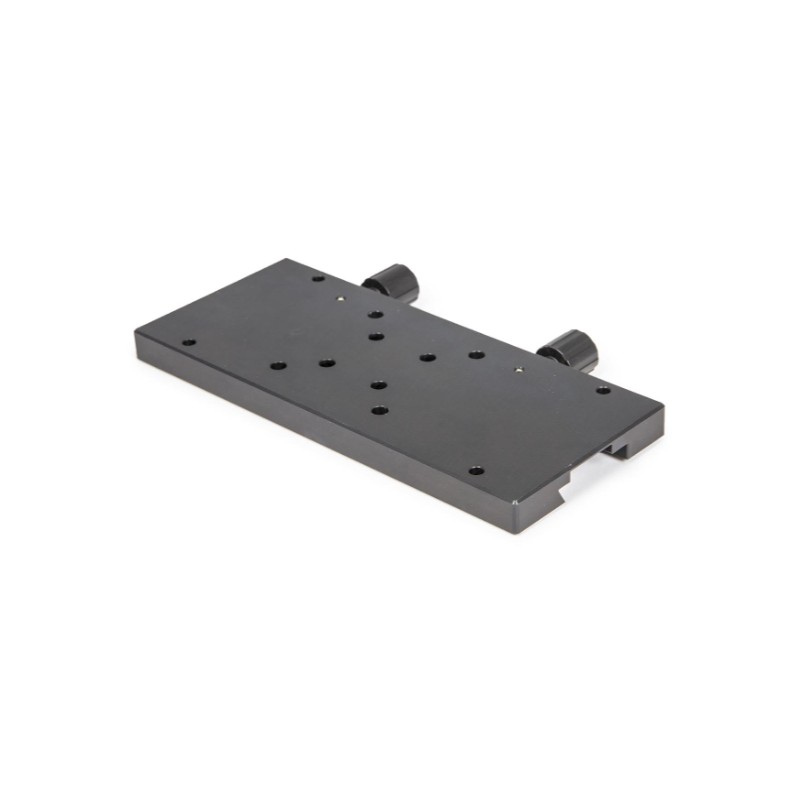

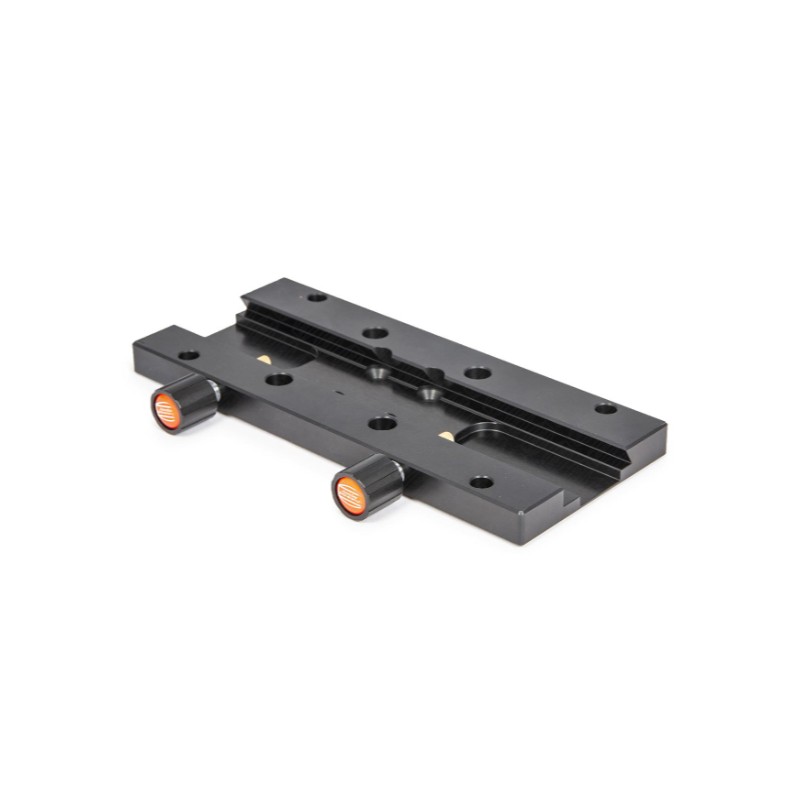

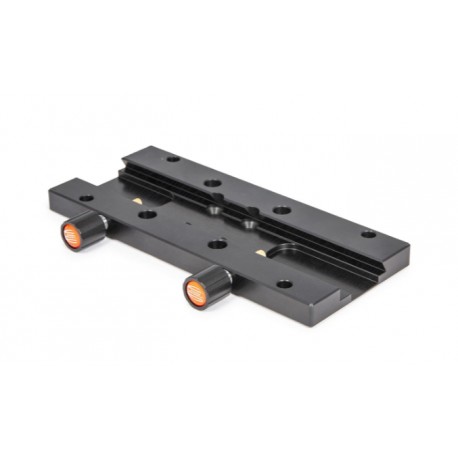

The Baader Z(AP) Dovetail Clamp 200 mm is a robust, precision-engineered mounting solution designed for 40 mm Zeiss or Astro-Physics dovetail bars. Its long clamping surface and dual pressure block design provide excellent stability for heavy optical systems or precision instruments.

The clamp features two classic pressure-style locking blocks, ensuring reliable grip without flex or slip. Pre-drilled mounting holes match Astro-Physics mounts including the 600, 400, Mach1, and 900 (requires optional adapter #1401155).

Its 200 mm length provides superior surface contact for firm and balanced attachment. This clamp is not compatible with Vixen (44 mm) or Losmandy (76 mm) rails.

Technical specifications:

• Product name: Baader Z(AP) Dovetail Clamp 200 mm

• SKU: 1401130

• Type: Clamp

• Length: 200 mm

• Net weight: 0.61 kg

• Clamping system: two pressure blocks (classic design)

• Compatible dovetail type: Zeiss / Astro-Physics Z 40 mm only

• Mounting compatibility: Astro-Physics 600, 400, Mach1, 900 (with adapter #1401155)

• Dual mounting: No

• Screws included: No

• EAN: 4047825018137

• Manufacturer: Baader Planetarium
