Baader ClickLock M68
New product
2" ClickLock adapter with M68 x 1 thread for Zeiss APQ refractors and Baader M68 accessories.
1 Item Items
Available.
Warning: Last items in stock!
Availability date:
DESCRIPTION

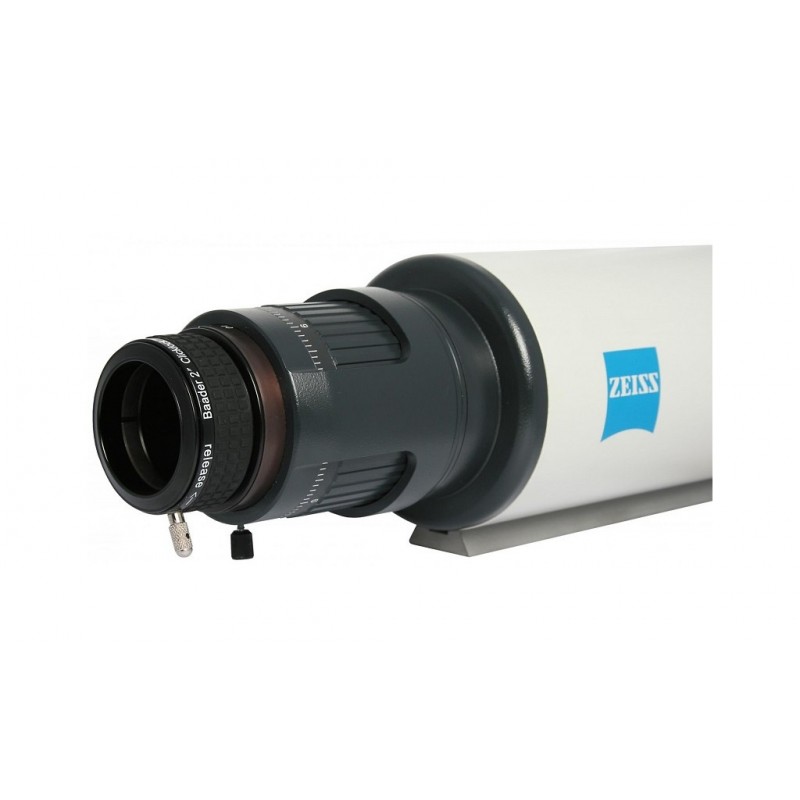

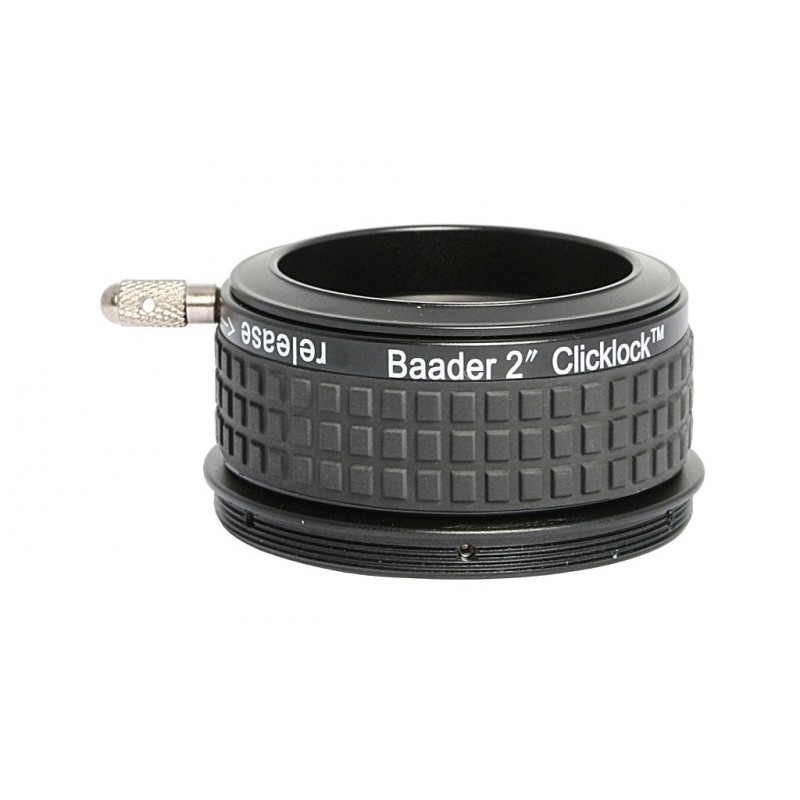

This Baader 2" ClickLock adapter allows fast, tool-free clamping of any 2" accessory to a component with an M68 x 1 thread. Designed for Zeiss APQ fluorite refractors and Baader’s M68 system, it provides strong and even grip using a thick-walled bronze compression ring.
A simple 20° turn of the knurled lever securely locks the accessory in place, without tilting or scratching. The integrated ratchet system gives audible and tactile feedback, indicating open or closed state—ideal for use in complete darkness. The lever position can be adjusted for right- or left-handed users.
Built to professional mechanical standards, this adapter ensures long-lasting stability even with heavy or expensive components.
TECHNICAL SPECIFICATIONS
• Telescope side thread: M68 x 1
• Inner diameter: 50.8 mm (2")
• Outer diameter: 68 mm
• Optical path length: 31 mm
• Locking mechanism: ClickLock lever clamp
• Compression ring: thick bronze, scratch-free
• Ratchet function: acoustic and tactile feedback
• Lever orientation: adjustable (left/right handed)
• Weight: 0.16 kg
• Compatible brands: Zeiss, Baader
• Adapter type: 2" eyepiece clamp
• Product code: 2956268
• EAN: 4047825022493
• Manufacturer: Baader Planetarium
