Baader Morpheus 4.5 mm 76° Widefield Eyepiece – 1.25"/2"

Baader Morpheus 4.5 mm 76° Widefield Eyepiece – 1.25"/2"

DESCRIPTION

The Baader Morpheus 4.5 mm wide-angle eyepiece delivers a sharp and flat 76° apparent field across its entire view. The advanced optical construction uses 8 lenses in 5 groups, including lanthanum elements for superior contrast and minimized distortion. All surfaces feature the Phantom Coating® Group for excellent light transmission.

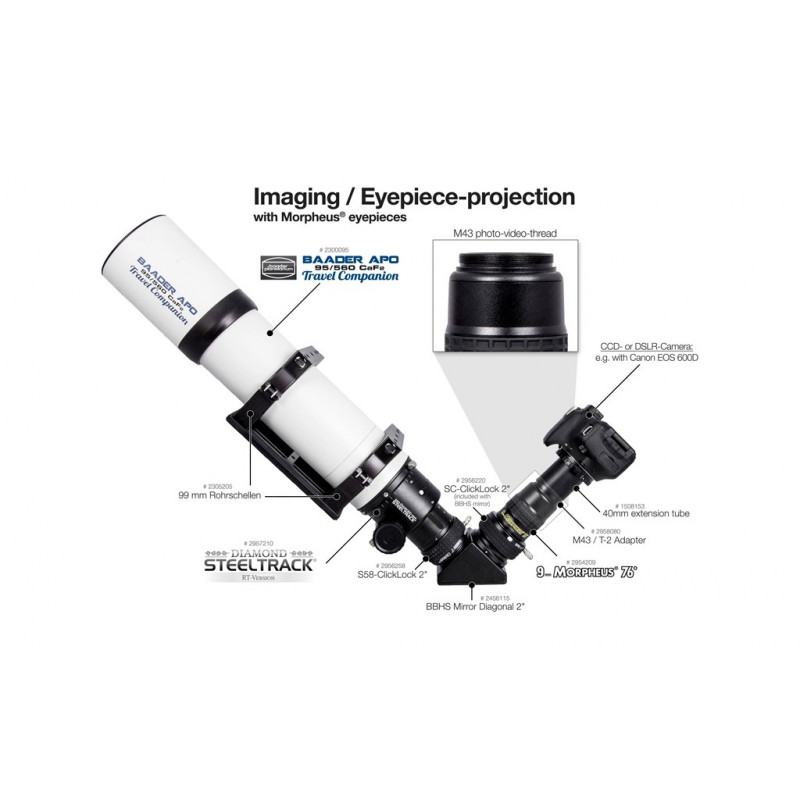

An eye relief of 18 mm ensures comfortable viewing even for eyeglass wearers and binoviewer users. The eyepiece offers both 1.25" and integrated 2" barrels with safety kerfs for secure mounting. The integrated M43 thread allows for direct connection of photo accessories using Hyperion Digital T-Rings.

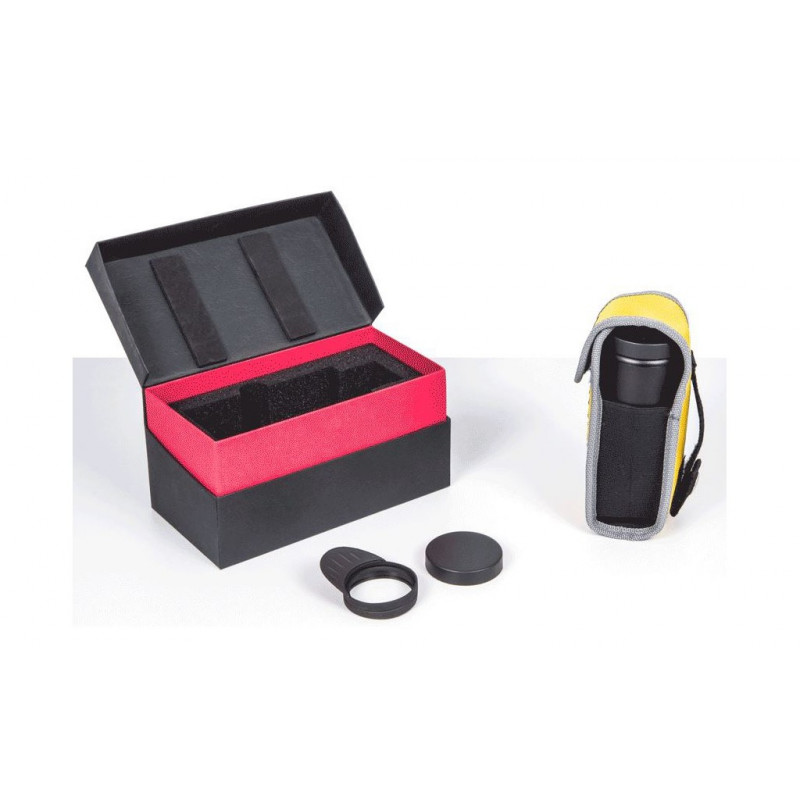

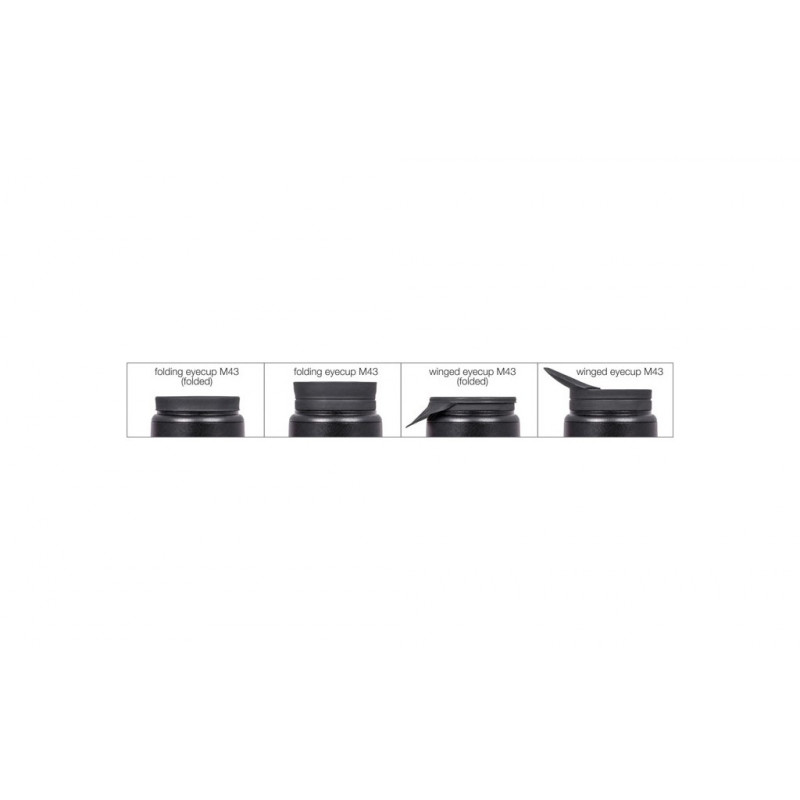

Its lightweight and compact housing make it perfect for binoviewers. A glow-in-the-dark focal length label aids quick identification. Accessories include standard and winged eyecups, M43/M43 extension, belt pouch, and tactile focal clip.

TECHNICAL SPECIFICATIONS

• Product Code: 2954204

• EAN: 4047825030283

• Manufacturer: Baader Planetarium

• Series: Morpheus

• Focal Length: 4.5 mm

• Apparent Field: 76°

• Eye Relief: 18 mm

• Lens Groups: 8 elements in 5 groups

• Filter Thread: Yes

• Camera Thread: M43

• Connections:

  • Input: M28.5

  • Output: M43 / 1.25" (31.75 mm) / 2" (50.8 mm)

• 1.25" Barrel Length: 24 mm

• 2" Barrel Length: 21 mm

• Outer Diameter: 55 mm

• Field Stop Diameter: 5.78 mm

• Height Above Reference Plane: 91.5 mm

• Luminescent Marking: Yes

• Net Weight: 370 g

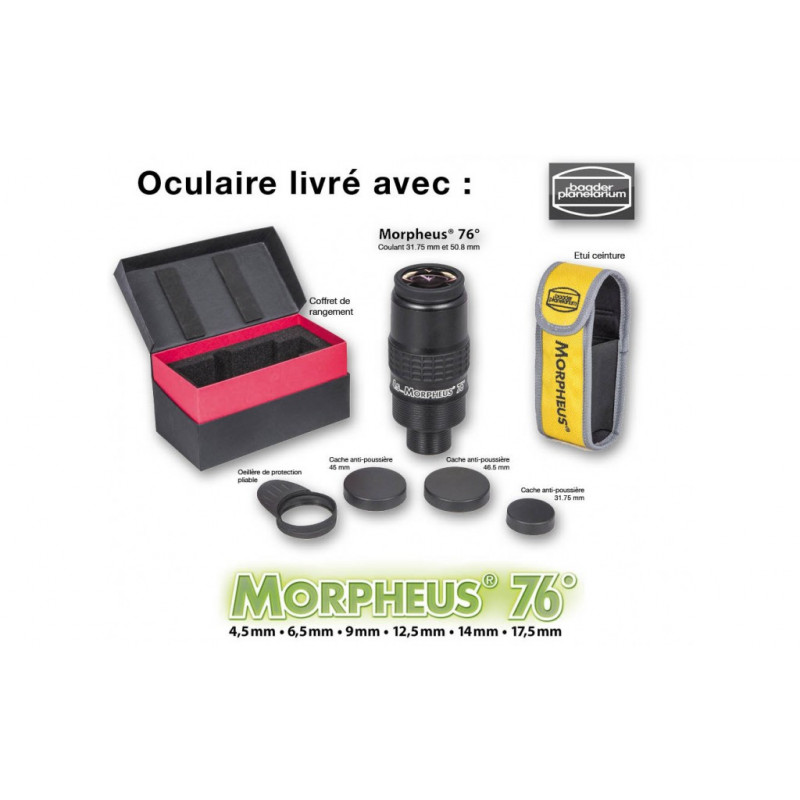

• Included Accessories:

  • Dustcaps (1.25", 2", 49 mm)

  • Foldable rubber eyecups (standard and winged)

  • M43/M43 extension

  • Belt holster

  • Focal-length indicator clip
