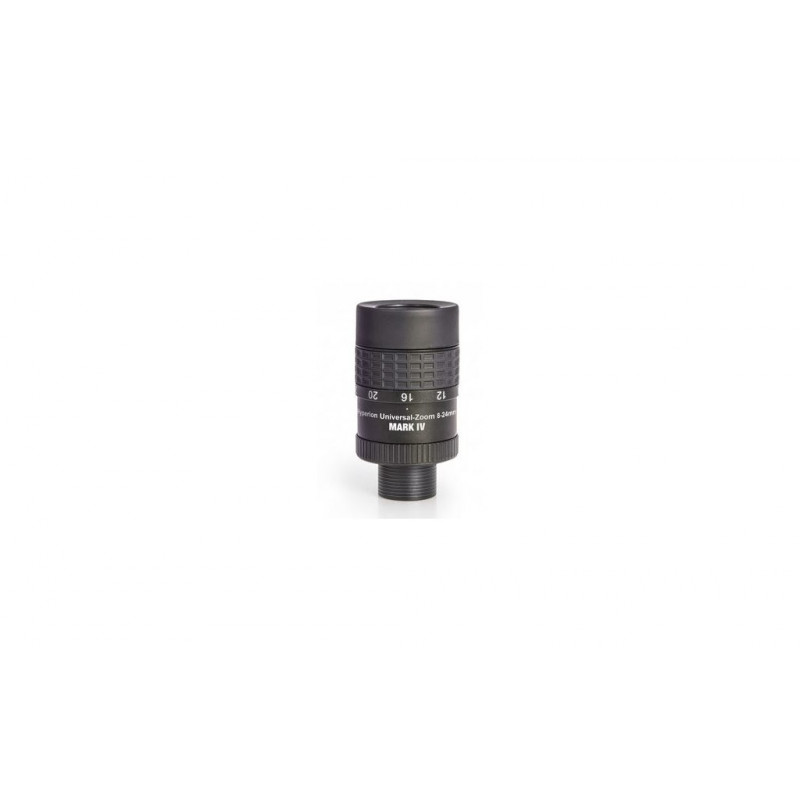

Baader Hyperion Universal Zoom Eyepiece Mark IV 8-24 mm (1¼" / 2")

Wide-angle zoom eyepiece with 48° to 68° AFOV, offering five focal lengths (8, 12, 16, 20, 24 mm) with tactile ClickStop mechanism, delivered with 1¼" and 2" barrels, multiple eyecups, and M43 photo thread. Ideal for visual use, binoviewers and afocal imaging.

More details

2 Items

Available.

250.00 CHF tax incl.

More info

Baader Hyperion Universal Zoom Eyepiece Mark IV 8-24 mm (1¼" / 2")

DESCRIPTION
The Hyperion Zoom Mark IV is Baader's fourth-generation variable focal length eyepiece. It covers 8 to 24 mm with five defined ClickStop positions for quick switching between magnifications—especially useful with binoviewers. The optical system is optimized for maximum magnification with 7 elements in 4 groups, and is fully coated with Phantom Coating™ for high contrast and virtually zero reflections.

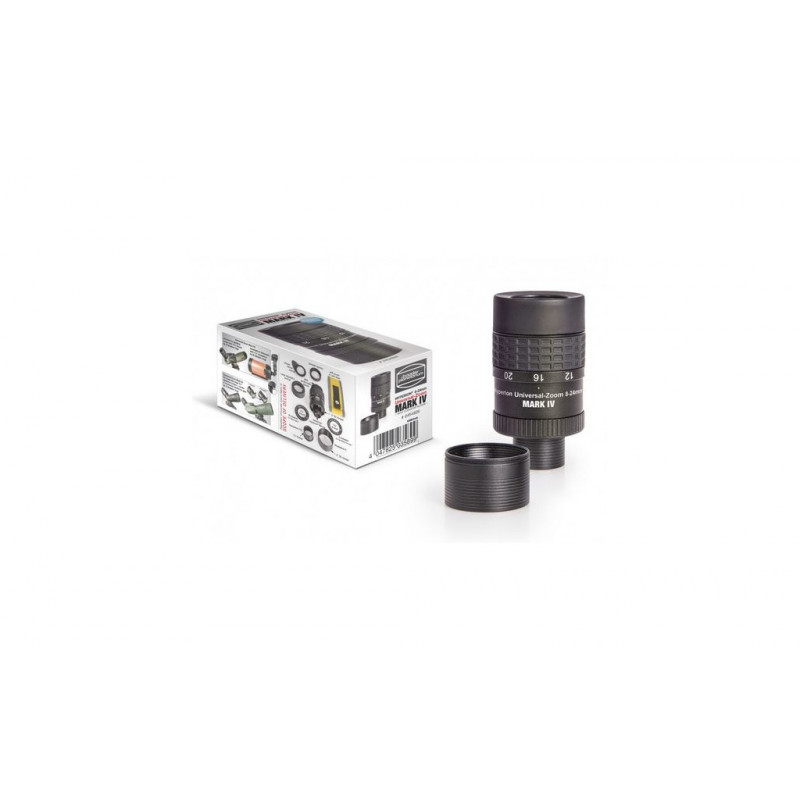

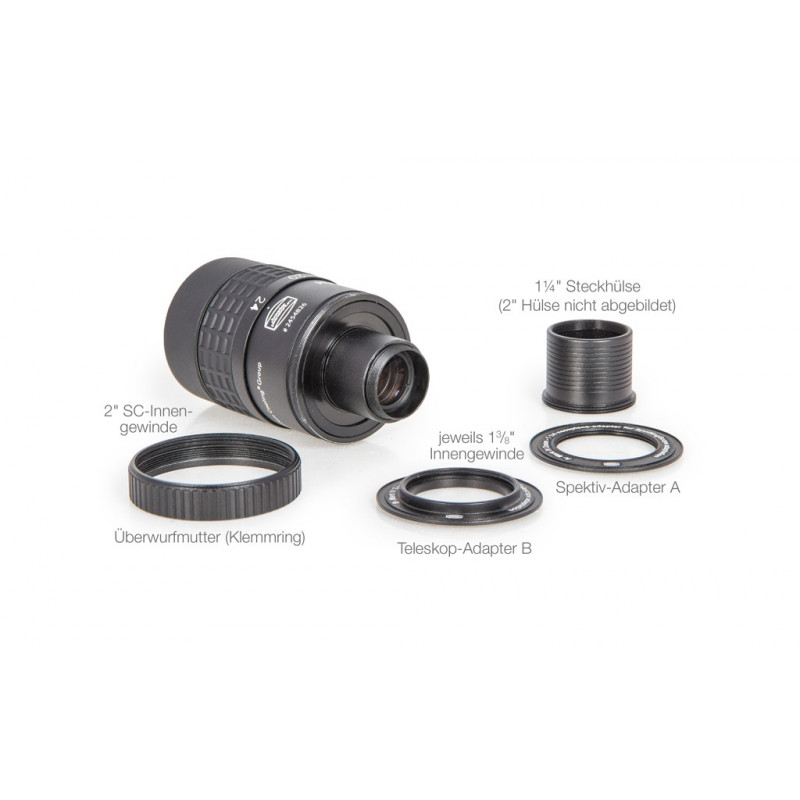

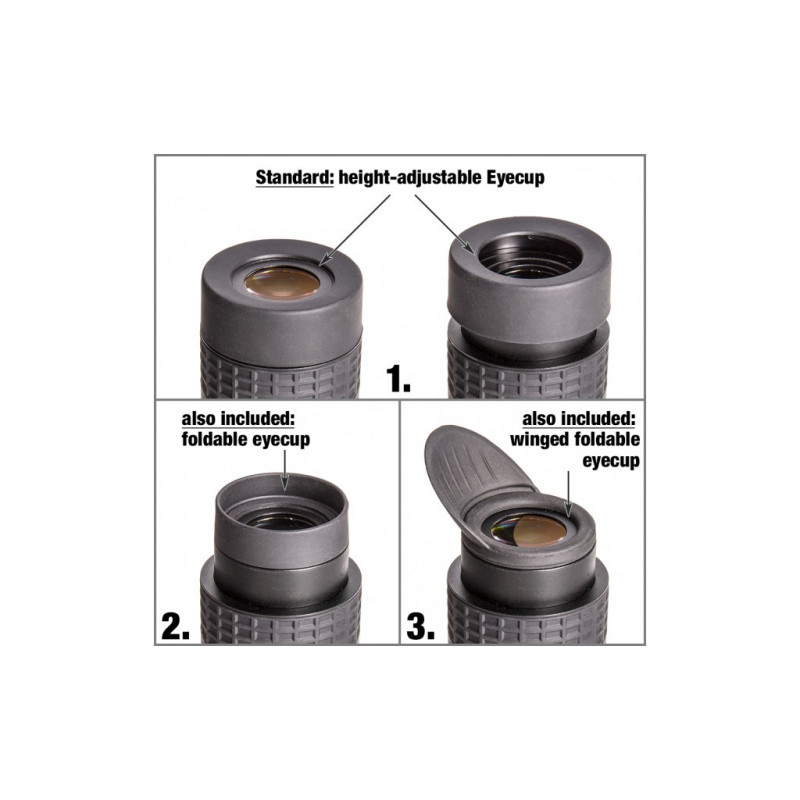

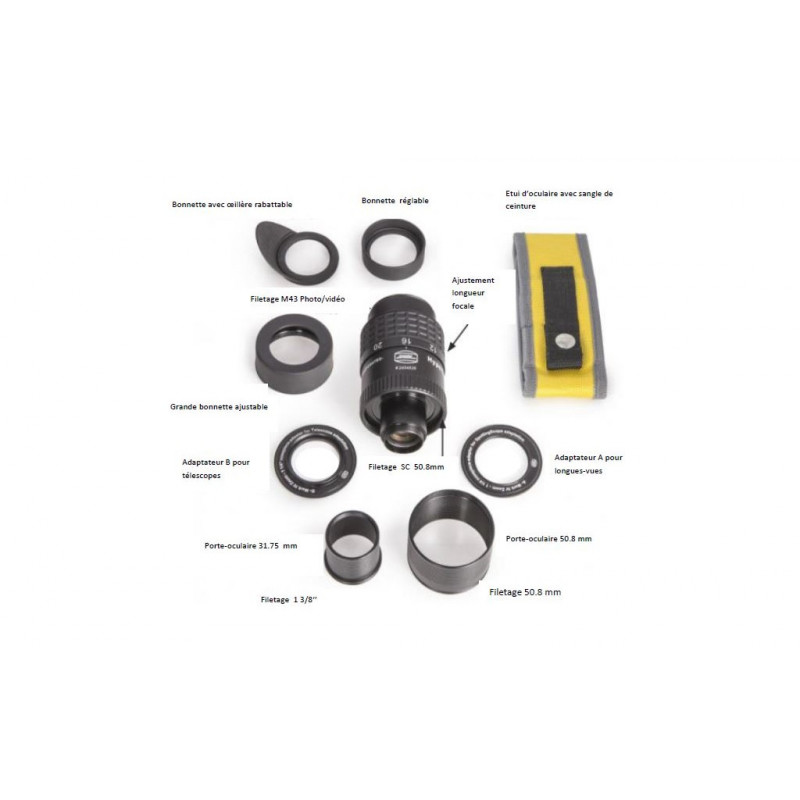

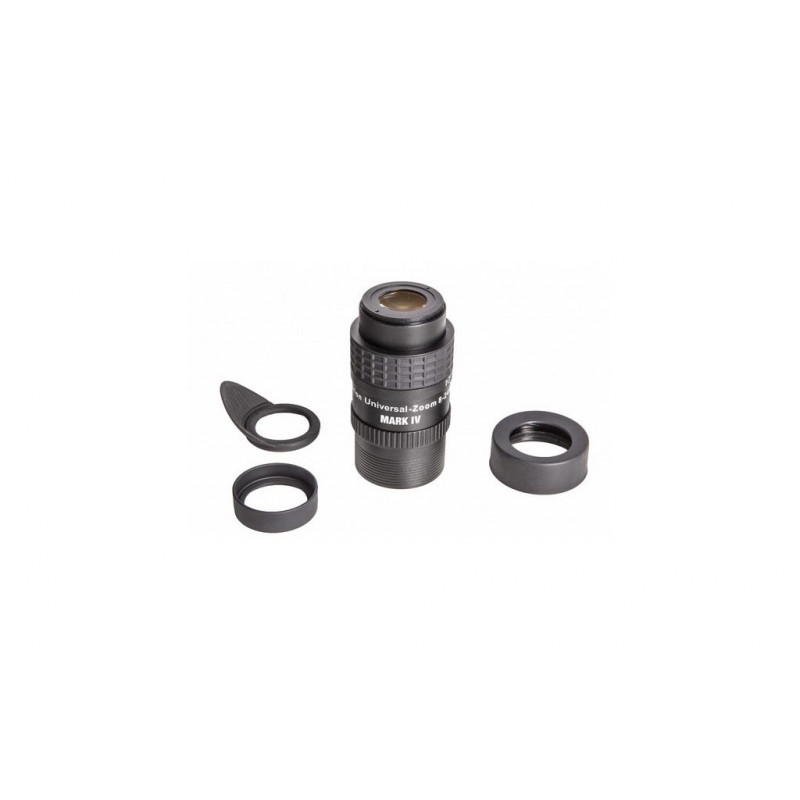

Both 1¼" and 2" barrels are included, along with three interchangeable eyecups (adjustable height, low-profile, and foldable winged). The M43 photo thread enables direct attachment of video cameras or digital cameras using optional T2/M43 adapters.

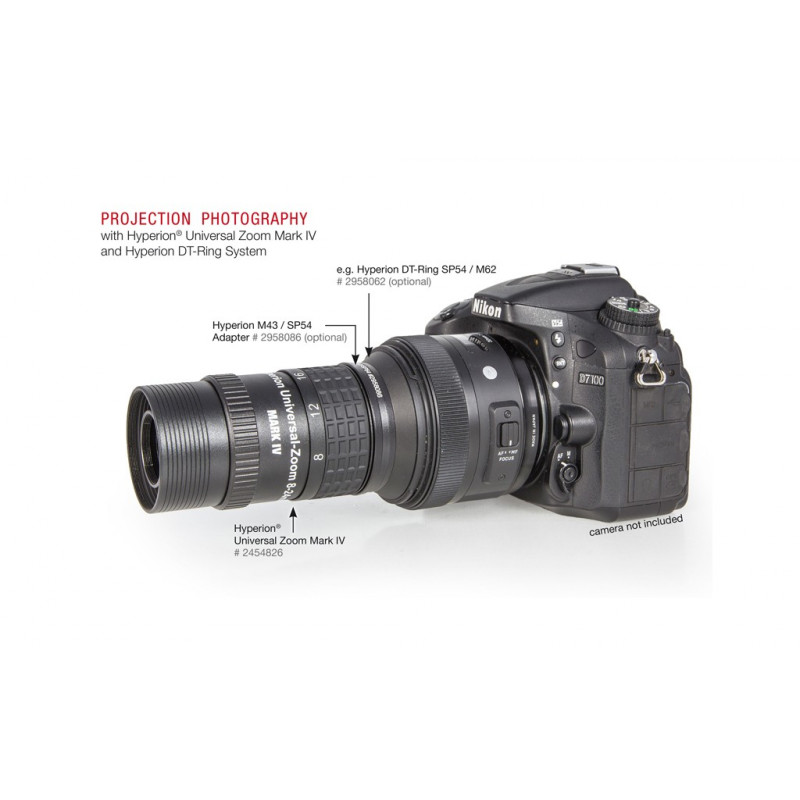

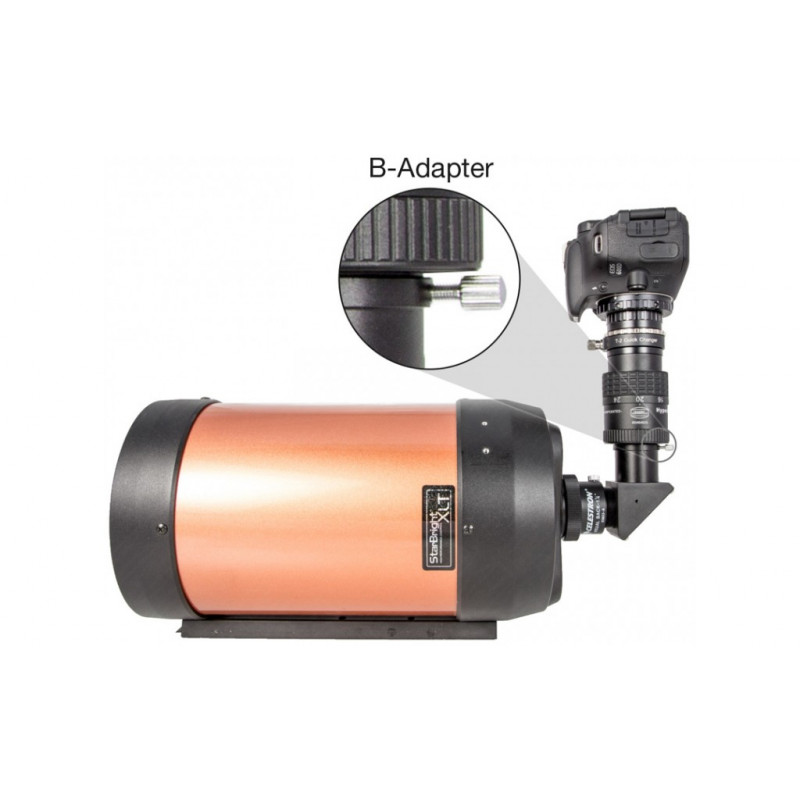

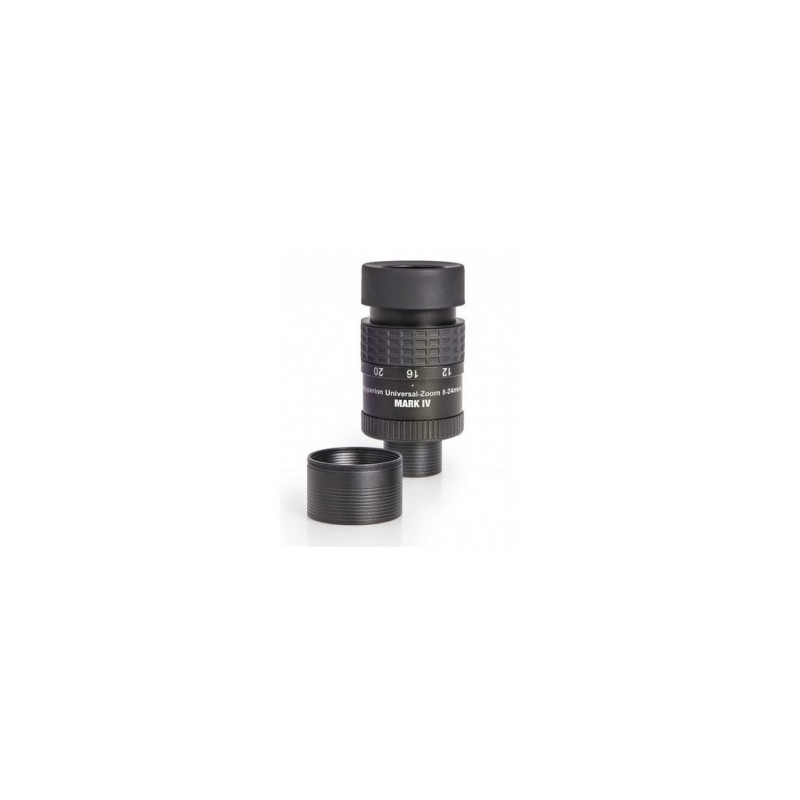

The Mark IV supports afocal and classic eyepiece projection and is fully parfocal across all focal lengths. It also pairs with the Baader 2.25x Barlow (optional) to provide a 3.6 to 10.7 mm range. Its compact 55 mm body is compatible with binoviewers and spotting scopes, aided by the included adapter rings A and B.

TECHNICAL SPECIFICATIONS

  • Focal length: 8 - 24 mm

  • Apparent field of view: 48° - 68°

  • Interface: 1¼", 2", M43

  • Filter thread: Yes

  • Camera thread: M43

  • Optical design: 7 elements / 4 groups

  • Parfocal: Yes

  • Modular construction: Yes

  • Coating: Phantom Coating™

  • 1¼" barrel height: 24.5 mm

  • 2" barrel height: 27 mm

  • Height above stop: 81 mm

  • Outer diameter: 55 mm

  • Included eyecups:

    • M43 adjustable height

    • M43 rubber

    • M43 foldable winged

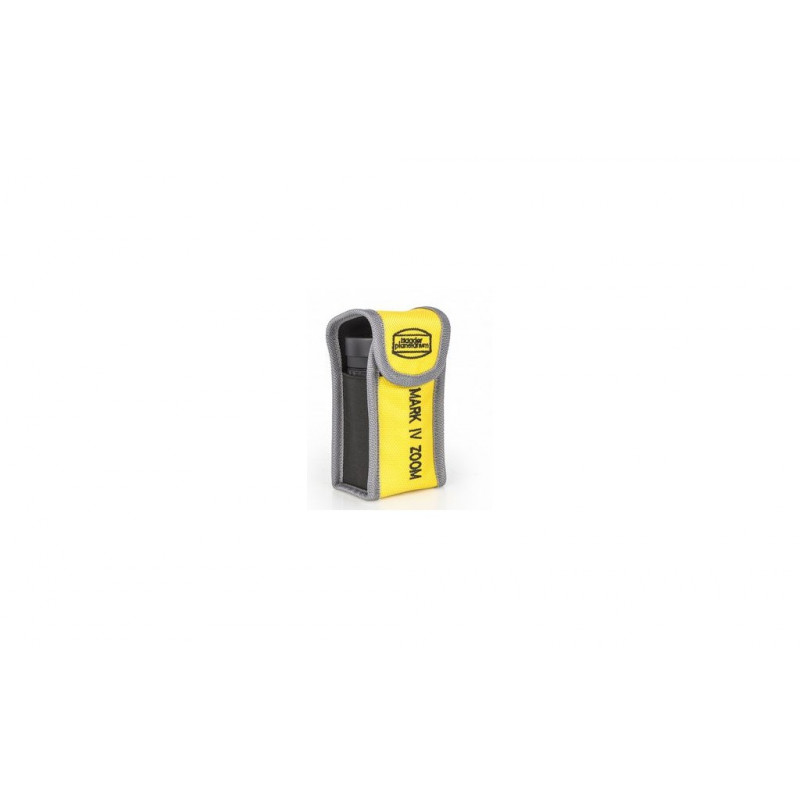

  • Accessories: dust caps for 1¼" and 2", yellow pouch

  • Net weight: 0.38 kg

  • Part number: 2454826
