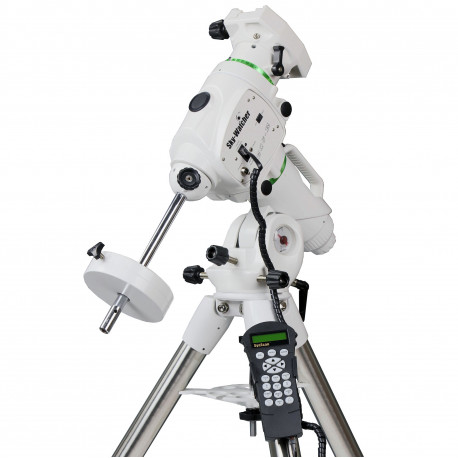

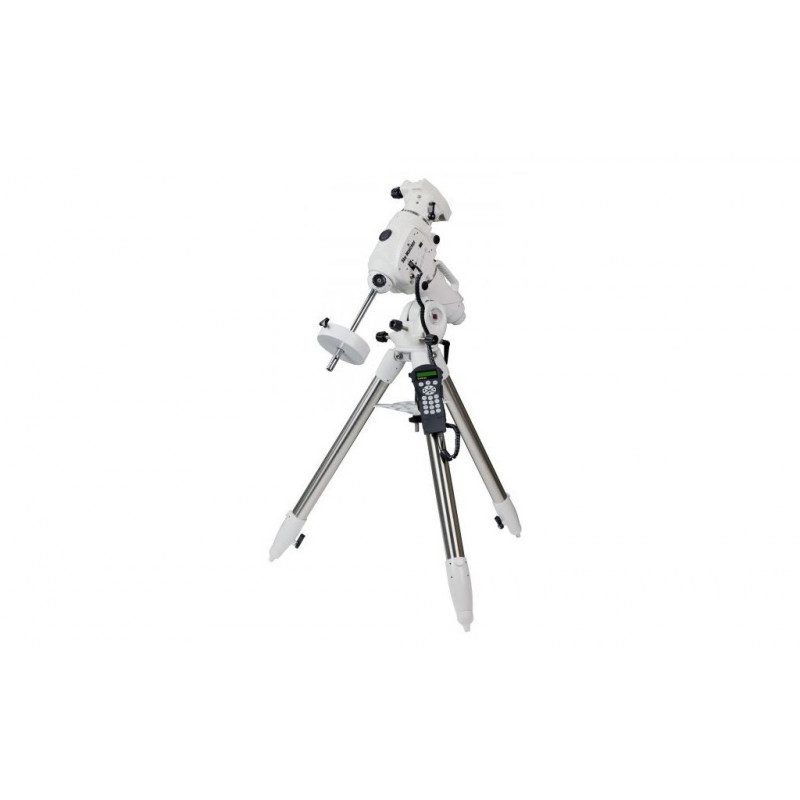

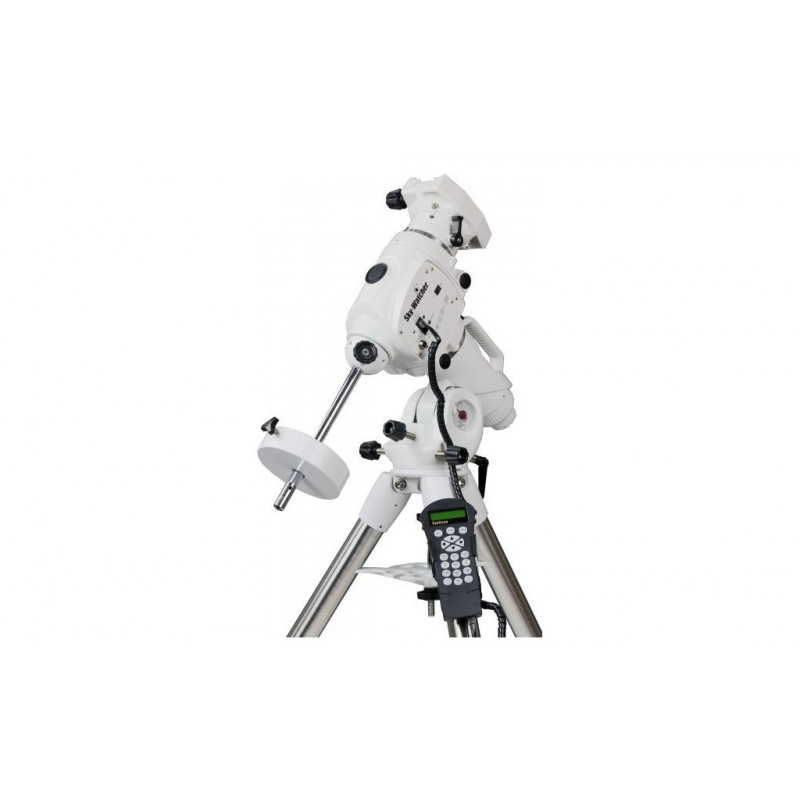

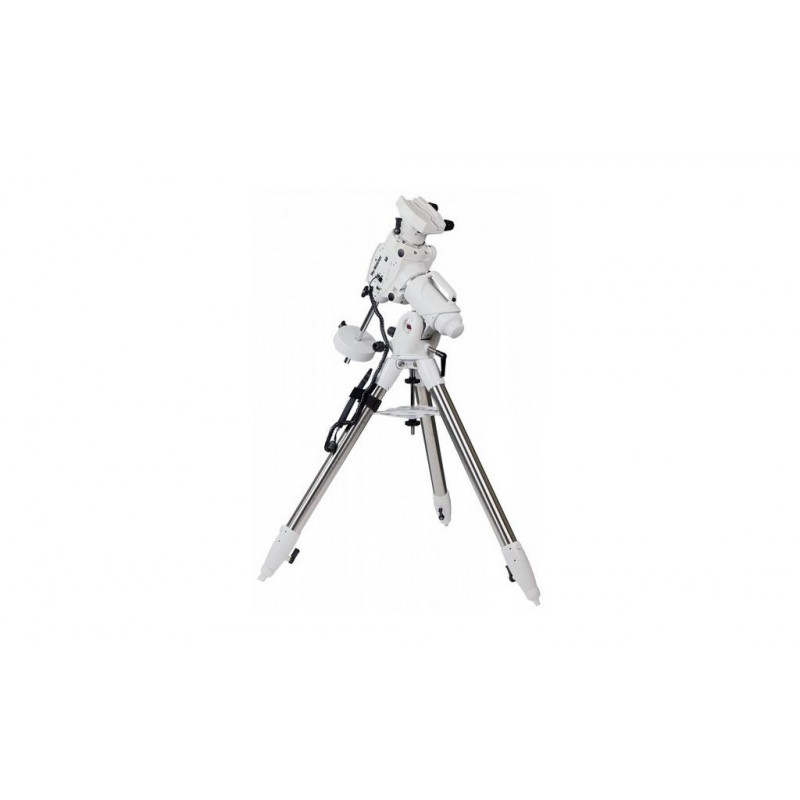

Sky-Watcher EQ6-R PRO Go-To Mount with USB Port

Sky-Watcher EQ6-R PRO Go-To Mount with USB Port

DESCRIPTION

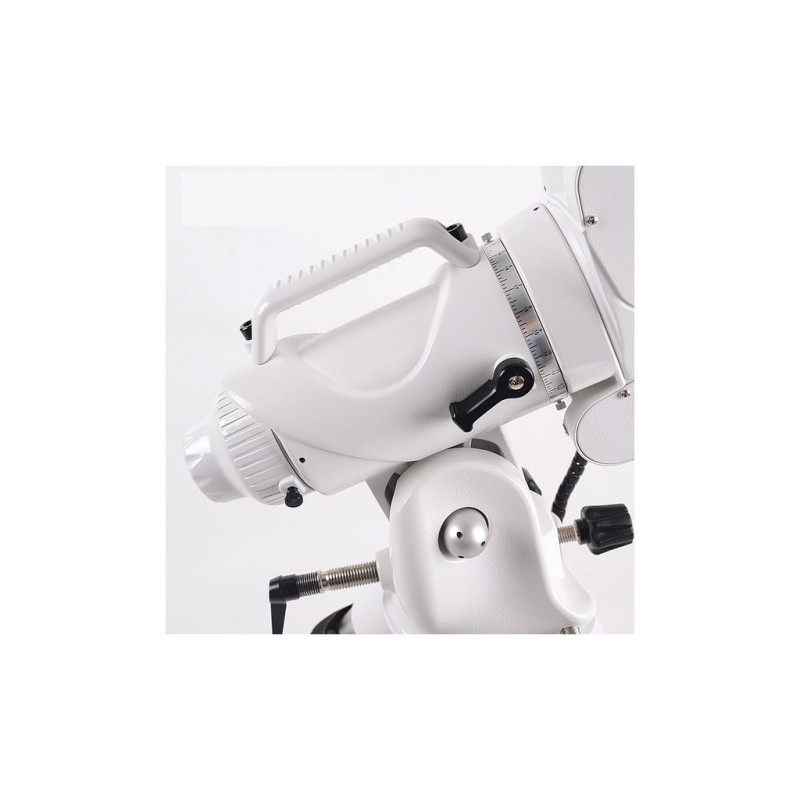

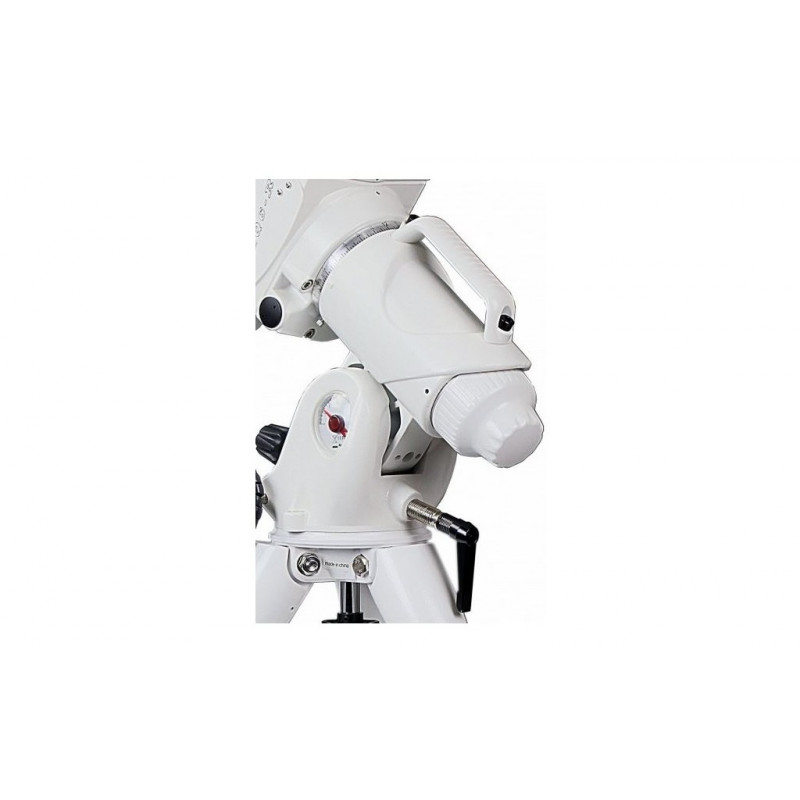

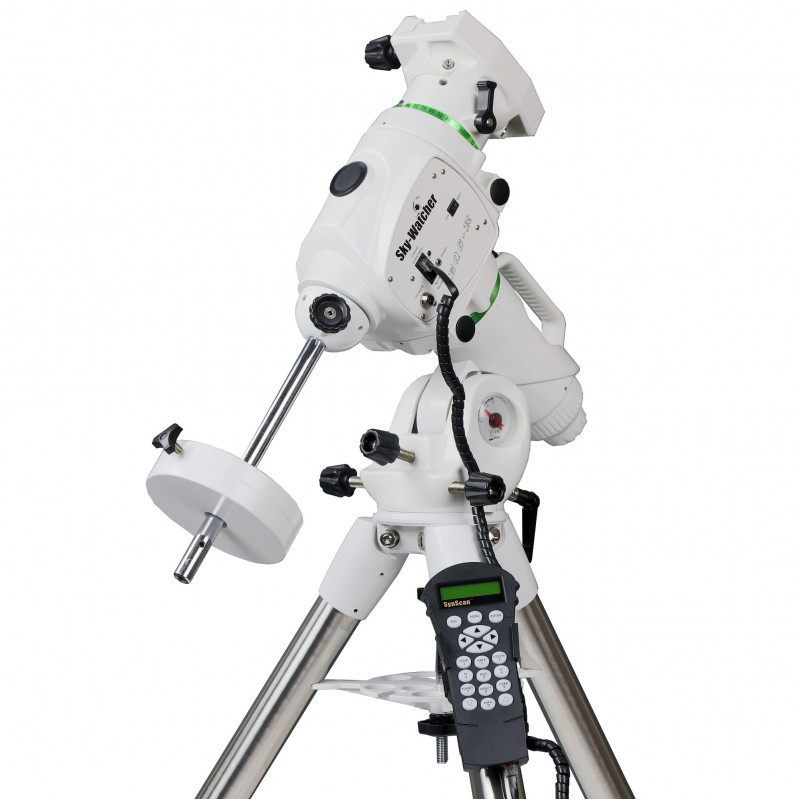

The Sky-Watcher EQ6-R PRO is a significant upgrade to the renowned NEQ6 PRO. It offers a 20 kg imaging payload, smoother belt-driven transmission for reduced backlash and improved guiding accuracy, and a USB port for direct PC connection. Its redesigned body includes a built-in carry handle, improved latitude adjustment, and a threaded power connector for secure operation.

Equipped with the SynScan Go-To system and a database of over 42,000 celestial objects, the mount includes a SNAP port for DSLR shutter control, and PPEC (Permanent Periodic Error Correction), which avoids retraining. A polar scope is included for precise alignment. The dual saddle accepts both Vixen and Losmandy dovetails.

Its hybrid 1.8° stepper motors and 64 microstep system, combined with a 720:1 gear ratio, deliver a 0.14 arcsecond step resolution. Slewing speed reaches 4.2°/sec, and autoguiding is available from 0.125× to 1×. The EQ6-R PRO is ideal for visual observing and demanding astrophotography setups up to 20 kg.

TECHNICAL SHEET

• Product name: EQ6-R PRO Synscan™

• Mount type: German equatorial Go-To

• Max payload: 20 kg (for astrophotography, excluding counterweights)

• Mount weight: 17.3 kg

• Tripod: 2" stainless steel, 7.5 kg

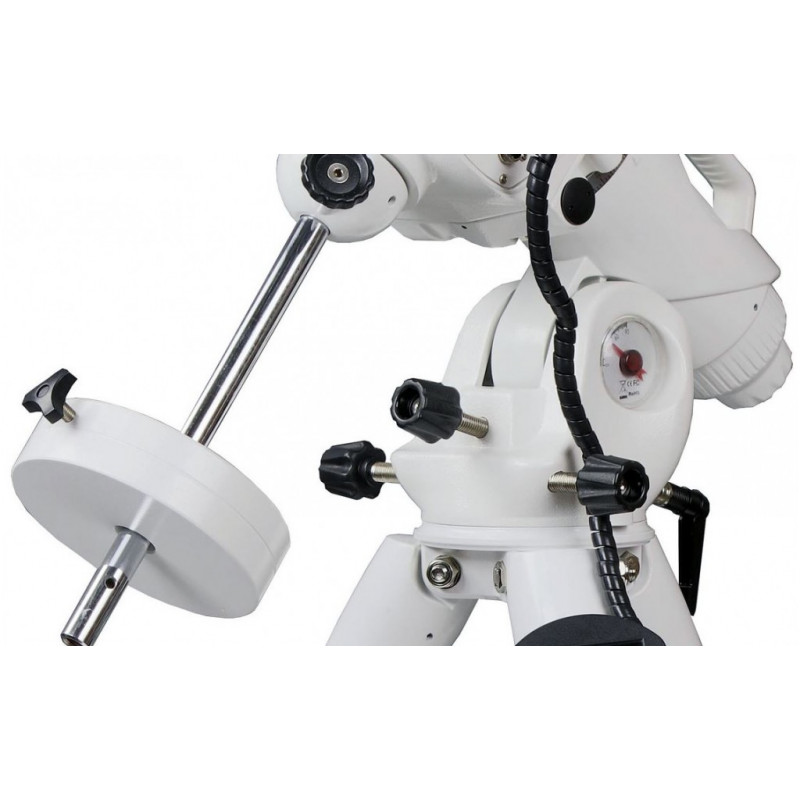

• Counterweights included: 2 × 5 kg

• Counterweight shaft: Ø18 mm, 240 mm + 180 mm extension

• Latitude range: 5° to 65°

• Azimuth range: ±9°

• Motors: 1.8° hybrid stepper motors

• Drive system:

  • 180:1 worm gear

  • 48:12 timing belt

  • 64 microsteps per step

• Gear ratio: 720

• Resolution: 9,216,000 steps/rev (~0.14 arcsec)

• Max slew speed: 4.2°/sec

• Tracking rates: Sidereal, solar, lunar

• Guiding rates: 0.125× to 1×

• PEC: 100-segment Permanent PEC (PPEC)

• Polar alignment: Built-in polar scope

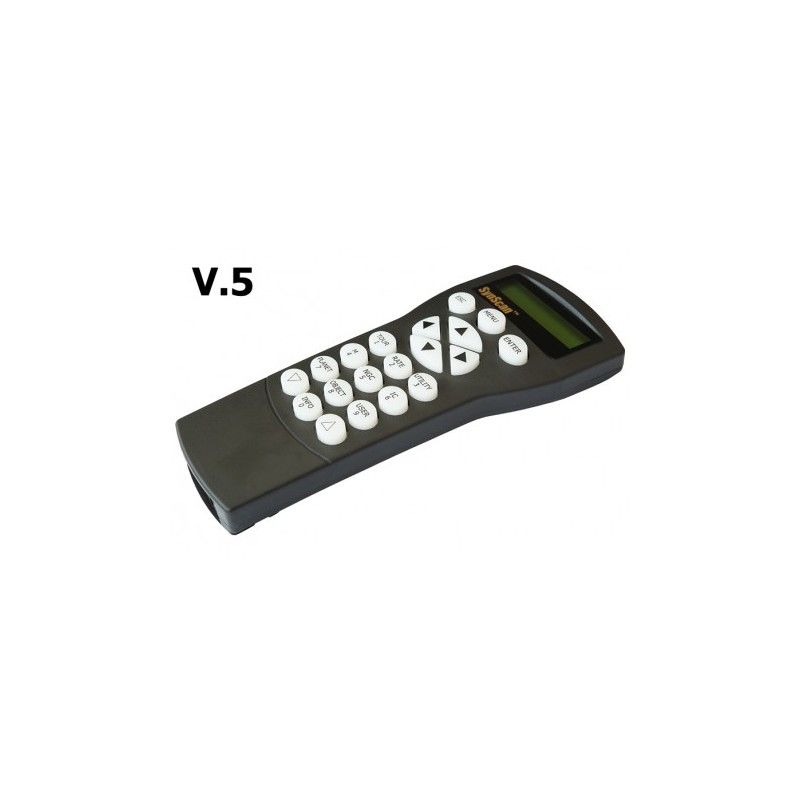

• Hand controller: SynScan™, 42,000+ objects

• Catalogues: Messier, NGC, IC, SAO, Caldwell, double stars, variable stars, named stars, planets

• Pointing accuracy: up to 5 arcmin RMS

• Camera control: Built-in SNAP port

• Saddle: Dual-fit 45 mm (Vixen) / 75 mm (Losmandy)

• USB port: Yes

• Power input: DC 11–16 V, 4 A

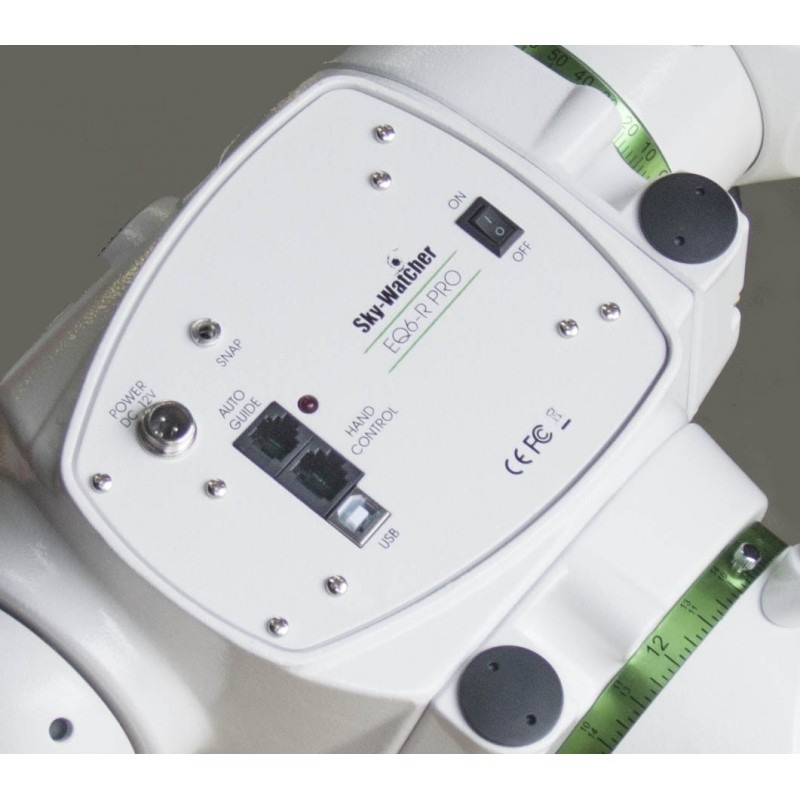

• Connectors: USB, SNAP, RJ45 (handset), screw-in 12V power

• Operating temp: Not specified

• Recommended use: Visual and astrophotography up to 20 kg

INCLUDED IN THE BOX

• EQ6-R PRO mount

• 2" stainless steel tripod

• 2 × 5 kg counterweights

• Polar alignment scope

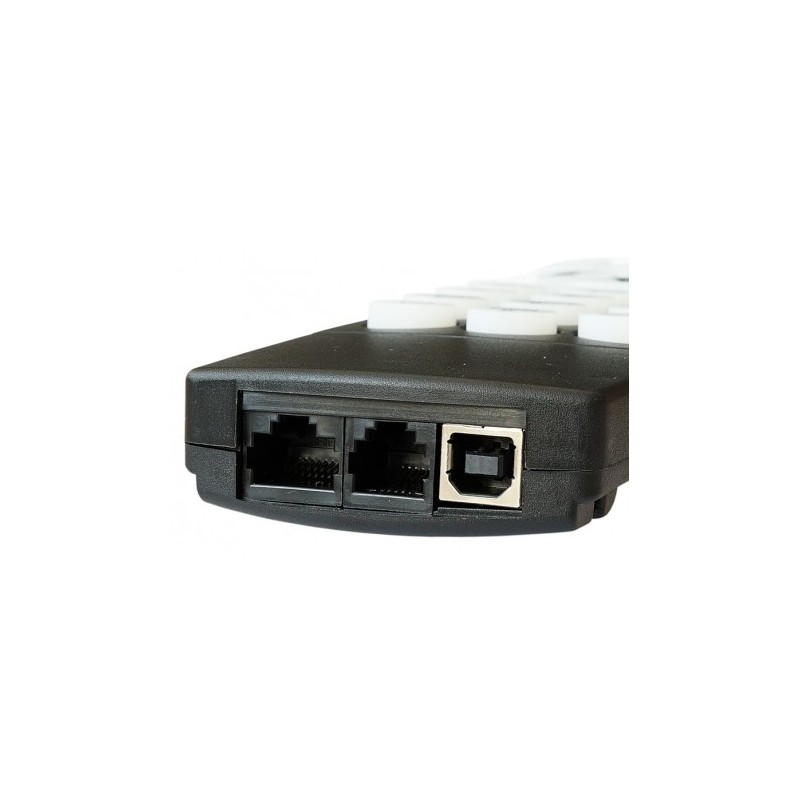

• SynScan hand controller + cable

• 12V DC cigarette power cable
