Tecnosky LED binocular biological microscope 1000x

MICROSCOPE BINO LED TECNOSKY

New product

Tecnosky LED binocular biological microscope 1000x

More details

According to availability at the supplier. Please contact us for more information

327.00 CHF tax incl.

More info

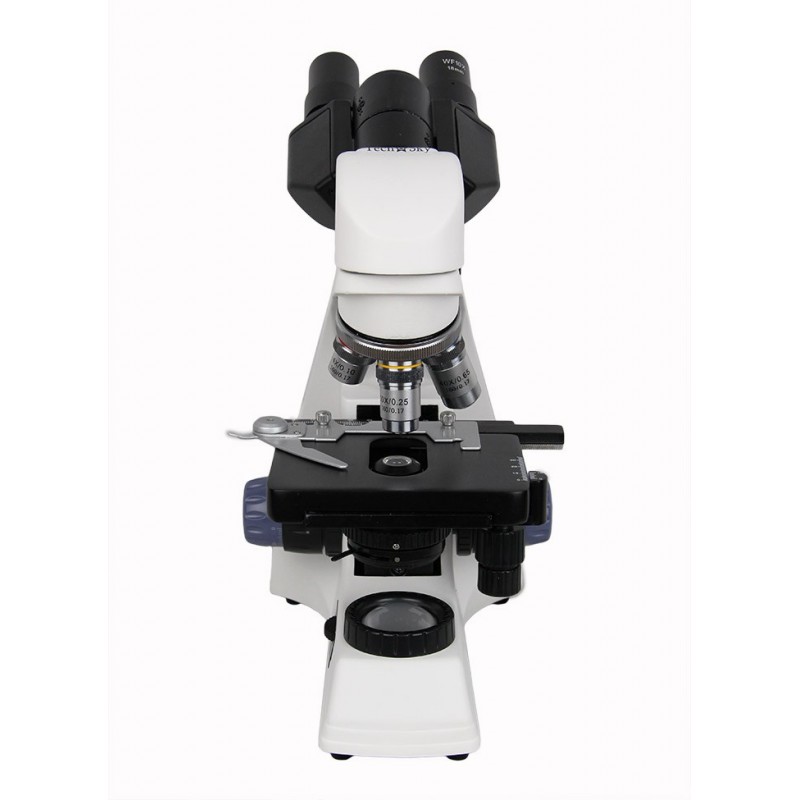

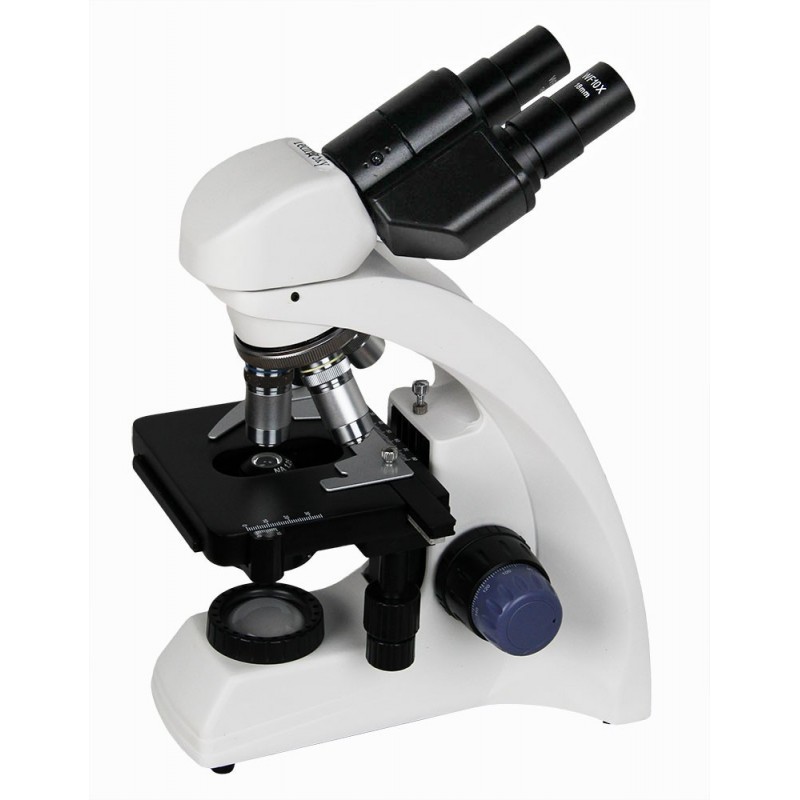

Tecnosky LED binocular biological microscope 1000x

High quality biological microscope with an elegant and modern design, ideal for students and laboratories thanks to its professional features but at an affordable price

Main features:

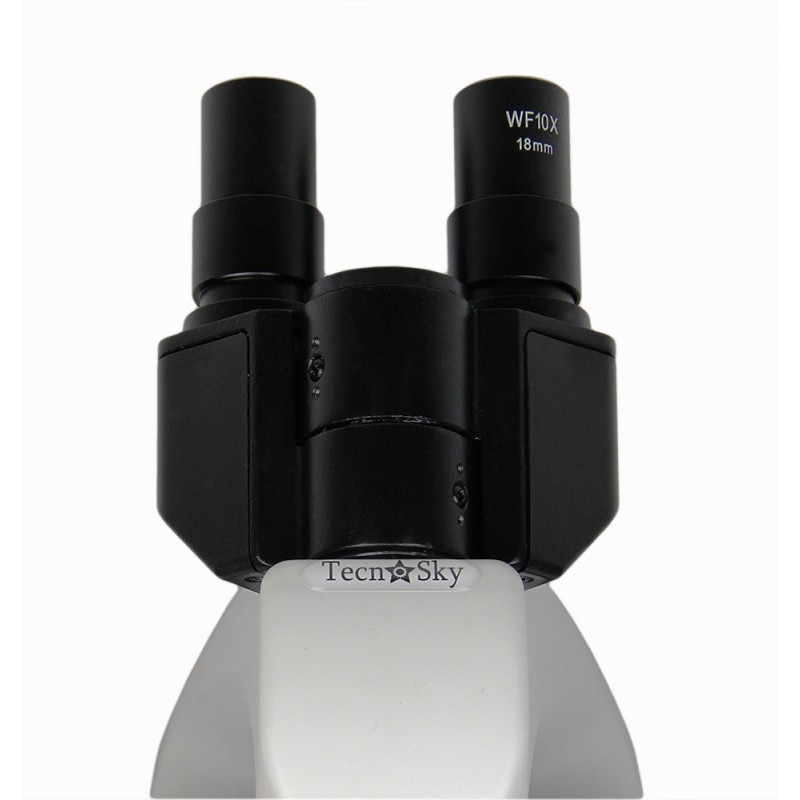

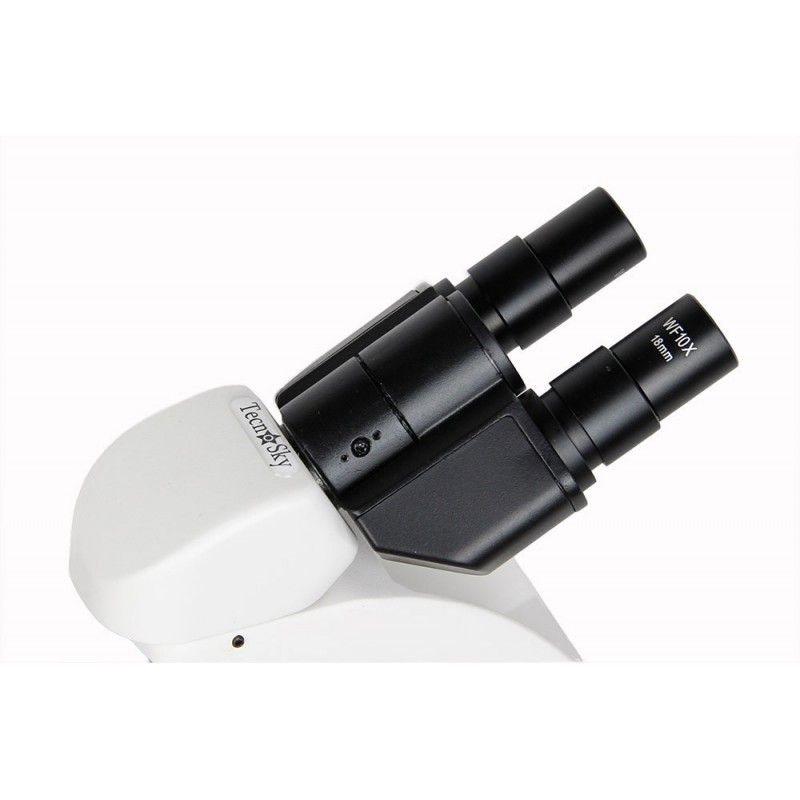

360 ° rotatable, 30 ° inclined head with binocular vision and pair of 10x (18mm) wide field eyepieces

Nosepiece with 4 planachromatic objectives 4x-10x-40x-100x (oil) 0.17

revolver

Abbe condenser N.A. 1.25 with iris diaphragm and filter holder support

Adjustable 3W LED light source

Work table with double micrometric adjustment, dimensions 110x125 and range of movement 35x50mm

Macro and micro focus on both sides, the micrometric movement shifted the focus by 0.002mm. The focus range is 36mm

messa a fuoco

Red blood cells imaged at 500x with Tecnosky 5mpx camera

globuli rossi

Included accessories:

  • Microscope

  • 2 WA 10x eyepieces

  • Dust cover

  • 220 V power cable

  • Immersion oil bottle for 100x objective

FICHE TECHNIQUE

  • Type: transmitted light biological microscope

  • Head: binocular, 360° rotatable, 30° inclined

  • Eyepieces: 2 × WA 10x (18 mm field)

  • Objectives: 4x, 10x, 40x, 100x oil, planachromatic

  • Condenser: Abbe N.A. 1.25 with iris diaphragm

  • Illumination: adjustable 3 W LED

  • Stage: 110 × 125 mm, movement 35 × 50 mm

  • Focus: coarse and fine, both sides, 0.002 mm precision, 36 mm range

  • Power: 220 V

  • Application: education, biology, laboratory
