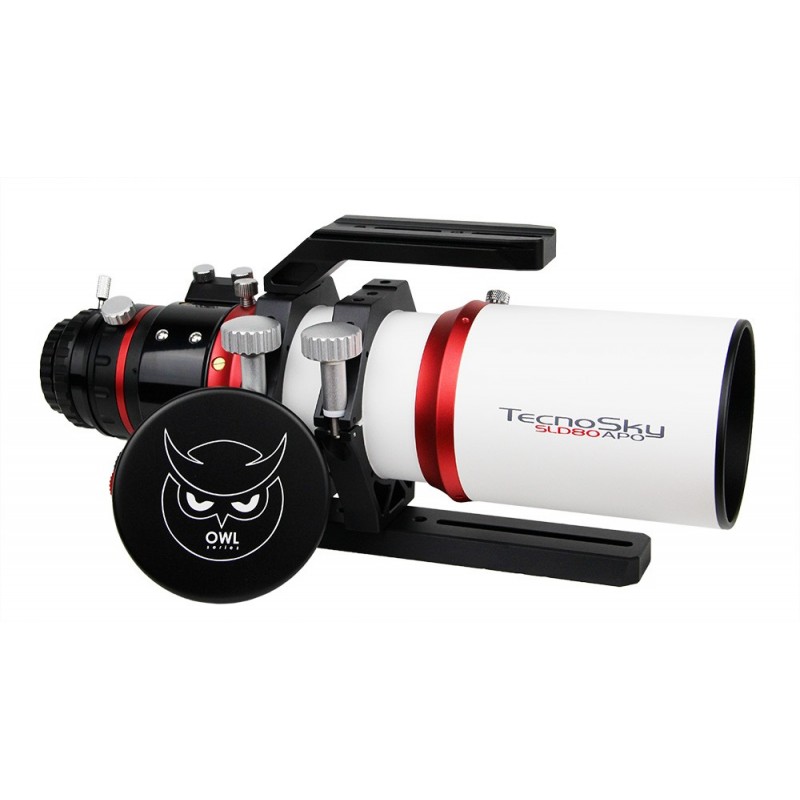

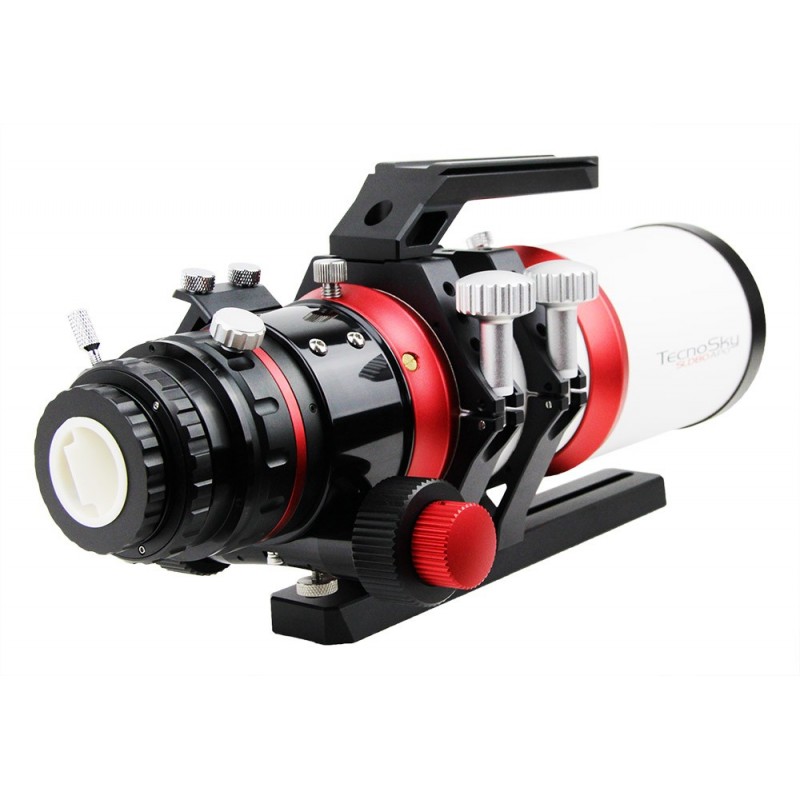

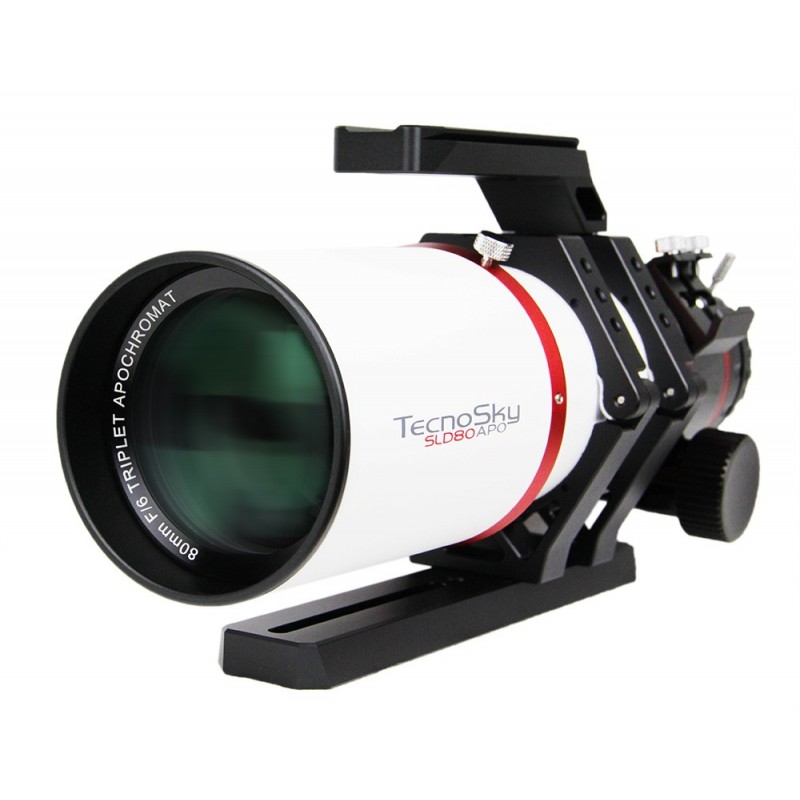

Tecnosky 80/480 FPL53 APO Refractor – OWL Series, Lightweight and Full-Frame Ready

Description
The Tecnosky APO 80/480 from the OWL series is a high-quality triplet apochromatic refractor, ideal for wide-field astrophotography with demanding sensors. Its optical cell includes an FPL53 element from Ohara (Japan), delivering exceptional chromatic correction on par with top-tier instruments.

With its 385 mm retracted length and 3.9 kg total weight, this refractor is highly portable and perfectly suited for mobile setups or lightweight mounts. The large illuminated field is compatible with APS-C and full-frame sensors with minimal aberration or vignetting.

All optical elements are treated with premium multi-coatings, and each unit is fully assembled, collimated, and tested in Italy, ensuring mechanical alignment and consistent performance.

The scope features a 2.5” rack & pinion focuser with 1:10 dual-speed control, integrated rotating collar, and brass compression ring. It includes a male M63 thread and internal M48 thread, ready for Tecnosky OWL flatteners or reducers (optional).

Technical Specifications

• Type: Triplet apochromatic refractor

• Aperture: 80 mm

• Focal length: 480 mm

• Focal ratio: f/6

• Optical glass: FPL53 (Ohara, Japan)

• Retracted tube length: 385 mm

• Extended length: 445 mm

• Weight: 3.9 kg

• Dew shield: retractable

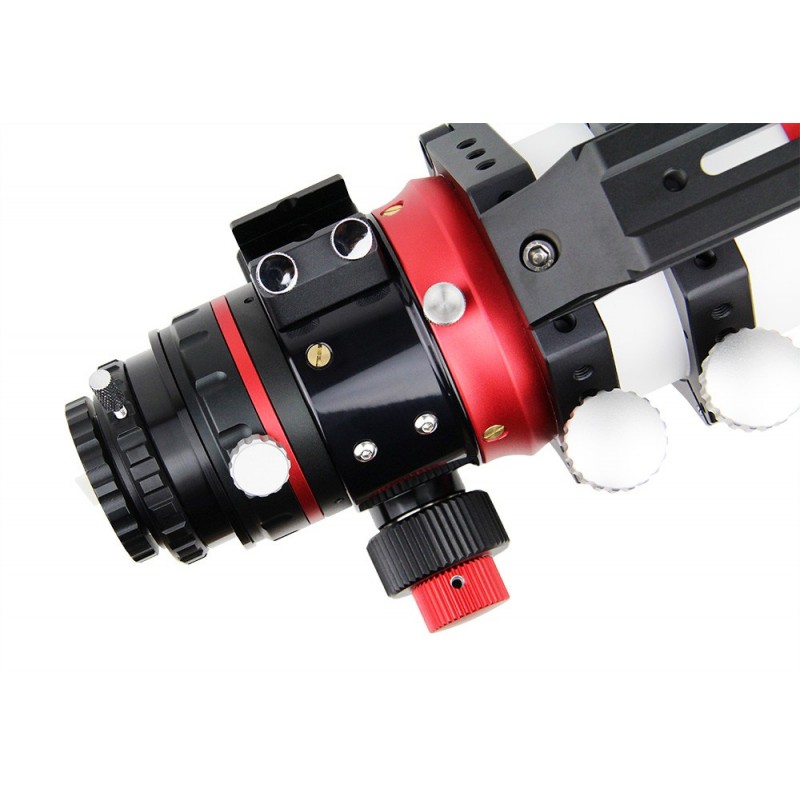

• Focuser: 2.5” Rack & Pinion, dual speed 1:10

• Rotating collar with compression ring

• Rear thread: M63x1 male

• Internal thread: M48

• Dovetail: Vixen style

• CNC tube rings included

• Supports APS-C and full-frame cameras

Additional Information

• Collimated and verified in Italy by Tecnosky

• Compatible with OWL 1.0x field flattener and 0.8x reducer

• Travel-size, airline carry-on compatible

• Excellent for deep-sky imaging and visual use

• Ready for high-resolution astrophotography
