Lunt LS100MT H-alpha 100 mm with B3400 blocking filter and R&P focuser – Ref. 0551424

Lunt LS100MT H-alpha 100 mm with B3400 blocking filter and R&P focuser – Ref. 0551424

Description

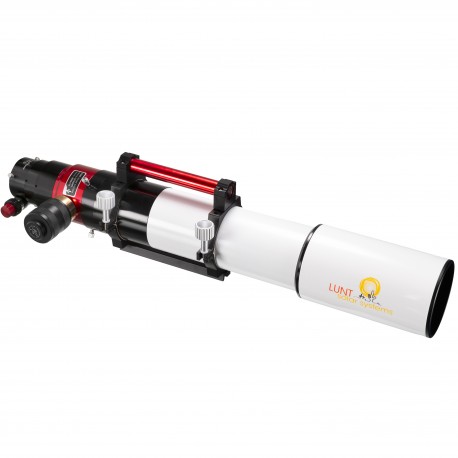

The Lunt LS100MT/B3400 R&P is a professional solar refractor designed for advanced observation of the chromosphere in H-alpha. The 100 mm triplet ED objective with FPL-53 glass offers outstanding chromatic correction.

The internal etalon is tuned via the Pressure-Tuner system, which adjusts the air pressure to provide a fully uniform solar image with no central obstruction.

The B3400 blocking filter is integrated into the 90° diagonal, mounted on a 2" Rack & Pinion focuser with 10:1 micro-reduction, ideal for large sensor imaging and demanding visual observation.

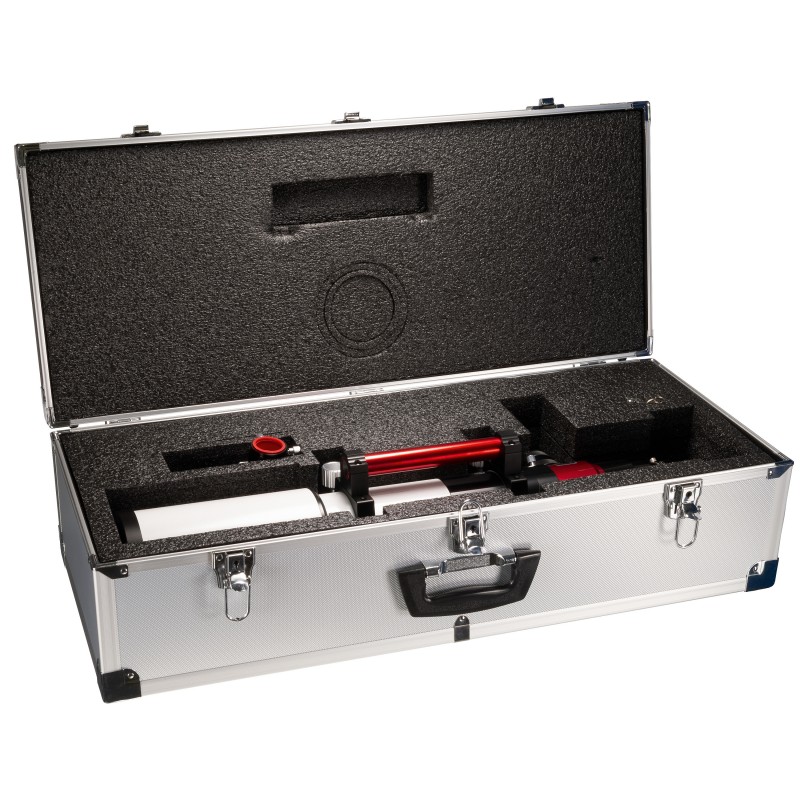

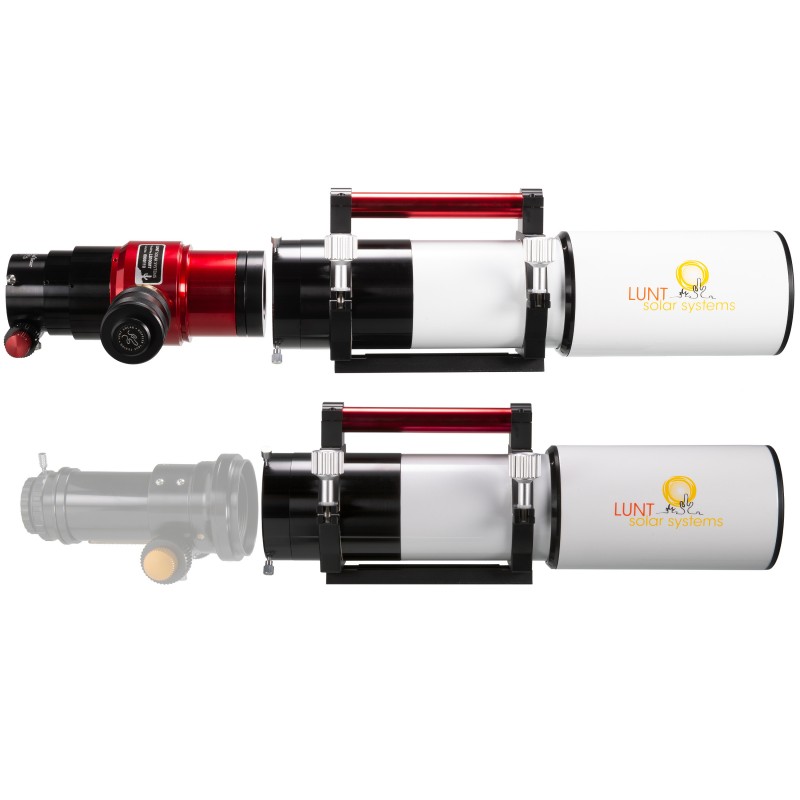

Its modular design allows night-time conversion using an optional kit (ref. 0551430). The scope includes a hard case, Vixen dovetail, tube rings with handle, solar finder and manual.

Technical specifications

• Aperture: 100 mm

• Focal length: 714 mm (f/7)

• Objective: FPL-53 ED triplet

• H-alpha filtering: internal etalon with Pressure-Tuner

• Bandwidth: < 0.7 Å (single stack)

• Blocking filter: B3400 integrated in the diagonal

• Focuser: 2" Rack & Pinion with 10:1 fine focus

• Length with dew shield: 78 cm

• Total weight: 6.8 kg

• Mounting: Vixen-type dovetail

• Transport: hard case included

User benefits

• High-resolution H-alpha solar imaging

• Uniform field via Pressure-Tuner

• Excellent FPL-53 triplet optics

• Precise and solid focusing system

• Modular: convertible to night-time APO use

Additional information

• Conversion kit ref. 0551430 sold separately

• Compatible with DSII/SFPT double stack module ref. 0551395

• Works with Ca-K and white light solar filters

• 0.8× reducer/flattener available for imaging

• B3400 is recommended for large-format sensors
