Lunt LS80MT H-alpha 80 mm with B1800 blocking filter R&P - Ref. 0551325

Description

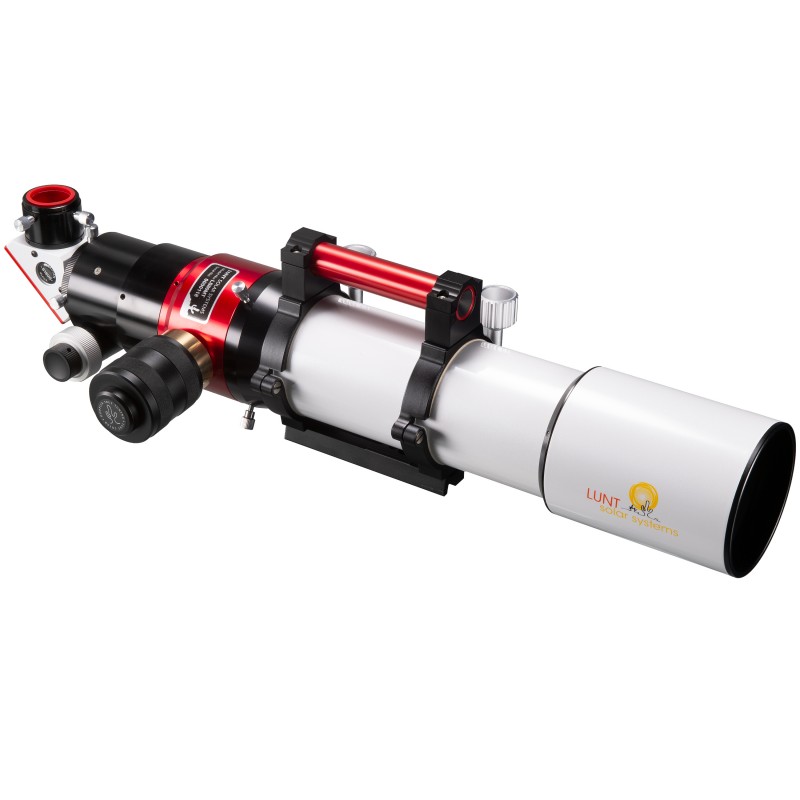

The Lunt LS80MT/B1800 R&P is a premium-grade solar telescope designed for professional and experienced users aiming to observe the solar chromosphere in rich detail.

It uses an 80 mm ED apochromatic doublet with FPL-53 glass for excellent chromatic correction. The internal etalon is pressure-tuned to ensure an even, obstruction-free solar image across the field.

The B1800 blocking filter is integrated into a 90° diagonal with T2 and 1.25" connections, making it ideal for visual observation and mid-to-large sensor imaging. The focuser is a precision 2" Rack & Pinion model with a 10:1 fine reduction, allowing for smooth and accurate focusing.

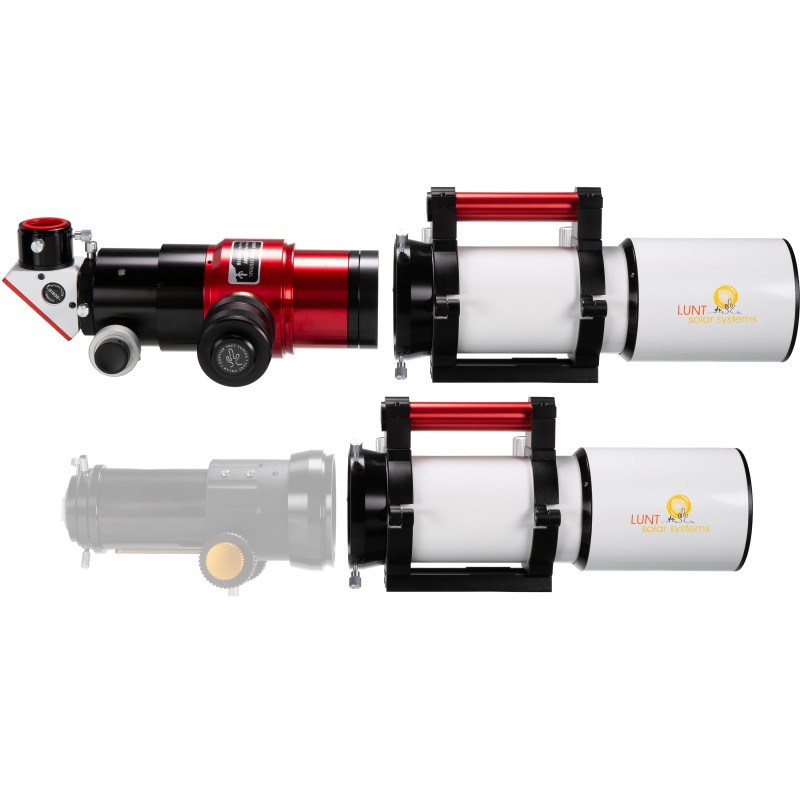

Thanks to its modular design, the LS80MT can be converted into a standard night-use apochromatic refractor with a dedicated conversion kit (ref. 0551330, not included).

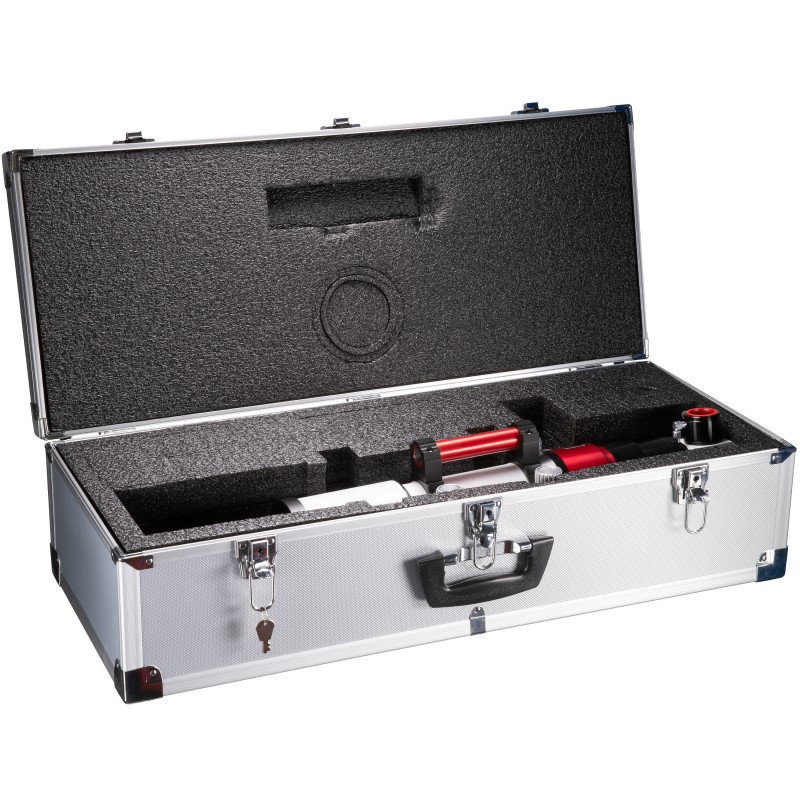

The telescope is supplied with a hard transport case, Vixen-type dovetail, tube rings with handle and integrated solar finder, and a user manual.

Technical specifications

• Aperture: 80 mm

• Focal length: 560 mm (f/7)

• Objective: FPL-53 ED doublet

• H-alpha filtering: internal etalon with Pressure-Tuner

• Bandwidth: < 0.7 Å (single stack)

• Blocking filter: B1800 in 90° diagonal (T2 + 1.25")

• Focuser: 2" Rack & Pinion, 10:1 dual speed

• Length with dew shield: 62 cm

• Total weight: 4.95 kg

• Mounting: Vixen-type dovetail

• Transport: hard case included

User benefits

• High-resolution H-alpha solar observation

• Pressure-Tuner ensures even image illumination

• Excellent optical quality with FPL-53 glass

• Precision and durable focuser

• Convertible to night-time use with optional kit

Additional information

• Conversion kit for night use (ref. 0551330) sold separately

• Double Stack module (ref. 0551395) lowers bandwidth to < 0.5 Å

• Compatible with Ca-K modules and white light filters

• B1800 blocking filter is recommended for large-sensor imaging

• Optional 0.8× reducer/field flattener available for astrophotography
