Lunt LS80MT H-alpha 80 mm with B1200 blocking filter - Ref. 0551324

Lunt LS80MT H-alpha 80 mm with B1200 blocking filter - Ref. 0551324

Description

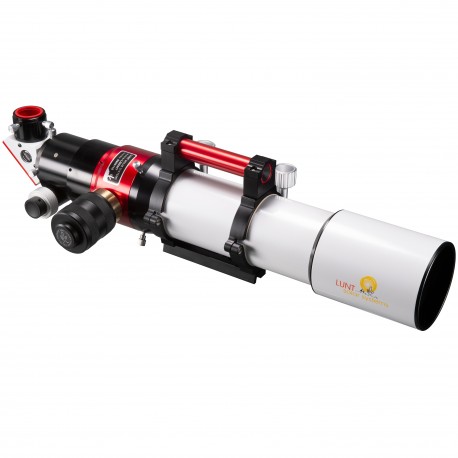

The Lunt LS80MT H-alpha is a high-end solar telescope designed for advanced and professional users seeking precise observation of the Sun in the H-alpha line. With an 80 mm aperture and 560 mm focal length, this apochromatic refractor features an ED doublet with FPL-53 glass for exceptional chromatic correction.

Solar observation is made possible through an internal etalon with Pressure-Tuner control, ensuring a uniform image without central obstruction. This system reveals intricate details of the solar chromosphere, including prominences, filaments, flares and granulation.

The B1200 blocking filter is integrated into a 90° star diagonal, equipped with both 1.25" and T2 connections. It offers a suitable field for both visual observation and planetary photography with small sensors. The included 2" Rack & Pinion focuser features a 10:1 dual-speed reduction, enabling precise focusing.

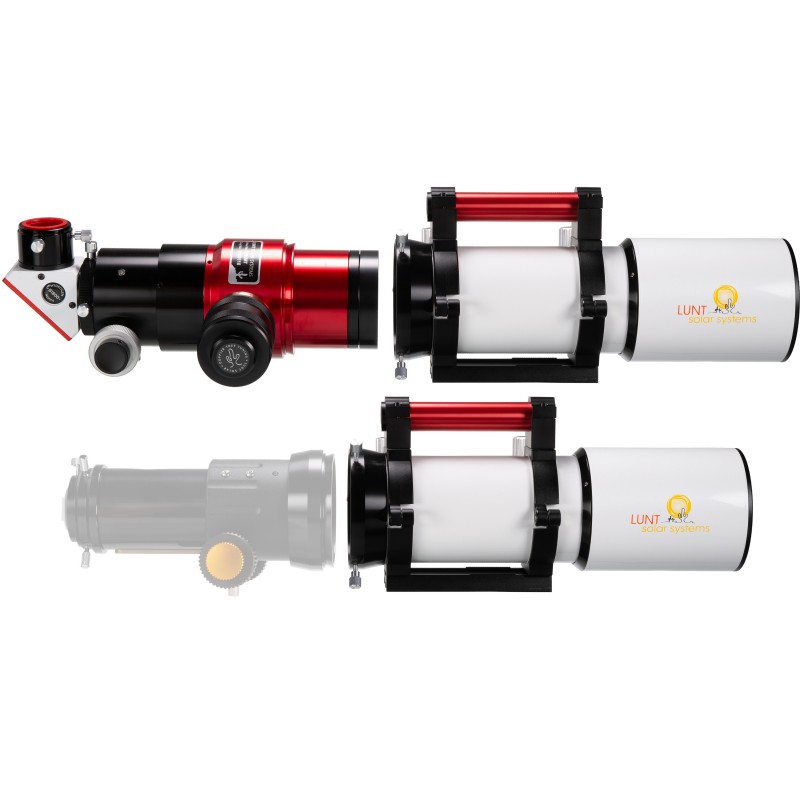

Designed as a modular instrument, the LS80MT can be converted into a classic night-time apochromatic refractor by removing the H-alpha module and using a dedicated conversion kit (ref. 0551330, not included). It then becomes suitable for planetary or deep-sky observation.

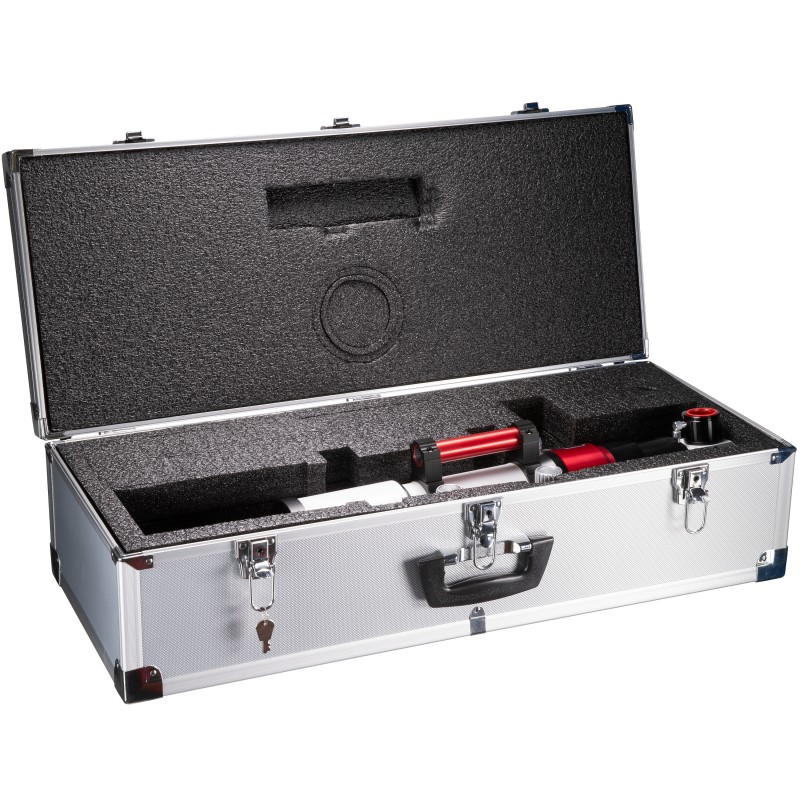

The telescope includes a GP/Vixen-type dovetail, a hard transport case, an integrated solar finder in the handle, and a user manual.

Technical specifications

• Aperture: 80 mm

• Focal length: 560 mm (f/7)

• Objective: ED doublet with FPL-53 glass

• Etalon: internal, Pressure-Tuner adjustment

• Bandwidth: < 0.7 Å (single stack)

• Blocking filter: B1200 in 90° diagonal (T2 + 1.25")

• Focuser: 2" Rack & Pinion with 10:1 dual speed

• Instrument weight: 4.95 kg

• Length (with dew shield): 62 cm

• Length (without dew shield): 50 cm

• Mounting: GP/Vixen-type dovetail

• Case: rigid transport case included

User benefits

• Fully modular design for solar and night-time use

• Pressure-Tuner system ensures even illumination across the solar disk

• High-end FPL-53 optics for sharp, contrast-rich views

• Compatible with a wide range of Lunt accessories

• Designed for experienced and professional solar astronomers

Additional information

• Double stacking available with optional DSII/SFPT module (ref. 0551395) for < 0.5 Å bandwidth

• Compatible with Lunt Ca-K modules for chromospheric studies

• Optional 0.8× reducer/field flattener (ref. CAA-RF) available for imaging

• The night-use conversion kit (ref. 0551330) is required for non-solar use

• For larger camera sensors, the B1800 blocking filter is recommended
