Tecnosky ADC Atmospheric Dispersion Corrector
Correcteur A.D.C. Tecnosky
New product

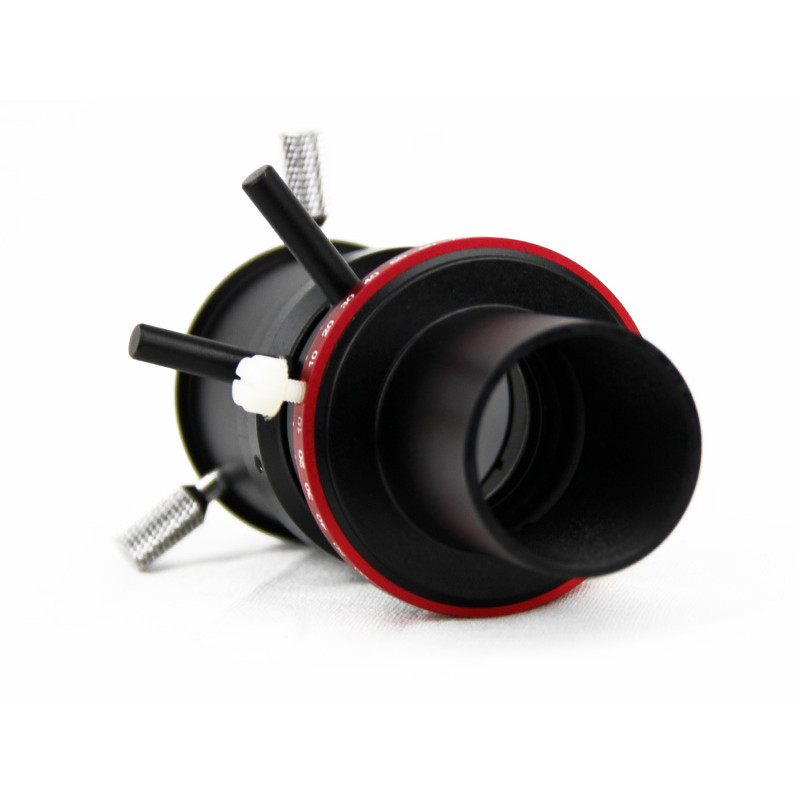

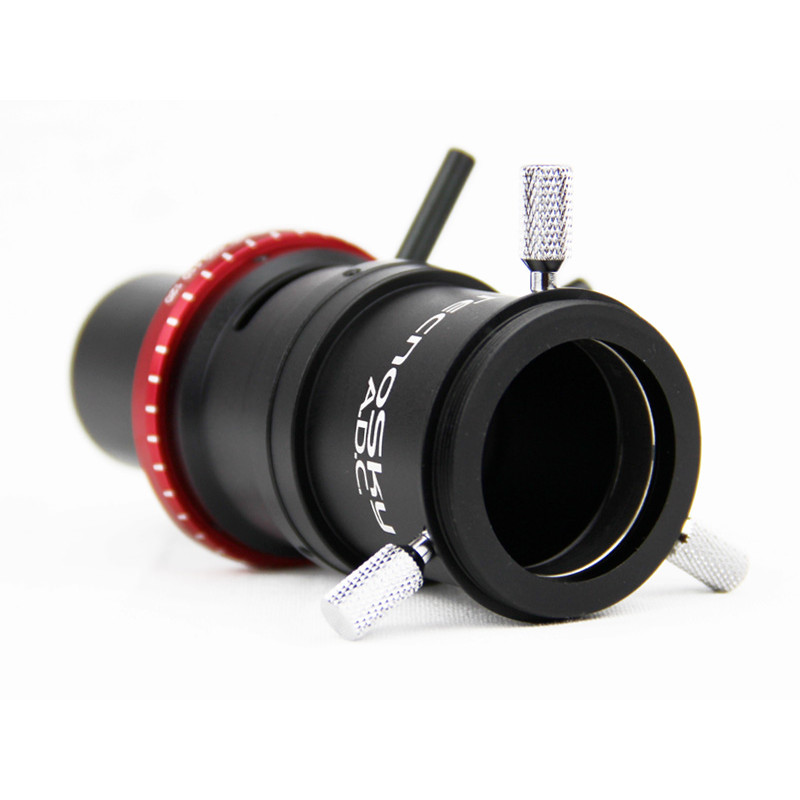

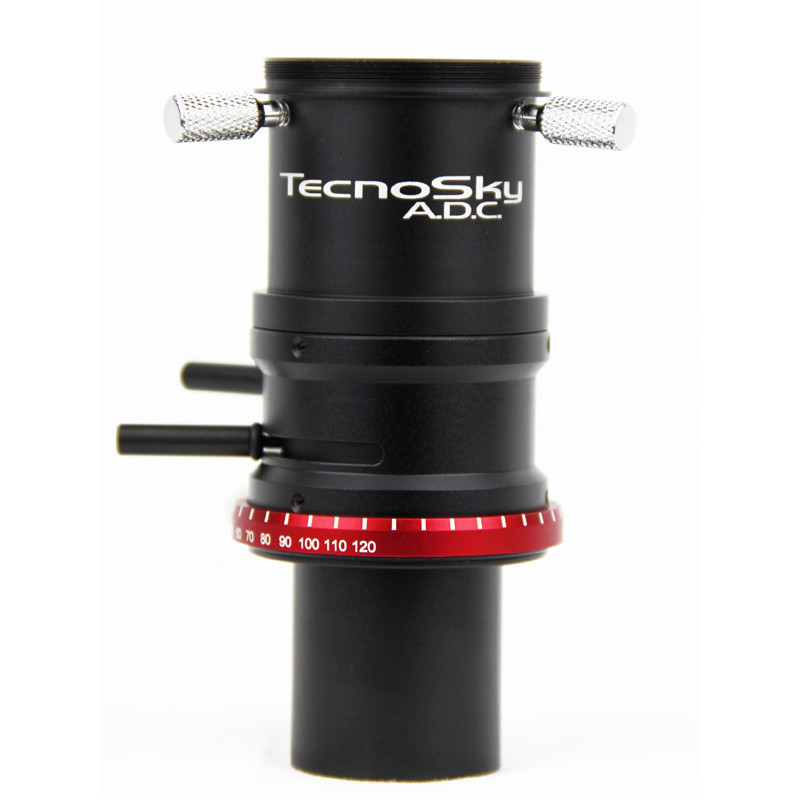

Tecnosky ADC Atmospheric Dispersion Corrector
Effectively corrects the atmospheric dispersion affecting planetary imaging. Perfect for LRGB planetary photography. Built with two K9 optical prisms angled at 2.5°, with premium anti-reflection coating.
Available in stock from the supplier. Please contact us for more information.
More info
Tecnosky ADC Atmospheric Dispersion Corrector
DESCRIPTION
The Tecnosky Atmospheric Dispersion Corrector (ADC) is designed to eliminate chromatic shifts caused by the atmosphere, which distort planetary images especially at low elevations. It uses a pair of precision-aligned 2.5° K9 glass prisms to recombine the wavelengths of light and sharpen planetary detail.
Its advanced multi-coating ensures a reflection rate below 0.3 %, across a wide 350–700 nm spectrum. This makes it particularly effective in LRGB imaging, where the luminance channel benefits from enhanced clarity. The ADC is compatible with 1.25" eyepieces and planetary cameras, and offers male and female T2 threads for versatile setups.
TECHNICAL SPECIFICATIONS
• Optical glass: K9
• Coating reflection: <0.3%, range 350–700 nm
• Prism tilt: 2.5°
• Length: 106 mm
• Clear aperture: 27.2 mm
• Threads: T2 male/female
• Compatibility: 1.25" cameras/eyepieces
• Weight: 167 g
