Lunt LS12CaKMDd2 Ca-K 90° Diagonal

Lunt LS12CaKMDd2 Ca-K 90° Diagonal

Description

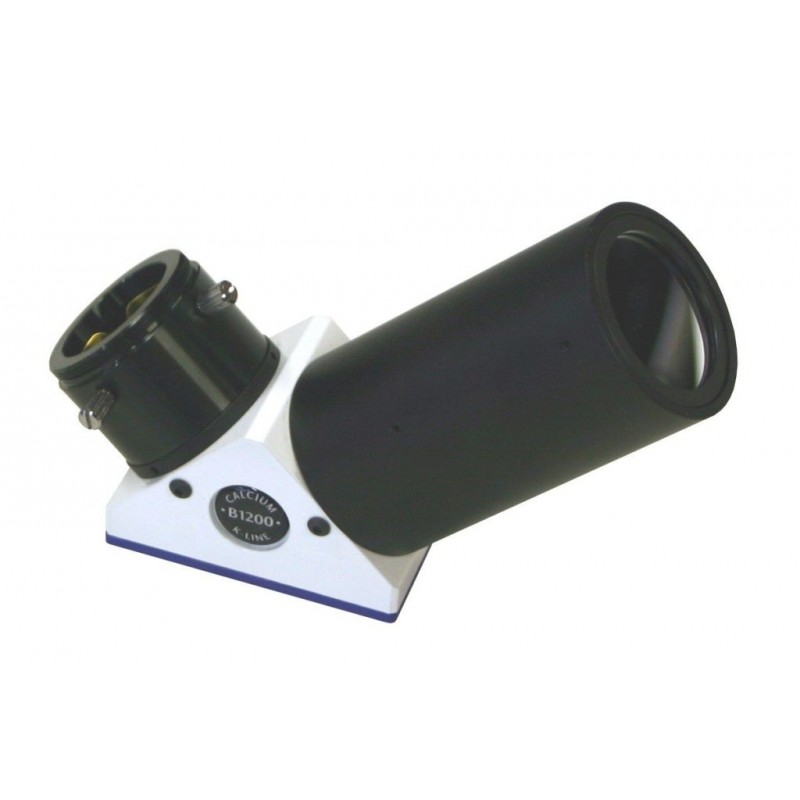

The Lunt LS12CaKMDd2 is a solar filter module using the Calcium-K line, integrated into a 90° star diagonal. It transforms a conventional refractor telescope into a fully operational Ca-K solar scope.

It allows the observation of the solar chromosphere in Ca-K light, especially faculae and active regions. The Ca-K line is near the visible spectrum limit and not well perceived visually, but it is highly effective in imaging applications.

This version supports refractors up to 100 mm aperture and 1080 mm focal length. It connects to a 2" focuser and includes a 1.25" eyepiece holder and T2 camera thread.

Technical specifications
• Product reference: 0553503
• EAN: 4007922035222
• Bandwidth: <2.4 Ångströms
• Format: 90° star diagonal
• Telescope connection: 2"
• Eyepiece holder: 1.25"
• Thread: T2 for cameras
• Compatibility: Refractors up to 100 mm aperture, 1080 mm focal length
• No external filters required

User benefits
• Complete, self-contained Ca-K solar module
• Narrowband filtering of solar active regions
• Built-in T2 thread for imaging
• Easy to mount and operate
• Ideal for scientific or professional solar imaging

Additional information
• Visual observation in Ca-K may be difficult for some users
• Designed primarily for imaging
• All necessary filters are built into the housing
