ASBF 80 mm solar filter for binoculars and camera lenses

ASBF 80 mm solar filter for binoculars and camera lenses

DESCRIPTION

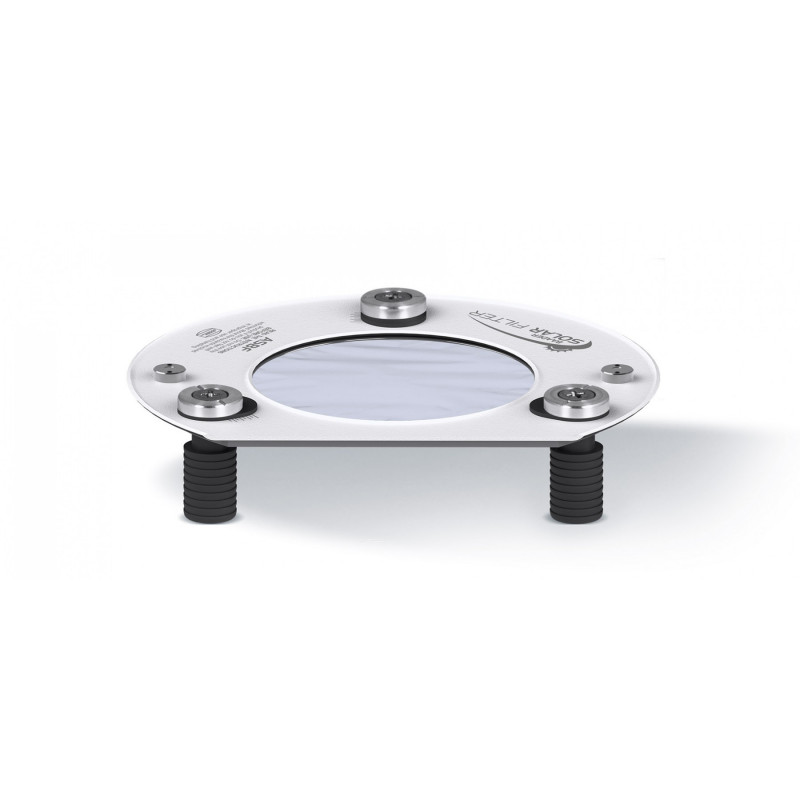

The Baader ASBF 80 mm solar filter enables safe visual observation and solar photography with binoculars or camera lenses. It features the renowned AstroSolar Safety Film OD 5.0, mounted without stress in a durable aluminum and plastic cell, preserving diffraction-limited optical performance.

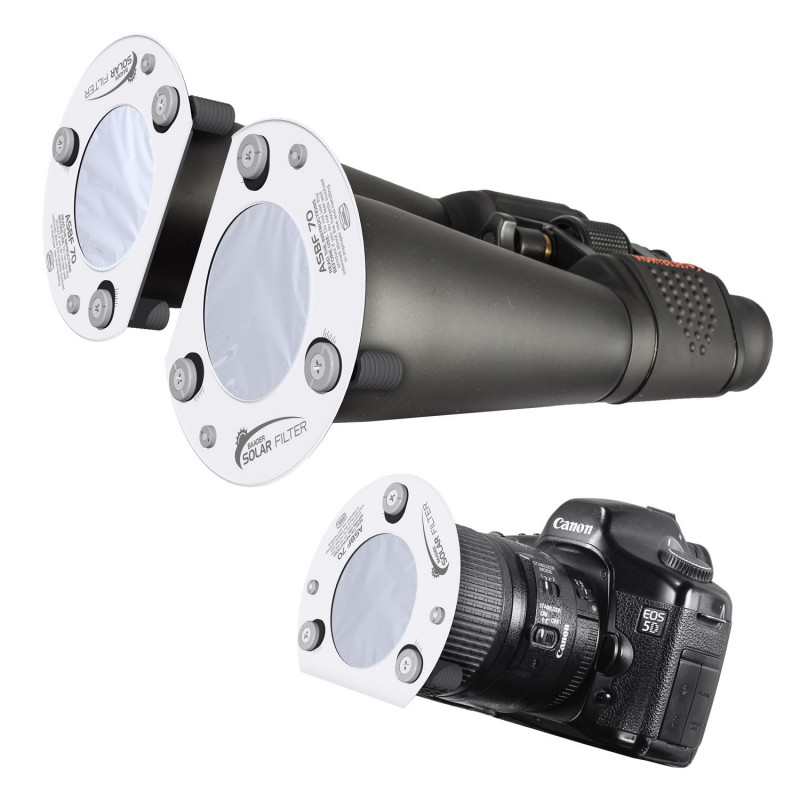

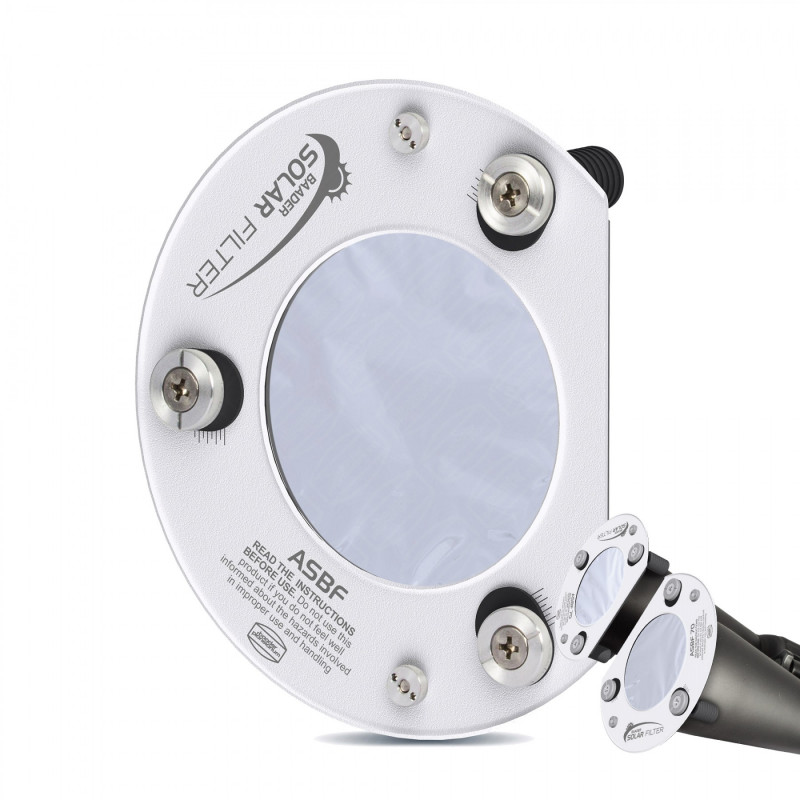

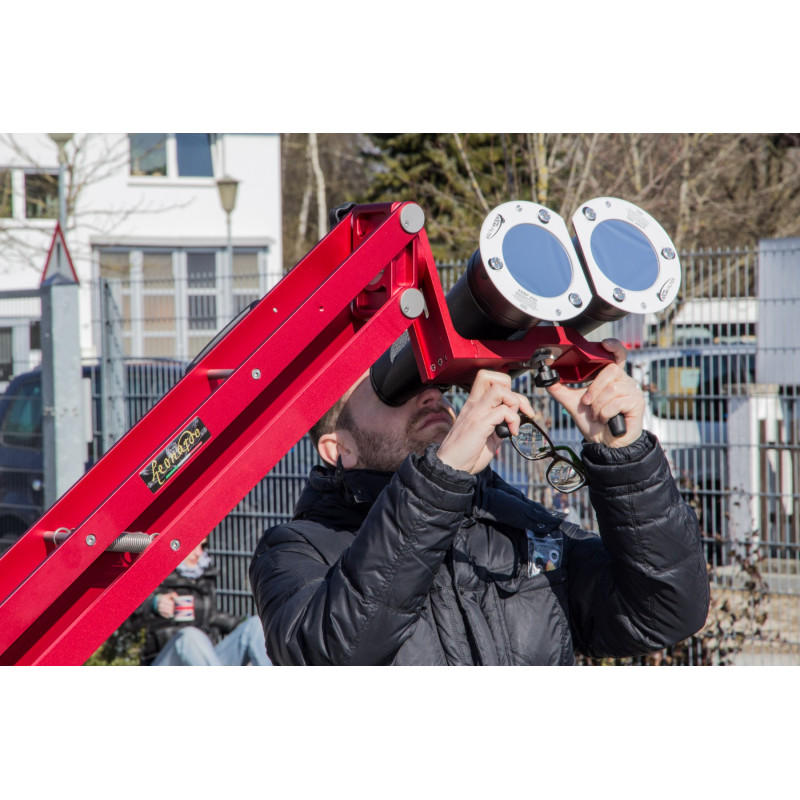

One side of the filter cell is trimmed to fit closely spaced binoculars. Mounting is secured using three adjustable centering bolts and three safety straps with adhesive pads. Note: filters are sold individually; two are required for binocular use.

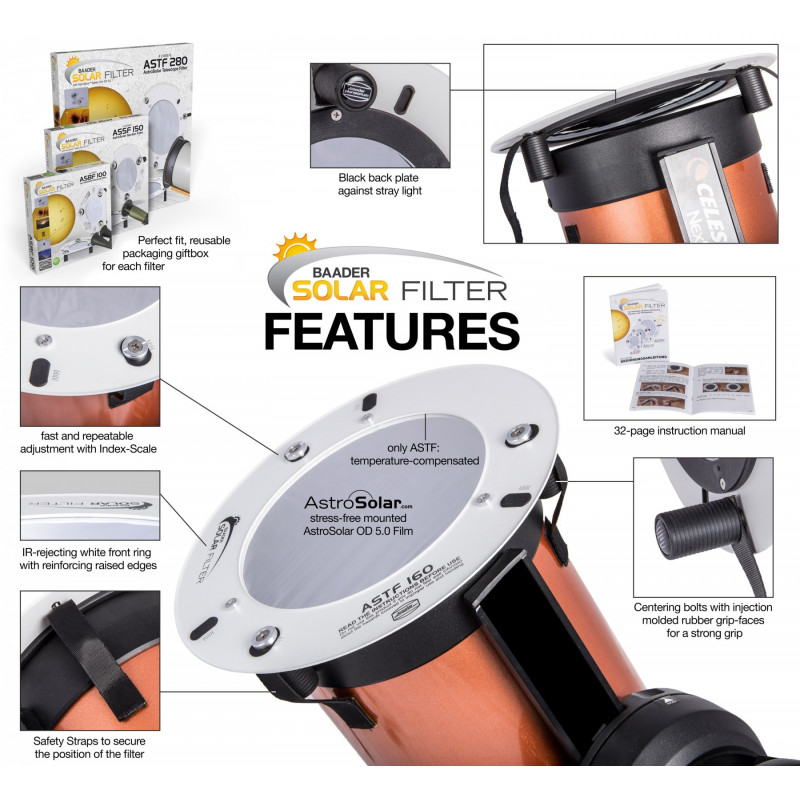

The filter blocks 99.999% of sunlight, transmitting true white light. It complies with safety standards for solar observation. The rigid aluminum frame features protective raised edges, adjustable hardware, and clear usage markings.

TECHNICAL SPECIFICATIONS

• Type: Solar filter for binoculars or camera lenses

• Clear aperture: 80 mm

• Outer diameter: 140 mm

• Inner clamping range (13 mm bolts): 111 – 126 mm

• Outer clamping range: 85 – 100 mm

• Filter material: AstroSolar Safety Film OD 5.0

• Wavelength: Whitelight (full spectrum)

• Transmission: Visual safe (OD 5.0)

• Mounting: 3 centering bolts + 3 security straps with glue pads

• Materials: Aluminum frame with rigid plastic insert

• Compatibility: Binoculars, camera lenses

• Net weight: 0.08 kg

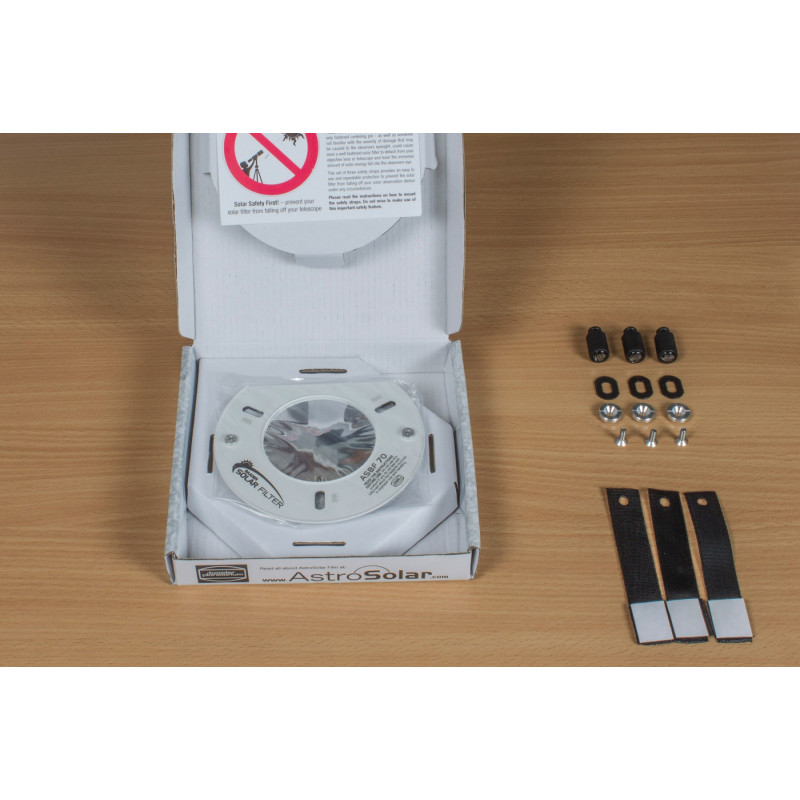

• Included items: 1 ASBF filter, bolts, straps, instructions, protective box

• Manufacturer SKU: 2459328

• Manufacturer: Baader Planetarium
