Daystar Quark Prominence H-alpha Adapter

Daystar Quark Prominence H-alpha Adapter

DESCRIPTION

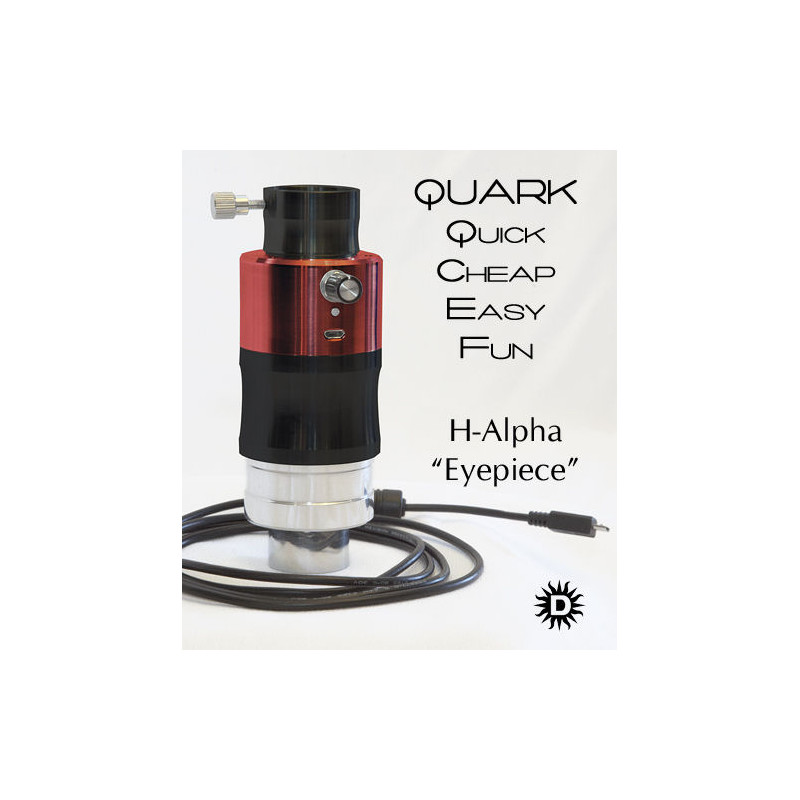

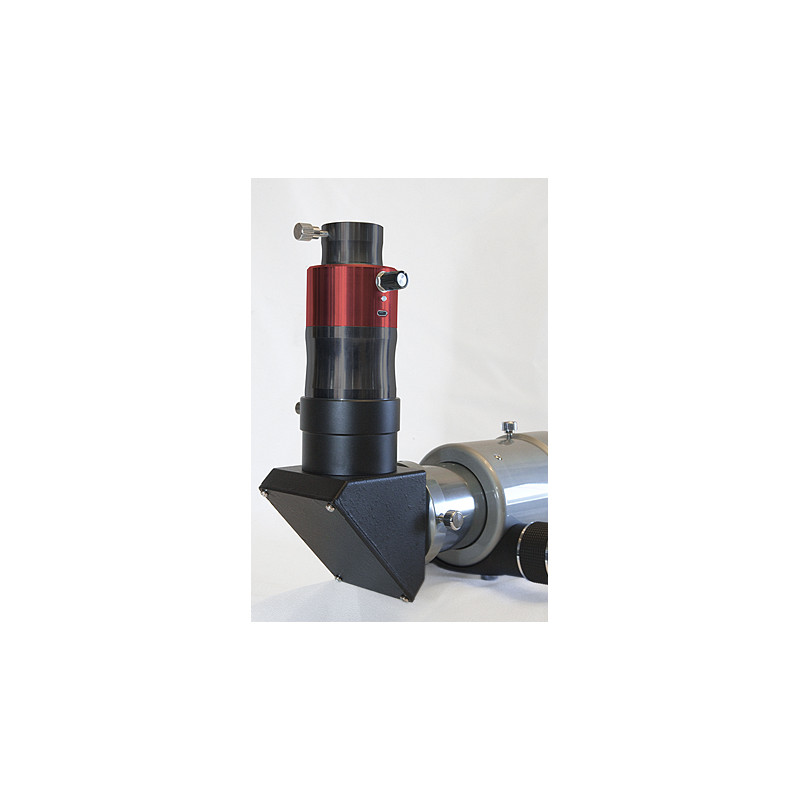

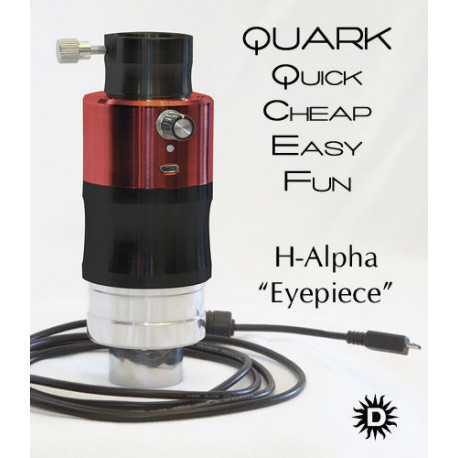

The Daystar Quark Prominence transforms a standard refractor (F/4 to F/9) into a high-resolution H-alpha solar telescope, perfect for observing solar prominences. It integrates a 4.2x telecentric Barlow optimized for H-alpha (656nm), delivering enhanced contrast and a flat field. It operates on a simple 5V USB power source and features a thermal tuning knob to optimize the transmission band. A built-in blocking filter (12 mm, 21 mm clear aperture) ensures safety and performance without extra optical accessories. An LED shows the device’s operational status. Recommended focal lengths around 420 mm allow full solar disk viewing. An ERF front filter is advised for refractors over 100 mm or faster than F/6.

Included accessories:

• 1.25" adapter with brass compression ring

• 5V power supply

• Protective carry case

• Built-in blocking filter

• Integrated 4.2x telecentric Barlow

• Temperature tuning knob

• Status LED indicator

TECHNICAL SPECIFICATIONS

• Compatible with F/4 to F/9 refractors

• Input thread: 1.25" (optional 2" or SC adapters)

• Eyepiece holder: 1.25" with brass ring

• Power supply: 5V – 1.5A via mini USB

• Integrated blocking filter: 12 mm (clear aperture 21 mm)

• Built-in 4.2x telecentric Barlow optimized for 656 nm

• Temperature adjustable

• LED operational indicator

• Carry case included

• Optimal use range: F/4 to F/8

• Full solar disk visible at ~420 mm focal length

• No aperture limit; ERF recommended for >100 mm scopes

• Warranty: 5 years

• External USB battery compatible (not included): ~8 h operation
