Baader ASTF 200 mm OD 5.0 Solar Filter

Baader ASTF 200 mm OD 5.0 Solar Filter

DESCRIPTION

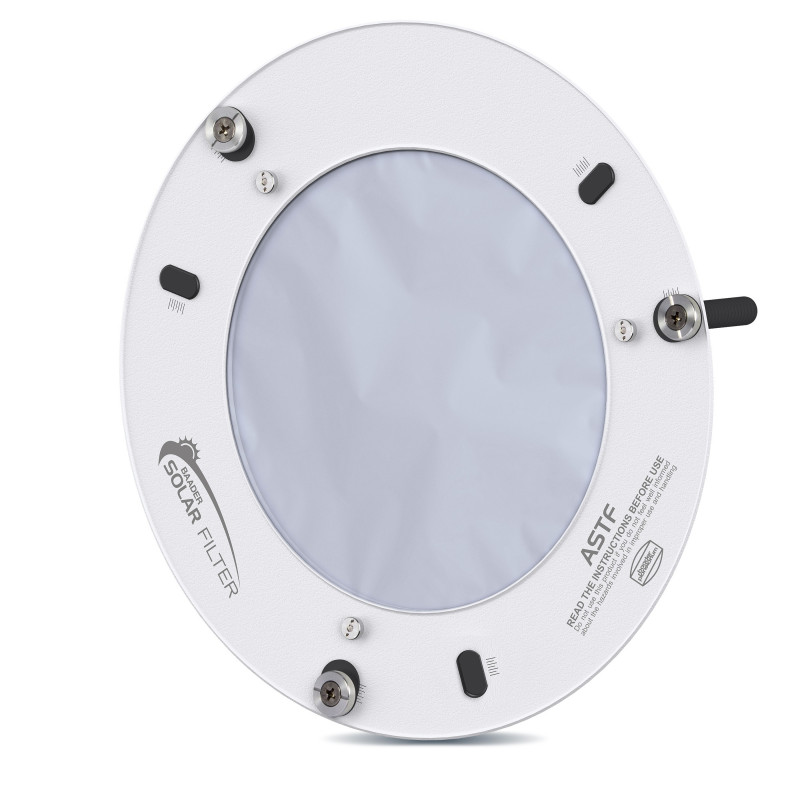

The Baader ASTF 200 mm OD 5.0 is a high-end solar filter designed for detailed white light observation and solar photography. It features the genuine Baader AstroSolar Safety Film OD 5.0 mounted completely stress-free in a thermally compensated cell. Unlike filters that stretch the film like a drum skin, this cell preserves the diffraction-limited optical quality of the film, even during extreme temperature variations from -30 °C to +50 °C.

The film is bonded to an injection-molded ring with the same thermal expansion as the film itself, ensuring long-term mechanical stability. A fiber-reinforced holding ring secures this assembly within the aluminum cell. The front of the cell features a reflective white IR-rejecting ring with reinforced edges to prevent damage.

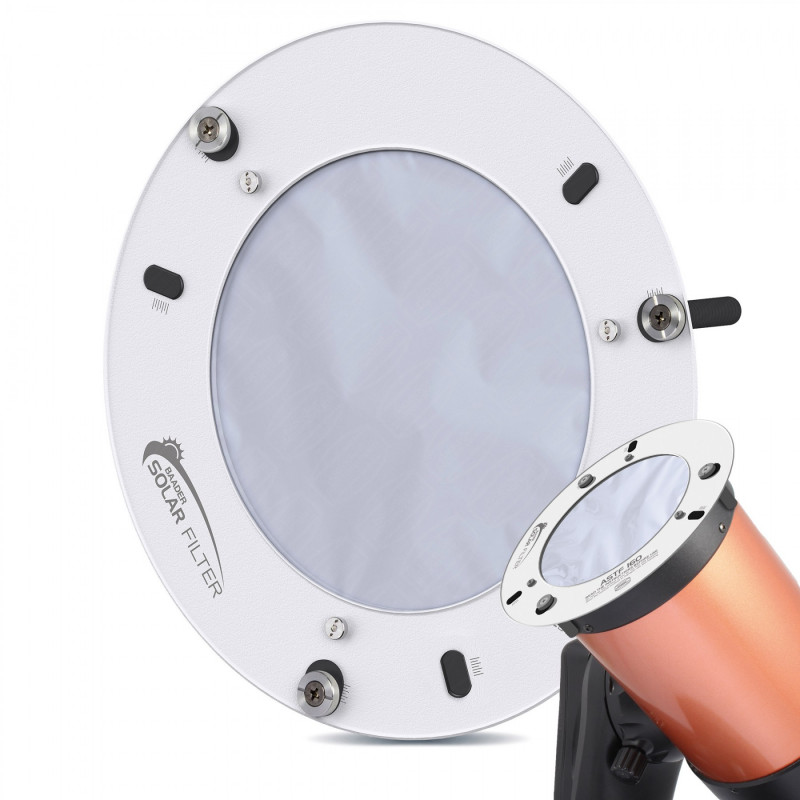

The system includes six centering bolts (three 10 mm and three 20 mm), each with molded rubber faces and brass inserts, allowing secure and tool-free mounting to both outer and inner tube diameters. Aluminum sliders with engraved index scales ensure quick and repeatable alignment. Unused slots can be sealed with included rubber plugs. Three safety straps with adhesive Velcro pads provide additional security in windy conditions.

Warnings and instructions are printed directly on the cell. The filter is packed in a protective gift box with foam inserts for safe transport.

TECHNICAL SPECIFICATIONS

• Brand: Baader Planetarium

• Model: ASTF 200 mm OD 5.0

• SKU: 2459316

• EAN: 4047825033048

• Net weight: 0.23 kg

• Filter type: AstroSolar Safety Film OD 5.0

• Optical density: 5.0

• Solar type: white light (full spectrum)

• Clear aperture: 200 mm

• Outer diameter: 290 mm

• Inner clamping range (10 mm bolts): 250 – 280 mm

• Inner clamping range (20 mm bolts): 260 – 290 mm

• Outer clamping range (10 mm bolts): 230 – 260 mm

• Outer clamping range (20 mm bolts): 220 – 250 mm

• Construction: thermally compensated aluminum cell

• Centering bolts: 3 x 10 mm, 3 x 20 mm (Ø10 mm)

• Rubber plugs: included

• Safety straps: 3 with Velcro pads

• Storage box: included

• Viewing and imaging: safe and diffraction-limited, even at high magnifications

INCLUDES

• ASTF 200 mm OD 5.0 solar filter

• 3 centering bolts 10 mm

• 3 centering bolts 20 mm

• 3 rubber plugs

• 3 safety straps

• Mounting instructions

• Cardboard box with foam
