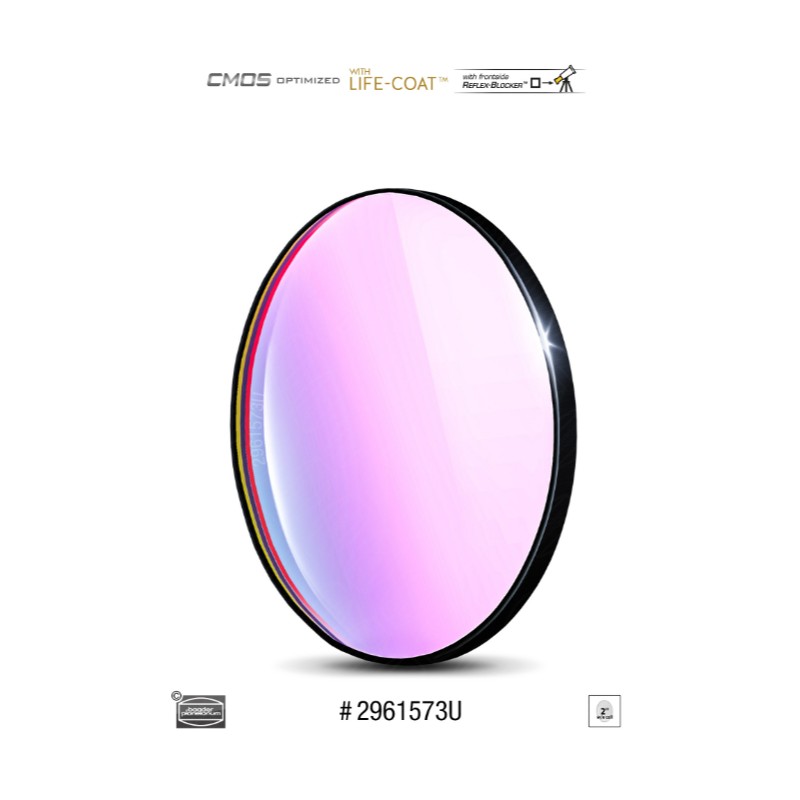

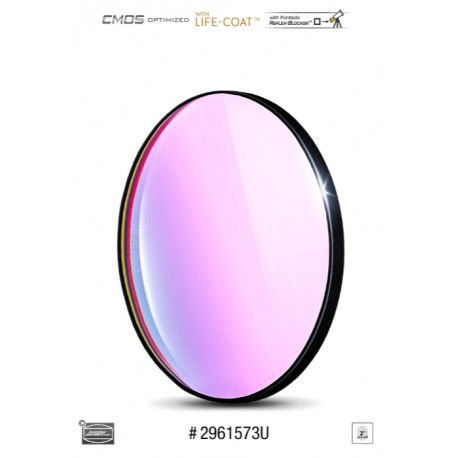

Baader UV IR Cut L 2" unmounted filter CMOS optimized (2961573U)

Baader UV IR Cut L 2" unmounted filter CMOS optimized (2961573U)

Description

The Baader UV/IR-Cut L 2" unmounted (Ø 47.4 mm, 2 mm thick) bandpass filter is designed for optical systems ranging from f/15 to f/1.8. Removed from its housing for seamless compatibility with Baader FCCT (Filter Changer Camera Tilter) filter sliders, it is particularly suitable for RASA 8" telescopes and QHY cameras.

Providing 98% transmission across the visible spectrum (420–685 nm), it effectively blocks ultraviolet and infrared radiation that cause thermal stress and blurred stars on red-sensitive CMOS and CCD sensors. The filter enhances overall image clarity, increases contrast, and protects optical systems from IR heat.

With precision planeoptical polishing and Reflex-Blocker™ hard coatings, reflections are minimized. Life-Coat™ sealed edges ensure long-term durability and resistance against environmental stress. Fully blackened edges with a telescope-side indicator enable precise orientation. Lightweight (0.01 kg), round format (47.4 mm, 2 mm thick) and sold individually, this filter is an indispensable tool for astronomical imaging.

Technical Specifications

• Manufacturer: Baader Planetarium

• Product SKU: 2961573U

• EAN code: 4047825051035

• Net weight: 0.01 kg

• Filter type: UV/IR-Cut L (bandpass)

• Mount: unmounted

• Shape: round

• Diameter: 47.4 mm (2" without cell)

• Thickness: 2 mm

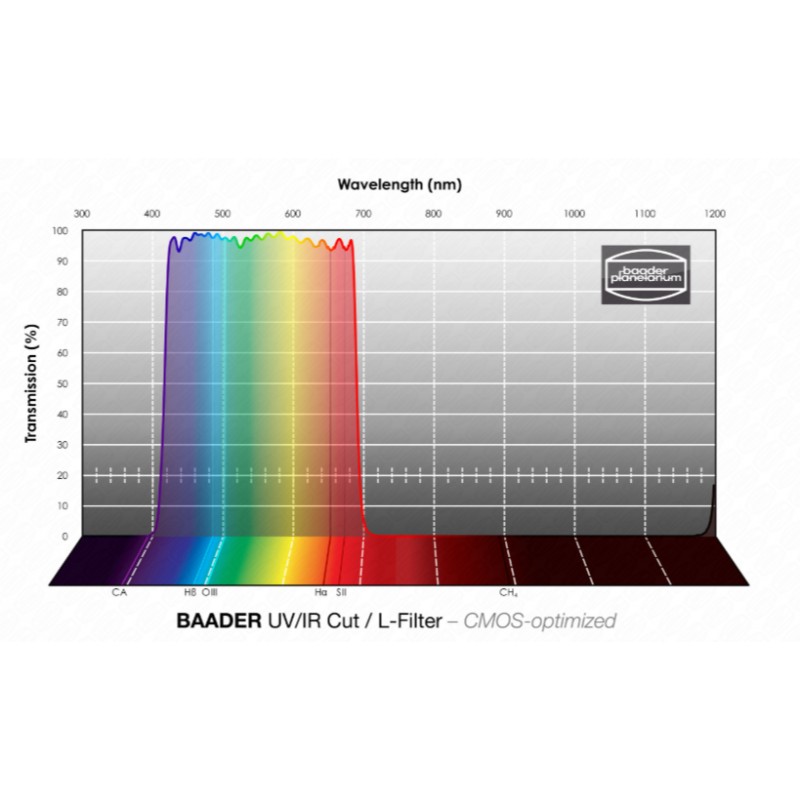

• Transmission: 98% from 420 – 685 nm

• Blocks: UV and infrared radiation

• Optical coating: Reflex-Blocker™ hard coated, planeoptically polished

• Protection: Life-Coat™ sealed coating edges

• Edges: blackened all around, telescope-side indicator

• Suitable f/ratio: f/15 to f/1.8

• Compatibility: Baader FCCT, RASA 8", QHY cameras

• Sensor suitability: optimized CMOS, excellent CCD

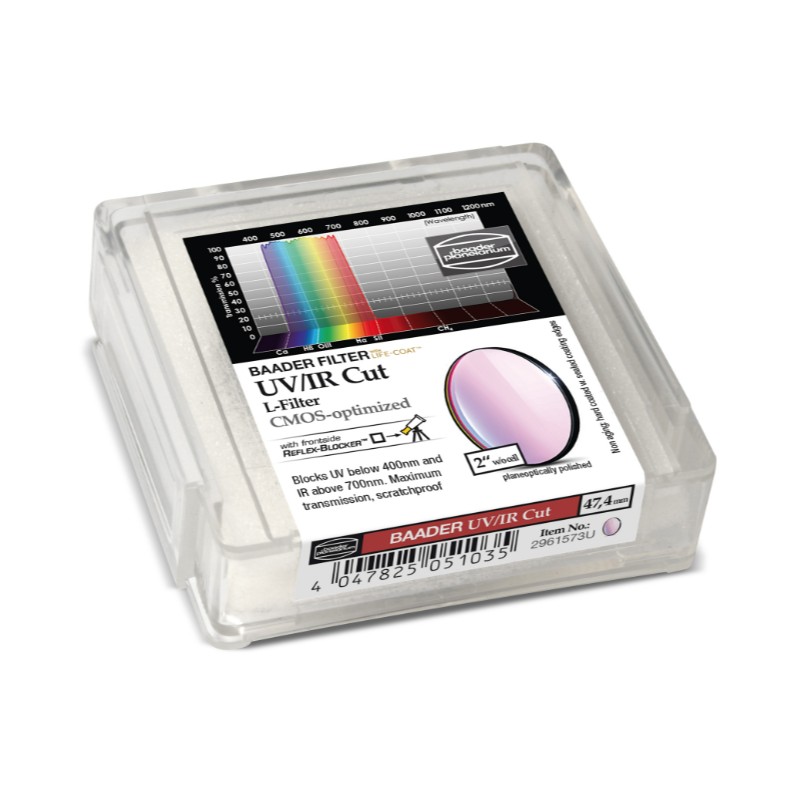

• Packaging: single filter
