Baader O-III 2" unmounted f/2 Highspeed Filter 6.5 nm CMOS optimized (2961228U)

Baader O-III 2" unmounted f/2 Highspeed Filter 6.5 nm CMOS optimized (2961228U)

Description

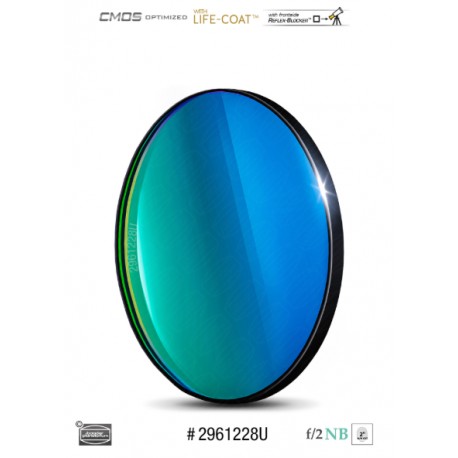

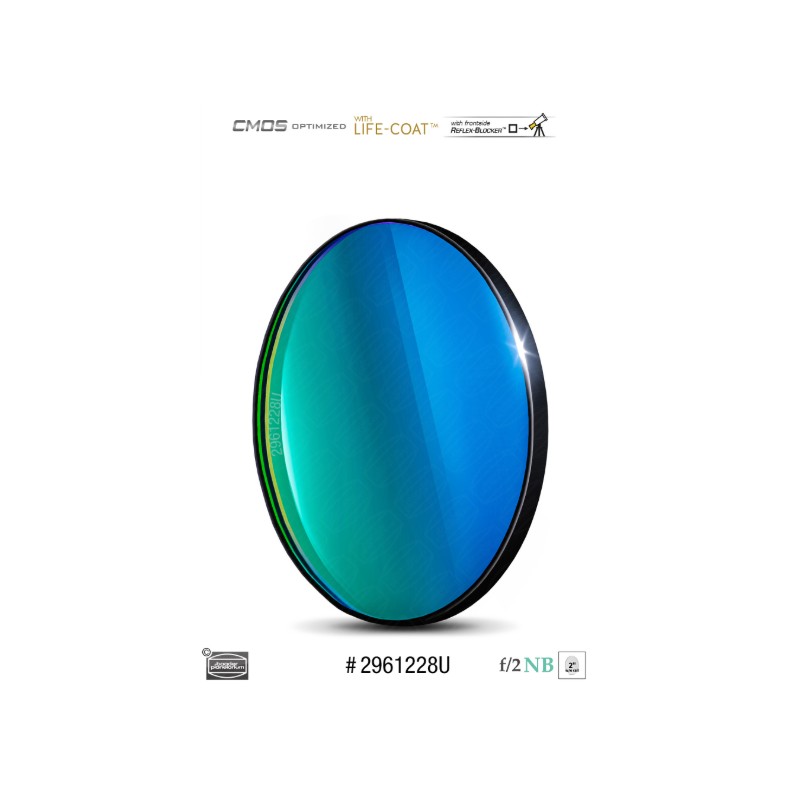

The Baader O-III 2" unmounted (Ø 47.4 mm, 2 mm thick) f/2 Highspeed Filter 6.5 nm is developed for extremely fast optical systems like the Celestron RASA f/2 astrographs. It is selected for use in Baader FCCT (Filter Changer Camera Tilter) filter sliders, compatible with QHY cameras and other versions.

Optimized for CMOS sensors, it also performs excellently with CCD cameras. With a central wavelength of 500.7 nm and a 6.5 nm bandwidth, it isolates the O-III emission line, making it ideal for planetary nebulae, supernova remnants, and other O-III-rich deep-sky targets.

Featuring planeoptical polishing and Reflex-Blocker™ hard coating, it minimizes stray reflections. Blackened edges with telescope-side indicator ensure proper orientation. Life-Coat™ sealed protection guarantees long-term durability. Lightweight (0.01 kg) and robust, it is sold as a single filter, ensuring outstanding performance in high-speed O-III astrophotography.

Technical Specifications

• Manufacturer: Baader Planetarium

• Product SKU: 2961228U

• EAN code: 4047825050984

• Net weight: 0.01 kg

• Filter type: O-III f/2 Highspeed

• Mount: unmounted

• Shape: round

• Diameter: 47.4 mm (2" without cell)

• Thickness: 2 mm

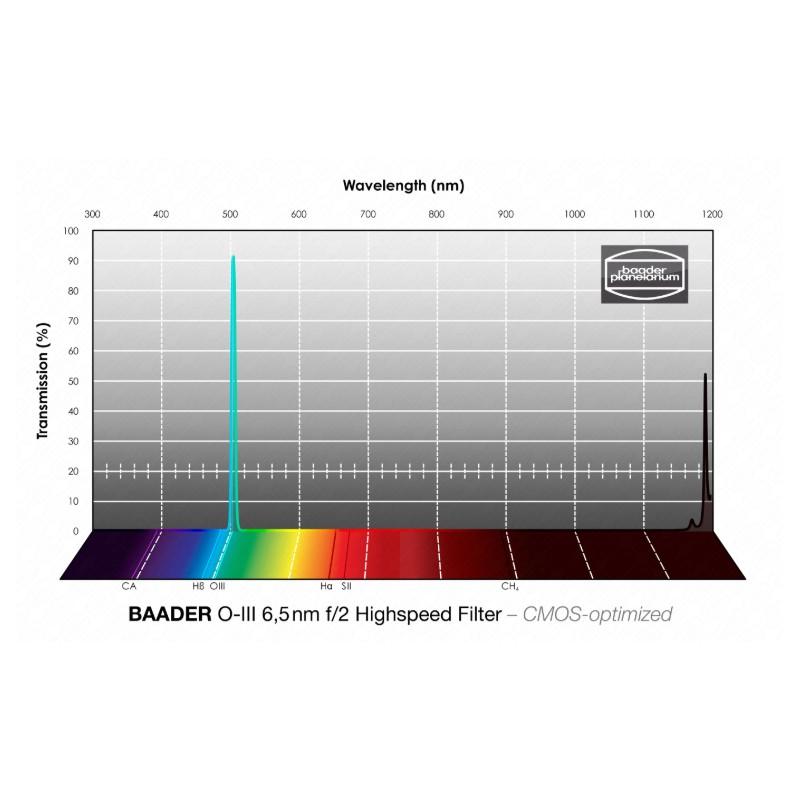

• Central wavelength (CWL): 500.7 nm

• Half bandwidth (HBW / FWHM): 6.5 nm

• Transmission: O-III line

• Coating: Reflex-Blocker™ hard coated, planeoptically polished

• Durability: Life-Coat™ sealed edges

• Edges: blackened with telescope-side indicator

• Suitable f/ratio: f/3.4 and faster

• Compatibility: Celestron RASA 8", Baader FCCT, QHY cameras, CMOS and CCD

• Application: O-III astrophotography, planetary nebulae, deep-sky

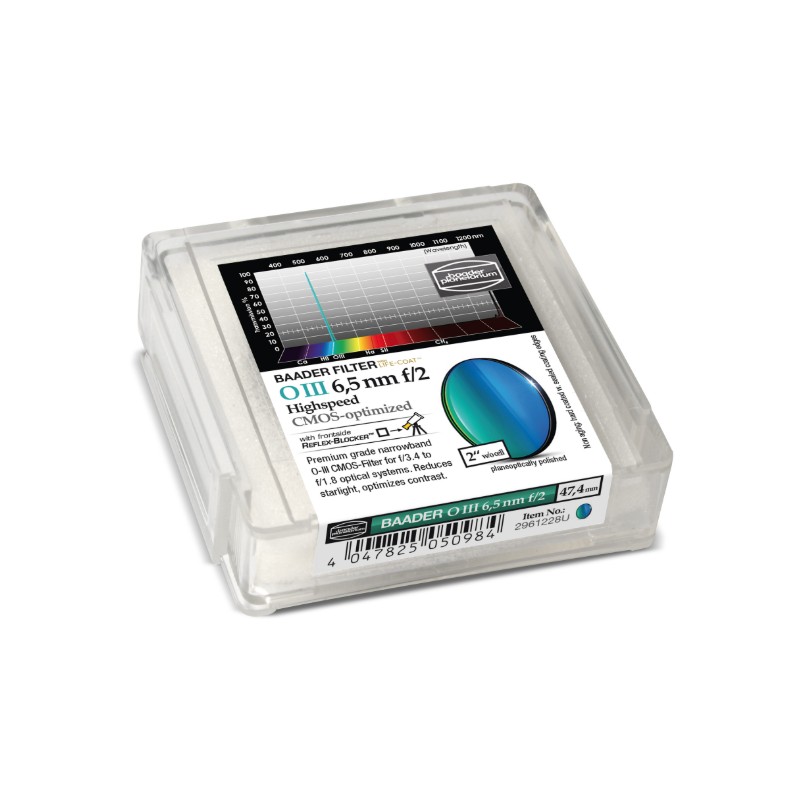

• Packaging: single filter
