Optolong UHC FILTER FOR FULL FRAME NIKON

Optolong UHC FILTER FOR FULL FRAME NIKON

This UHC, or Ultra High Contrast, filter from Optolong provides a bit more contrast than the CLS filter, but works in much the same way. By reducing the contrast-killing effects of light pollution caused by both artificial and natural sources, the background sky becomes darker, increasing the visibility of your favorite deep-sky objects. Skyglow, which is caused by neutral oxygen in the atmosphere, as well as light from high and low pressure sodium vapor lights and mercury vapor lamps are suppressed significantly, which means you can view or image from areas of heavy light pollution.

Optolong’s UHC filter lets desirable wavelengths pass at a peak transmission of 95%, including emission lines at OIII, H-Beta, NII, H-Alpha, and SII. This filter also has a substantial red passband, so objects like the Orion Nebula look awesome!

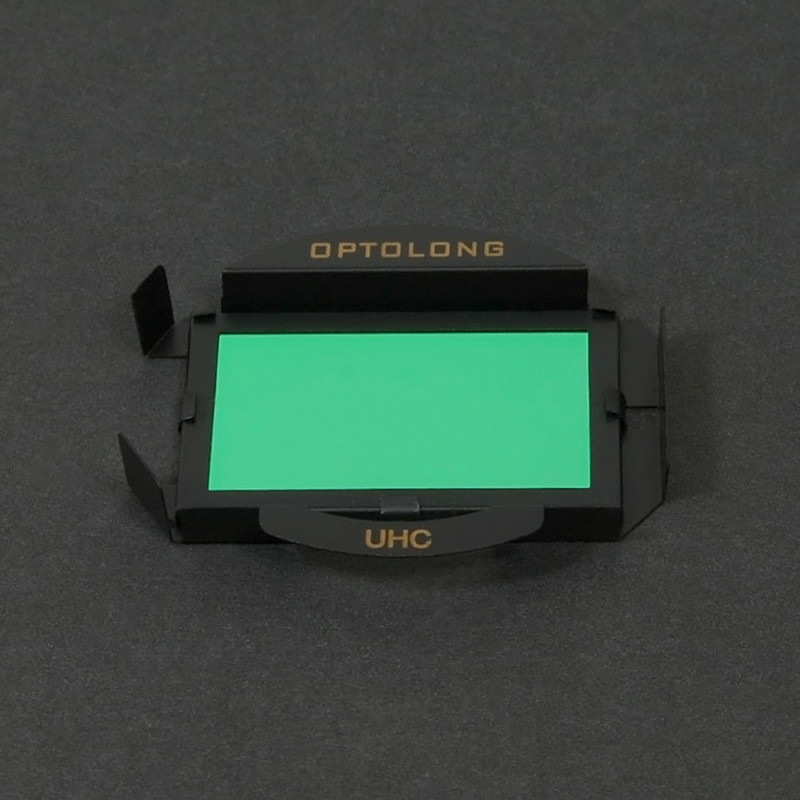

The Optolong NIKON Full Frame UHC Clip Filter is made with Schott glass that has been multi-coated with an ion-assisted deposition technology to ensure scratch resistance and stability on the central wavelength, or CWL. Each filter cell is made of lightweight, strong metal and is CNC machined, sand-blasted, black anodized, and then laser engraved.

Using a Clip Filter on your NIKON Full Frame Camera

    • The Optolong EOS FF Clip filter can be inserted without tools; just use your fingers to insert or remove the filter. Once inserted correctly, it cannot unintentionally fall out.

    • No changes to the housing of NIKON  DSLR are required. All lens functions will work with the Clip installed, including focus, screen, and image stabilization,

    • The Optolong clip filter prevents dust from settling on the sensor during long exposures.

    • The NIKON FF clip filters are compatible with NIKON Full Frame series cameras
    • Schott B260 substrate material from Germany, 1.0mm thick

    • CNC machined and black anodized aero-metal filter cell that is ultra-thin to provide largest clear aperture; Laser-engraved to prevent fading

  • Multiple layers of anti-reflection non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition

Optolong Filter Manufacturing Processes and Parameters

    • Filter substrate is fine-optically polished to 1/4 wave and <30 parallelism over both surfaces

    • Surface quality, according to MIL-O-13830, is 60/40

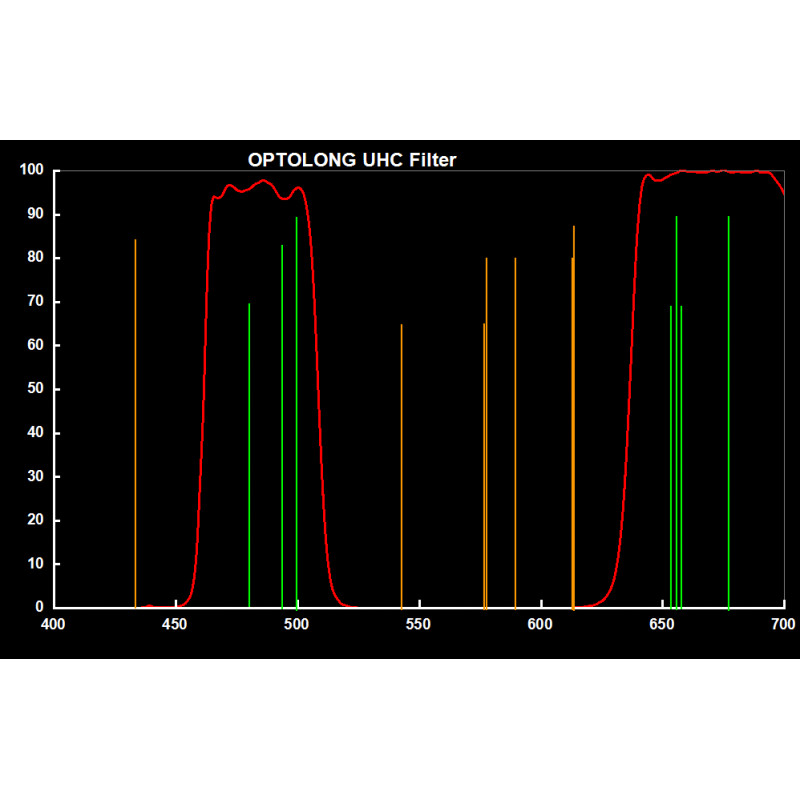

    • 95% transmission of main nebula emission lines (i.e. H-alpha 656nm, OIII 496nm and 500nm, SII 672nm and H-beta 486nm

    • 0.1% transmission of off-band, specifically the major emission lines of artificial light pollution (i.e. Na 589nm, Hg 435nm and 578nm)

    • Optolong’s planetary rotation system is a homogenous and precise coating procedure that ensures both high transmission of pass-band and optical density of off-band

  • Each filter comes with a plastic case with high pressure EVA case lining

About Optolong

Optolong is the Astronomy Filters division of Yulong Optics, an optical filter design and processing company out of Kunming, China that has provided filters for over 700 optical companies since 1999. All Optolong filters pass European Union RoHS requirements and have been certified by TUV Rheinland and Bureau Veritas.

SPECIFICATIONS:

Model Number NIKON FF-UHC
Filter - Single or Set? Single Filter
Filter Size NIKON Full Frame Clip
Filter Type Broadband Deep-Sky
Filter Shape NIKON Clip
Mounted or Unmounted? Mounted
