iOptron Hybrid AZ/EQ Mount HAE29C-EC dual SWG with iPolar (Ref. HE294C)

iOptron Hybrid AZ/EQ Mount HAE29C-EC dual SWG with iPolar (Ref. HE294C)

Description:

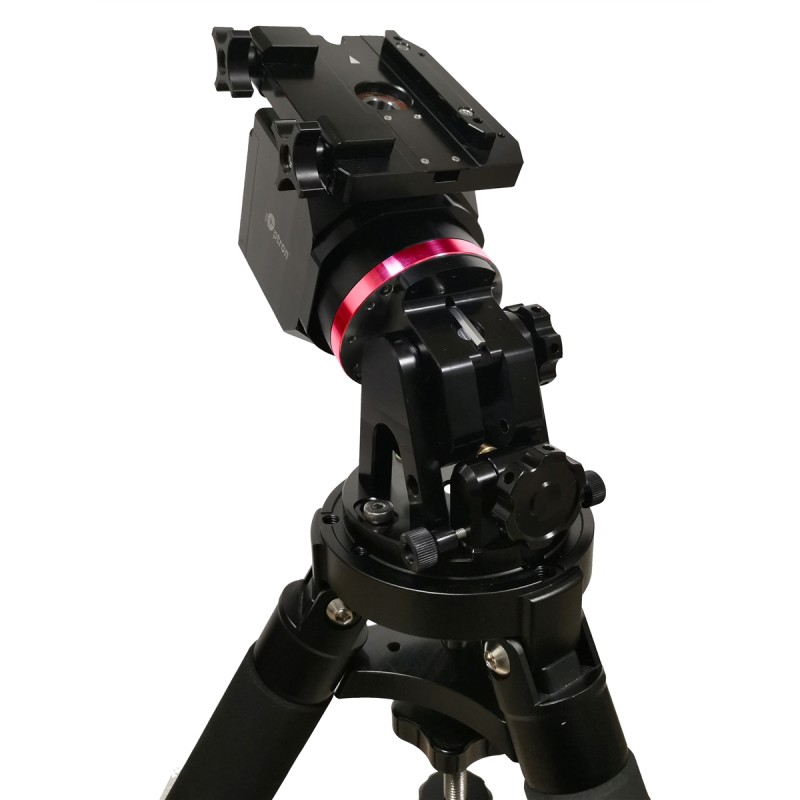

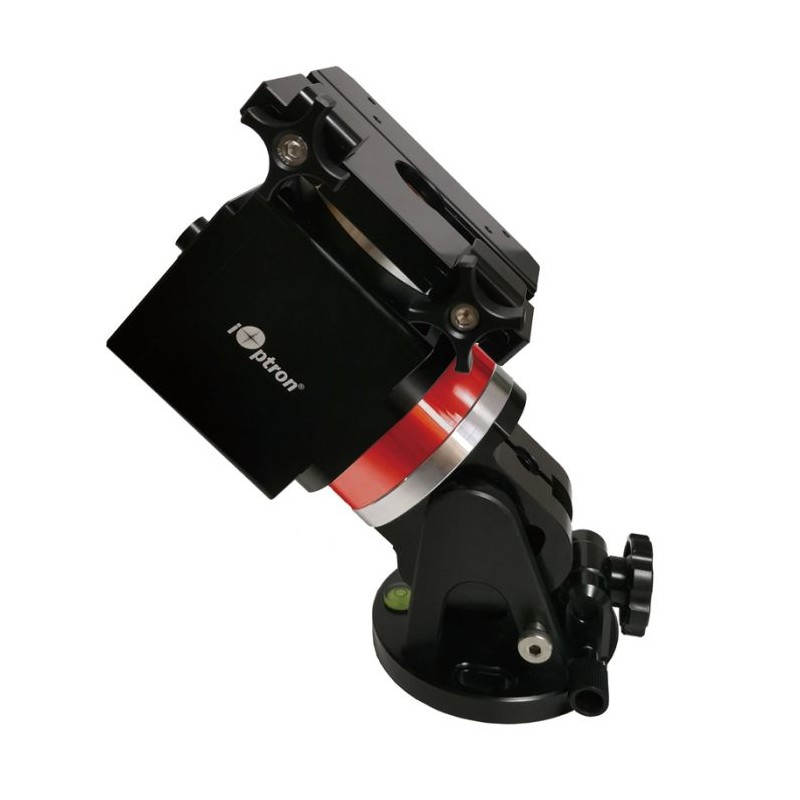

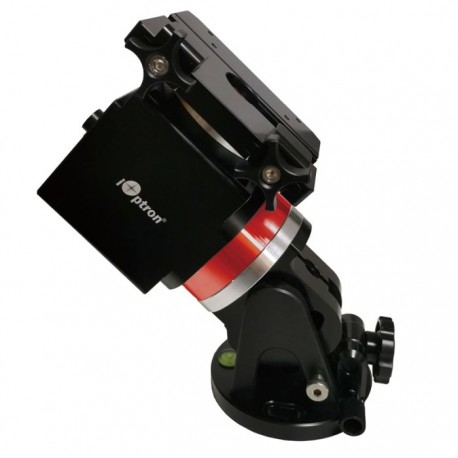

The iOptron HAE29C-EC AZ/EQ dual SWG with iPolar is a compact, high-precision mount for portable astronomy. It features strain wave gear drive on both axes, a high-resolution encoder on the RA axis, and real-time periodic error correction (PEC).

Weighing only 3.7 kg (8.15 lbs) with dovetail saddle, the mount handles up to 13.5 kg (29.7 lbs) of payload without counterweights, or 18 kg (40 lbs) with optional counterweights. The iPolar electronic polar scope is included, providing assisted polar alignment via software.

The mount operates without a hand controller via built-in USB and Wi-Fi. Control is possible through iOptron Commander (Windows), INDI (Linux/macOS/RPi), or compatible apps. The Go2Nova® 8411 OLED hand controller is optional.

Technical specifications:

• Mount type: hybrid AZ/EQ

• RA/DEC drive: strain wave gear

• Gear ratio RA: 480:1

• Gear ratio DEC: 360:1

• Payload (no CW): 13.5 kg (29.7 lbs)

• Payload (with CW): 18 kg (40 lbs)

• Mount weight: 3.7 kg (8.15 lbs)

• High precision encoder: yes (RA)

• PEC: yes, real-time

• Worm period: 360 seconds

• Material: CNC-machined aluminum

• Finish: anodized black

• Max slew speed: 6°/s

• Tracking: automatic

• Power input: DC 12 V, 5 A (5.5 x 2.1 mm plug)

• Power usage: 0.6 A (tracking), 1 A (GoTo)

• AC adapter: 100–240 V (included, indoor use only)

• Polar scope: iPolar included

• Interfaces: built-in USB and Wi-Fi

• Autoguide port: ST-4 compatible

• Hand controller: optional Go2Nova® 8411

• Firmware upgrade: via USB

• Dovetail saddle: Vixen & Losmandy

• Tripod: optional

• Counterweight shaft: optional (SS Ø20x200 mm, 3/8"-16 thread)

• Counterweight: 10 lbs (4.5 kg) optional

• Operating temp: -20°C to +45°C

• Carrying case: included

• Warranty: 2 years

Additional information:
This version of the HAE29C-EC includes the iPolar electronic polar scope for assisted polar alignment. The mount also supports software-based Polar Align routines via iOptron Commander or the optional hand controller. It is suitable for lightweight imaging setups using refractors up to 115 mm in aperture or compact reflectors. Compatible with iOptron MiniPier, Tri-Pier, and LiteRoc tripods.
