iOptron HEM27 Mount with iPolar

Ultra-light hybrid equatorial mount with harmonic RA drive, built-in iPolar scope, cable management, and Go2Nova hand controller.

More details

Available in stock from the supplier. Please contact us for more information.

1'824.00 CHF tax incl.

More info

iOptron HEM27 Mount with iPolar

DESCRIPTION

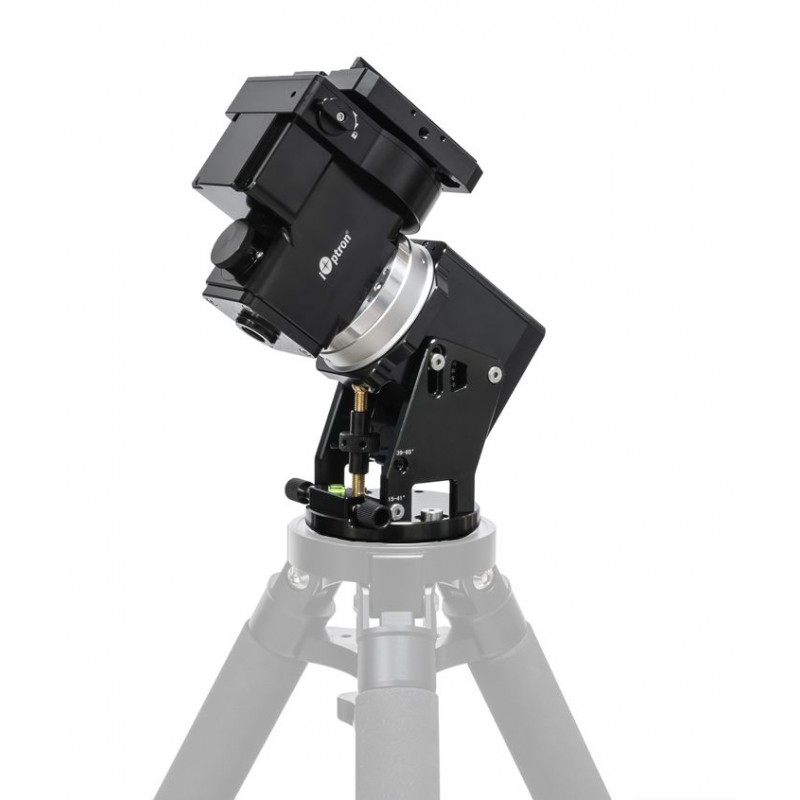

The iOptron HEM27 is a new-generation hybrid equatorial mount designed for high portability, precision, and reliability. It combines a strain wave gear drive in right ascension (RA) with a zero-backlash worm/belt drive in declination (DEC). Weighing only 3.7 kg (8.15 lbs), it supports up to 13.5 kg (29.7 lbs) of payload without counterweights.

The CNC-machined, black anodized aluminum body ensures durability and visual appeal. An integrated electronic friction brake safely locks the mount in place during unexpected power loss.

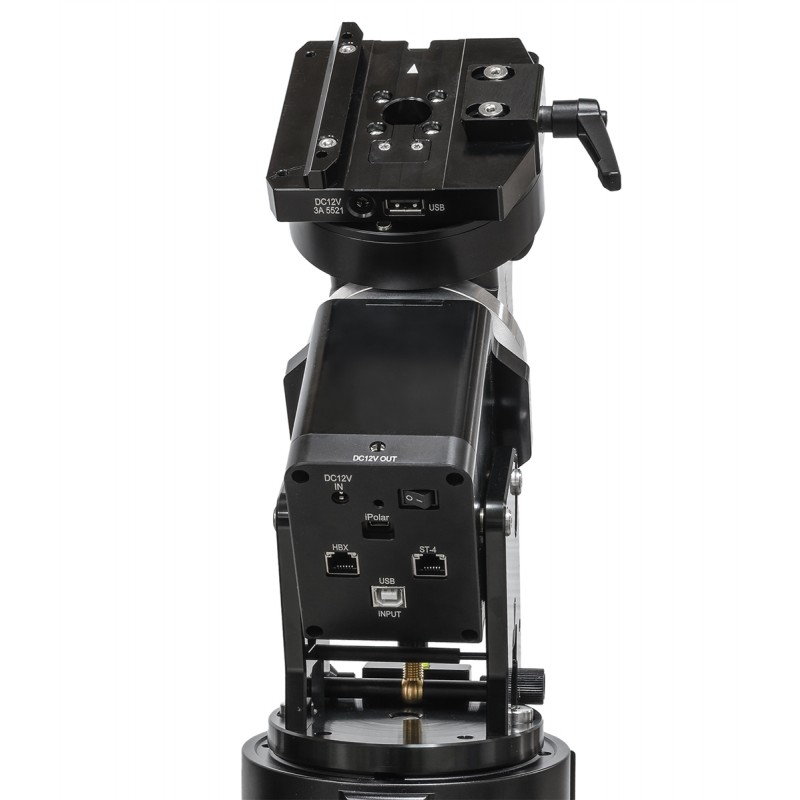

The built-in iPolar electronic polar scope allows fast, accurate polar alignment—even when Polaris is not visible. All cables are internally routed, avoiding snags or wrapping issues. The HEM27 also features a Go2Nova hand controller with a 212,000-object database, an ST-4 port, a dual Vixen/Losmandy saddle, Wi-Fi (via hand controller), and a USB port for firmware updates and PC control.

It can be controlled via Windows (ASCOM/iOptron Commander), macOS or Raspberry Pi (INDI), or mobile devices via iOptron Commander Lite or SkySafari.

TECHNICAL SPECIFICATIONS
• Type: Hybrid equatorial mount without counterweight
• RA Drive: Strain wave + belt (480:1 ratio)
• DEC Drive: Worm + tensioned belt
• Payload (no counterweight): 13.5 kg (29.7 lbs)
• Mount head weight: 3.7 kg (8.15 lbs)
• Polar scope: Integrated iPolar electronic polar scope
• Brake: Electronic friction brake
• Cable management: Fully internal, no moving cables
• Hand controller: Go2Nova (212,000 celestial objects)
• Saddle: Dual Vixen/Losmandy D
• Autoguiding: Integrated ST-4 port
• Connectivity: USB / Wi-Fi (via hand controller)
• Software compatibility: ASCOM, INDI, SkySafari, iOptron Commander Lite
• Mobile control: iOS, Android, Raspberry Pi
• Power: 12V DC

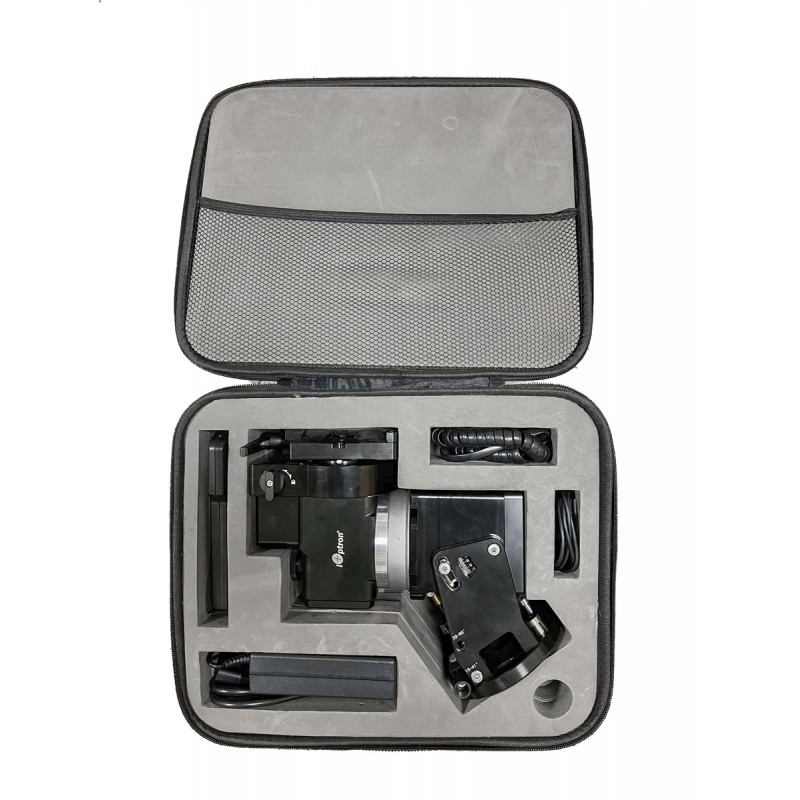

• Included accessories: Soft carrying case
• Warranty: 2 years
